75 Gallon Mobile Hi-Boy Whirlpool
Whitehall offers a wide variety of different sizes and shapes to allow clinicians and therapists to select the products that best meet their users’ needs.
Whitehall® whirlpools can function as both whirlpool tubs and a cold tank by removing the turbine assembly and thermometer when cold temperature is required. The turbine assembly and thermometer can be replaced to covert the tank back to warm-water whirlpool use.
The WHH-75-M mobile whirlpools are recommended for shallow or deep body immersion offering complete coverage of the lower extremities as well as the lower back and hip.
Dimensions: Tank Length | 42 inches (1,065 mm) Tank Width | 20 inches (510 mm) Tank Depth | 28 inches (710 mm) Tank Height | 35 inches (890 mm) Tank Capacity | 75 Gallons (283.90 liters)
Ideal for use on the lower back on down
Tanks are fabricated of heavy-duty Type 304 stainless steel providing strength and durability. Stainless steel is one of the easiest materials to clean and sanitize. The tank can be a canvas to promote team spirit with Enviro-Glaze® powder coating and provision of team or organizational logo.
HI-BOY WHIRLPOOL
It’s in the name! Hi-Boy Whirlpools feature taller sidesfor use on the back, hip, and shoulder areas. Hi-Boy whirlpools can accommodate full-body immersion for difficult-to-reach areas, but they can also be paired with an Adjustable Suspension Seat or Tank Top Seat to comfortably access the lower extremities as well. Hi-Boy Whirlpools can also be converted into ice baths for cold temperatures simply by removing the turbine assembly!
MOBILE WHIRLPOOLS
- Saves time – No special plumbing connection required
- Use anywhere – Reversing turbines (standard) used to pump used water out of tank and into available sink/drain
- Convenient – Can be easily moved
- Smooth transport – Features heavy-duty locking casters

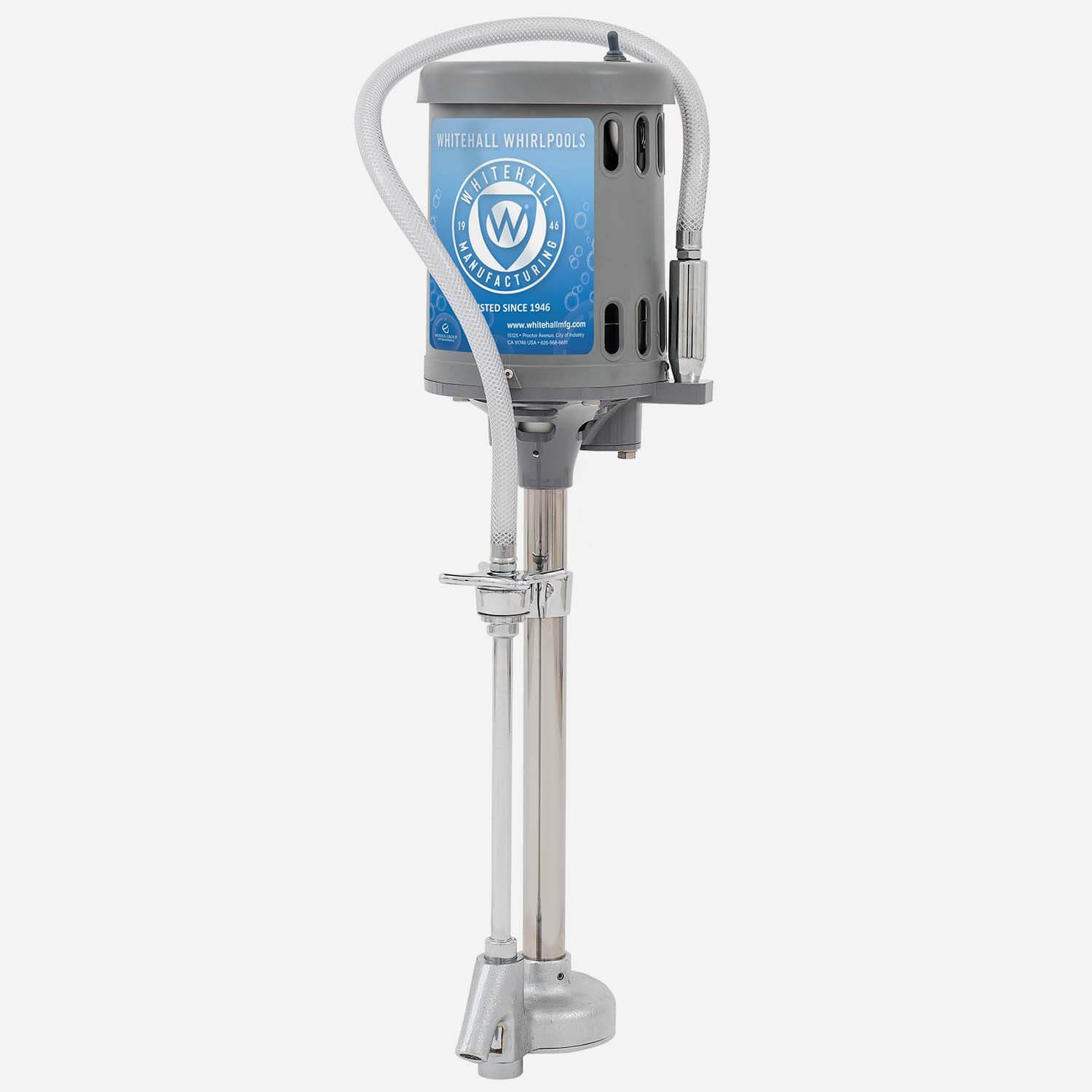

Turbine Assembly is equipped with Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome-plated brass or bronze. Stationary Whirpools are provided with aerator cap. Mobile and Legs Whirlpools are provided with a pump-out hose assembly. Through certification from Intertek, the turbine meets US & Canadian Medical Standards UL 60601-1 & CSA C22.2 No. 601.1 and European Standards IEC 60601-1. Turbines operating with 115 Volts require 6.9 Amps 50 Hertz or 6.2 Amps 60 Hertz. Turbines operating with 230 Volts require 3.5 Amps 50 Hertz or 3.1 Amps 60 Hertz. Cord Type of European, United Kingdom, Australia,India or Israel must be specified for 230 Volts.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Mobile Whirlpools [WHE-10-M, WHE-10-MH, WHE-10-MU, WHE-15-M, WHE-15-MH, WHE-15-MU, WHE-22-M, WHE-22-MU, WHE-27-M, WHE-45-M, WHH-60-M, WHH-75-M, WHH-90-M, WHH-105-M, WHL-75-M, WHL-90-M, WHL-105-M, WHS-85-M, WHS-90-M, WHS-110-M, WHSB-100-M] | 0 | 585 KB | ||
| | 75 Gallon Mobile Hi-Boy Whirlpool [WHH-75-M | With Standard Drain; WHH-75-M-SDP | With Separate Drain and Pump] | 0 | 241 KB |
Specifications
| Capacity in Liquid Volume | 75 gallons |
| Mobility | Mobile |
| Whirlpool Tank Style | Hi-Boy |
| Material | Stainless Steel |
| Body Treatment Location(s) | Lower Back on Down |
| Appropriate for | Athletic Trainer, Physical Therapist, Podiatrist, Hand Therapist |
| Compliances | ETL Classified Intertek 5016885 |
Options
Accessories
Miscellaneous
Models
Select Drain Type for Mobile Whirpools
Standard Drain
Option -SDP Separate Drain Pump
Select Plug Type for Supplied Turbine
Standard Plug
Option -GFI Ground Fault Interrupter
Specify: 115 Volts or 230 Volts For 230 Volts specify: for use in European, United Kingdom, Australia, India or Israel
Select Finish and/or Custom Graphics:
