Name: BestCare® Ligature-Resistant Grab Bar with V-Closure Strip
Brand: Whitehall Manufacturing
SKU: WH1140 Series

Model WH1140 Series

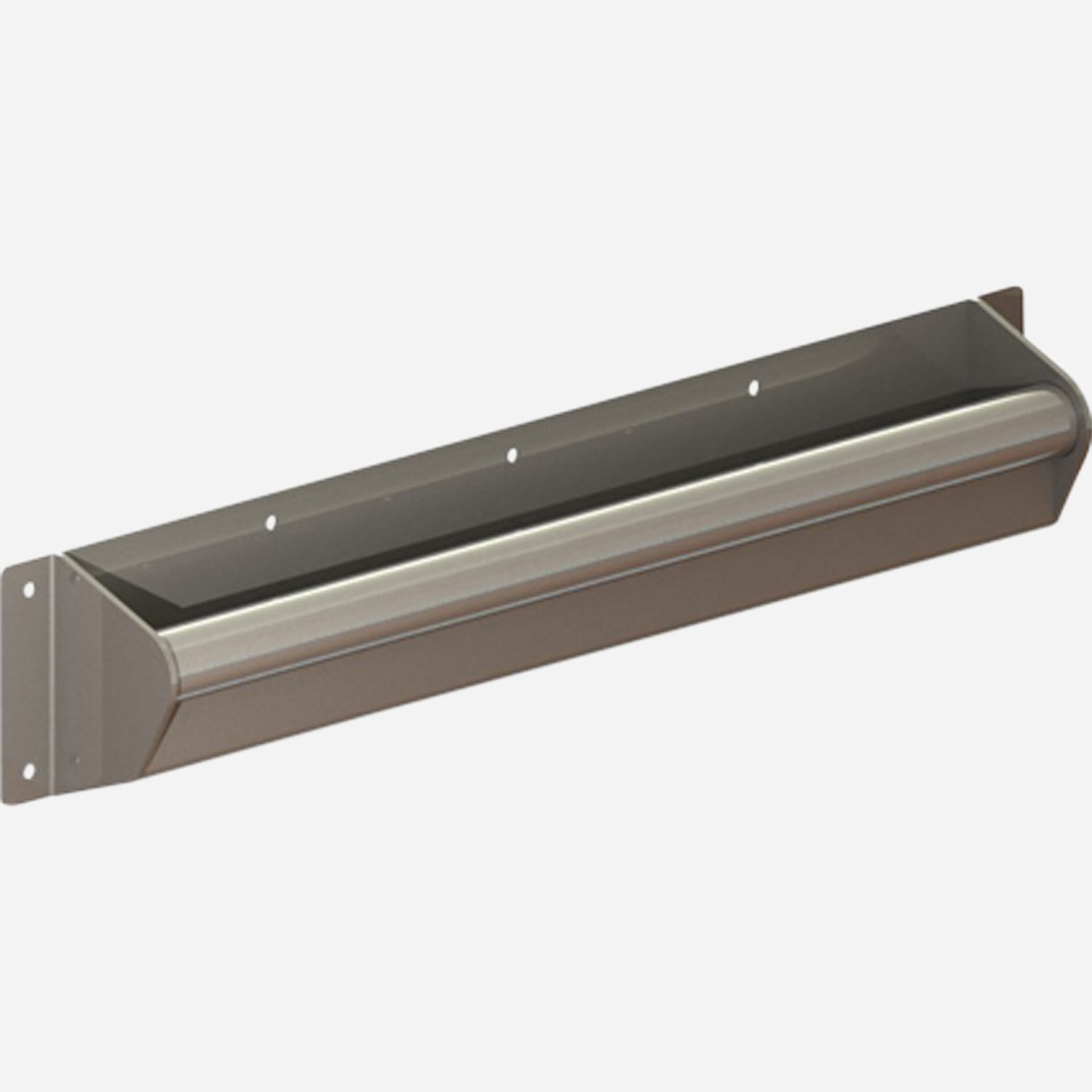

BestCare® Ligature-Resistant Grab Bar with V-Closure Strip

BestCare® Ligature-Resistant Grab Bars are designed to help meet the needs of the disabled. Grab bars are constructed of 1.5 inch (38 mm) outer diameter type 304 stainless steel tubing with a 14 gauge V shaped closure strip welded to the bottom of the bar. Closure plate includes intermittent welds along wall plate and small holes opposite grab bar to prevent pooling of water and allow water to drain. Exposed surfaces are polished to a satin finish. Grab bars and have a 1.5 inch (38 mm) minimum space between the grab bar and the mounting surface. Grab bars are not recommended for installation in areas of high security.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 102813.19, Healthcare Toilet Accessories (doc)	Whitehall Mfg - Healthcare Accessories including safety hooks, shelves, toilet tissue holders, paper towel holders, soap dishes, and mirrors.	120 KB
Images	WH1140-24 Grab Bar (hi res jpg)	BestCare® Ligature-Resistant Grab Bar with V-Closure Strip [WH1140-24] 24" Length	85 KB
Installation Instructions	Install Guide WH1140 Series Grab Bars (pdf)	BestCare® Ligature-Resistant Grab Bar with V-Closure Strip [WH140-18 \| 18" Long; WH1140-24 \| 24" Long; WH1140-30 \| 30" Long; WH1140-36 \| 36" Long; WH1140-42 \| 42" Long; WH1140-48 \|48" Long]	60 KB
Submittals	Submittal WH1140 Series Grab Bars (pdf)	BestCare® Ligature-Resistant Grab Bar with V-Closure Strip [WH140-18 \| 18" Long; WH1140-24 \| 24" Long; WH1140-30 \| 30" Long; WH1140-36 \| 36" Long; WH1140-42 \| 42" Long; WH1140-48 \|48" Long]	121 KB
Product MasterSpec	MasterSpec: 102813.19, Healthcare Toilet Accessories (pdf)	Whitehall Mfg - Healthcare Accessories including safety hooks, shelves, toilet tissue holders, paper towel holders, soap dishes, and mirrors.	141 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Technical Data Sheets	Whitehall Cleaning and Care Guide (pdf)	Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces.	928 KB
Brochures/Flyers	BestCare Ligature-Resistant Brochure (pdf)	BestCare Ligature-Resistant Brochure (pdf)	48 MB

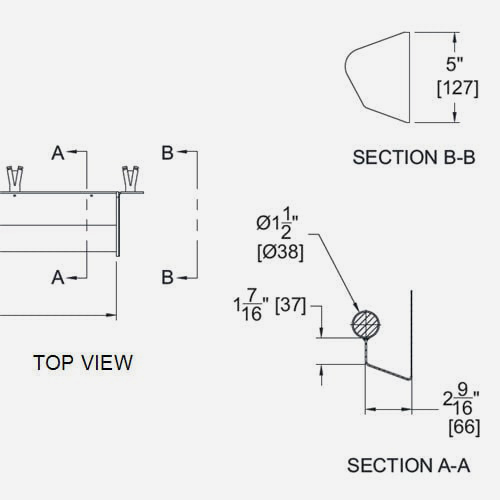

Drawings	WH1140 Series (36") Grab Bar (rfa)	BestCare® Ligature-Resistant Grab Bar with V-Closure Strip [file currently available WH1140-36 Length 36"]	476 KB
Drawings	WH1140 Series (36") Grab Bar (dwg)	BestCare® Ligature-Resistant Grab Bar with V-Closure Strip [Current file available WH1140-36 Length 36"]	46 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	BestCare®
Material	Stainless Steel
Type of Mount	Wall Mount
Patent	Pending, D799,303
Features	V-Shaped Closure Plate, Ligature-Resistant Design
CSI Divisions	Division 10

Models

Standard Lengths are shown below

18" (457 mm) Length All-Stainless Steel WH1140-18[IN STOCK] White Powder Coat WH1140-18-EG10

24" (610 mm) Length All-Stainless Steel WH1140-24[IN STOCK] White Powder Coat WH1140-24-EG10

30" (762 mm) Length All-Stainless Steel WH1140-30[IN STOCK] White Powder Coat WH1140-30-EG10

36" (914 mm) Length All-Stainless Steel WH1140-36[IN STOCK] White Powder Coat WH1140-36-EG10

42" (1,067 mm) Length All-Stainless Steel WH1140-42[IN STOCK] White Powder Coat WH1140-42-EG10

48" (1,219 mm) Length All-Stainless Steel WH1140-48[IN STOCK] White Powder Coat WH1140-48-EG10
