BestCare® Dignity Suite® Ligature-Resistant Aluminum Grab Bar

In StockThis product is available for quick shipment nationwide.
Find A Representative
Model WHD-GB Series
Installation Instructions
Install Guide WHD-GB Series Grab Bar (pdf)
Submittal
Submittal WHD-GB Series Grab Bars (pdf)
WM 0132712959651295801 jpg
Model WHD-GB Series

BestCare® Dignity Suite® Ligature-Resistant Aluminum Grab Bar

Whitehall BestCare® Dignity Suite® is a curated collection of ligature-resistant bathroom fixtures and accessories. Designed to create a peaceful and well-balanced environment, the Dignity Suite® is stylish and sleek while simultaneously protecting patients' safety.

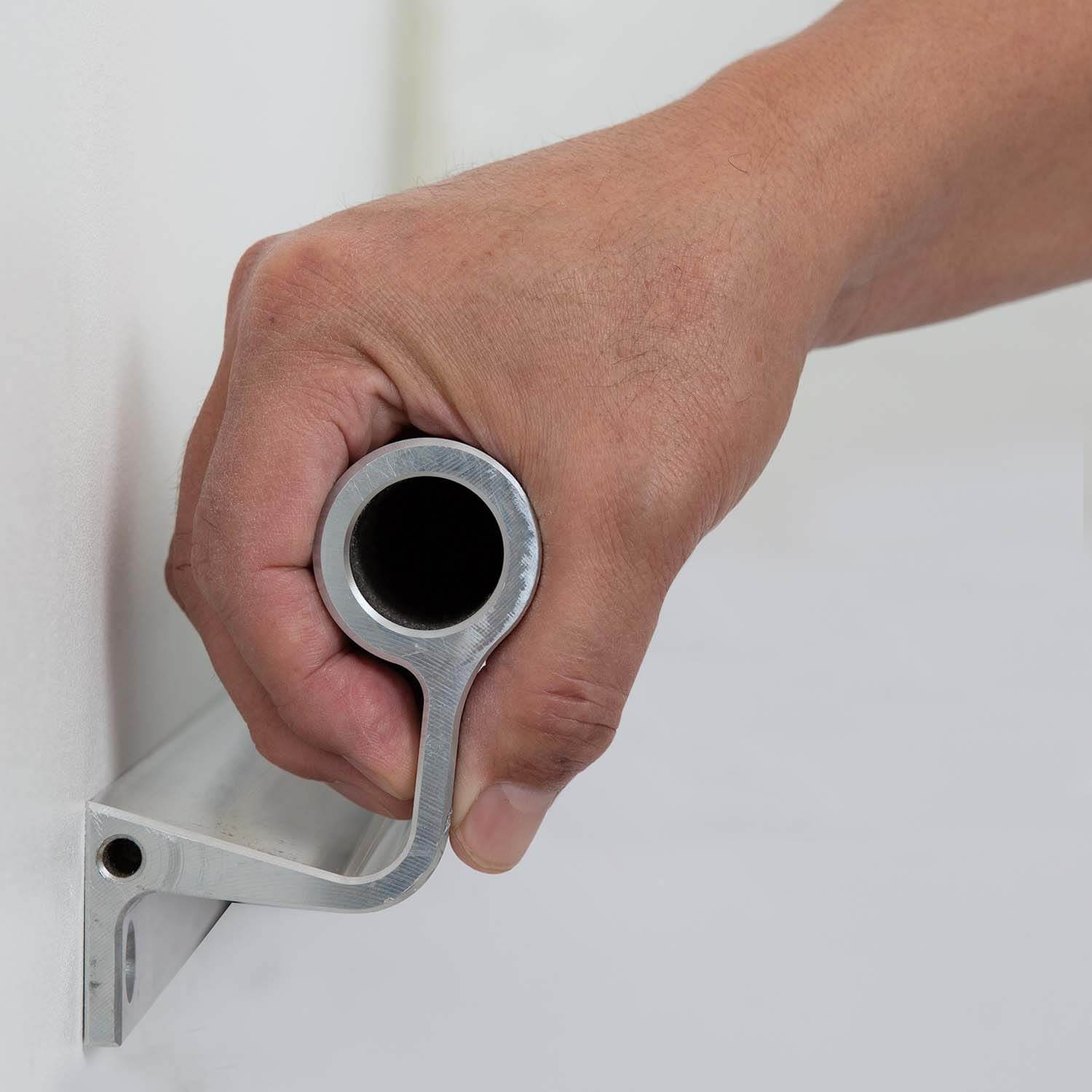

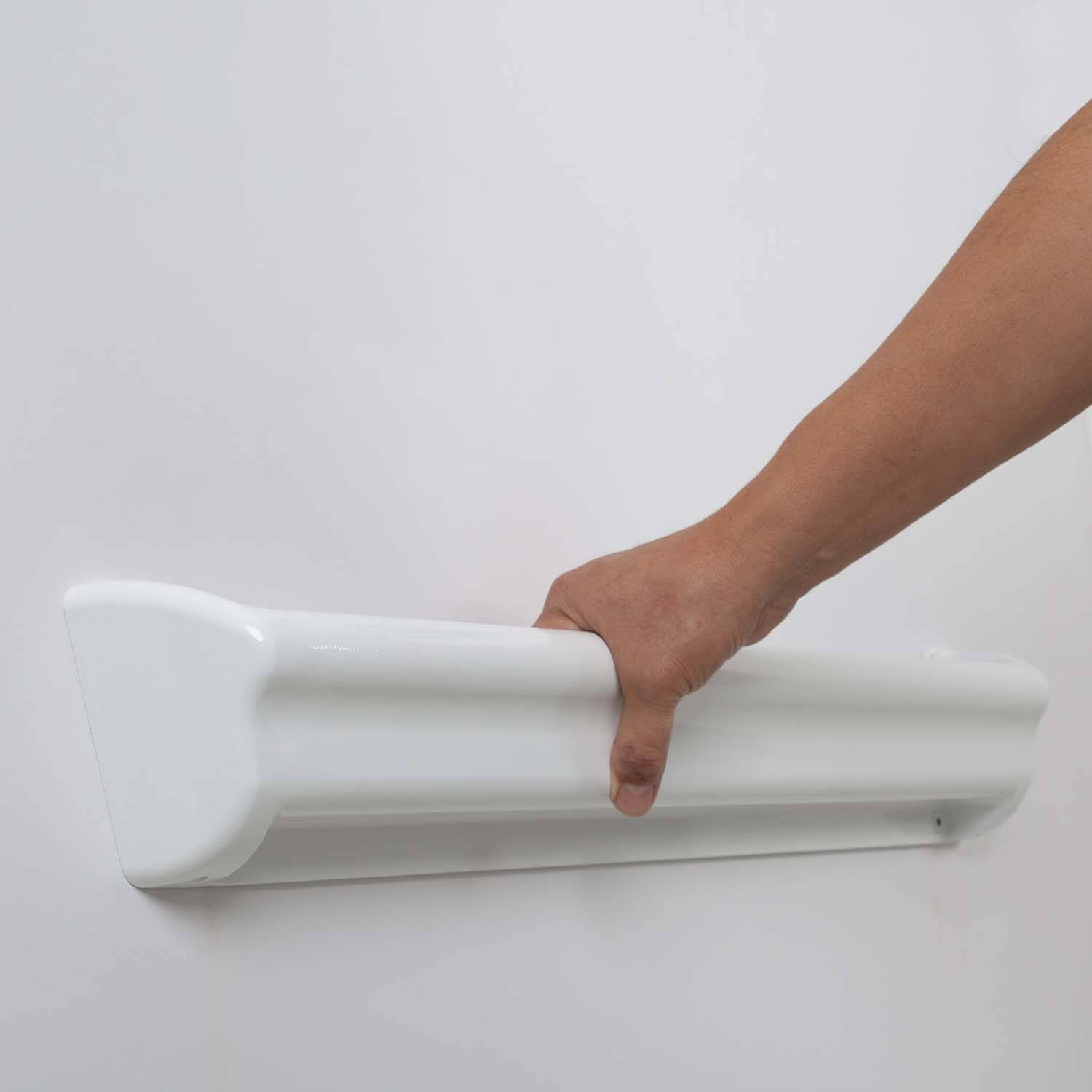

The Dignity Suite® Grab Bar combines safety with patient-friendly looks and function. The units are constructed of cast aluminum to provide strength while eliminating common ligature points. The standard finish provided is Snow White (EG10) Enviro-glaze® color powder coat. The design includes weep holes to assist with drainage when used in shower applications. Grab Bar is provided with 1/4”-20 UNC Stainless Steel vandal-resistant fasteners. Wall anchors are provided by others. The unit is intended for installation on a finished wall from the front side.

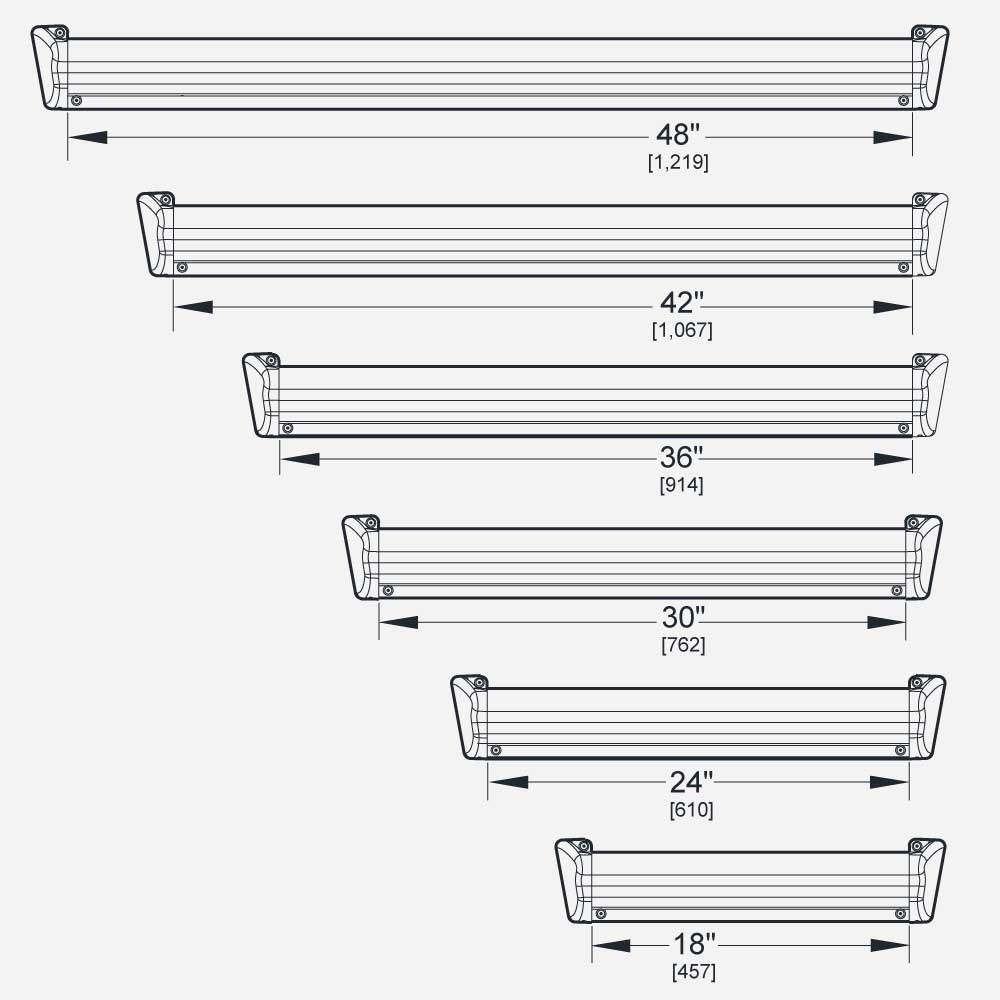

Grab bars are available in nominal lengths of 18" (457 mm), 24" (610 mm), 30" (762 mm), 36" (914 mm), 42" (1,067 mm), and 48" (1,219 mm).

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Install Guide WHD-GB Series Grab Bar (pdf)
BestCare® Dignity Suite® Ligature-Resistant Aluminum Grab Bar [18", 24", 30", 36", 42", 48" length]66 KB
PDF icon
Submittals
PDF icon
Submittal WHD-GB Series Grab Bars (pdf)
Whitehall® BestCare® Dignity Suite® Ligature-Resistant Aluminum Grab Bar - available in 18", 24", 30", 36", 42", 48"121 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
PDF icon
Brochures/Flyers
PDF icon
BestCare Solutions Flyer (pdf)
BestCare Solutions Flyer (pdf)181 KB
PDF icon
Brochures/Flyers
PDF icon
BestCare Ligature-Resistant Brochure (pdf)
BestCare Ligature-Resistant Brochure (pdf)48 MB
PDF icon
Brochures/Flyers
PDF icon
Mobile Tradeshow Guide (pdf)
The Whitehall & AcornVac Mobile Showroom Guide571 KB
RFA icon
Drawings
RFA icon
Dignity Suite (rfa/dwg/zip)
Contains WH2898D-SO.rfa, WHD-BSN.rfa, WHD-BSN.zip (CAD),WHD-CF.rfa, WHD-GB Series.rfa (multiple std sizes), WHD-MR.rfa, WHD-SHD-W.rfa,WHD-SHD-W.zip (CAD), WHD-SHV10.rfa, WHD-SHV15.rfa, WHD-TP.rfa, WHSHD-C.rfa, WHSHD-C.zip (CAD)5 MB
Video icon
Videos
Video icon
An Inside Look at the BestCare® Dignity Suite® (video)
The Dignity Suite® is a curated collection of ligature-resistant bathroom fixtures & accessories. Designed to create a peaceful & well-balanced environment, the Dignity Suite® is stylish & sleek while simultaneously protecting patients safety.132 KB
Video icon
Videos
Video icon
BestCare® Dignity Suite® Flush Valve Cover Installation (video)
Whitehall Manufacturing has introduced a new animation showing how to install the Dignity Suite® Flush Valve Cover.133 KB

Specifications

BrandDignity Suite®, BestCare®
MaterialCast Aluminum
Appropriate forLigature Resistant
Fixture Width24", 36", 42", 48", 30", 18"
PatentUS D962,743 S
FeaturesLigature-Resistant Design
CSI DivisionsDivision 10

Models

Standard variations for this product include a cast aluminum construction with Snow White [-EG10]Enviro-Glaze® powder coating.

white 42 inch SNOW WHITE POWDER COATING WHD-GB18-EG10 18" (457 mm) Nominal Length WHD-GB24 -EG10 24" (610 mm) Nominal Length WHD-GB30 -EG10 30" (762 mm) Nominal Length WHD-GB36 -EG10 36" (914 mm) Nominal Length WHD-GB42 -EG10 42" (1,067 mm) Nominal Length WHD-GB48 -EG10 48" (1,219 mm) Nominal Length
