BestCare® Ligature-Resistant Access Doors

Name: BestCare® Ligature-Resistant Access Doors
Brand: Whitehall Manufacturing
SKU: WH2805 Series

In StockThis product is available for quick shipment nationwide.

Find A Representative

Model WH2805 Series

Installation Instructions

Install Guide WH2805 Access Door (pdf)

Submittal

Submittal WH2805 Series Access Door (pdf)

Model WH2805 Series

BestCare® Ligature-Resistant Access Doors

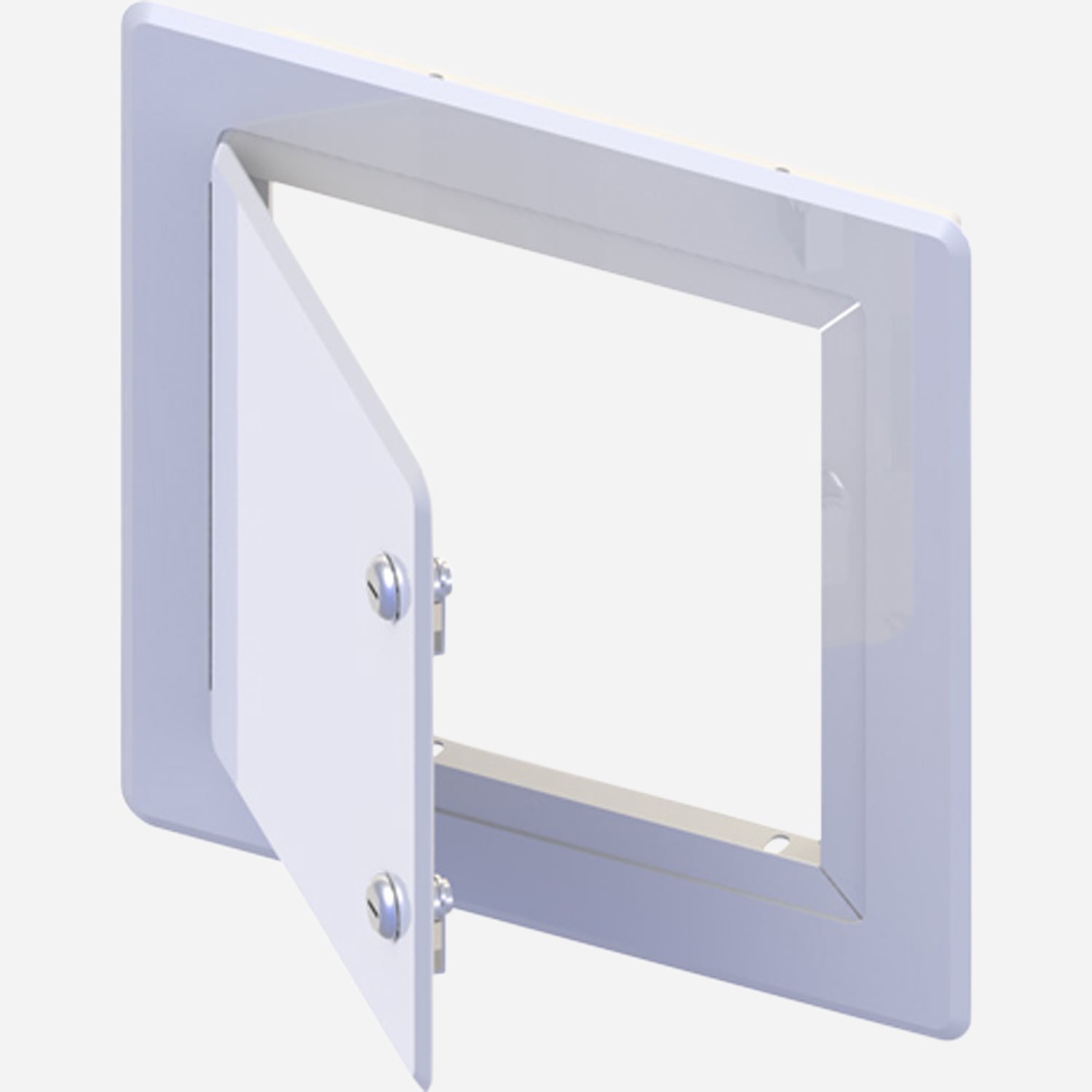

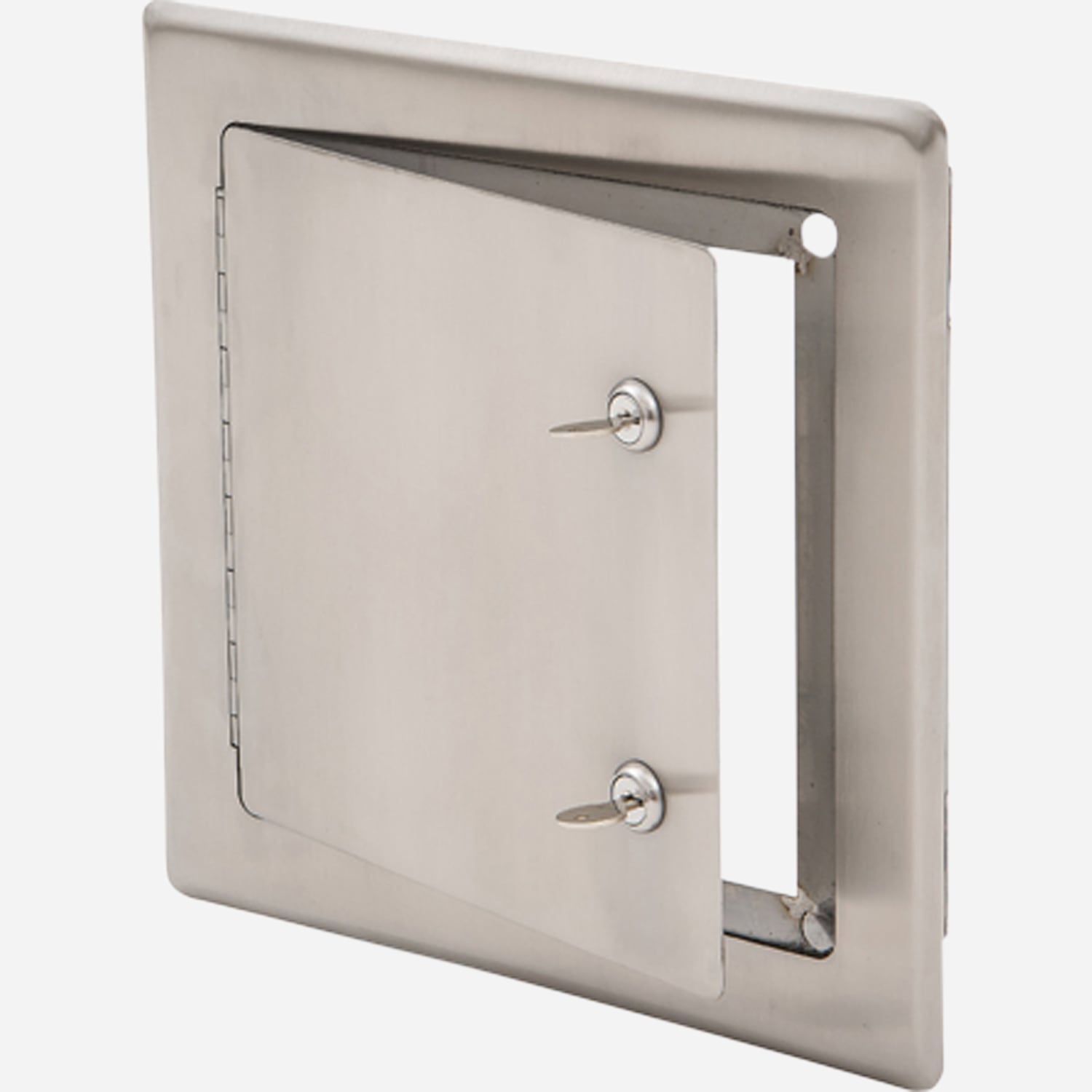

The Whitehall Ligature-Resistant Access Door provides easy access to valves, controls, piping, and equipment. The access door is ideal for Ligature-Resistant applications as it presents a reduced possibility of being used as a suicide device. Door includes two cam-and-lock cylinder locks with 2 keys. A concealed hinge is mounted in a heavy reinforcing channel; the door opens fully 150 degrees. Access Door is fabricated from 16-gauge, type 304 stainless steel with exposed surfaces powder-coated white. Optional polished to a satin finish.

Nominal door sizes of 8" x 8" (203.2 mm), 12" x 12" (305 mm), 14" x 14" (355.6 mm), 18" x 18" (457.2 mm), 24" x 24" (610 mm) are available in White Powder Coat Stainless Steel or All-Stainless Steel.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide WH2805 Access Door (pdf)	Ligature-Resistant Access Doors [White Powder Coat Doors WH2805-08 (8" door), WH2805-12 (12" door), WH2805-14 (14" door), WH2805-18 (18" door), WH2805-24 (24" door); Stainless Steel Doors WH2805-SS-08, WH2805-SS-12, WH2805-SS-14, WH2805-SS-18, WH2805-SS-24]	80 KB
Submittals	Submittal WH2805 Series Access Door (pdf)	Ligature-Resistant Access Doors [White Powder Coat Doors WH2805-08 (8" door), WH2805-12 (12" door), WH2805-14 (14" door), WH2805-18 (18" door), WH2805-24 (24" door); Stainless Steel Doors WH2805-SS-08, WH2805-SS-12, WH2805-SS-14, WH2805-SS-18, WH2805-SS-24]	183 KB
Technical Data Sheets	Whitehall Cleaning and Care Guide (pdf)	Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces.	928 KB
Brochures/Flyers	BestCare Ligature-Resistant Brochure (pdf)	BestCare Ligature-Resistant Brochure (pdf)	48 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Installation Instructions	Install Guide WH2805 Access Door (pdf)	Ligature-Resistant Access Doors [White Powder Coat Doors WH2805-08 (8" door), WH2805-12 (12" door), WH2805-14 (14" door), WH2805-18 (18" door), WH2805-24 (24" door); Stainless Steel Doors WH2805-SS-08, WH2805-SS-12, WH2805-SS-14, WH2805-SS-18, WH2805-SS-24]	80 KB
Submittals	Submittal WH2805 Series Access Door (pdf)	Ligature-Resistant Access Doors [White Powder Coat Doors WH2805-08 (8" door), WH2805-12 (12" door), WH2805-14 (14" door), WH2805-18 (18" door), WH2805-24 (24" door); Stainless Steel Doors WH2805-SS-08, WH2805-SS-12, WH2805-SS-14, WH2805-SS-18, WH2805-SS-24]	183 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	BestCare®
Material	Stainless Steel
Type of Mount	Flush Mount
Ligature Resistant	Yes
CSI Divisions	Division 10

Models

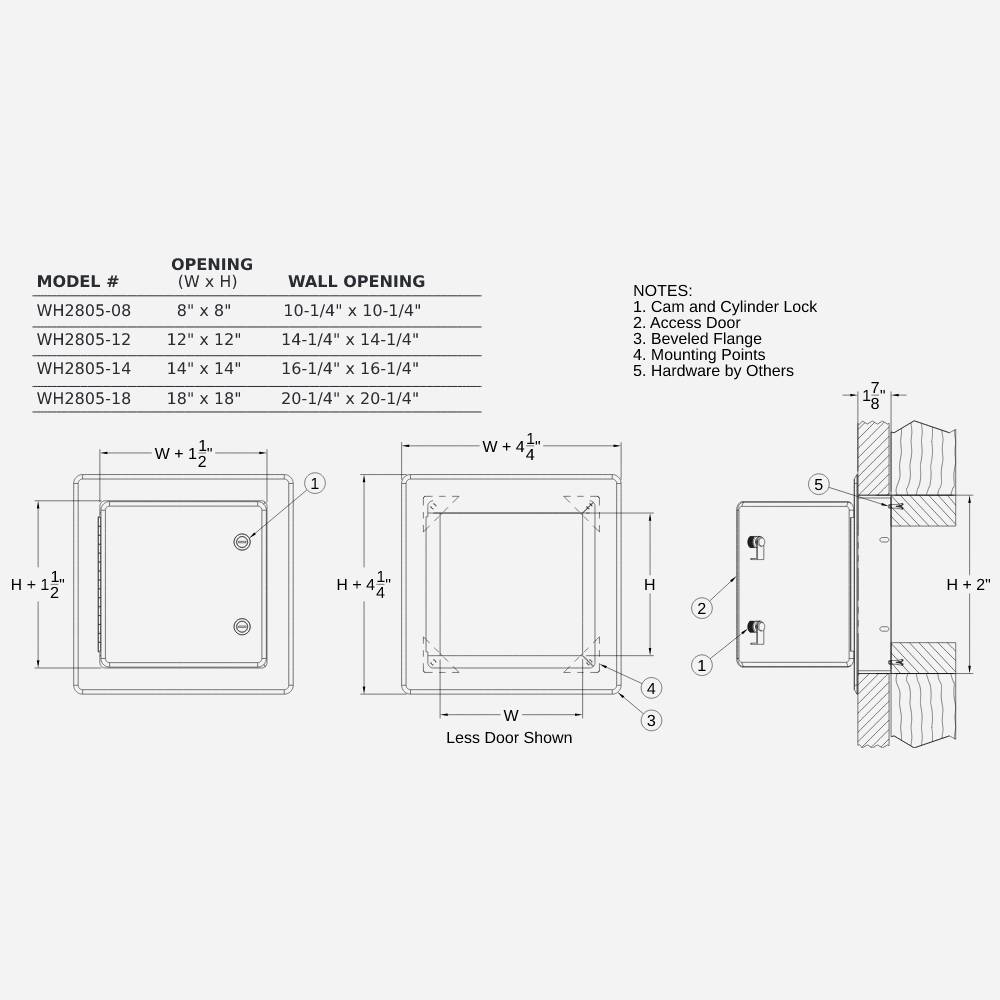

Nominal Opening	White Powder Coat Stainless Steel	All-Stainless Steel
8" x 8" (203.2 mm)	WH2805-08 [IN STOCK]	WH2805-SS-08 [IN STOCK]
12" x 12" (305 mm)	WH2805-12 [IN STOCK]	WH2805-SS-12 [IN STOCK]
14" x 14" (355.6 mm)	WH2805-14 [IN STOCK]	WH2805-SS-14 [IN STOCK]
18" x 18" (457.2 mm)	WH2805-18 [IN STOCK]	WH2805-SS-18 [IN STOCK]
24" x 24" (610 mm)	WH2805-24 [IN STOCK]	WH2805-SS-24 [IN STOCK]
