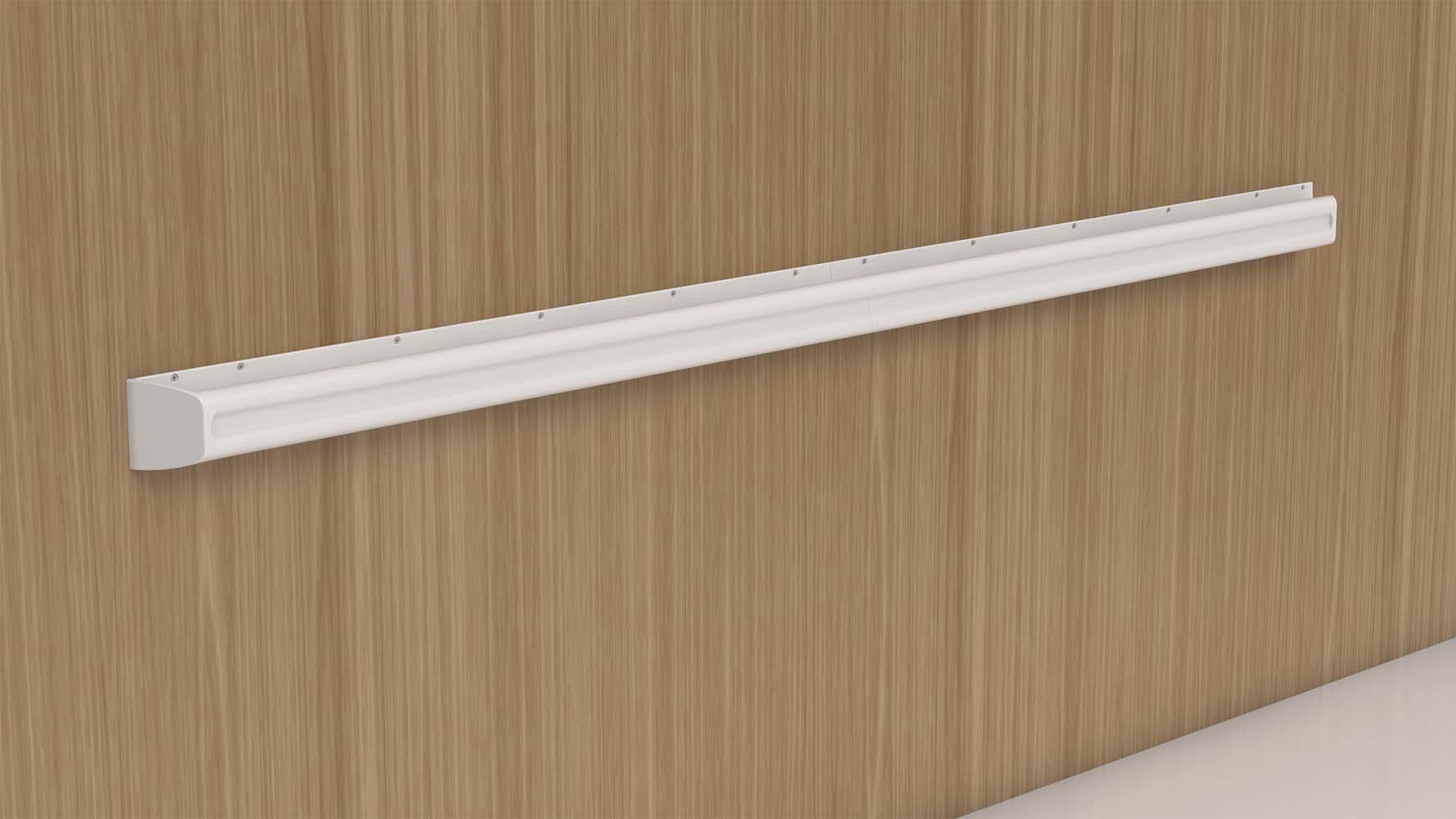

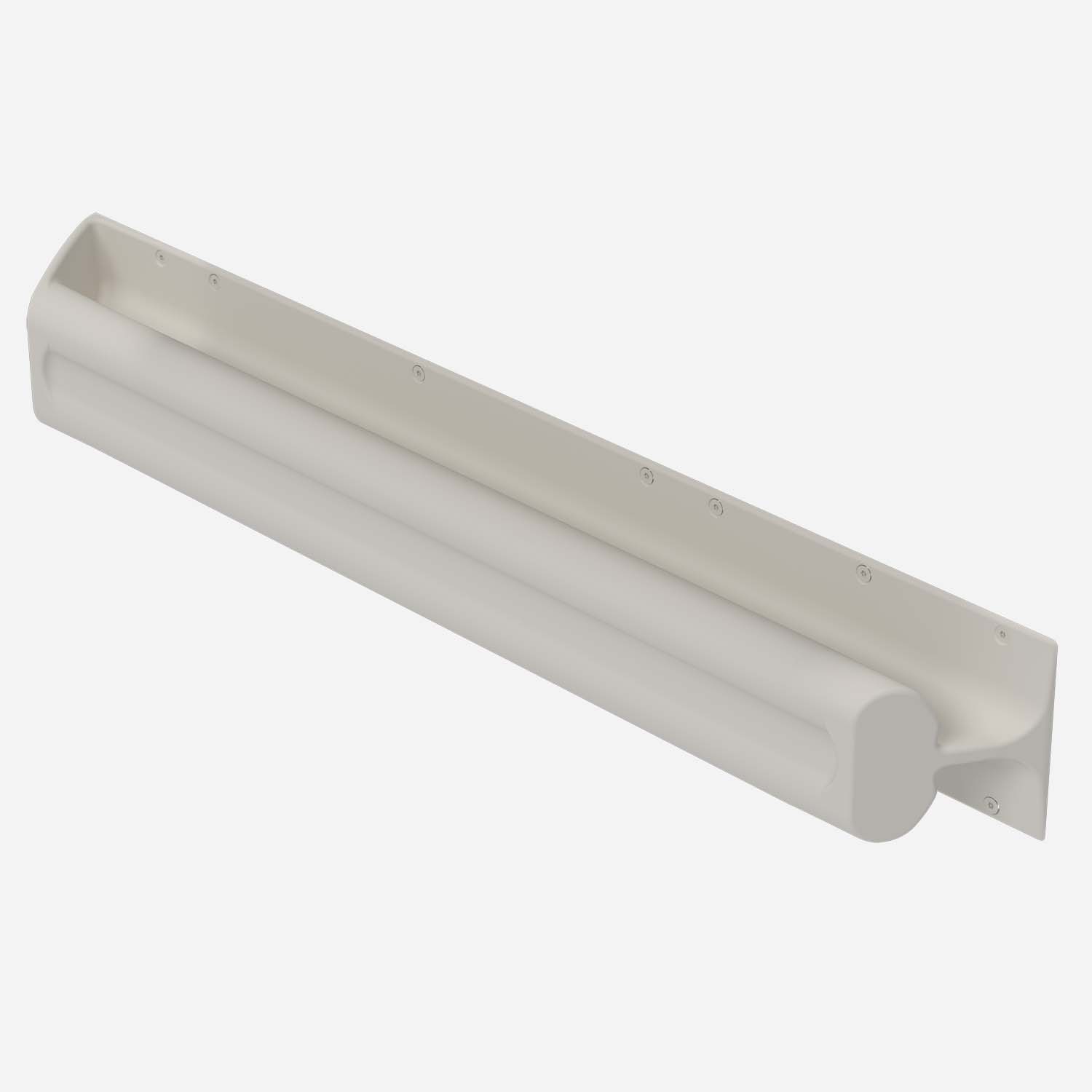

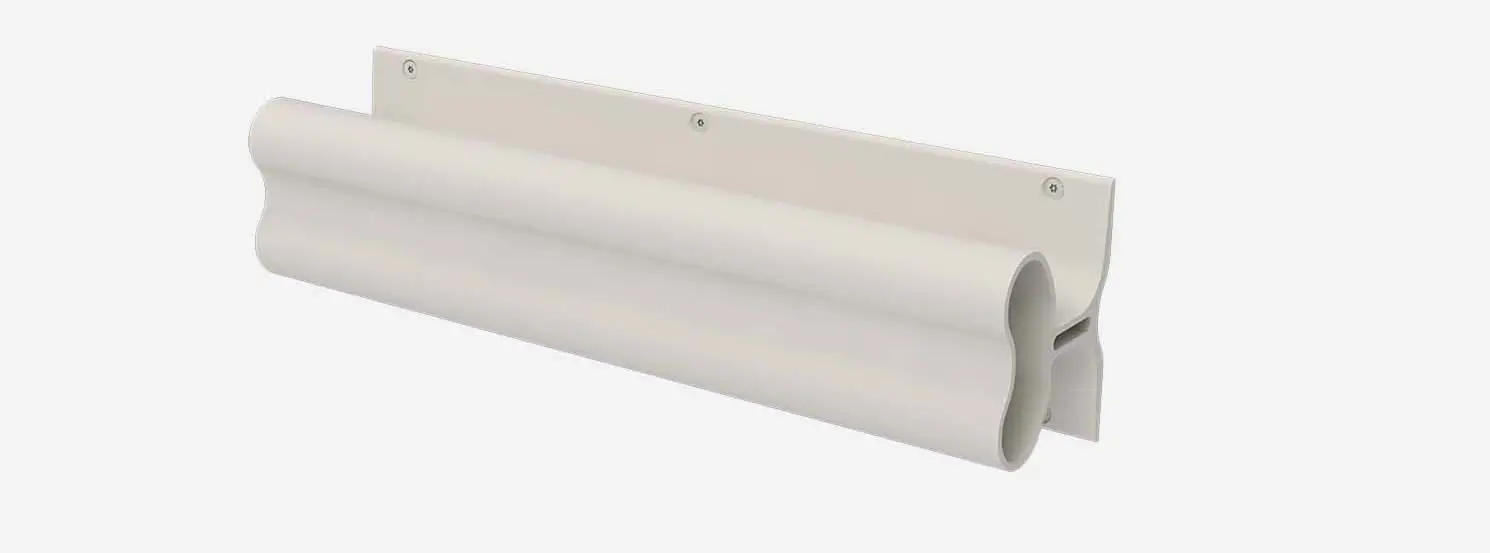

Whitehall BestCare® Ligature-Resistant Handrail

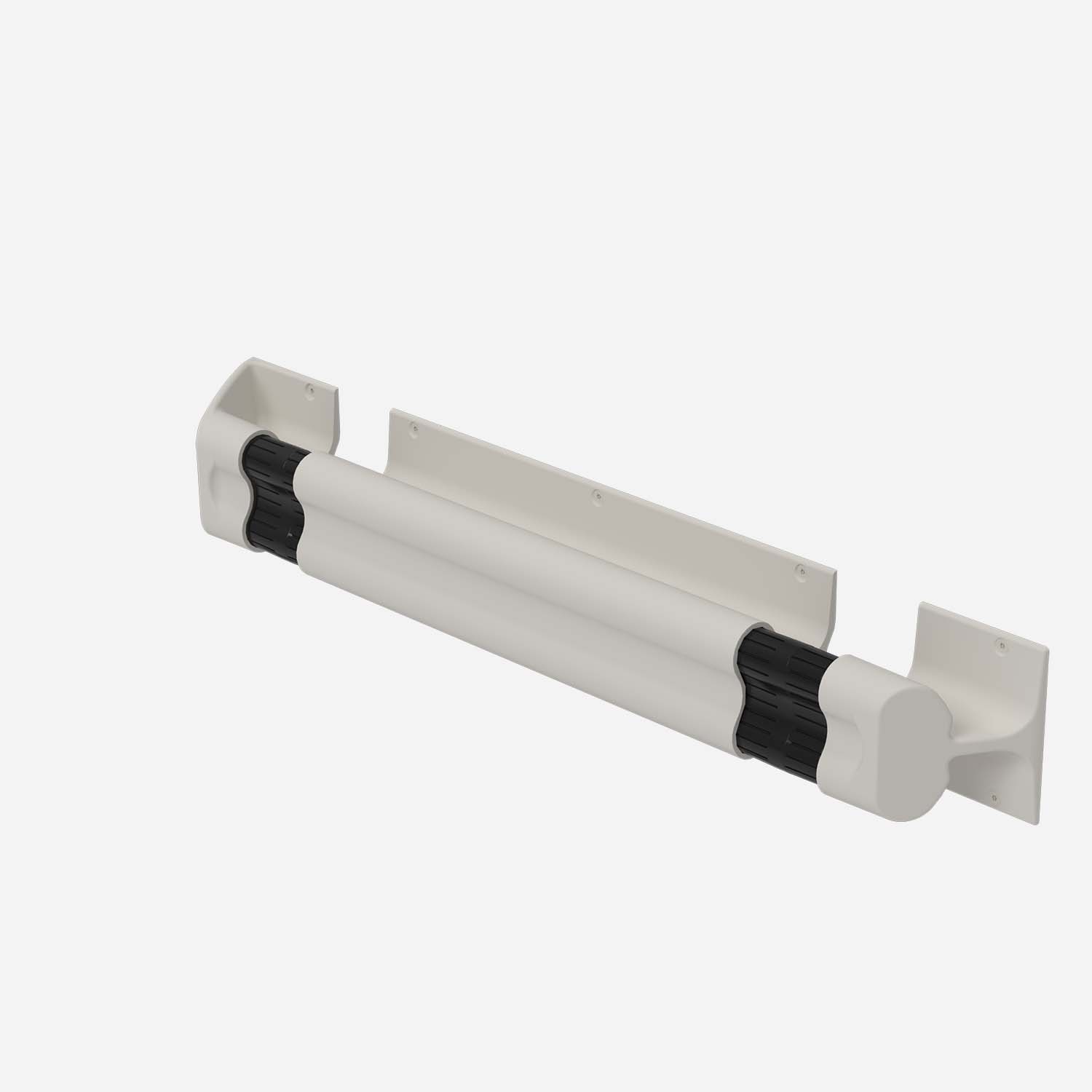

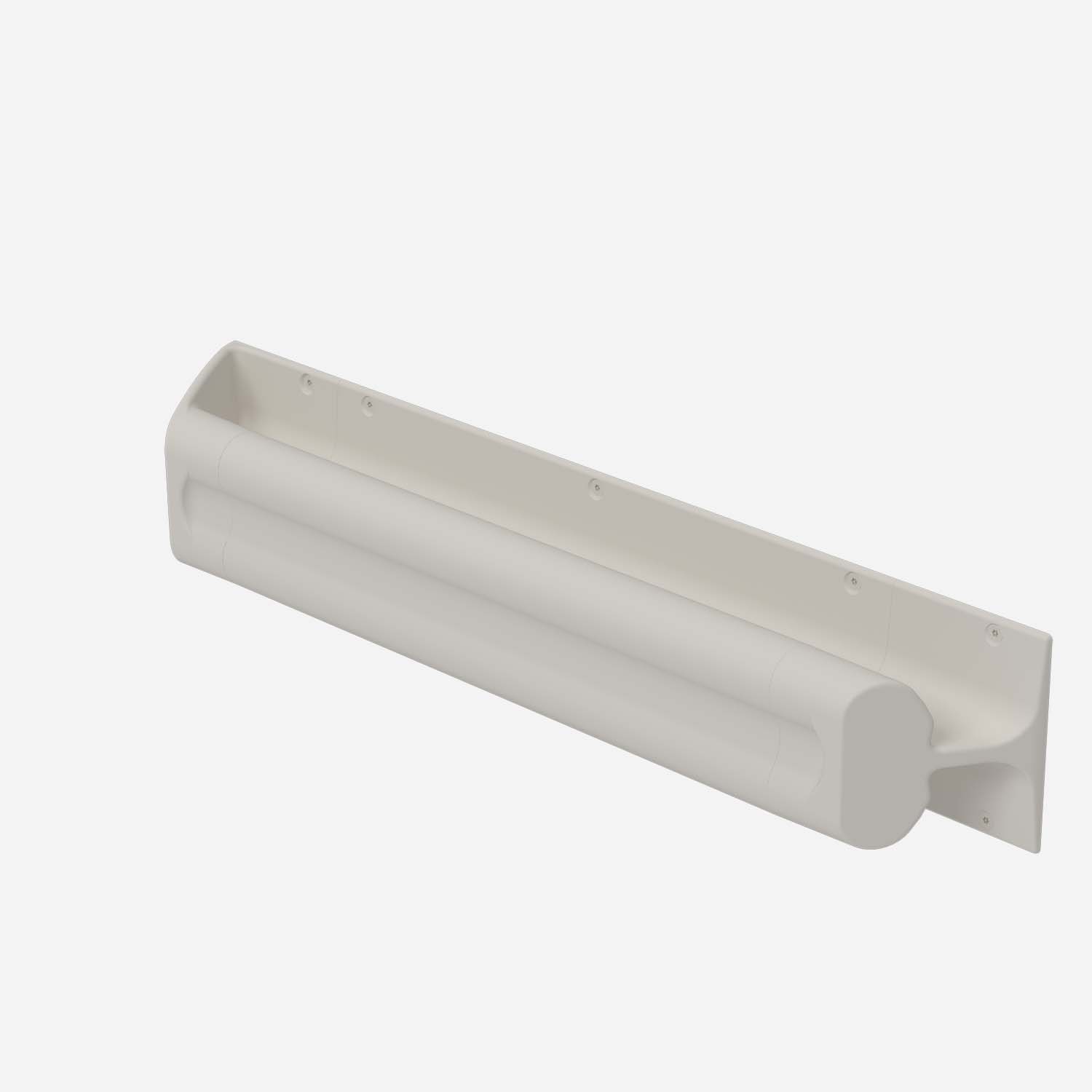

The BestCare® Ligature Resistant Handrail combines safety with patient friendly looks and function. The unique sectional design is offered in standard handrail lengths and also allows specifier to create custom handrail sizes by combining standard components to create lengths to suit application.
Kits are available to assemble the following standard nominal length railings.
- WHB-HR18-EG10 | 18" (457 mm) Handrail Assembly
- WHB-HR24-EG10 | 24" (610 mm) Handrail Assembly
- WHB-HR30-EG10 | 30" (762 mm) Handrail Assembly
- WHB-HR36-EG10 | 36" (914 mm) Handrail Assembly
- WHB-HR42-EG10 | 42" (1067 mm) Handrail Assembly
- WHB-HR48-EG10 | 48" (1219 mm) Handrail Assembly

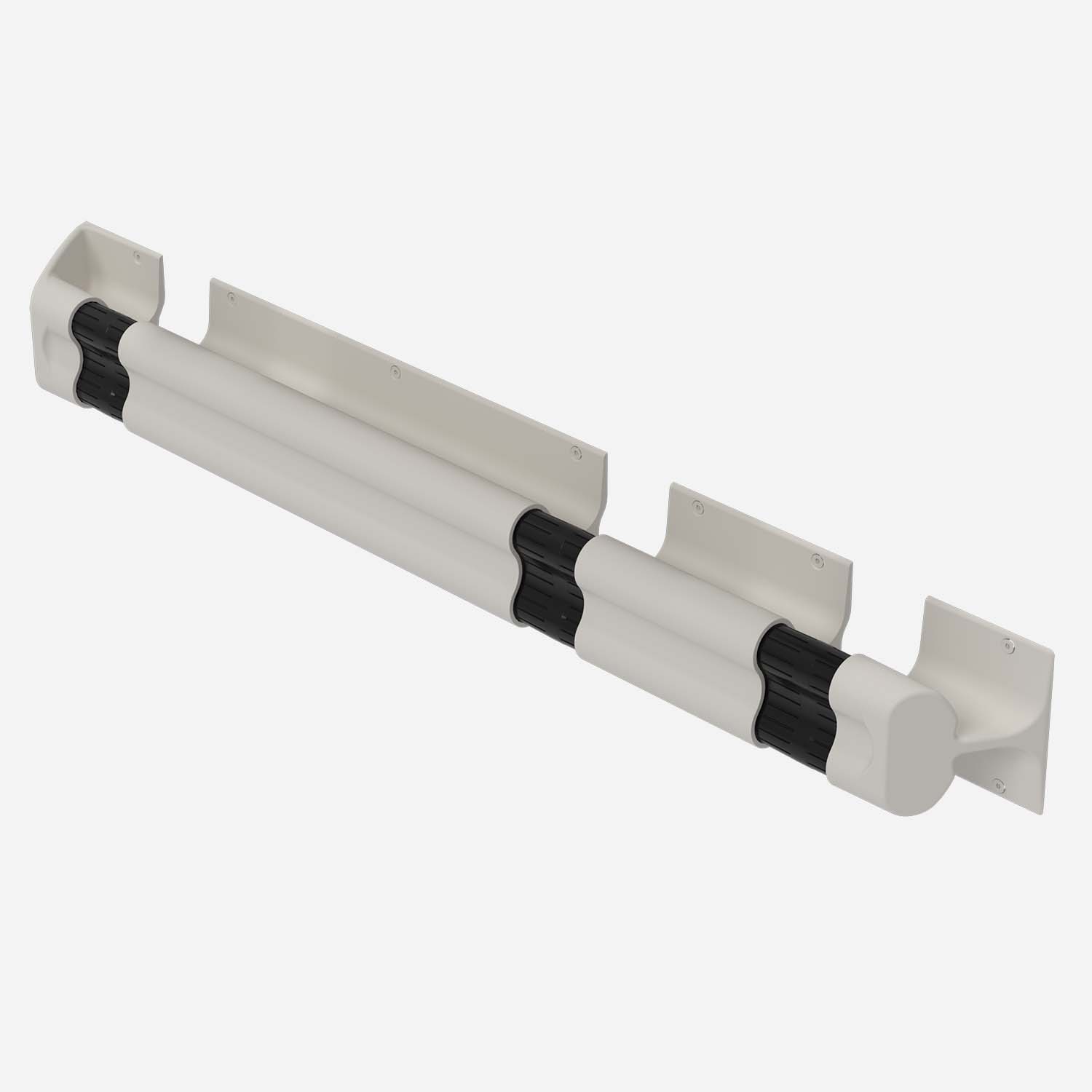

They can be assembled with the following components:

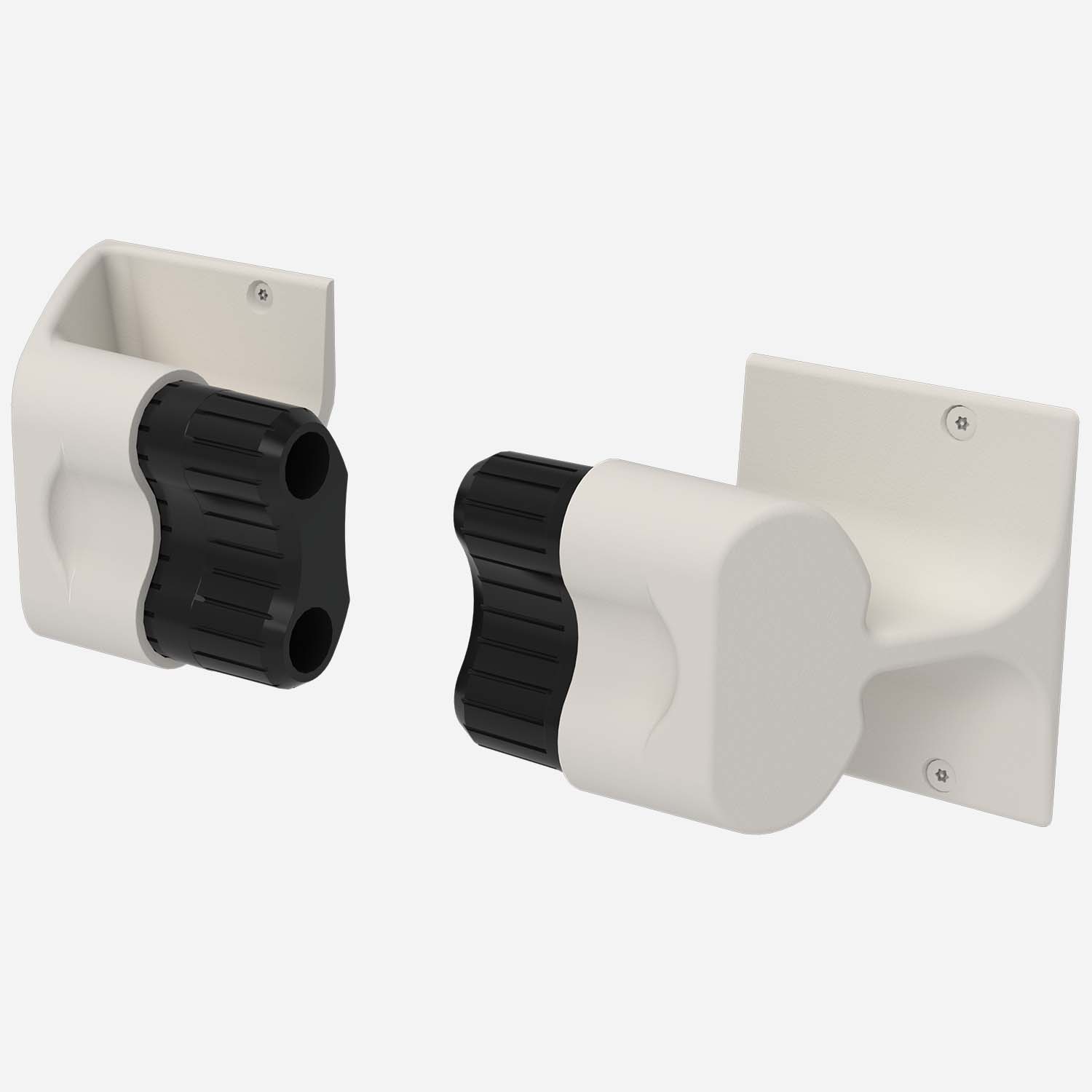

- WHT13004-010 | End Cap Assembly (Open & Closed Ends with Union Inserts)
- WHT13006-010 | 6" (152 mm) Handrail Extension Length
- WHT13018-010 | 16" (406 mm) Handrail Extension Length
- WHT13036-010 | 34" (864 mm) Handrail Extension Length
- WHT13002-000 | Union Insert (one required per extension)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Whitehall BestCare® Ligature-Resistant Handrail [Full Kits WHB-HR18-EG10, WHB-HR24-EG10, WHB-HR30-EG10, WHB-HR36-EG10, WHB-HR42-EG10, WHB-HR48-EG10; Components WHT13004-010, WHT13006-010 WHT13018-010, WHT13036-010,WHT13002-000] | 0 | 1 MB | ||
| | Whitehall BestCare® Ligature-Resistant Handrail [Full Kits WHB-HR18-EG10, WHB-HR24-EG10, WHB-HR30-EG10, WHB-HR36-EG10, WHB-HR42-EG10, WHB-HR48-EG10; Components WHT13004-010, WHT13006-010 WHT13018-010, WHT13036-010,WHT13002-000] | 0 | 426 KB | ||
 | | Whitehall Manufacturing has introduced an expandable handrail to the BestCare® product line. This short video shows how the expandable handrail works to provide flexibility in ligature-resistant facilities. | 0 | 132 KB |
Models
Standard Assembly Kits

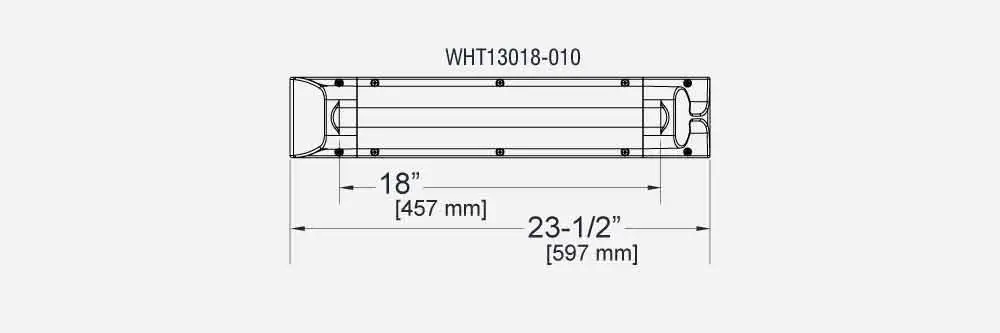

WHB-HR18-EG10 Nominal Length 18" (457 mm) Overall Length 23-1/2" (597 mm)

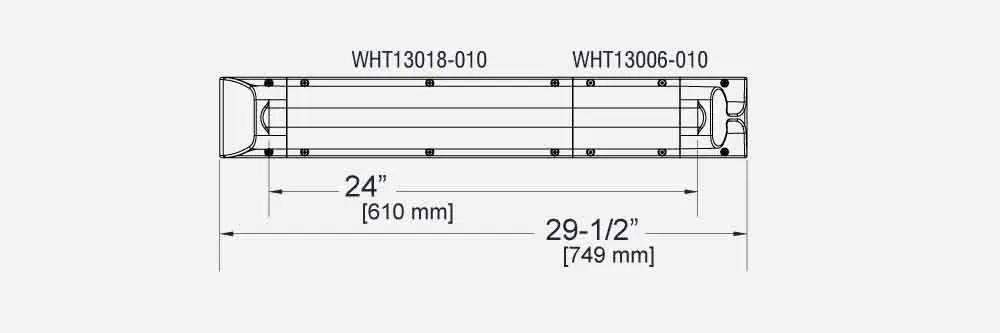

WHB-HR24-EG10 Nominal Length 24" (610 mm) Overall Length 29-1/2" (749 mm)

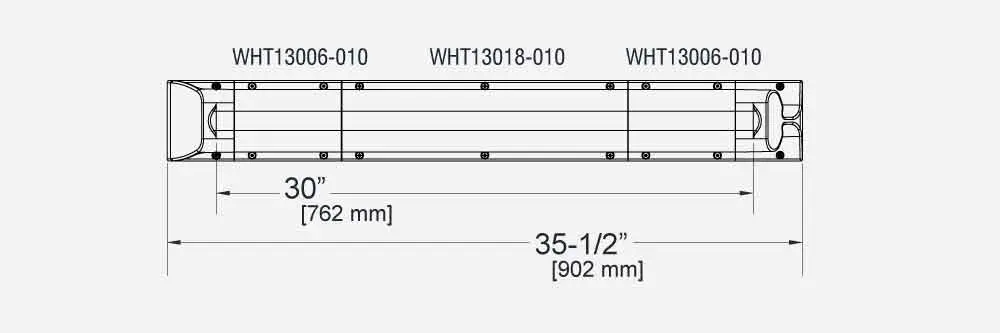

WHB-HR30-EG10 Nominal Length 30" (762 mm) Overall Length 35-1/2" (902 mm)

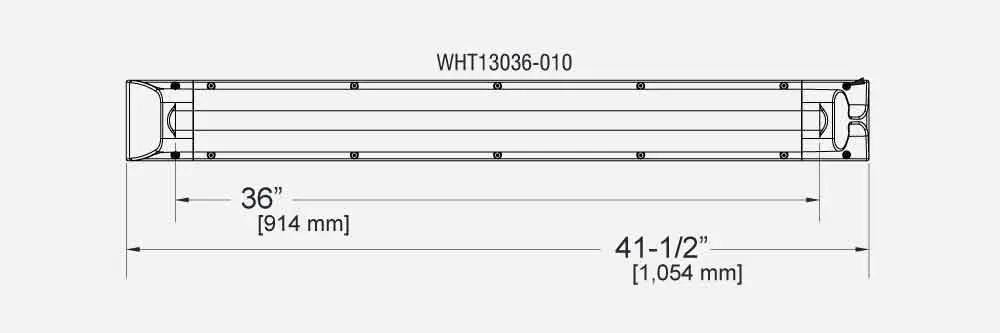

WHB-HR36-EG10 Nominal Length 36" (914 mm) Overall Length 41-1/2" (1054 mm)

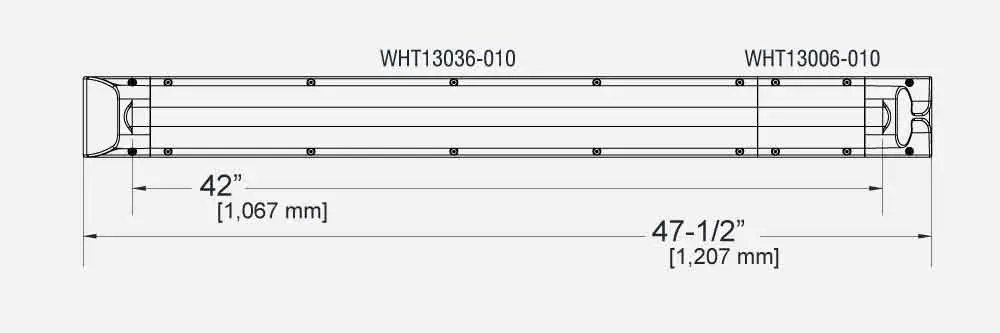

WHB-HR42-EG10 Nominal Length 42" (1067 mm) Overall Length 47-1/2" (1207 mm)

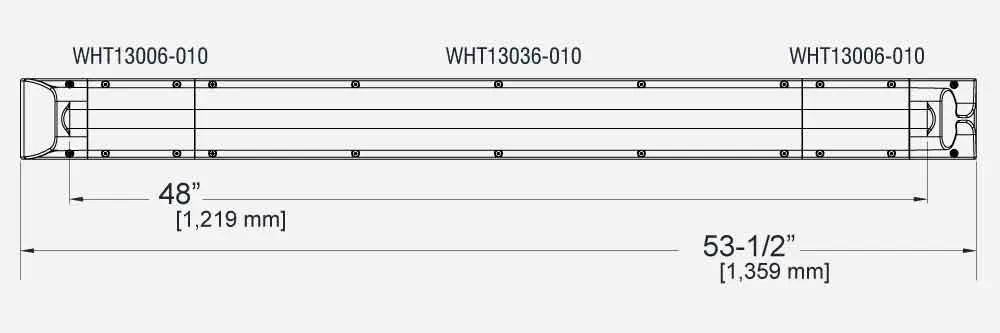

WHB-HR48-EG10 Nominal Length 48" (1219 mm) Overall Length 53-1/2" (1359 mm)
Components

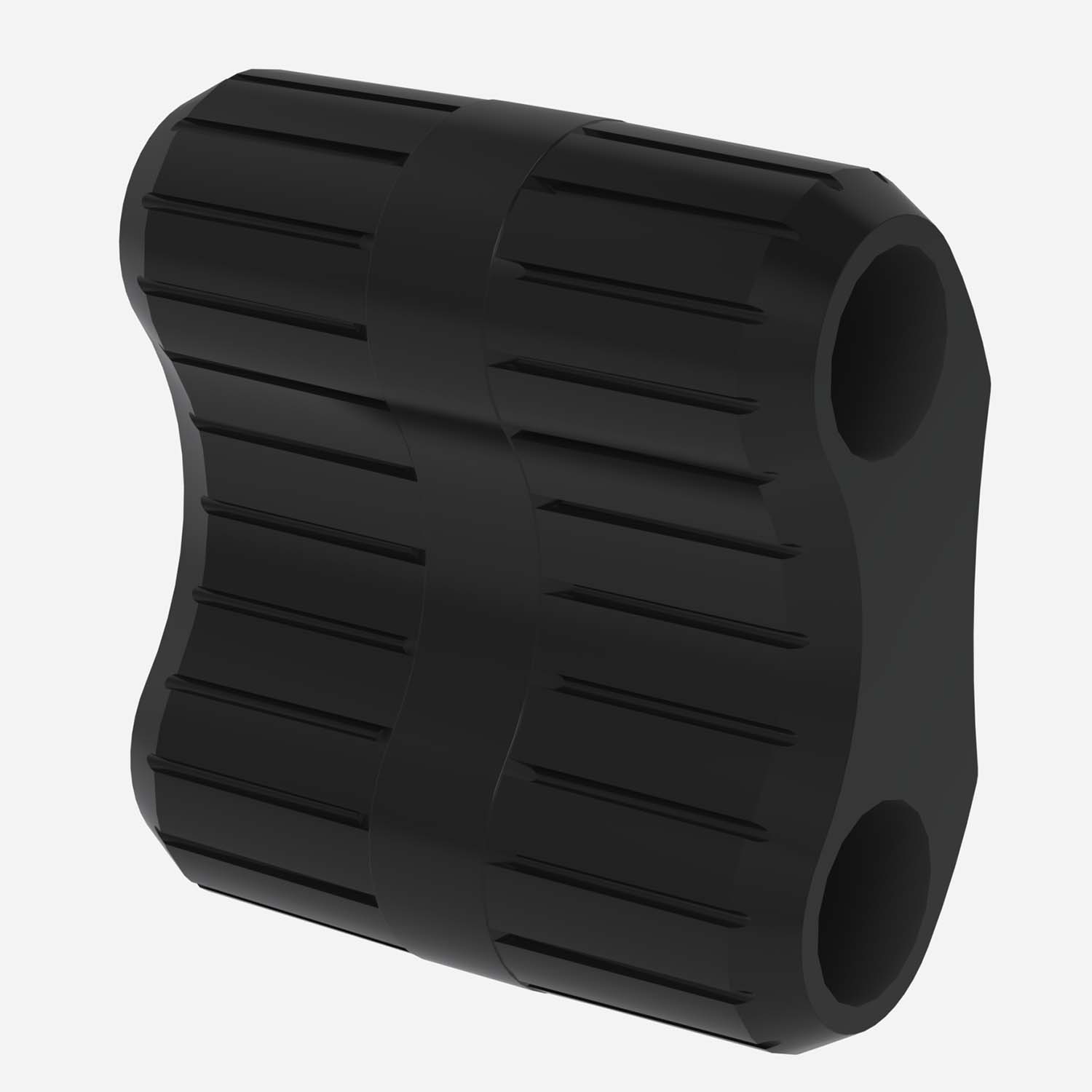

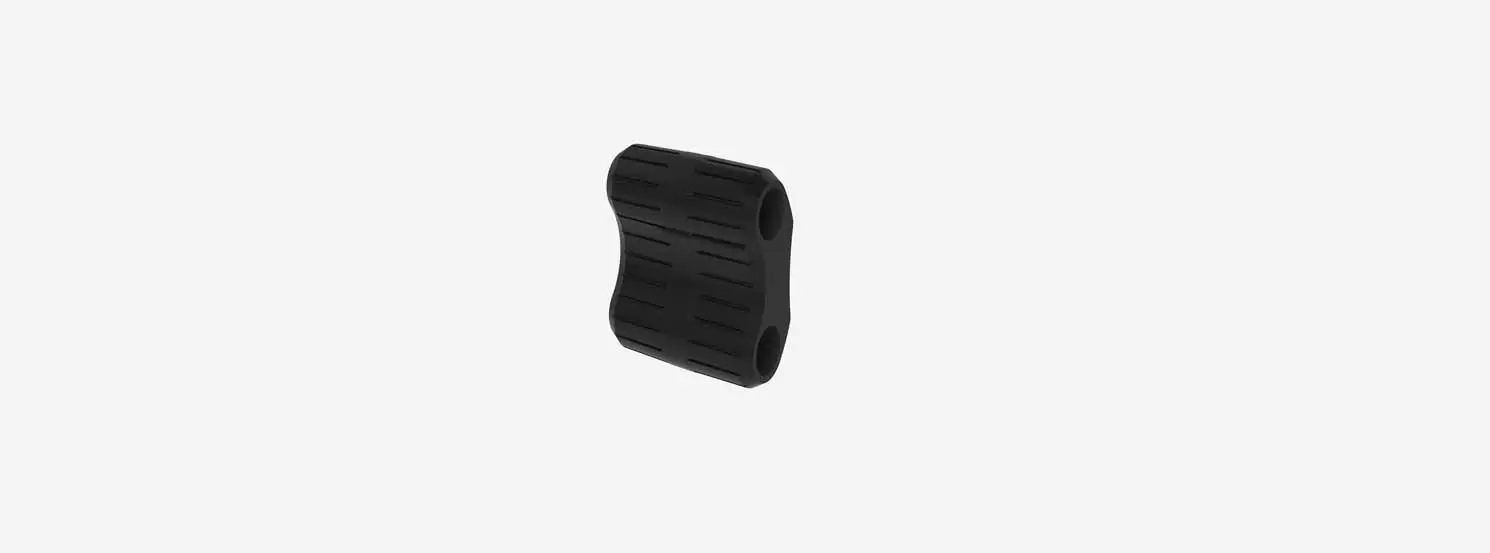

WHT13002-000 Union Insert (1 required per extension) 3.00" (76 mm) L x 1.46" (37 mm) W x 3.25" (83 mm) H

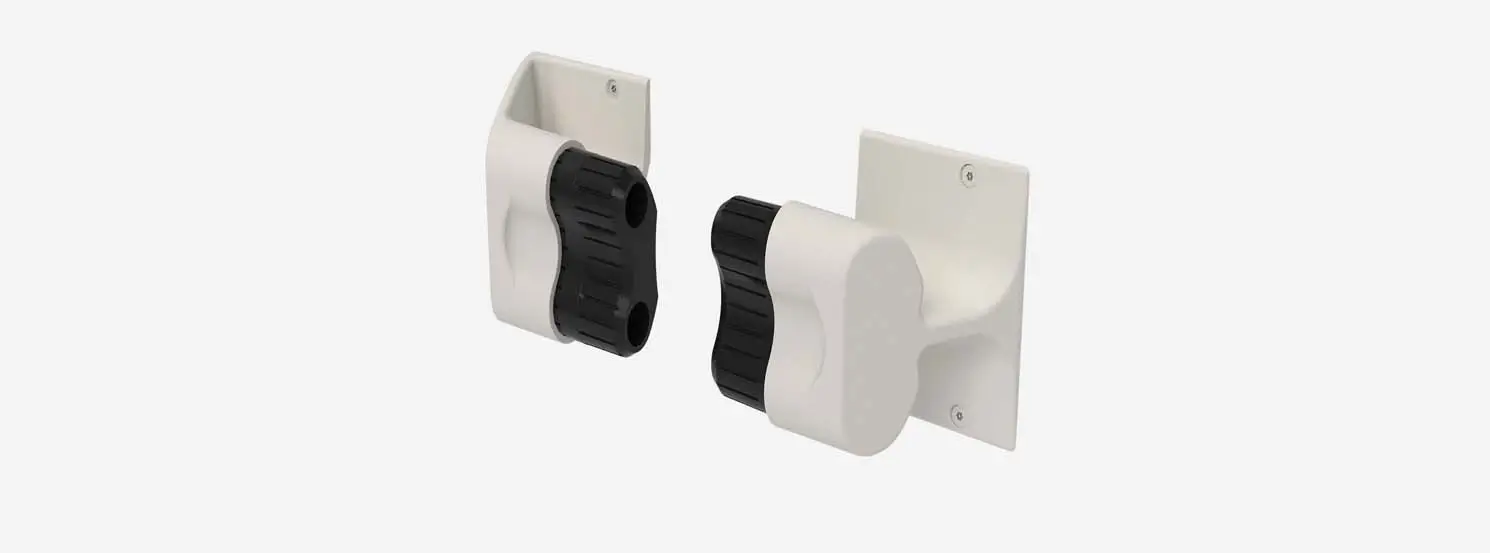

WHT13004-010 Closed and Open Ends (white powder coating) Each 3.75" (95 mm) L x 3.56 (91 mm) W x 4.50 (114 mm) H

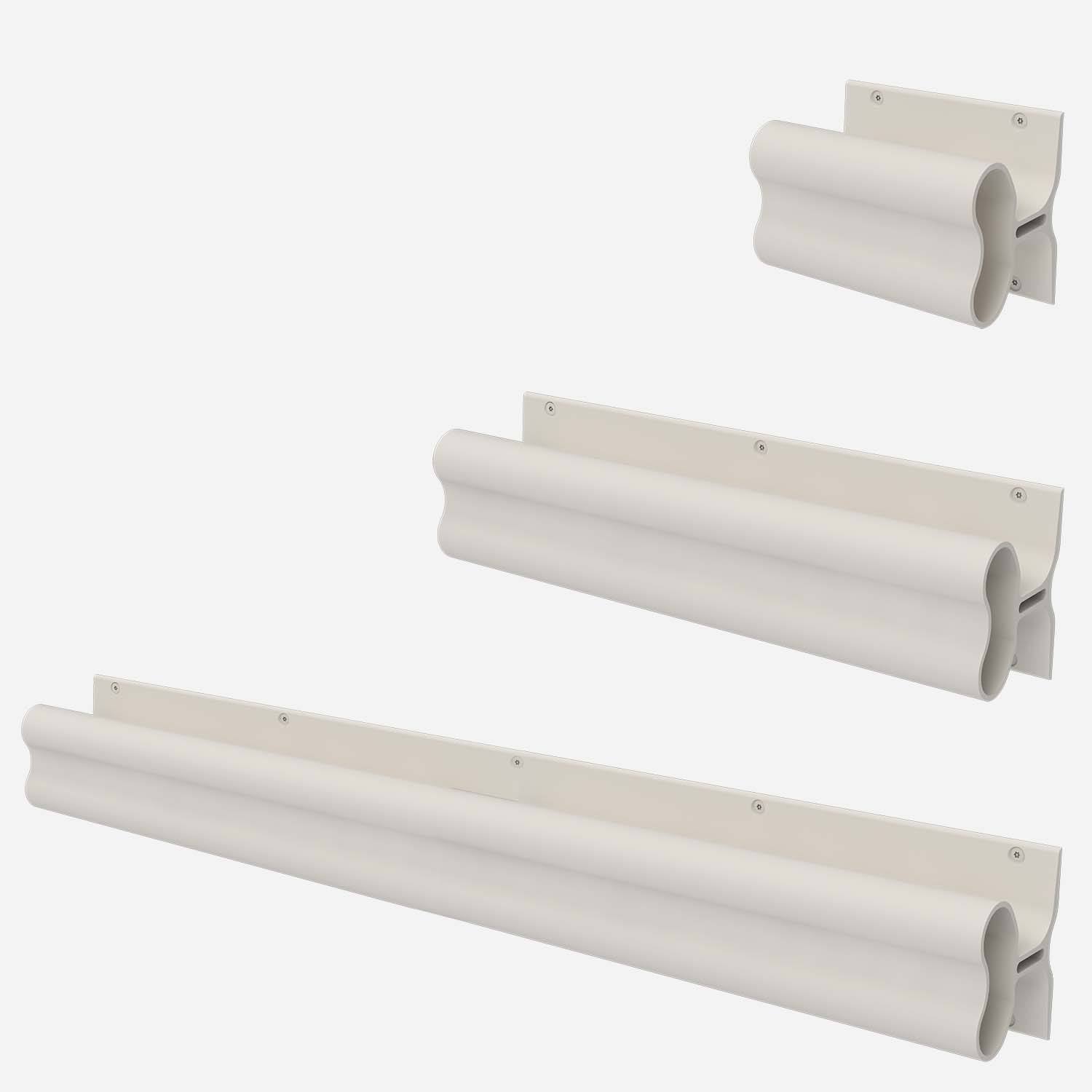

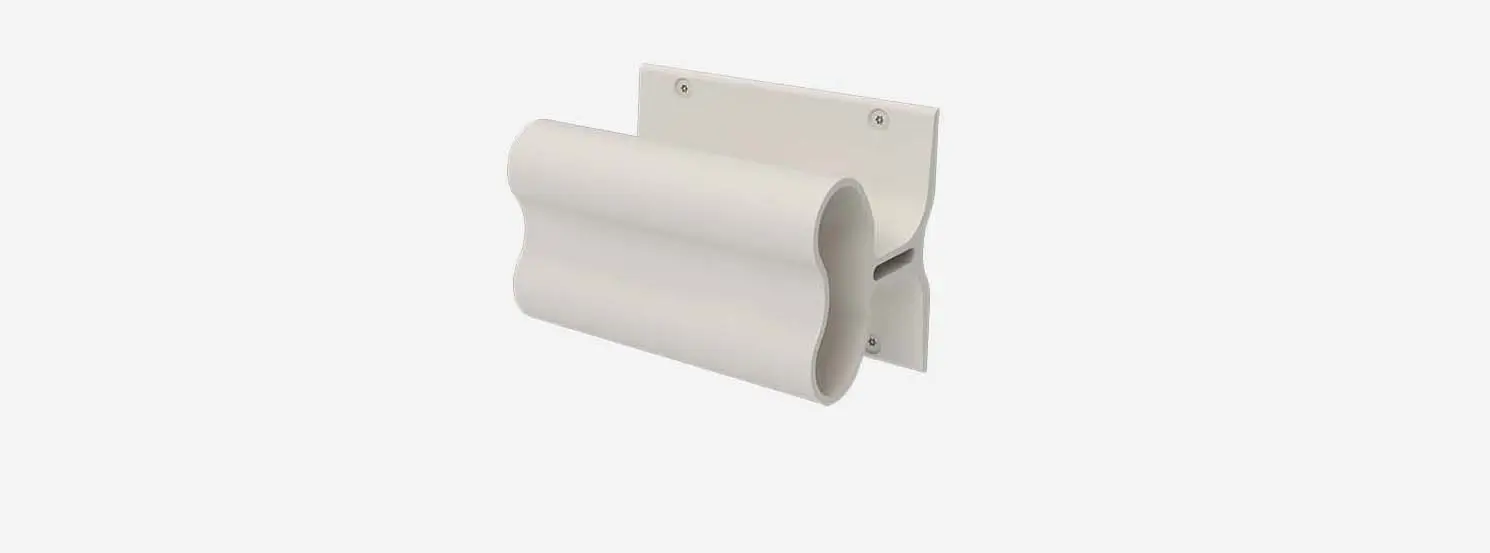

WHT13006-010 Nominal Length 6" (152 mm) Actual Length 6" (152 mm) White Powder Coat
WHT13018-010 Nominal Length 18" (457 mm) Actual Length 16" (406 mm) White Powder Coat

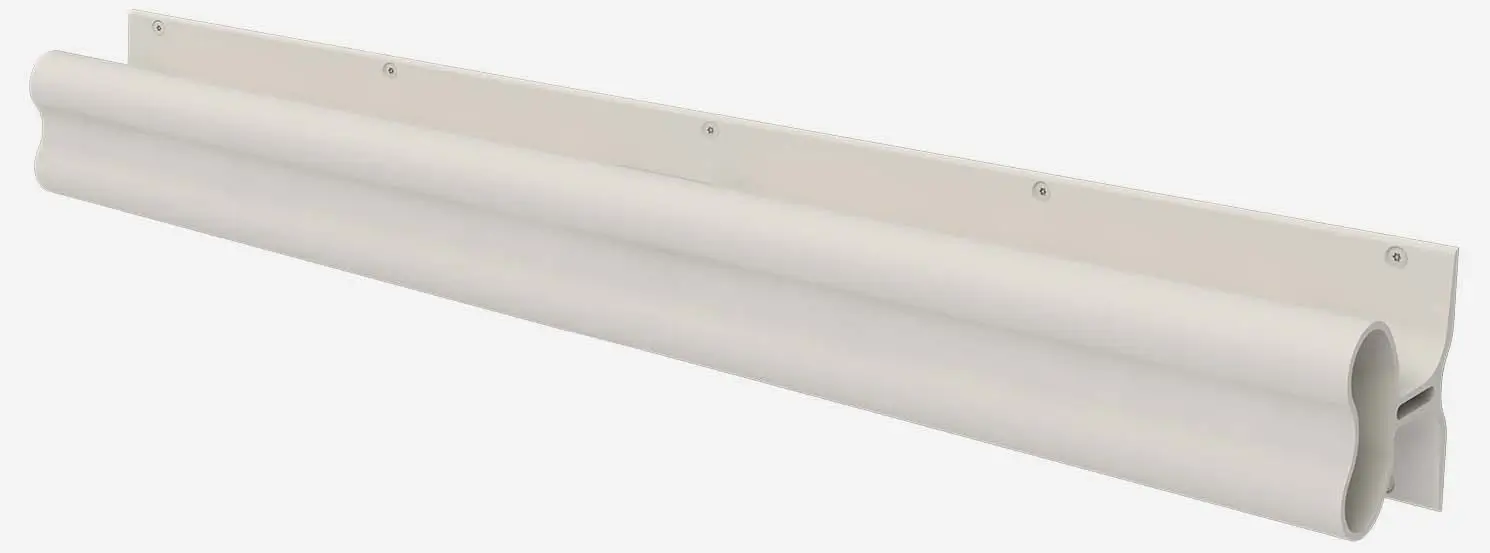

WHT13036-010 Nominal Length 36" (914 mm) Actual Length 34" (864 mm) White Powder Coat
