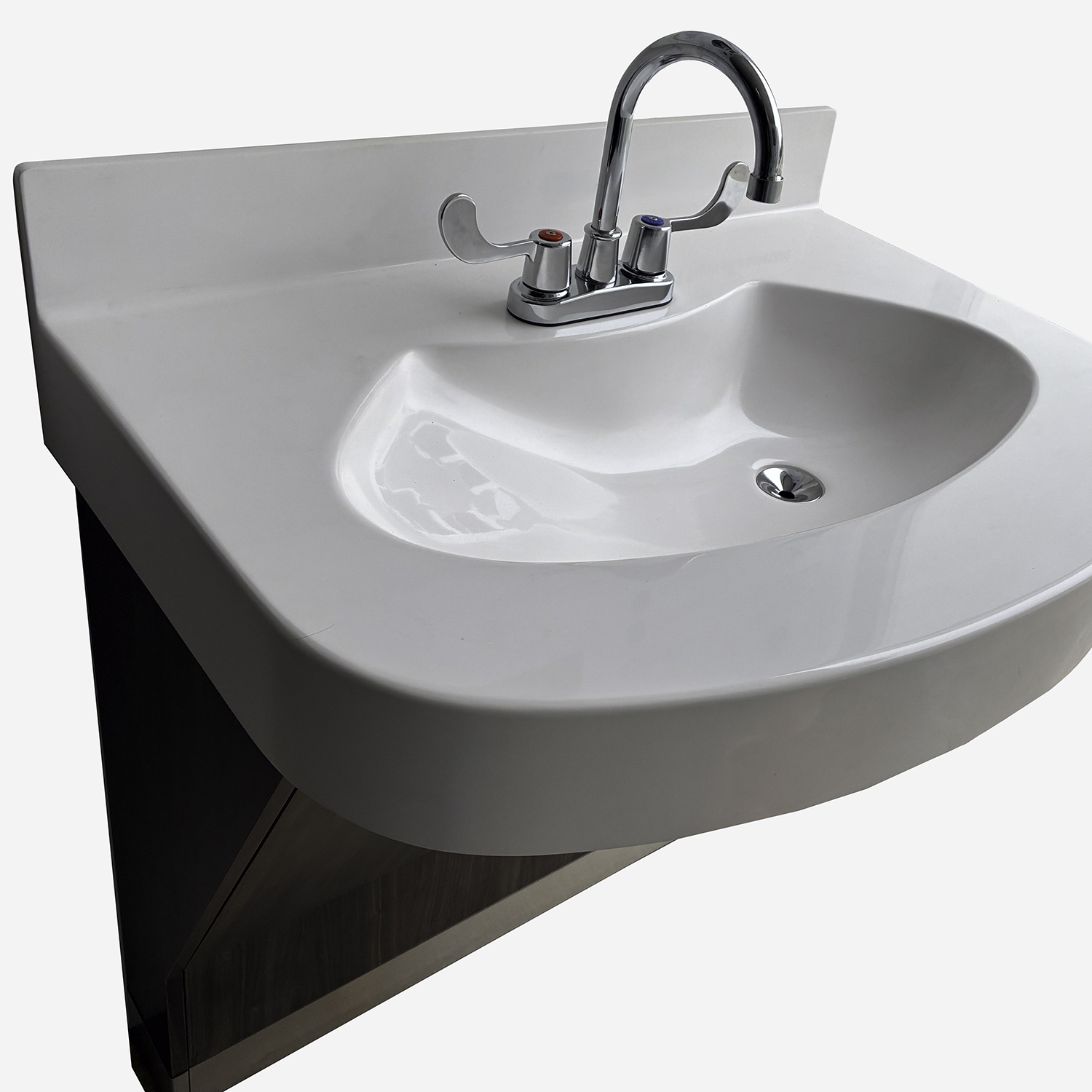

ADA Compliant, Bariatric Corterra® Solid Surface Basin
Bariatric Corterra® Solid Surface Basin is engineered to combine the look and feel of commercial-grade designer basins and countertops with durability and economy in mind.
The fixture is bariatric rated at 1,000 lbs. (454 kg) when used with an appropriate support system. The standard height washbasin complies with ANSI, UFAS, and ADA requirements. Compliance is subject to the interpretation and requirements of the Local Code Authority.
Features
- Designed for healthcare facilities
- Bariatric (Individual of Size) rated for 1,000 lbs (453.6 kg)
- Large Basin
- Offset drain for infection prevention
- 4" high integral backsplash
- Corterra® Solid Surface - standard color is OCC11M; several other attractive colors available
- Bottom Enclosure with wood pattern laminate - standard color is Veranda Teak. Two other attractive colors are available
Water for the sink may be tempered using a thermostatic mixing valve available optionally through Whitehall. The valve is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa)
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | ADA Compliant Bariatric Corterra® Solid Surface Basin | 753 KB | ||
| | ADA Compliant Bariatric Corterra® Solid Surface Basin | 228 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | Acorn Engineering Corterra® Solid Surface a solid-surface polymer resin (with aluminum trihydrate and other fillers) (also used for Neo-Metro and Whitehall) - Document features Product Description, Product Qualities, Cleaning Tips, ANSI Standard Compliance, CSA Standard Compliance and Burning Character Test Data | 460 KB | ||
 | | ADA Compliant Bariatric Corterra® Solid Surface Basin | 928 KB | ||
| | ADA Compliant Bariatric Corterra® Solid Surface Basin | 200 KB |
Specifications
| Material | Solid Surface |
| Material Details | Stainless Steel Pedestal Frame, Wood Pattern High Pressure Laminate Enclosure |
| Accessibility | ADA Compliant |
| Compliances | UL Greenguard, UPC® |
| Type of Mount | Wall Mount, Floor Mount |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|

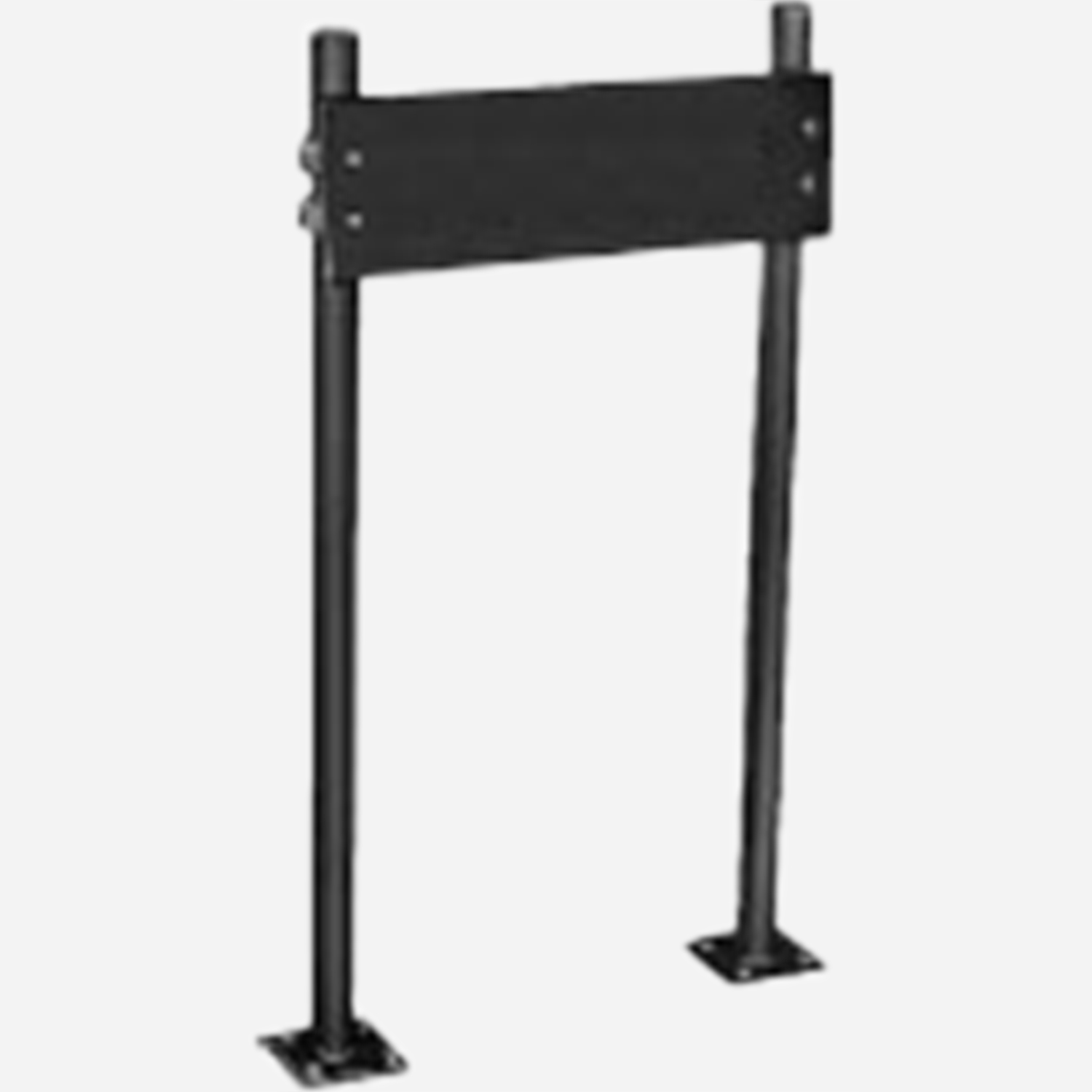

 | MC | Accessory: Mounting Carrier for Sink and Drink Fountains |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | OCC | Option: Corterra® Solid Surface | ||
 | WHST70-12 | 1/2" NPT Connections Thermostatic Lavatory Tempering Valve |
Models
Typical models are shown below
WH3743 | (standard) OCC11M Blanco Matte White Corterra Solid Surface Basin/Countertop Veranda Teak Pedestal Bottom Enclosure

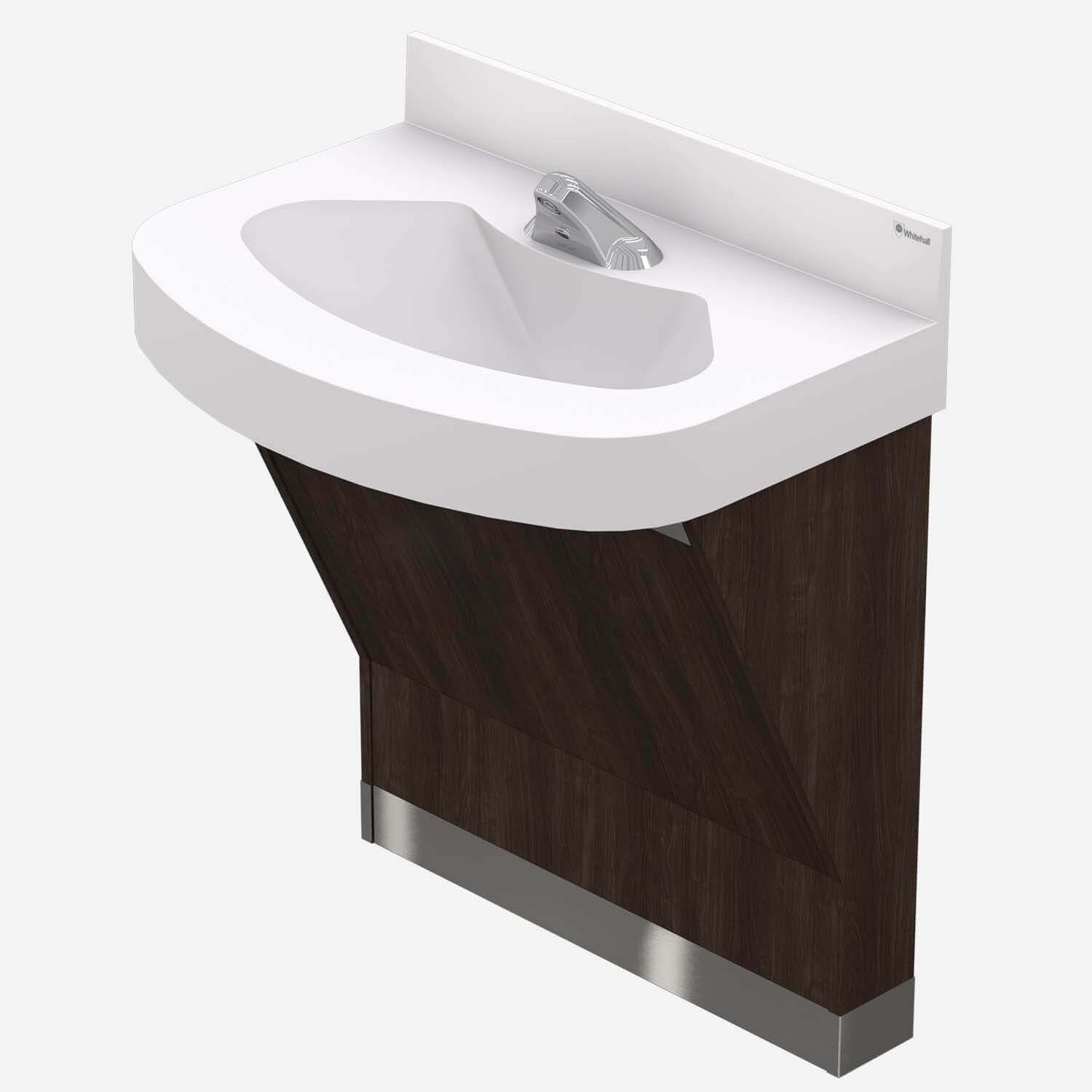

WH3743 | OCC11M Blanco Matte White Corterra Solid Surface Basin/Countertop Florence Walnut Pedestal Bottom Enclosure

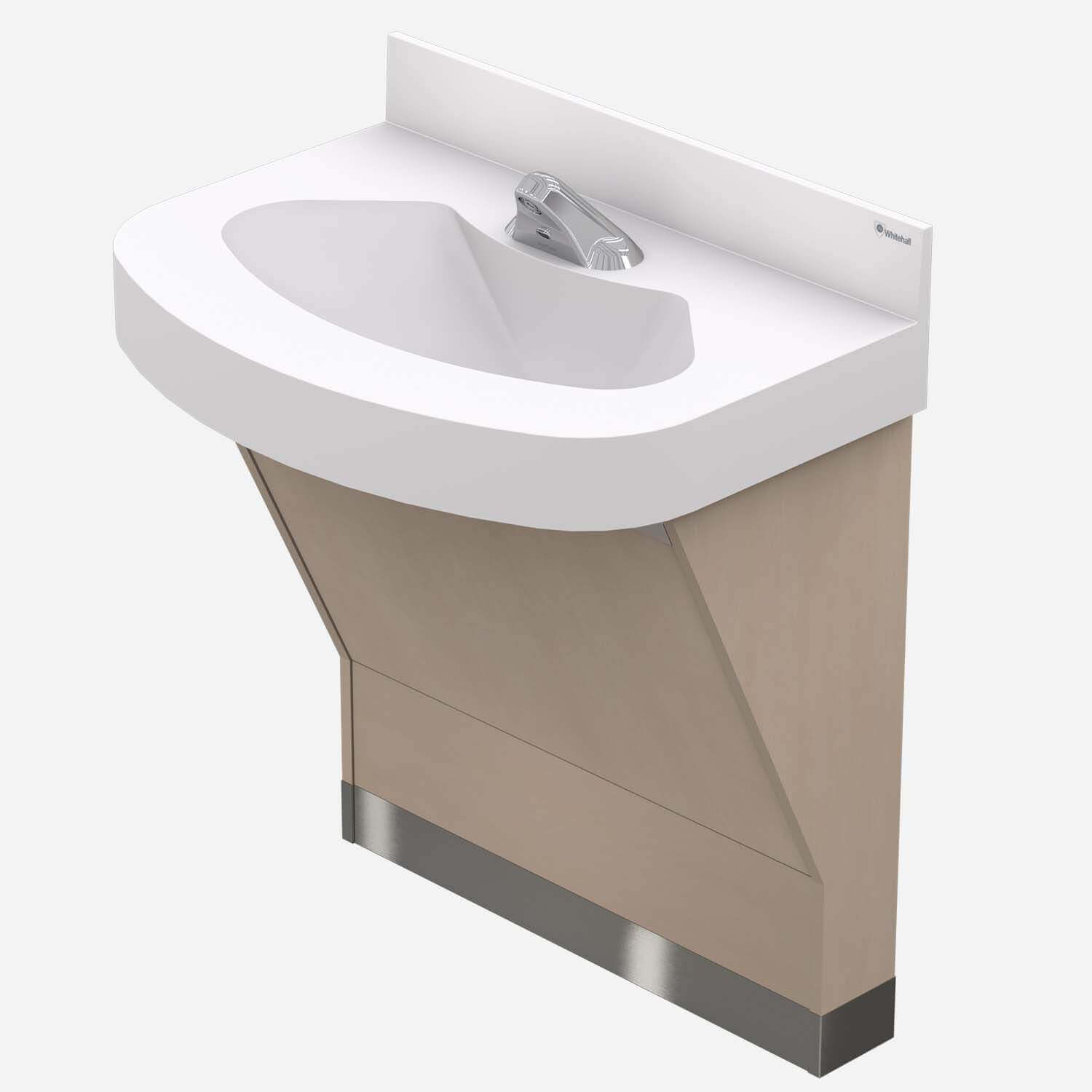

WH3743 |OCC11M Blanco Matte White Corterra Solid Surface Basin/Countertop Phantom Ecru Pedestal Bottom Enclosure
The sink is suitable for ligature-resistant, especially with Whitehall ligature-resistant faucets.
