ADA-Compliant Compact Wash-Up Sink
Whitehall offers this compact hand washing sink which minimizes splashing, therefore limiting the spread of bacteria and wet floor slips and falls. The station is ideal for hospitals, pharmaceutical, and other facilities requiring increased infection control.
- Durable & Non-Porous: 16-gauge, type 304 stainless steel minimizes bacteria
- Splash Protection: High backsplash, offset drain(s), and angled basin keep water in the sink where it belongs, reducing the risk of slips and the accumulation of standing water where bacteria can breed
- Three Sizes: One station (30"), two stations (72"), or three stations (96")
- USP <800> Compliance: Add the eye-face wash option (-EFW) to meet USP <800> requirements
- Optional Thermostatic mixing valve will be supplied to temper sink water (WHST70-12) - it shall comply with ASSE 1070. 1/2" NPT Connection size valve provided when specified.

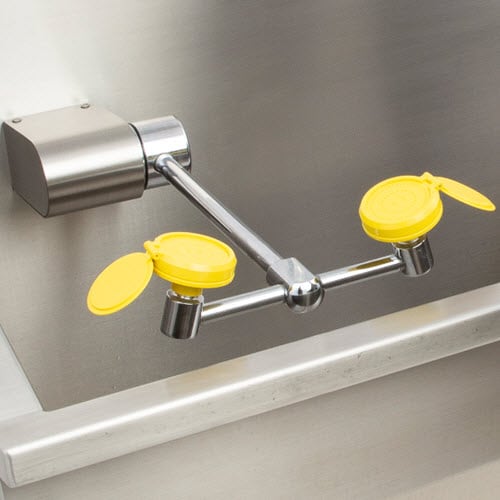

Option -EFW provides a Safety Manufacturing™ Model S0860 Series Swing Down Eye-Face Wash and includes a factory-installed Model ET71-1-BVS-OTG Safety Mixing Valve. Models with -EFW Option comply with USP 800, Section 5.3 Eyewash Station Requirements.
Earn CEU Credits with Whitehall
“Wash Your Hands One More Time” covers necessary information about sanitation practices and bacteria with regards to hand washing and infection prevention. This course offers professional credit for 31 industry associations and is HSW (Health, Safety, and Welfare) eligible.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Compliant Wash-UpSink - One Station (30 inch/762 mm) Basin | 0 | 240 KB | ||
| | All-in-One Hygienic Hand Washing System One Station (30 inch/762 mm) Basin | 0 | 221 KB | ||
 | | All-in-One Hygienic Hand Washing Sink System - One Station, Two Station, Three Station | 0 | 2 MB | ||
| | All-in-One Hygienic Hand Washing Sink System One Station, Two Station, Three Station | 0 | 1 MB | ||
| | All-in-One Hygienic Hand Washing System Two Station (72 inch/1,829 mm) Basin | 0 | 212 KB | ||
| | All-in-One Hygienic Hand Washing System Three Station (96 inch/2,438 mm) Basin | 0 | 214 KB | ||
| | ADA Compliant Wash-Up Sink - Two Station (72 inch/1,829 mm) Basin | 0 | 254 KB | ||
| | ADA Compliant Wash-Up Sink - Three Station (96 inch/2,438 mm) Basin | 0 | 264 KB | ||
 | | Whitehall Mfg - Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare shower valves, Healthcare bathing units, Bedpan washers | 0 | 320 KB | ||
| | Whitehall Mfg - Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare shower valves, Healthcare bathing units, Bedpan washers | 0 | 282 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||

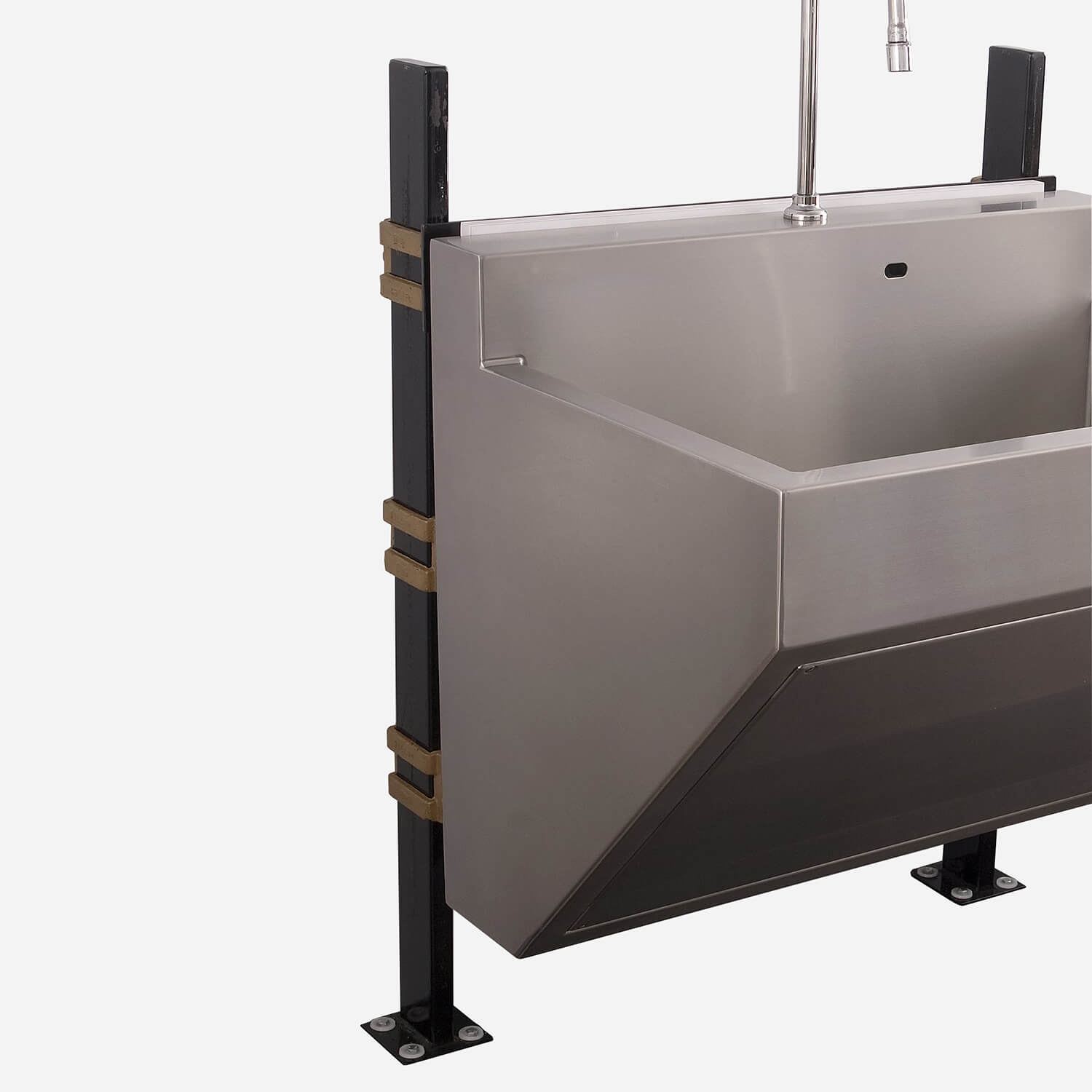

| | Smith Fixture Support Selection Guide for Wall Hung Fixtures by Whitehall | 0 | 188 KB | ||
| | ADA Compliant Wash-Up Sink Flyer | 0 | 1 MB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 0 | 928 KB |
Specifications
| Material | Stainless Steel |
| Type of Mount | Wall Mount |
| Waste Location | Wall |
| Compliances | USP <800>, UPC® |
| Accessibility | ADA Compliant |
| CSI Divisions | Division 22 |
| Brand | Acorn ConTrols® Inside |
Options
Accessories
Miscellaneous
Models

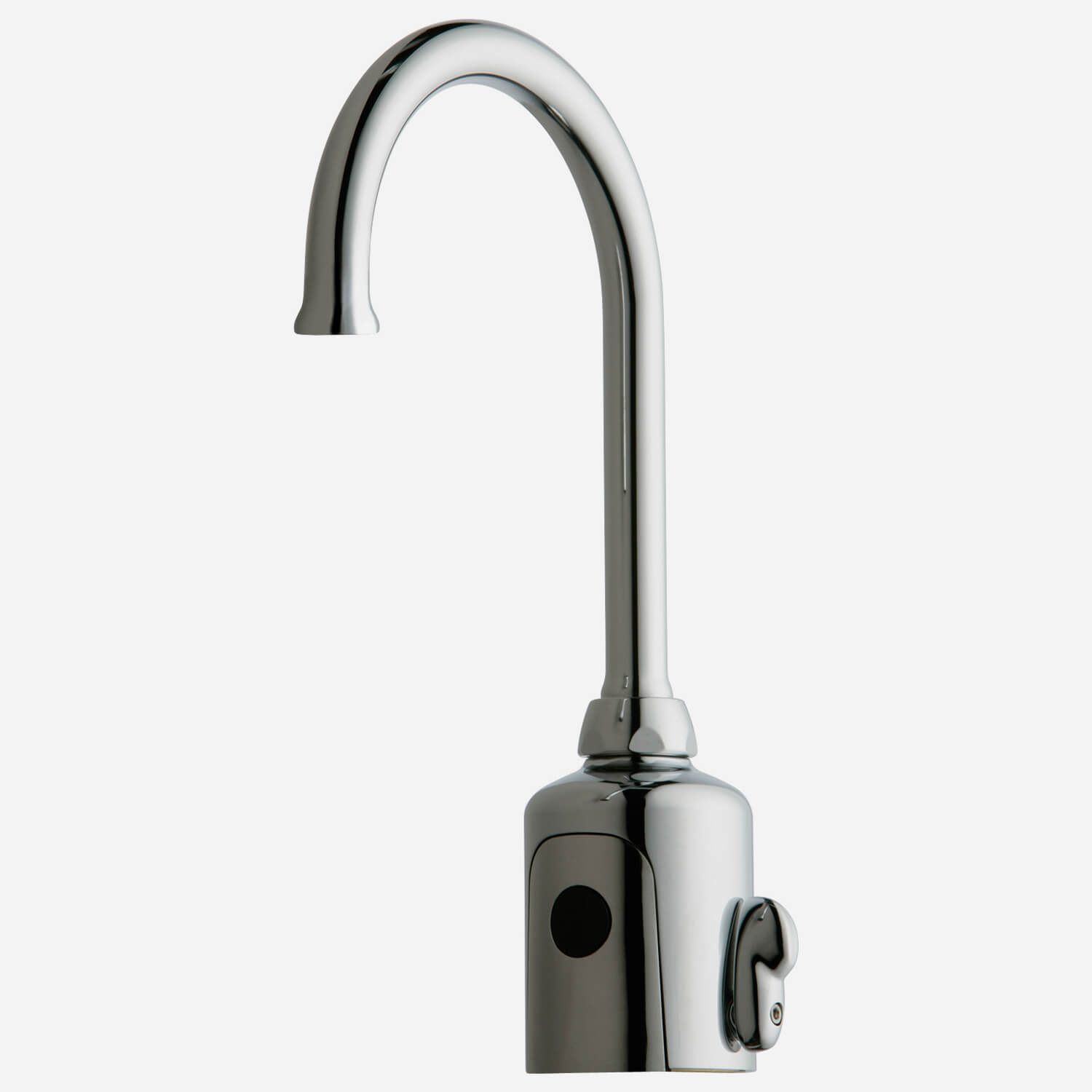

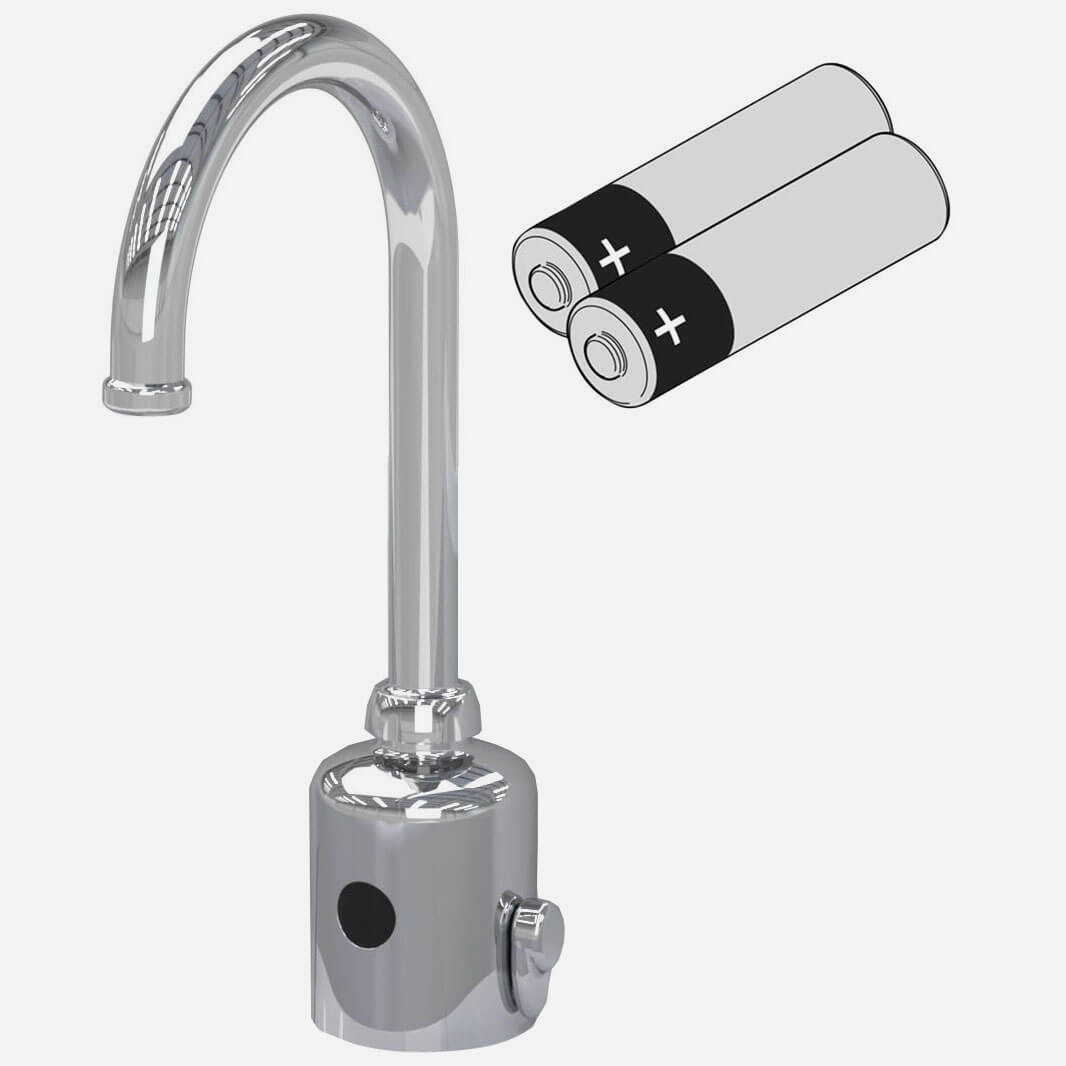

Typical models are shown below. All models below are shown with eye-face wash (-EFW) and Sensor Activated Faucet (-SO)

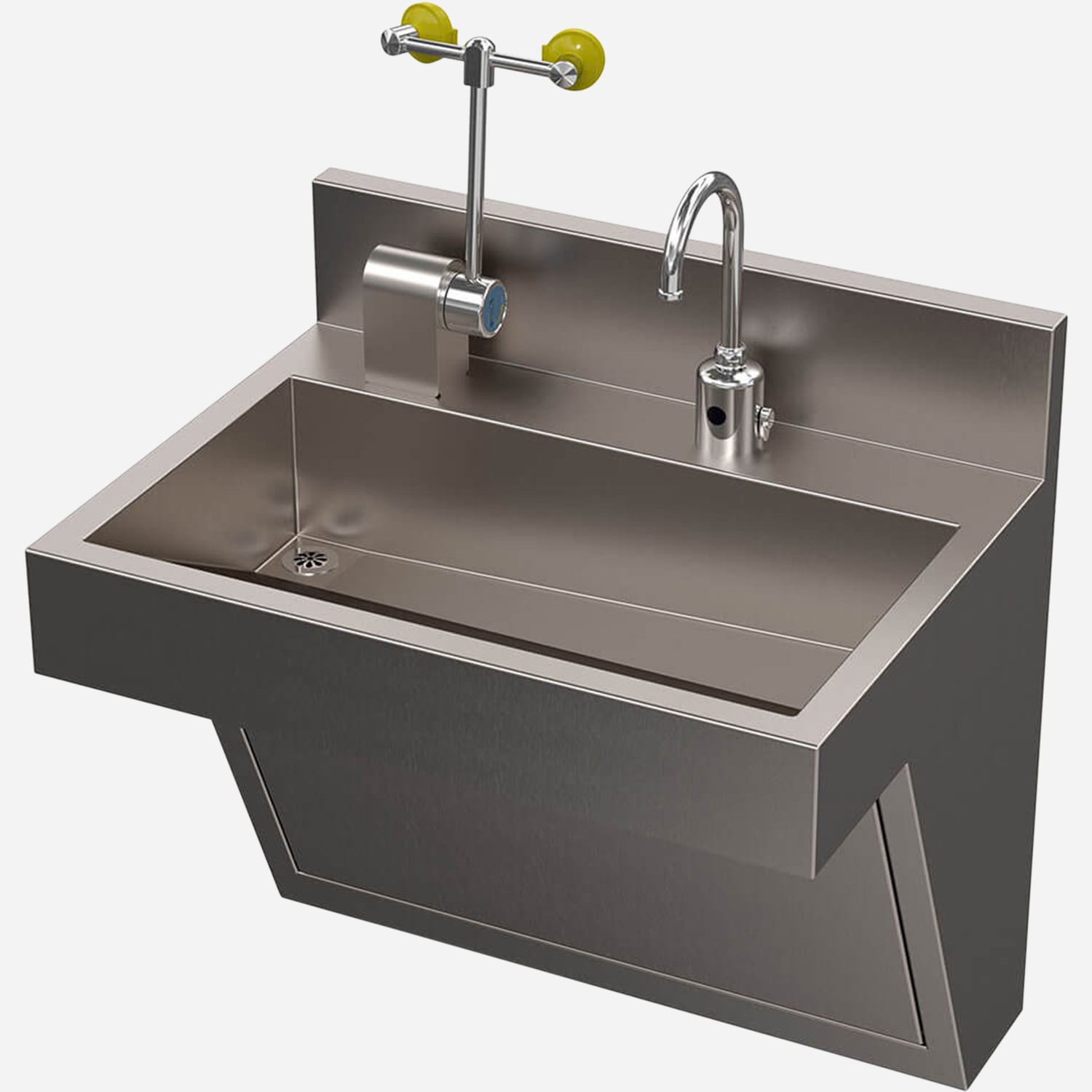

Model Number 4171 Single Station 30" (762 mm) Width Submittal | Install Guide
Model Number 4172 Two-Station 72" (1,829 mm) Width Submittal | Install Guide

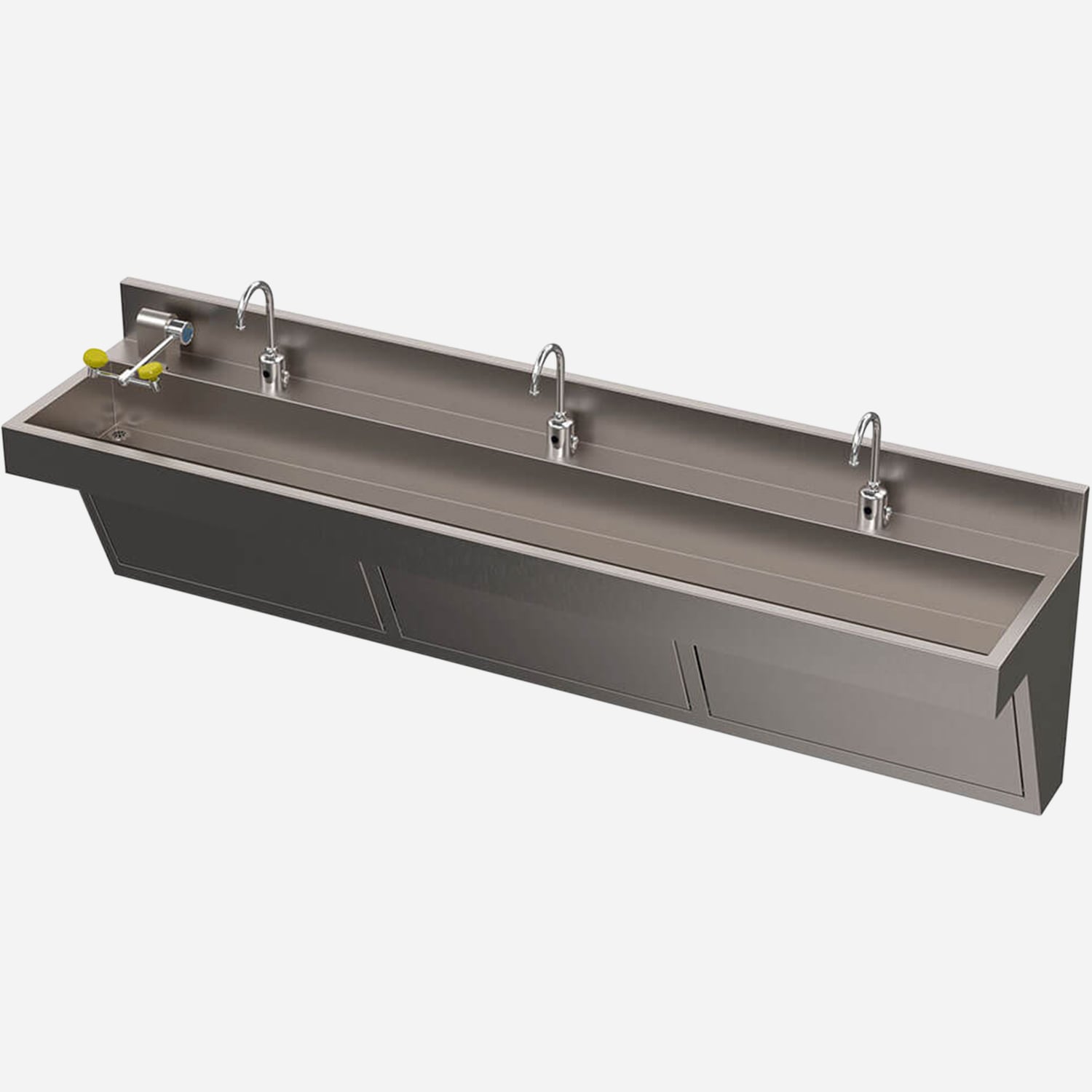

Model Number 4173 Three-Station 96" (2,438 mm) Width Submittal | Install Guide
