BestCare® Dignity Suite® Ligature-Resistant Solid Surface ADA Compliant Basin

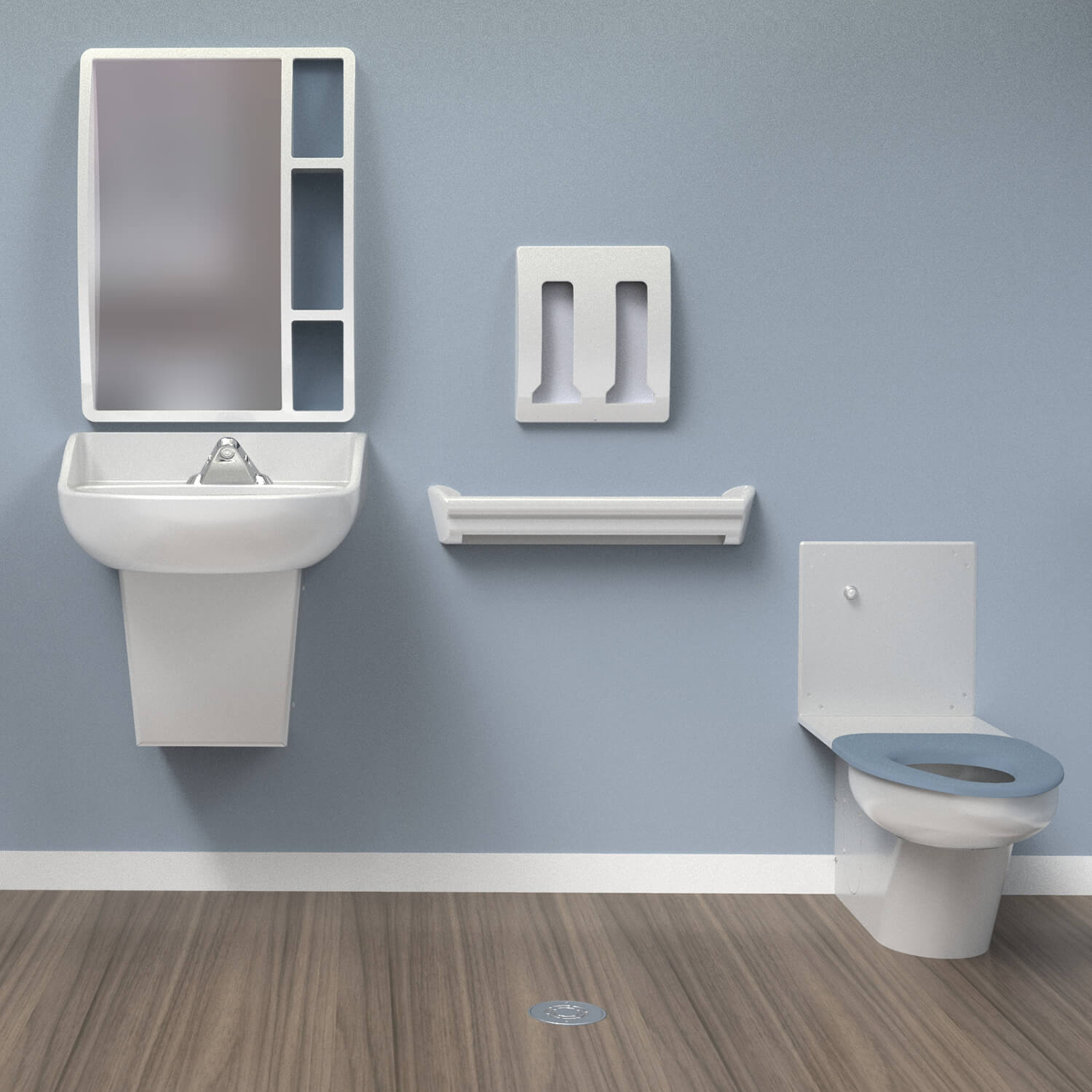

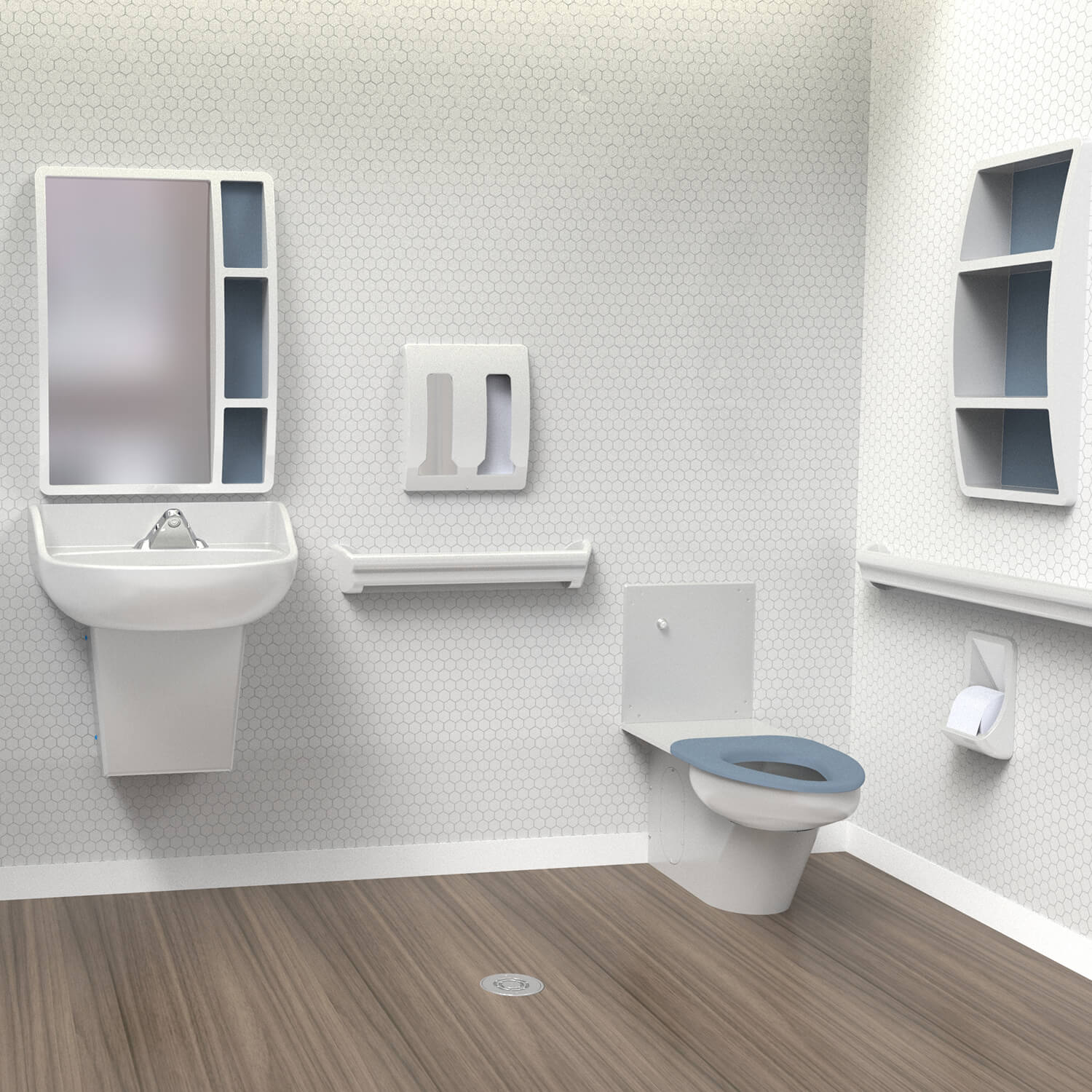

Whitehall's ® BestCare Dignity Suite® is a curated collection of ligature-resistant bathroom fixtures and accessories. Designed to create a peaceful and well-balanced environment, the Dignity Suite® is stylish and sleek while simultaneously protecting patients’ safety.
Dignity Suite® Ligature-Resistant Corterra ® Basin is engineered to combine the look and feel of commercial-grade designer Basins with durability and economy in mind. Each standard height Washbasin complies with ANSI, UFAS, and ADA requirements. Compliance is subject to the interpretation and requirements of the local code authority.
Basin is constructed of Corterra® Solid Surface Polymer Resin and conforms with ANSI Z124.3 and ANSI Z124.6 and is ANSI/ICPA SS-1 compliant. Color furnished is Blanco OCC11 (White). Unit includes ligature resistant grid strainer with waste piping and 1-1/2” Brass P-Trap.
Water for the sink may be tempered using a thermostatic mixing valve available optionally through Whitehall. The valve is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa)
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | BestCare® Dignity Suite® Ligature-Resistant Solid Surface ADA Complaint Basin | 742 KB | ||
| | Whitehall® BestCare® Dignity Suite® Ligature-Resistant Solid Surface ADA Complaint Basin [WHD-BSN | 3-Hole, 4" Centerset; WHD-BSN-H38 | 3 Hole, 8" Centerset] | 212 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | Corterra Blanco, Blanco Matte, Cotton Tail, Parchment, Moonstone Metallic, Meteorite, Pacific Palisades, Del Mar, Saguaro | 1 MB | ||
| | BestCare Solutions Flyer (pdf) | 181 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Smith Fixture Support Selection Guide for Wall Hung Fixtures by Whitehall | 188 KB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 571 KB | ||
| | Acorn Engineering Corterra® Solid Surface a solid-surface polymer resin (with aluminum trihydrate and other fillers) (also used for Neo-Metro and Whitehall) - Document features Product Description, Product Qualities, Cleaning Tips, ANSI Standard Compliance, CSA Standard Compliance and Burning Character Test Data | 460 KB | ||
 | | Contains WH2898D-SO.rfa, WHD-BSN.rfa, WHD-BSN.zip (CAD),WHD-CF.rfa, WHD-GB Series.rfa (multiple std sizes), WHD-MR.rfa, WHD-SHD-W.rfa,WHD-SHD-W.zip (CAD), WHD-SHV10.rfa, WHD-SHV15.rfa, WHD-TP.rfa, WHSHD-C.rfa, WHSHD-C.zip (CAD) | 5 MB | ||
 | | The Dignity Suite® is a curated collection of ligature-resistant bathroom fixtures & accessories. Designed to create a peaceful & well-balanced environment, the Dignity Suite® is stylish & sleek while simultaneously protecting patients safety. | 132 KB |
Specifications
| Brand | BestCare®, Dignity Suite® |
| Material | Solid Surface |
| Material Details | Stainless steel trap cover with white powder coating |
| Accessibility | ANSI Accessiblity Standards, ADA (if mounted at compliant height), UFAS Accessibility Standards |

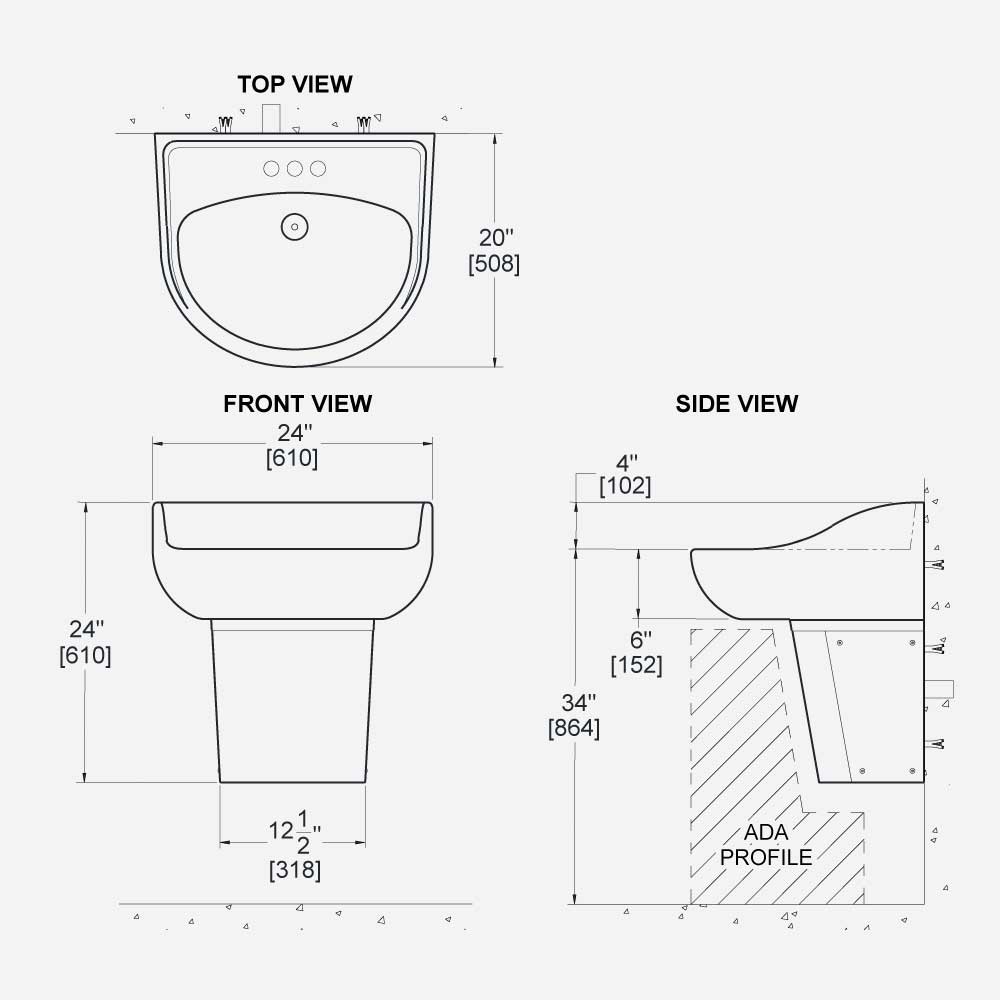

| Fixture Width | 24" |
| Type of Mount | Wall Mount |
| Features | Ligature-Resistant Design |
| Appropriate for | Ligature Resistant |
| Patent | Pending |
| CSI Divisions | Division 22 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | H38 | Option: 8-Inch Center Set Mounting | ||
 | OCC | Option: Corterra® Solid Surface | ||
 | WHST70-12 | 1/2" NPT Connections Thermostatic Lavatory Tempering Valve |
Models

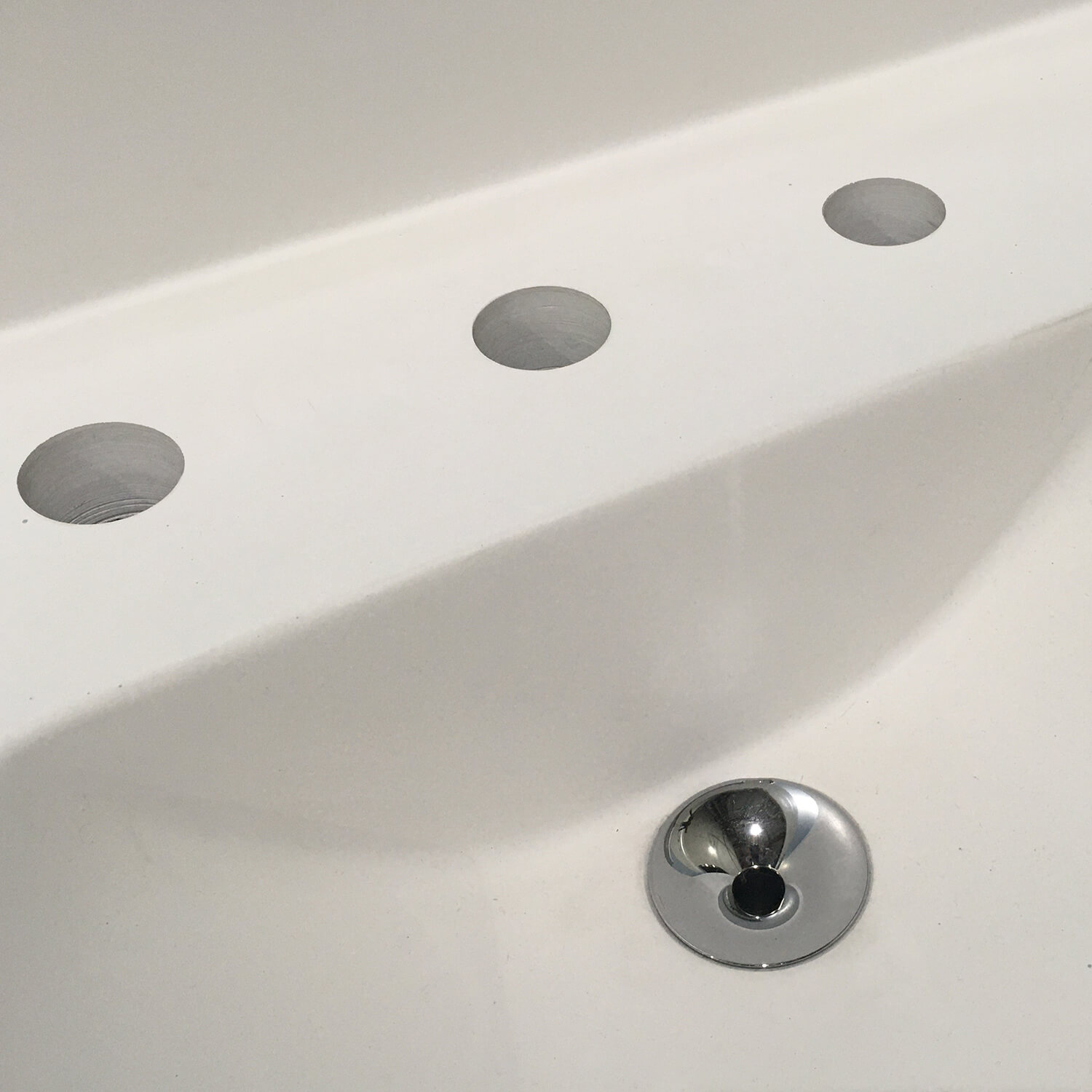

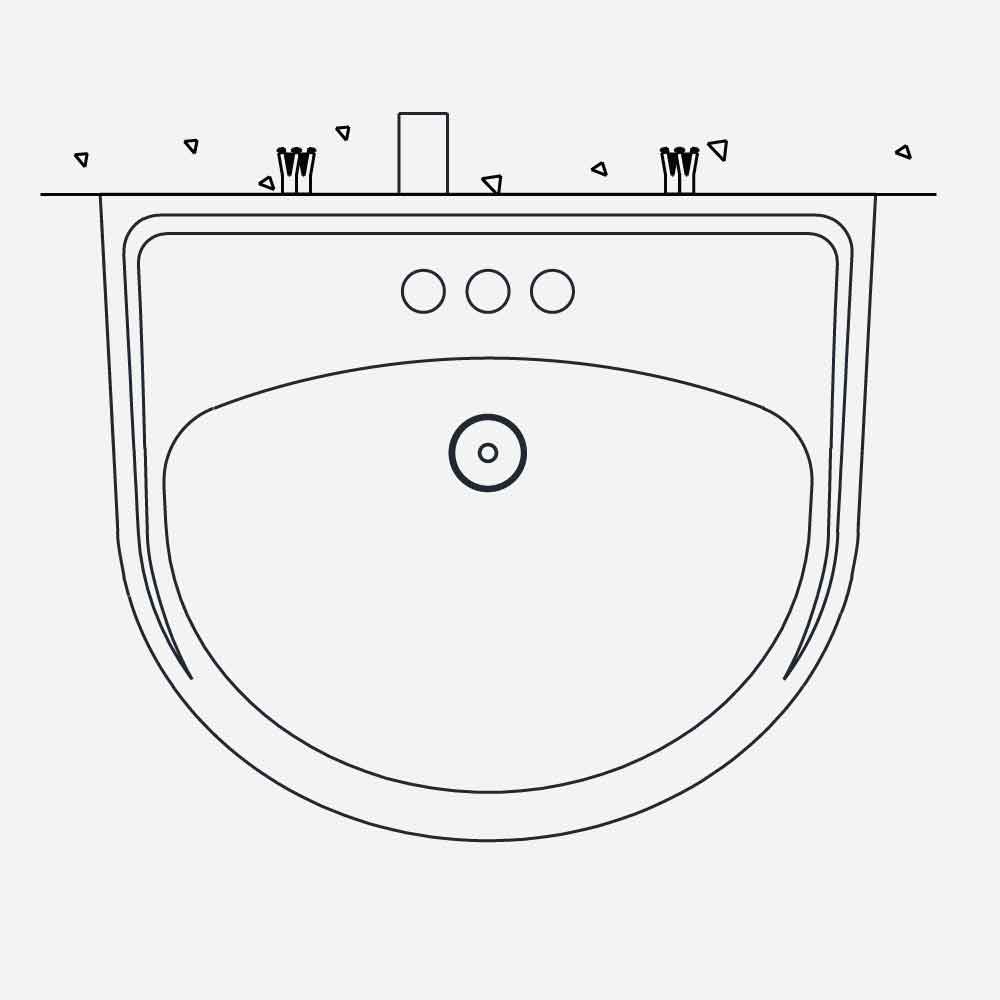

WHD-BSN 3 Holes for Faucet Drilled with 4 inch centerset; BestCare® 4 inch centerset faucets may be specified at addiitional cost

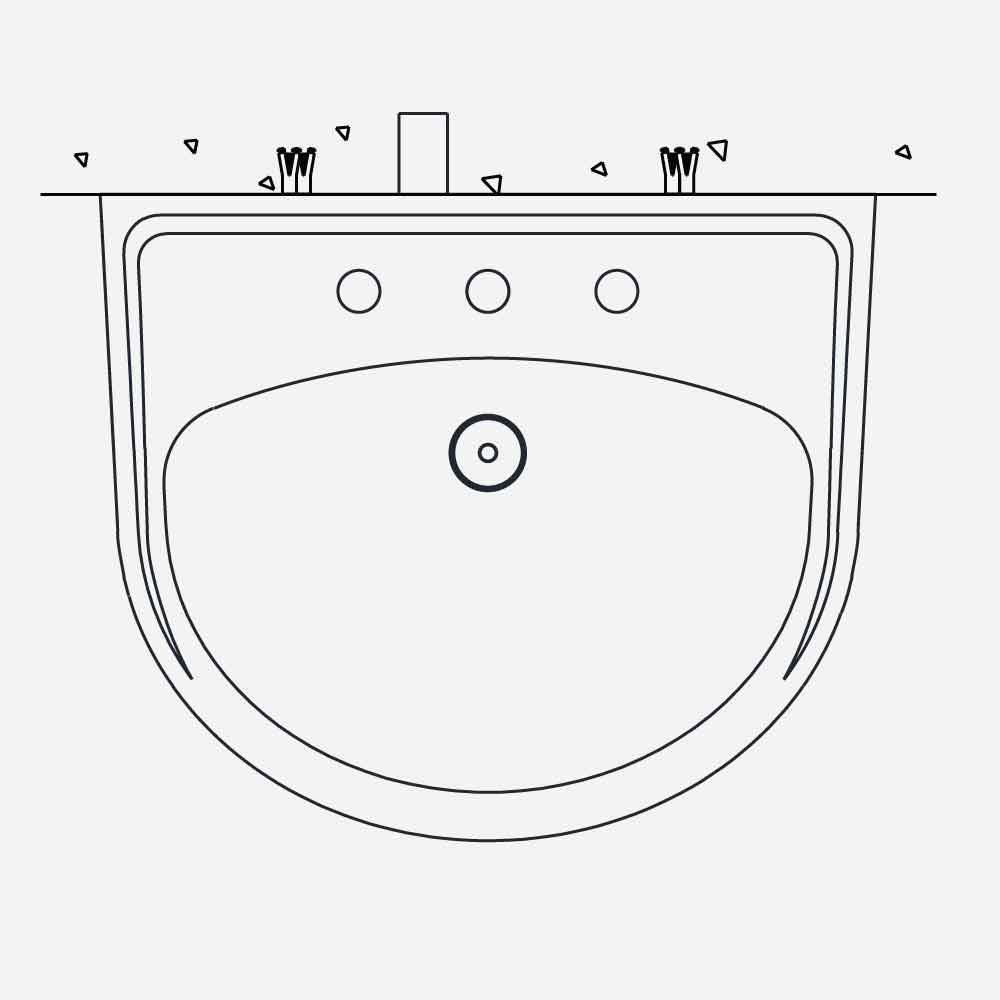

WHD-BSN-H38 3 Holes for Faucet Drilled with 8 inch centerset; BestCare® 8 inch centerset faucets may be specified at addiitional cost,
