Dialysis Box with One Valve, Includes Door

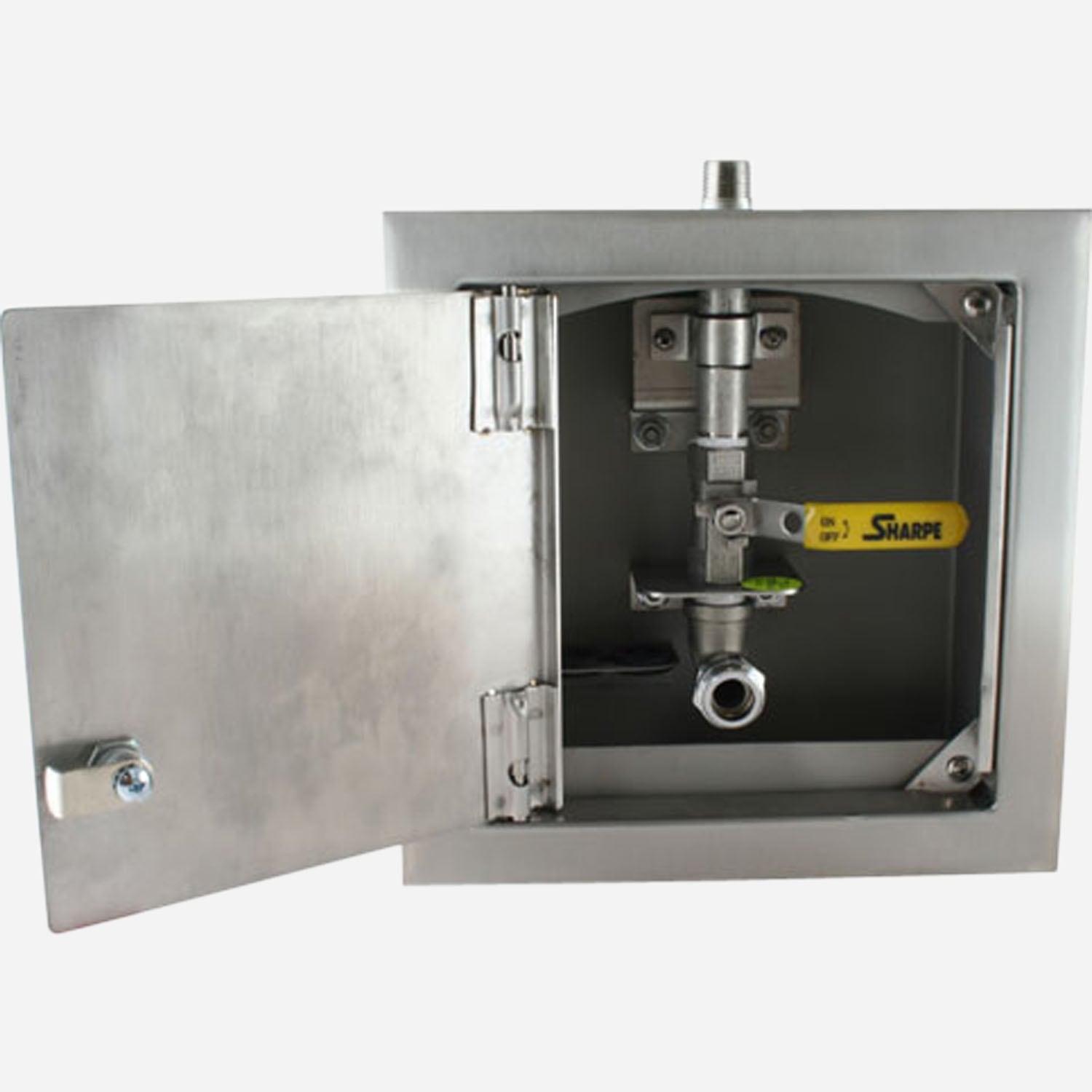

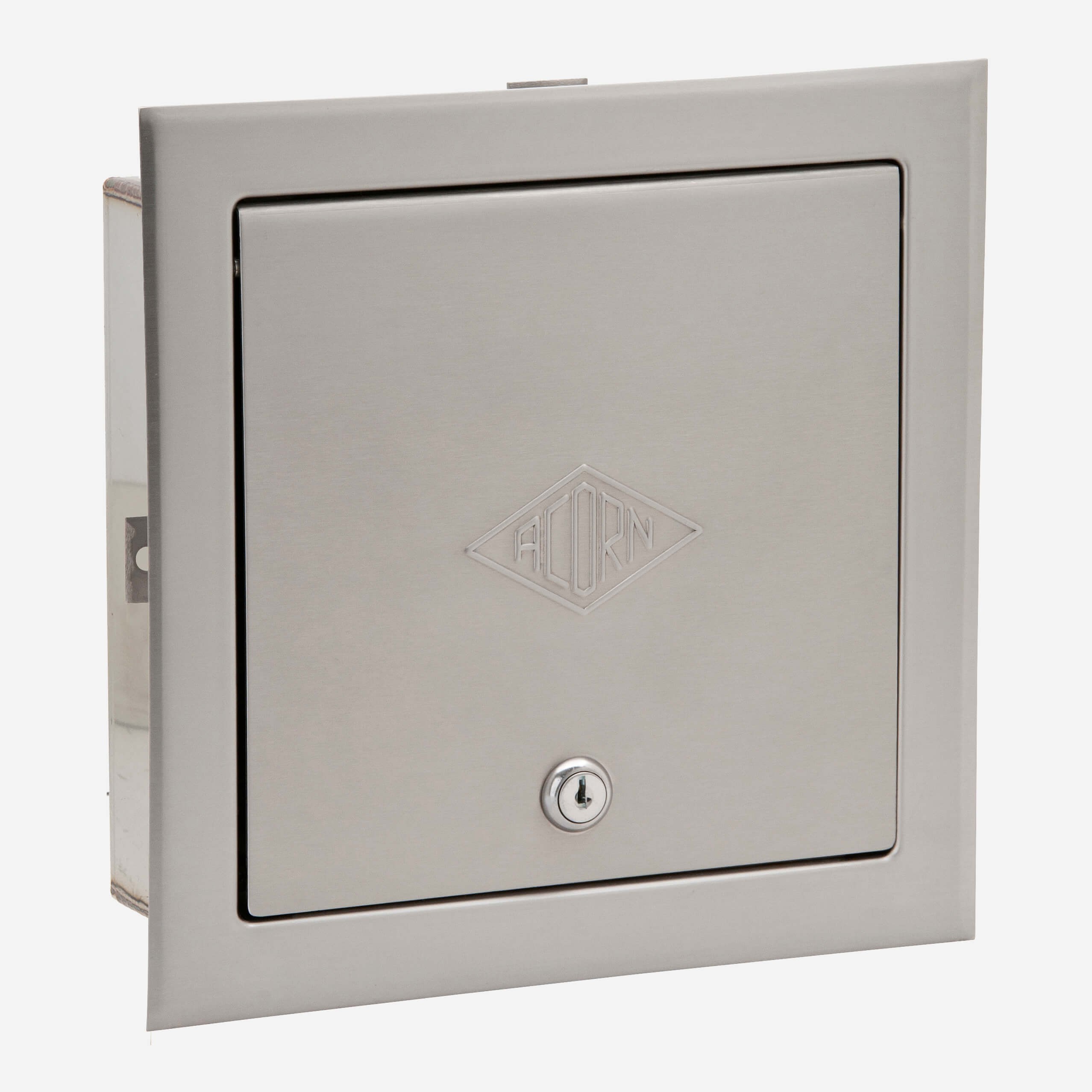

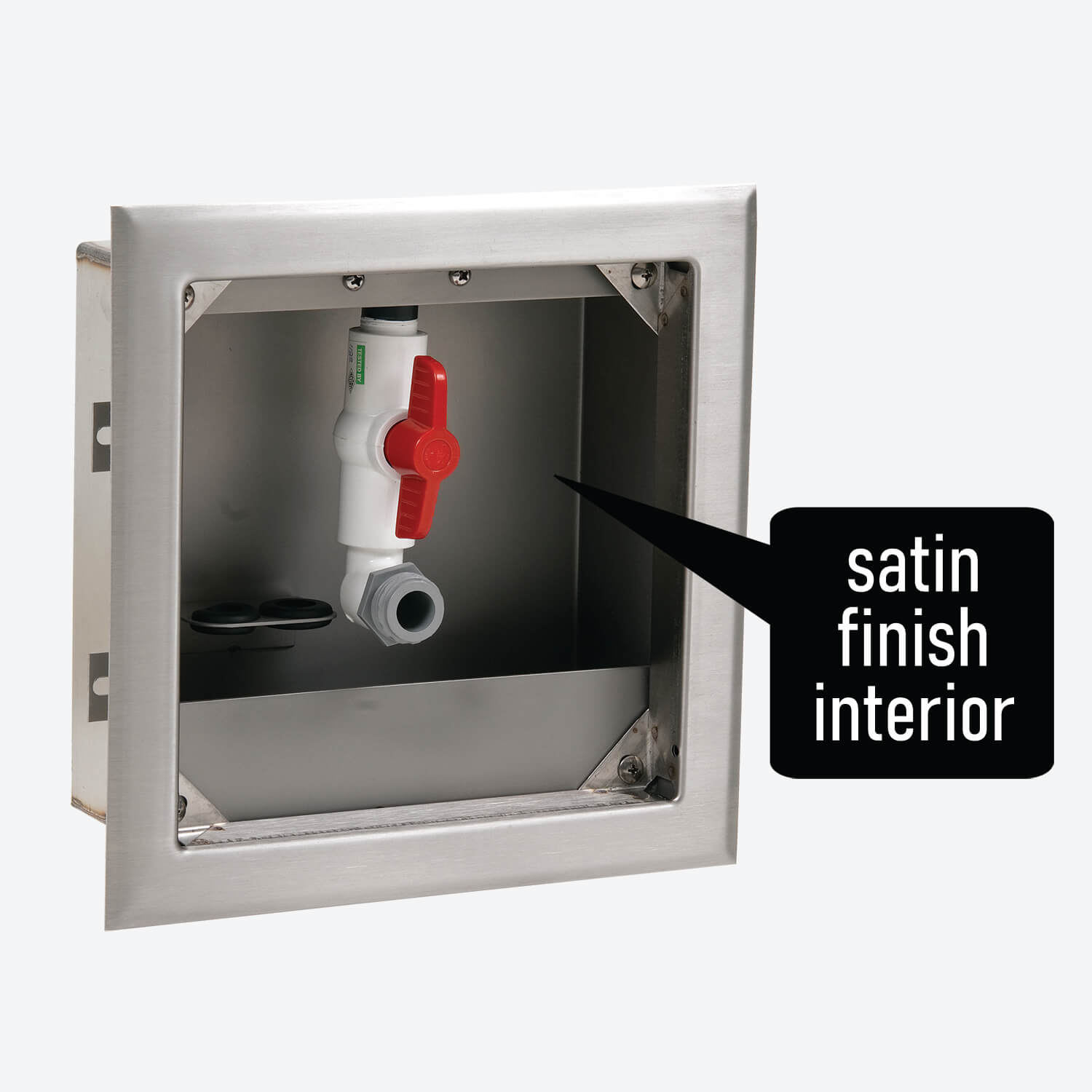

Water used during the dialysis process is very corrosive and is commonly called "hungry water," because it eats away steel, some stainless steels, cast iron, copper and brass metals commonly used in supply and waste systems. There are two basic types of dialysis machines. One mixes dialysate into the RO-DI water inside the machine and the other requires pre-mixed water. When only one type is used, the single valve dialysis box model is satisfactory. When both types are or may be used, the two valve model is required. Waste Box. All parts of the Box which come in contact with waste water are fabricated from type 316 stainless steel. All seams are continuous welded with a bead blast finish on the interior. The welded hose bracket will hold two discharge hoses. Tailpiece waste connection is 2-3/8" O.D. plain end. A stainless steel adjustable wall flange with satin finish is provided to cover space between wall and box. Wall flange is securely anchored with phillips head screws at each corner. Waste outlet can be directly connected to 2" nominal size glass or plastic drainline with a mechanical coupling.Door is provided with concealed hinge and Cam Cylinder Lock with two keys. Door can be easily removed after opening by releasing hinge pins with a screwdriver. Door and wall flange exterior surface is polished to a satin finish.Valves and Fittings are PVC (polyvinyl chloride). Valves are ball type with EPDM seals and O-ring. Each valve is furnished with a flushing nipple for installation in valve outlet when lines are flushed into waste receptor.
