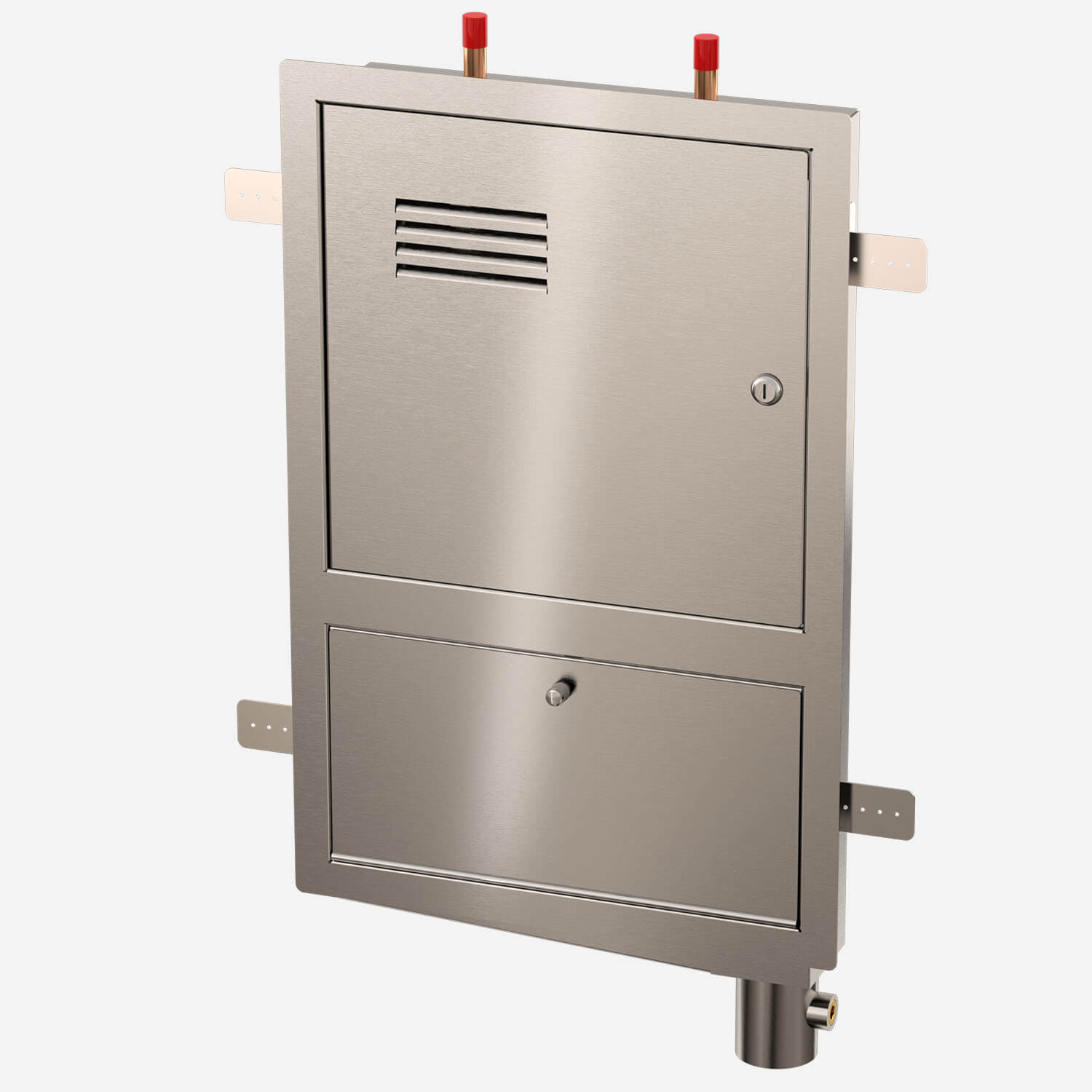

Recessed Stainless Steel Dual Door Dialysis Supply and Waste Box with Thermostatic Mixing Valve

The W.D. Manor by Whitehall Recessed Dialysis Supply and Waste Box features an innovative dual-door design that conceals plumbing components from staff and patients while exposing only the Supply and Waste components during use, enhancing its appearance and providing superior infection control.

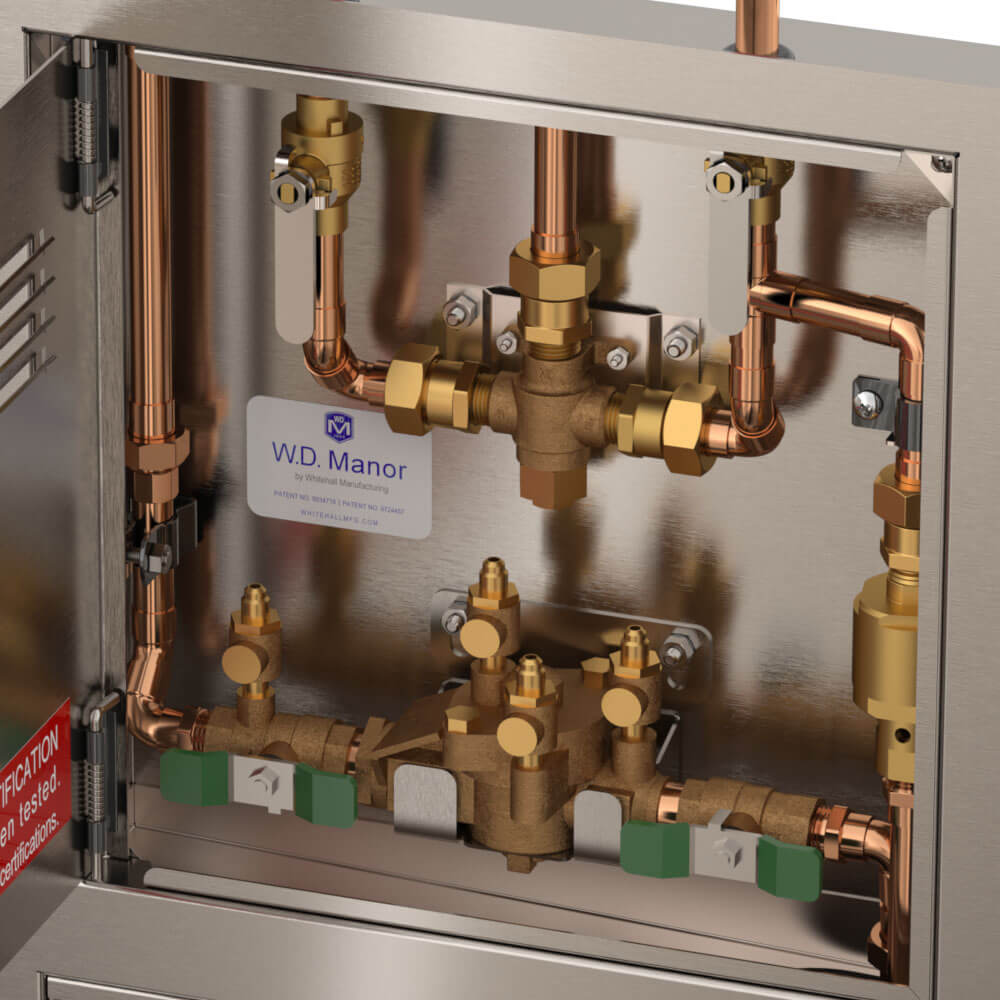

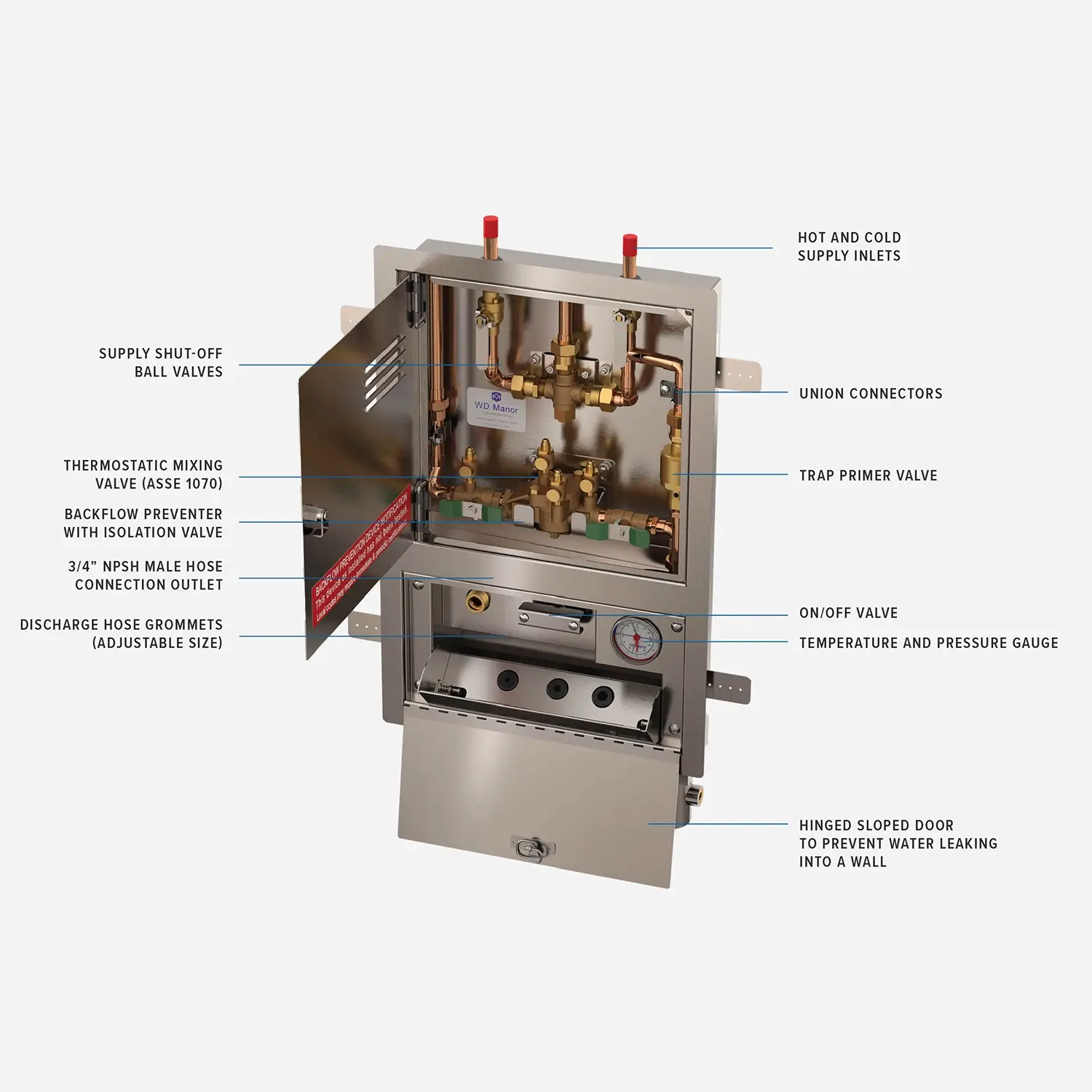

Upper Compartment

• ASSE 1013 Reduced Pressure Backflow Preventer
• ASSE 1018 Listed Trap Primer
• ASSE 1070 Thermostatic Mixing Valve
• Shut-off Ball Valves
• Keyed Cylinder Lock deters unauthorized use

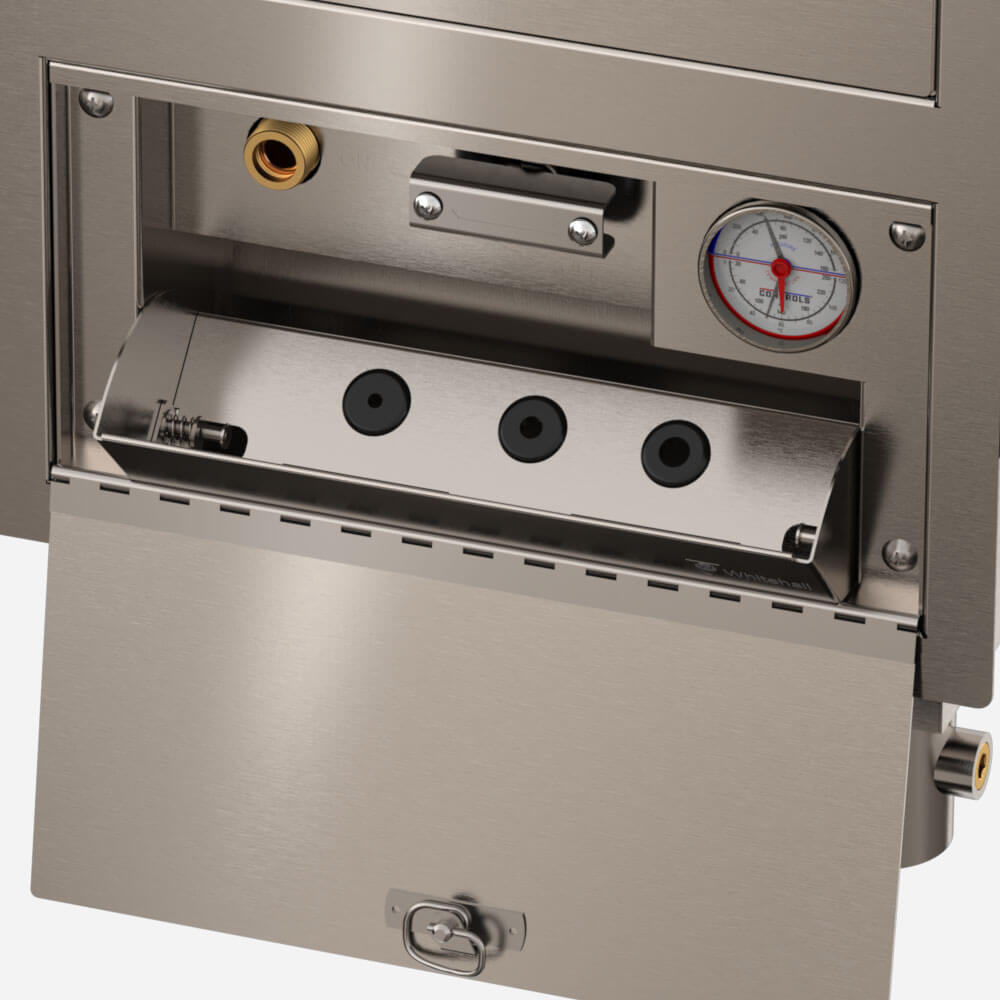

Lower Compartment

• 3/4" NPSH Male Hose Supply Connection
• On-Off Valve Control Handle
• Temperature and Pressure Gauge
• Fold-Down Tray with Three Grommeted Discharge Hose Connection

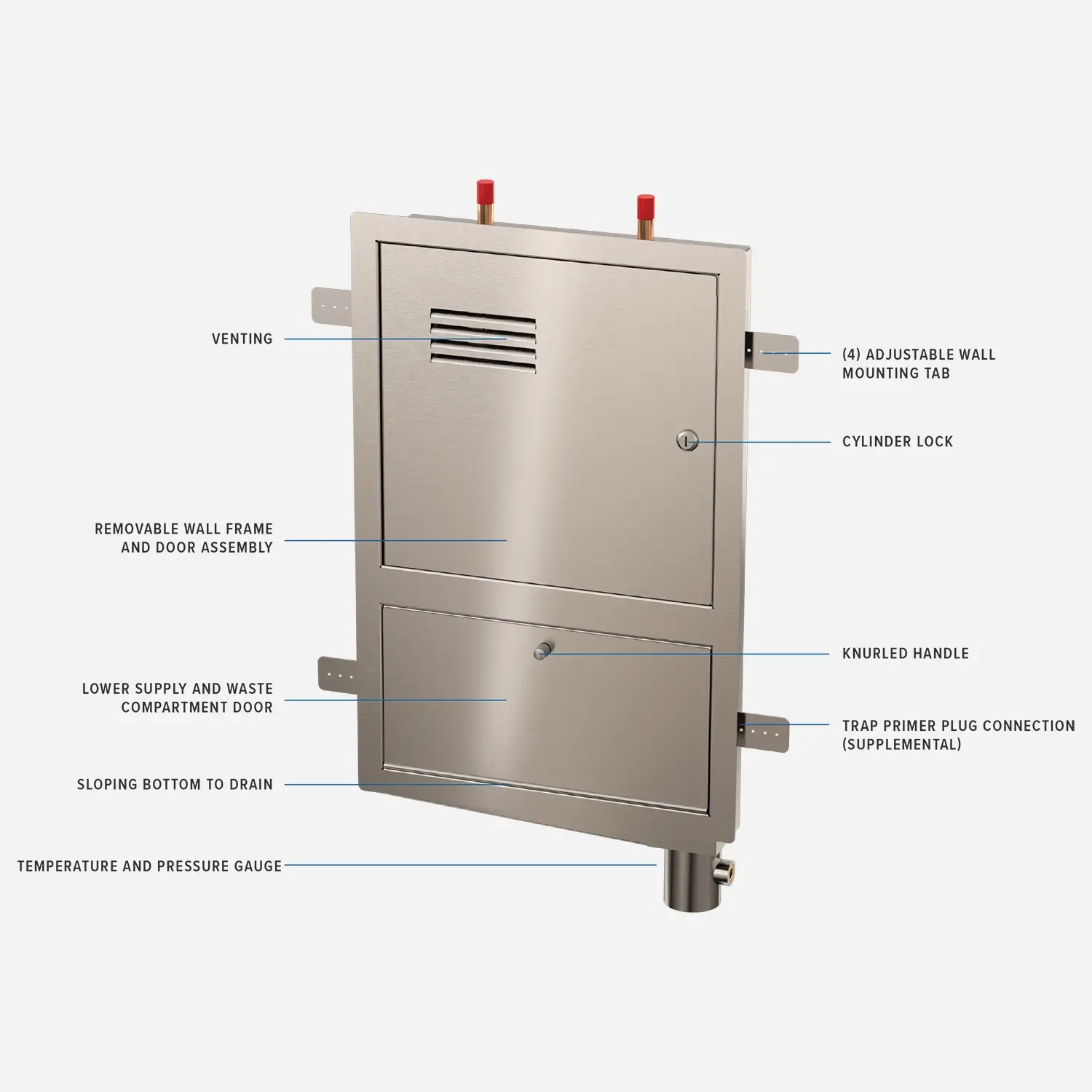

Dialysis Box

• 18 gauge, type 316 stainless steel
• Mounting Tabs to ease installation
• 2" IPS Plain End Drain Outlet

Note: this product is not intended for reverse osmosis or deionized water supply.

Mixing Valve

The mixing valve in the upper compartment is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa)
