Ligature-Resistant Retrofit Grate for Watts Drain

Name: Ligature-Resistant Retrofit Grate for Watts Drain
Brand: Whitehall Manufacturing
SKU: WHDG-WATTS Series

Find A Representative

Model WHDG-WATTS Series

Submittal

Submittal WHDG-WATTS Drain Grate (pdf)

Model WHDG-WATTS Series

Ligature-Resistant Retrofit Grate for Watts Drain

A Ligature Resistant Floor Drain Grate designed to replace and retrofit into a previously installed Watts Drain Body. The strainer plate is fabricated from 10 gauge 304 stainless steel and polished to a satin finish. The grate is designed with an internal gusset system that helps prevent ligature points. Replacement vandal-resistant crews are provided secure the grate. Mounting holes are 2-3/16" (56 mm) from the center and spread 120° apart.

The WHDG-5RD-WATTS round grate measures 4-7/8" (124 mm) in diameter and 3/4" (19 mm) in height. 6 slots provide 1.81 square inches (11.7 square centimeters) of free area to allow for drainage.

The WHDG-5SQ-WATTS square grate measures 4-3/8" (113 mm) in diameter and 3/4" (19 mm) in height. 6 slots provide 1.81 square inches (11.7 square centimeters) of free area to allow for drainage.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal WHDG-WATTS Drain Grate (pdf)	Ligature-Resistant Floor Drain Grate - Watts Retrofit [WHDG-5RD-WATTS \| 4-7/8" Round Grate; WHDG-5SQ-WATTS \| 4-3/8" Square]	125 KB
Brochures/Flyers	BestCare Solutions Flyer (pdf)	BestCare Solutions Flyer (pdf)	181 KB
Technical Data Sheets	Whitehall Cleaning and Care Guide (pdf)	Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces.	928 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Whitehall BestCare® Ligature-Resistant Drains Flyer (pdf)	BestCare® Ligature-Resistant Drains, Covers and Drain Assemblies [WHLVD Series, WHLD Series, WHFDV-6RD, WHFD Series, WHFD-TP Series, WHPD-2NH, WHDG Series, WHPG, WHDG-5RD (available for Zurn or Watts Drains)] two-page flyer (L1001725)	262 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	BestCare®
Material	Stainless Steel
Features	Ligature-Resistant Design
Appropriate for	Retrofit
CSI Divisions	Division 22

Details

Standard variations for this product include round or square grates - see submittal for mounting dimensions.

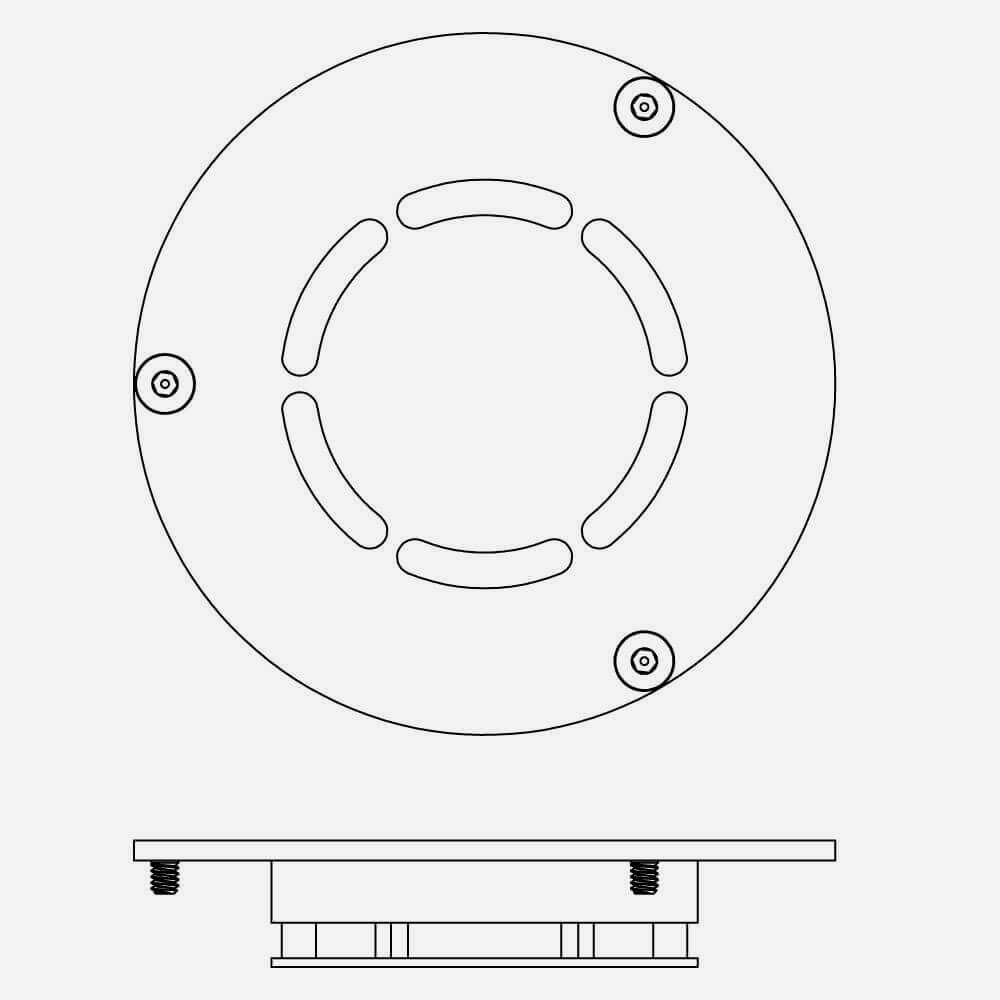

4-7/8 ROUND DRAIN GRATE WHDG-5RD-WATTS 4-7/8" (124 mm) diameter

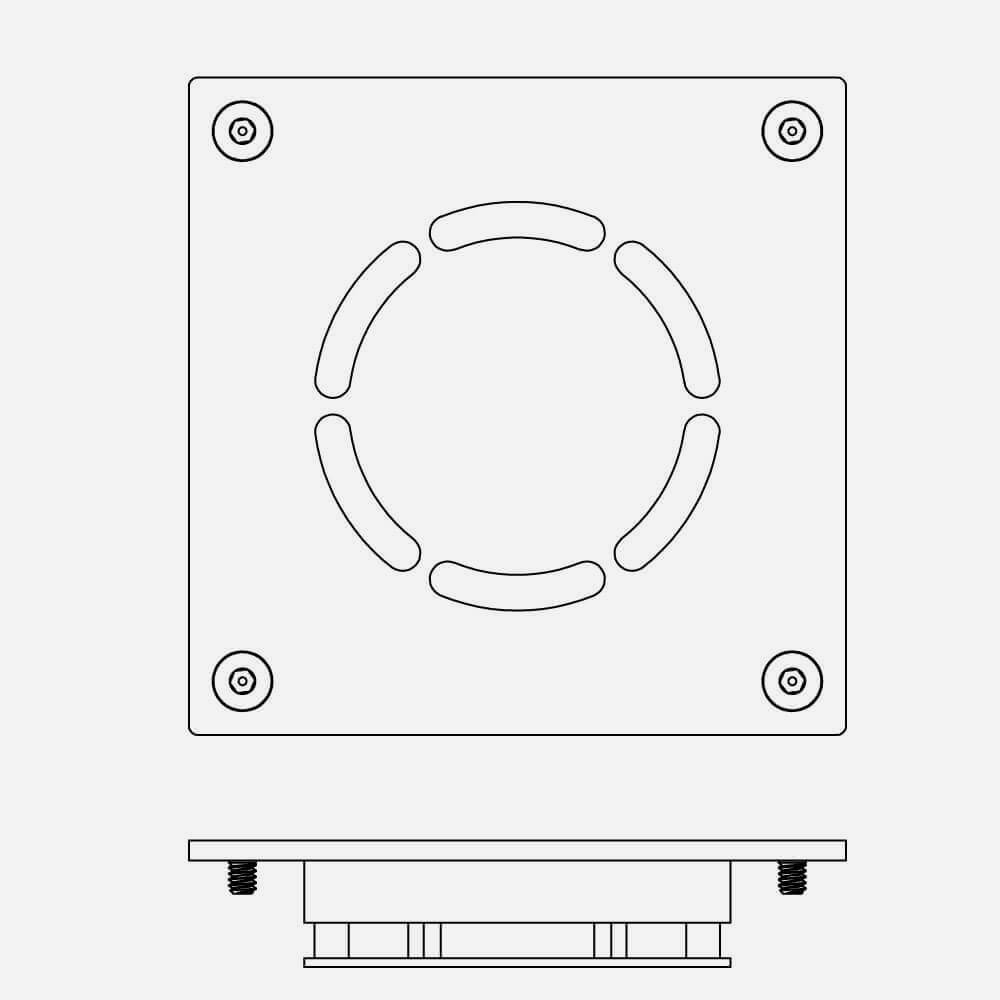

4-3/8 SQUARE DRAIN GRATE WH DG-5SQ-WATTS 4-3/8" (113 mm) square
