BestCare® Ligature-Resistant Linear Drain for Vinyl Floor

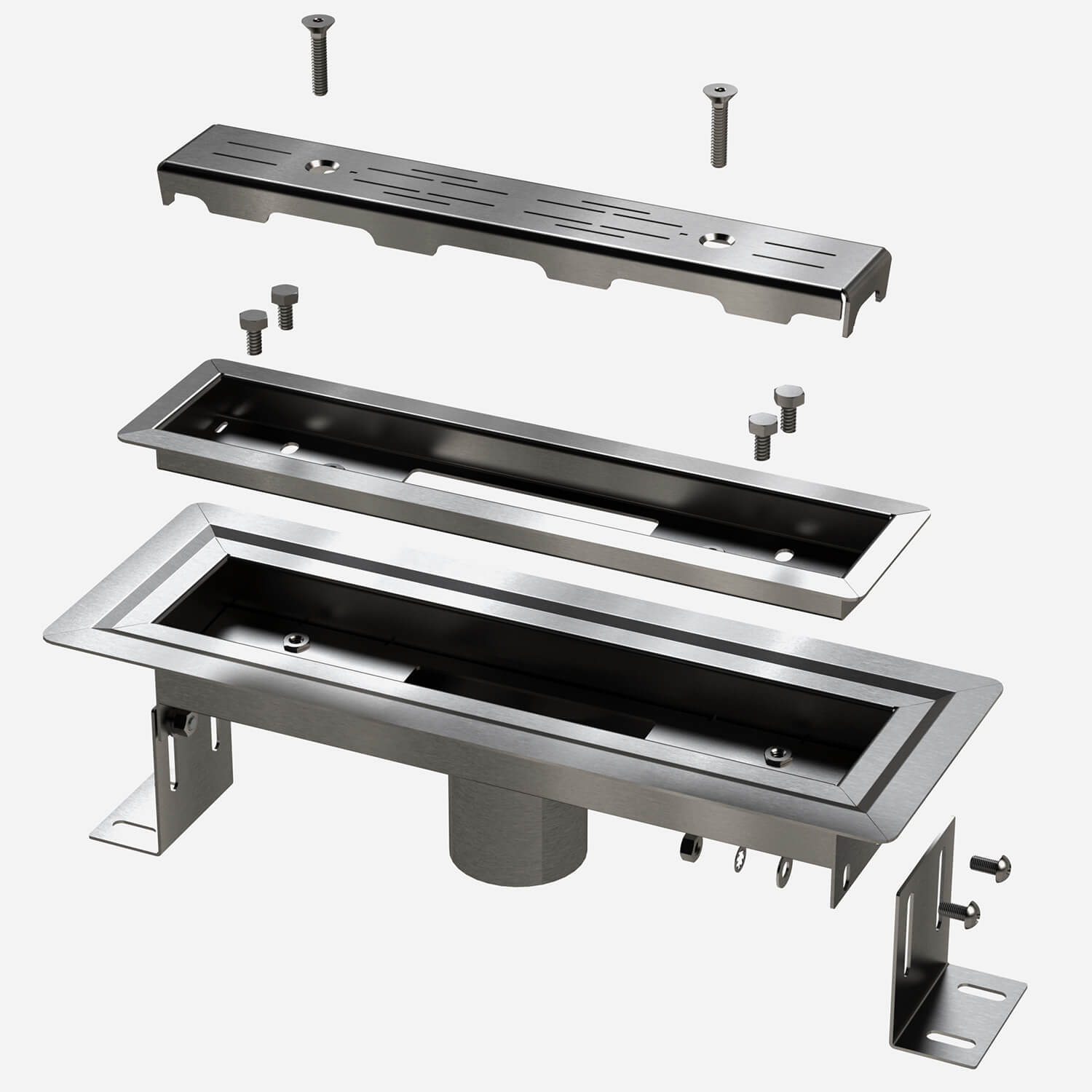

BestCare Ligature Resistant Linear Floor Drain is recommended for patient bathrooms and facilities where accommodation for at-risk patients is required. The WHLVD series is designed specifically for Vinyl Flooring or similar water-resistant materials (Maximum 0.078" [2mm] Thickness). The Drain system incorporates a Clamping Collar to mechanically clamp the vinyl in place to provide a water-resistant seal. Clamping Collar is 16-gauge type 304 stainless steel with a #4 satin finish. Drain Grate has elongated 1/16" wide drain slots to increase ligature resistance and is fabricated of 14-gauge type 304 stainless steel, polished to a #4 satin finish, and provided with 1/4-20” vandal-resistant, countersunk, stainless steel fasteners. Drain Body is fabricated of 16-gauge type 304 stainless steel and includes Adjustable Height Legs to assist with installation and includes a centered 2" IPS no-hub drain outlet.
Nominal lengths of 12" (305 mm), 24" (610 mm), 36" (914 mm), and 48" (1,219 mm) are available.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Whitehall® BestCare® Ligature-Resistant Linear Drain for Vinyl Floor [WHLVD-12 | 12" Length; WHLVD-18 | 18" Length; WHLVD-24 | 24" Length; WHLVD-36 | 36" Length; WHLVD-48 | 48" Length] | 0 | 246 KB | ||
| | Whitehall® BestCare® Ligature-Resistant Linear Drain for Vinyl Floor [WHLVD-12 | 12" Length; WHLVD-18 | 18" Length; WHLVD-24 | 24" Length; WHLVD-36 | 36" Length; WHLVD-48 | 48" Length] | 0 | 148 KB | ||
 | | BestCare® Ligature-Resistant Linear Drain for Vinyl Floor - [WHLVD-12 | 12" (305 mm) nominal length; WHLVD-24 | 24" (610 mm) nominal length; WHLVD-36 | 36" (914 mm) nominal length; WHLVD-48 | 48" (1,219 mm) nominal length] | 0 | 600 KB | ||
| | BestCare® Ligature-Resistant Linear Drain for Vinyl Floor - [WHLVD-12 | 12" (305 mm) nominal length; WHLVD-24 | 24" (610 mm) nominal length; WHLVD-36 | 36" (914 mm) nominal length; WHLVD-48 | 48" (1,219 mm) nominal length] | 0 | 506 KB | ||
| | BestCare Solutions Flyer (pdf) | 0 | 181 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
| | BestCare® Ligature-Resistant Drains, Covers and Drain Assemblies [WHLVD Series, WHLD Series, WHFDV-6RD, WHFD Series, WHFD-TP Series, WHPD-2NH, WHDG Series, WHPG, WHDG-5RD (available for Zurn or Watts Drains)] two-page flyer (L1001725) | 0 | 1 MB |
Specifications
| Brand | BestCare® |
| Material | Stainless Steel |
| Features | Ligature-Resistant Design |
| Appropriate for | Vinyl Floor Applications |
| CSI Divisions | Division 22 |
Models
The nominal length is the linear dimension of the drain grate. The width of the grate is 2" (50 mm). The drain body is 3-3/4" (97 mm) high. Adjustable legs can raise the top of the drain body to be as high as 4-7/8" (124 mm).

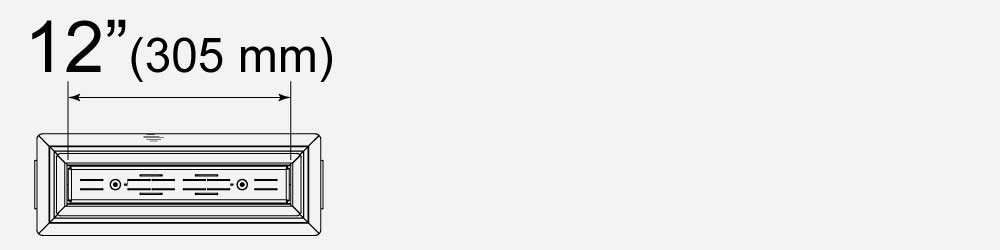

WHLVD-12 12" (305 mm) length; top view shown
WHLVD-18 18" (457 mm) length; top view shown

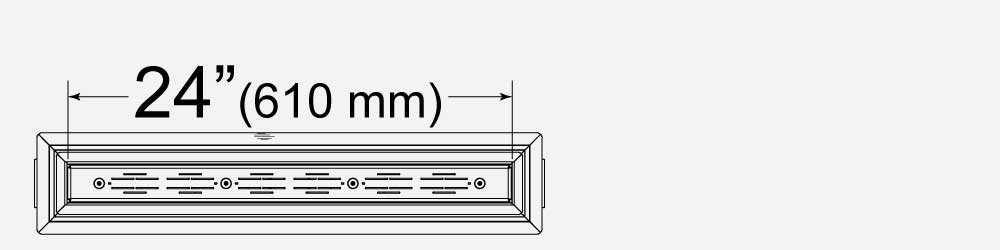

WHLVD-24 24" (610 mm) length; top view shown
WHLVD-36 36" (914 mm) length; top view shown

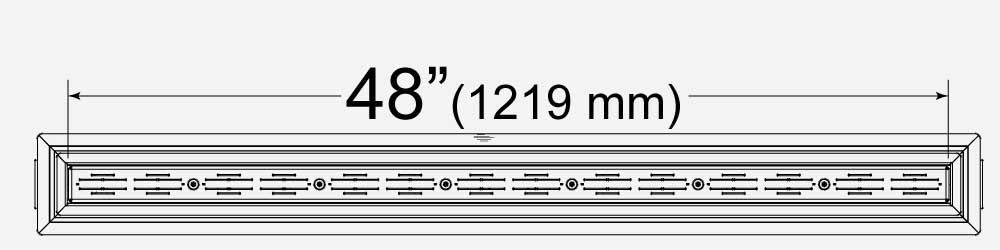

WHLVD-48 48" (1,219 mm) length; top view shown
