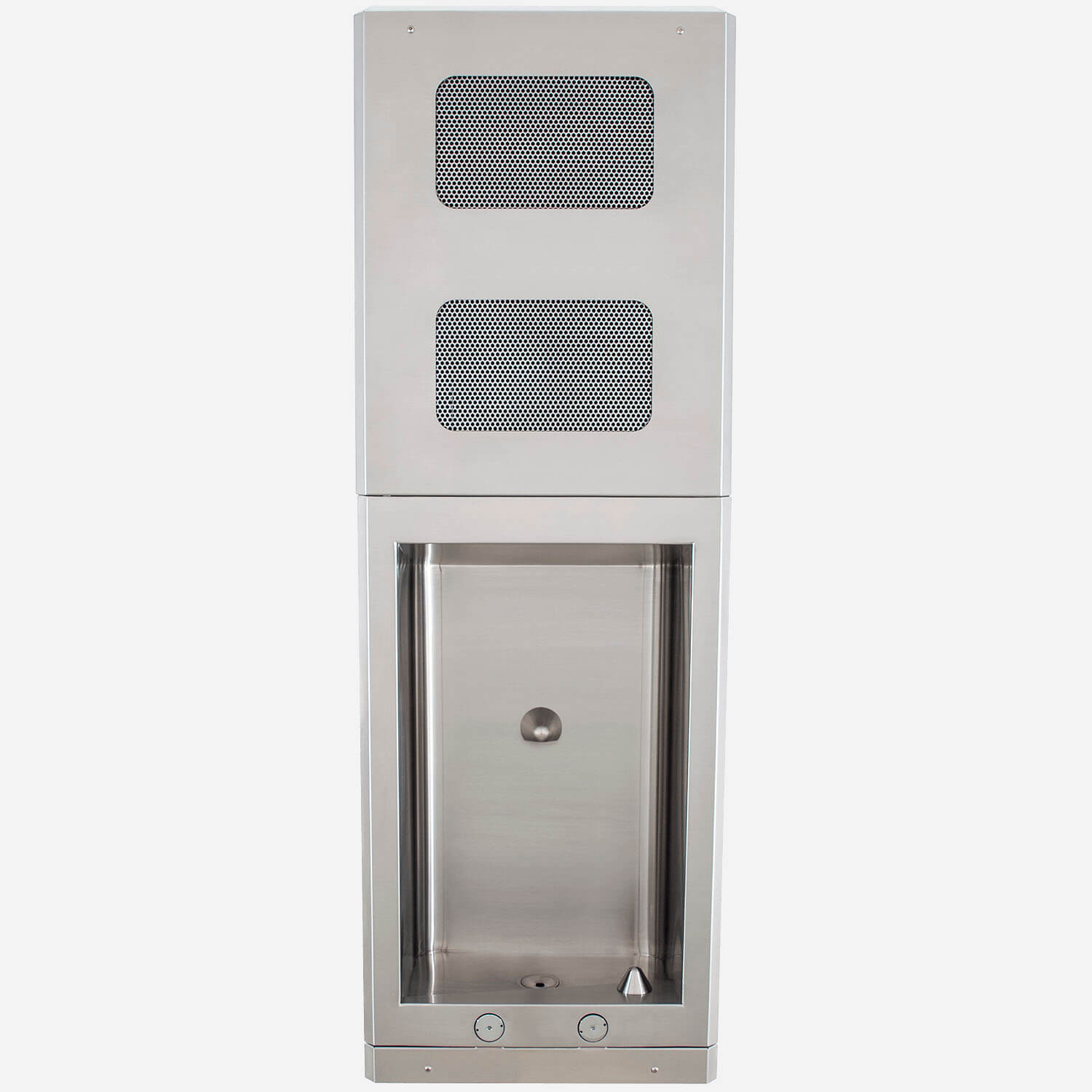

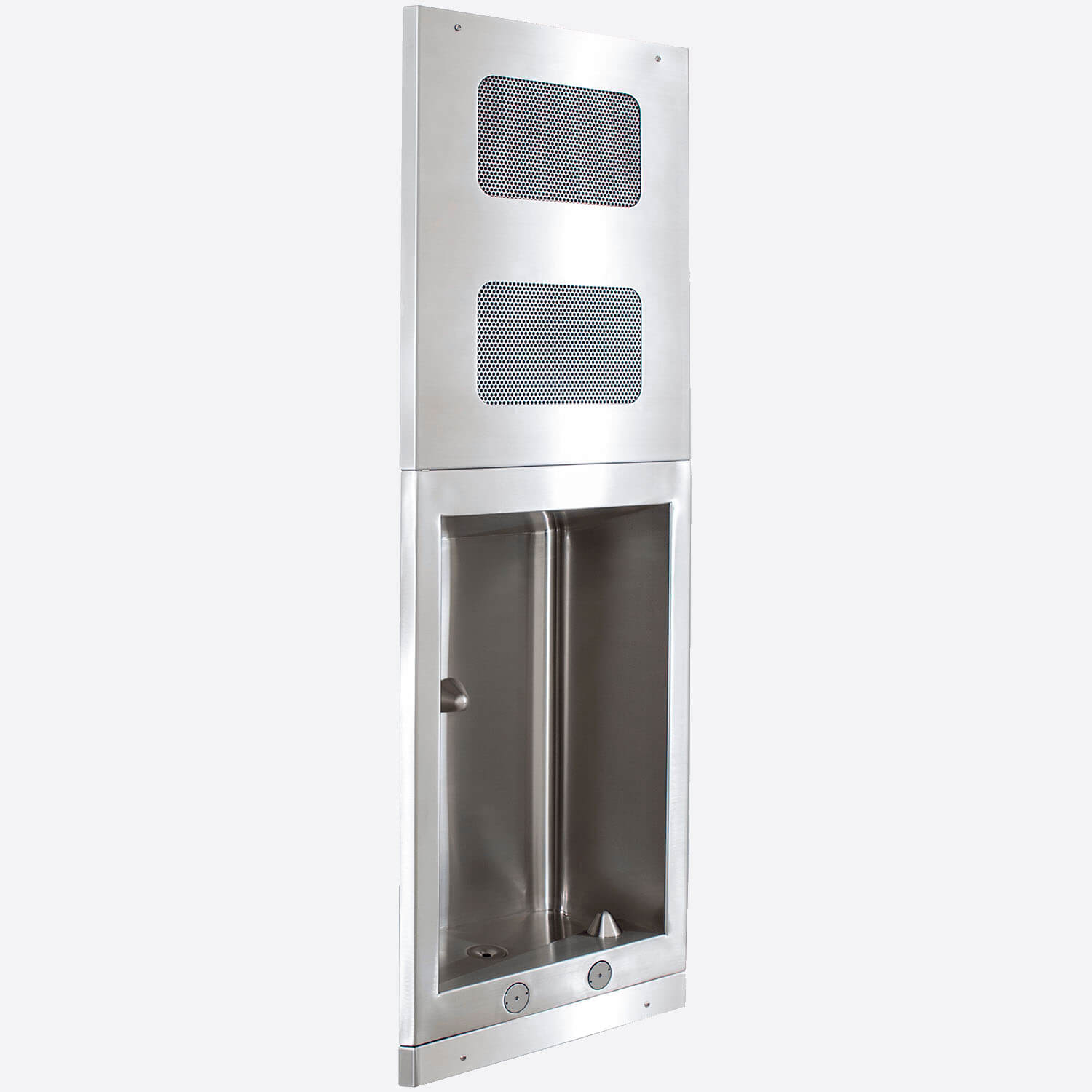

BestCare® Ligature-Resistant Recessed, Barrier-Free, Inverted Electric Drinking Fountain and Bottle Filling Station

Ligature-Resistant Stainless Steel Drinking Fountain is intended to be fully recessed into a finished wall and accessed from the front. Unit is a self-contained, Ligature Resistant, inverted, fully recessed pressure electric Drinking Fountain that shall deliver a minimum of 8.0 GPH (30.3 LPH) of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water and 90°F (32.2°C) ambient. Mounting Frame -MF20 is included with Drinking Fountain.

Drinking Fountain shall be activated by a brass, chrome plated front Pushbutton using less then 5 pounds of force. Bubbler shall be Stainless Steel, Ligature Resistant and operate on a water pressure range of 20-105 PSIG. Cabinet Panels shall be constructed from 304 Stainless Steel with exposed surfaces surfaces powder coated white. The Bowl shall have an integral Ligature Resistant Drain. Cooling system shall use R-134a refrigerant and be capillary tube regulated. Chiller includes Factory installed Water Leak Detection Auto Shut-off Valve.

Standards: Unit is compliant to Public Law 111-380 (NO-LEAD) and NSF/ANSI/CAN 61.

Standard Features

• Ligature Resistant
• Child or Adult ADA Compliant (when properly installed with a Knee Clearance Alcove)
• 18 Gauge 304 Stainless Steel Cabinet
• 16 Gauge Galvanized or Galvannealed Mounting Frame (A0000000-MF20 - may be pre-ordered)
• Polished Stainless Steel, Anti-Rotation, Ligature Resistant
• 100-Mesh Inlet Strainer
• Vandal Resistant Screws

This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management and supervision of persons at risk of suicide.

NOTE: Unit requires rear access or access panel to make-up waste connection.

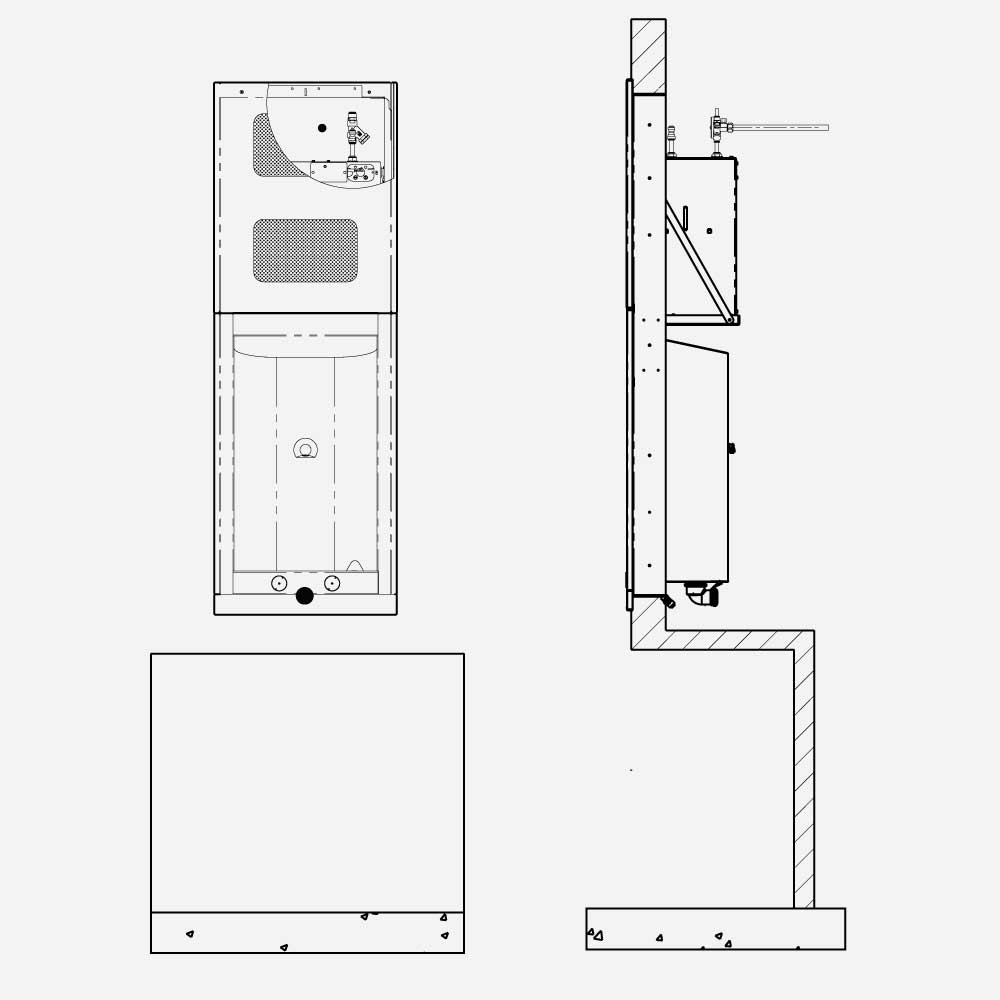

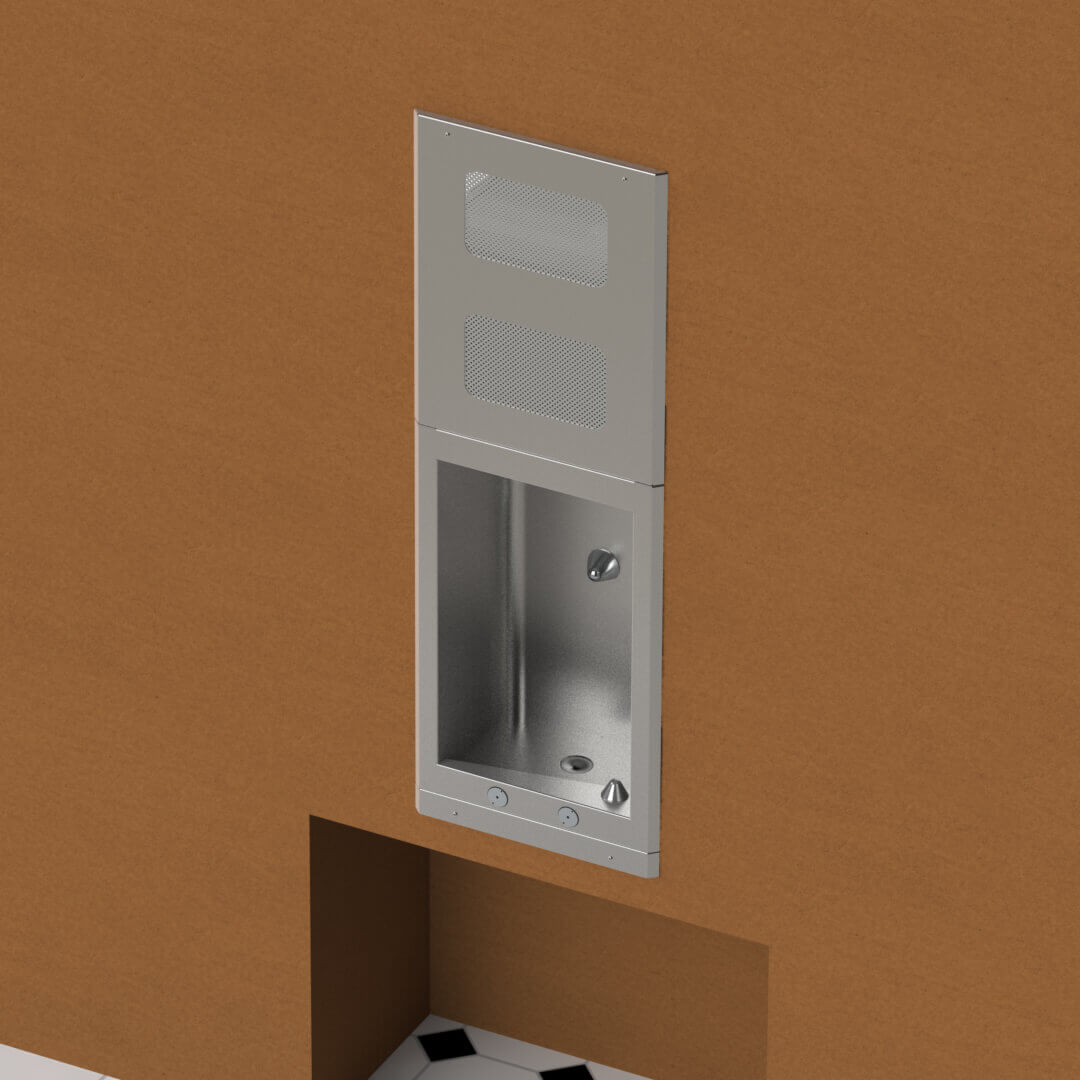

WHAR81.8-BF-SS All-Stainless Steel unit shown with wheelchair alcove measuring 36" (914 mm) Side-to-Side (minimum) x 27" (686 mm) Height x 17" (432 mm) Front-to-Back (minimum).
