Member of Morris Group International
Model WH3377-WSF-PPZ
Hot & Cold, Widespread Piezo Pushbutton Electronic Valve, Conical Faucet
Product features:
- Conical chrome-plated brass faucet head
- Vandal Resistant, 0.35 Gallon (1.32 liter) per Minute Flow Nozzle (spanner key provided)
- Hot (Tempered) & Cold Piezo activating pushbutton assembly

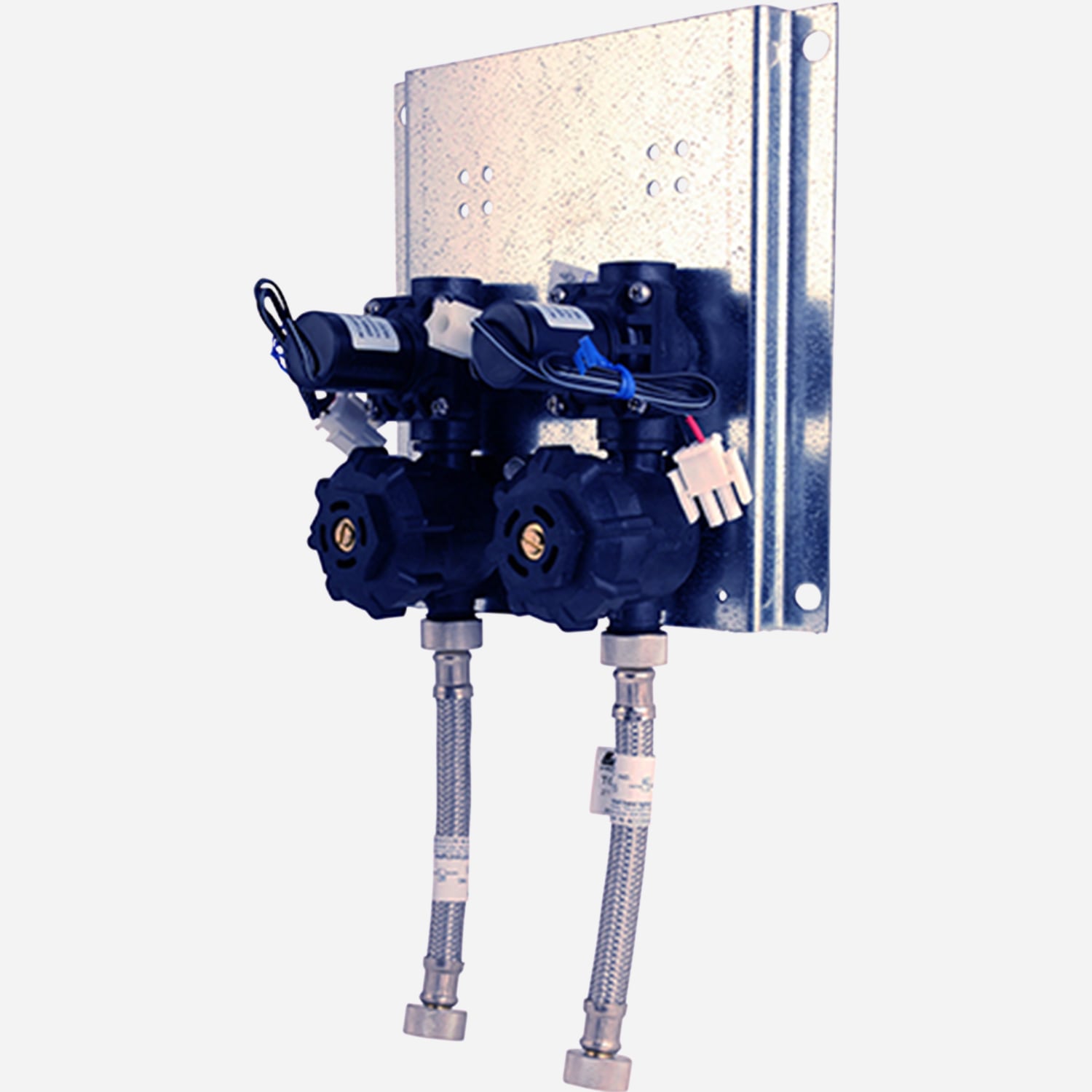

- Hot & Cold electronic valve assembly
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Installation Manual Whitehall BestCare Faucets Activated with Piezo Pushbutton [WH3378-HC-PPZ/-BAT, WH3377-PPZ/-BAT, WH3377-WFS-PPZ/-BAT, WH3377-8IN-PPZ/-BAT, WH3376-PPZ/-BAT, WH3376-WSF-PPZ/-BAT, WH3376-8IN-PPZ/-BAT] Doc # 6900-264-001 BestCare PPZ.pdf | 1 MB | ||
| | Widespread Piezo Pushbutton(s), Electronic Valve, Conical Faucet [WH3376-WSF-PPZ Single Temp, WH3377-WSF-PPZ Hot & Cold] | 391 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB |
Specifications
| Brand | BestCare®, Acorn ConTrols® Inside |
| Features | Conical faucet, Vandal Resistant Flow Nozzle, Ligature-Resistant Design |
| Faucet Centerset Spacing | Widespread (variable) |
| Activation Button Type | Flat Piezo (electronic) |
| Valve Type | Electronic, Hot (Tempered) & Cold |
| CSI Divisions | Division 22 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | HWD | Accessory: Hardwired Power Converter for Electronic Faucets |
Miscellaneous
Image | Model | Description | Downloads |
|---|
Models
Typical models are shown below with their power supply

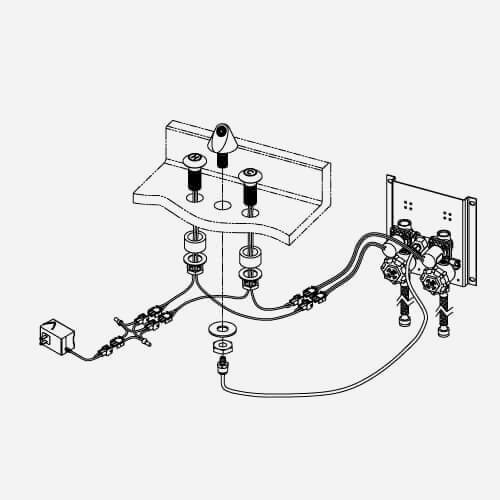

Plug-in Power Supply WH3377-WSF-PPZ

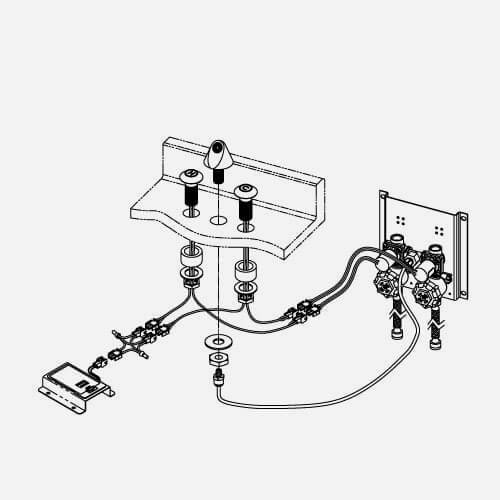

Battery Power Supply WH3376-WSF-PPZ-BAT
