BestCare® Ligature-Resistant Conical Spout, Hemispherical Buttons 4" Centerset Escutcheon, Hot and Cold Pneumatic Valve
In StockThis product is available for quick shipment nationwide.
Model WH3377
Installation Instructions
Manual BestCare Faucets using Air-Control Valve (pdf)
Submittal
Submittal WH3376 and WH3377 Series Faucet (pdf)
Model WH3377
BestCare® Ligature-Resistant Conical Spout, Hemispherical Buttons 4" Centerset Escutcheon, Hot and Cold Pneumatic Valve
Product features:
- Conical chrome-plated brass faucet head
- Vandal Resistant, 0.35 Gallon (1.32 liter) per Minute Flow Nozzle (spanner key provided)
- Hemispherical activating pushbuttons at 4 inch (101.6 mm) centerset, requiring 1.3125 to 1.5 inch (33.3 to 38.1 mm) mounting holes
- 6.83 x 2.81 inch (173.4 x 71.4 mm) obround escutcheon limiting lifting corners to use as a ligature device

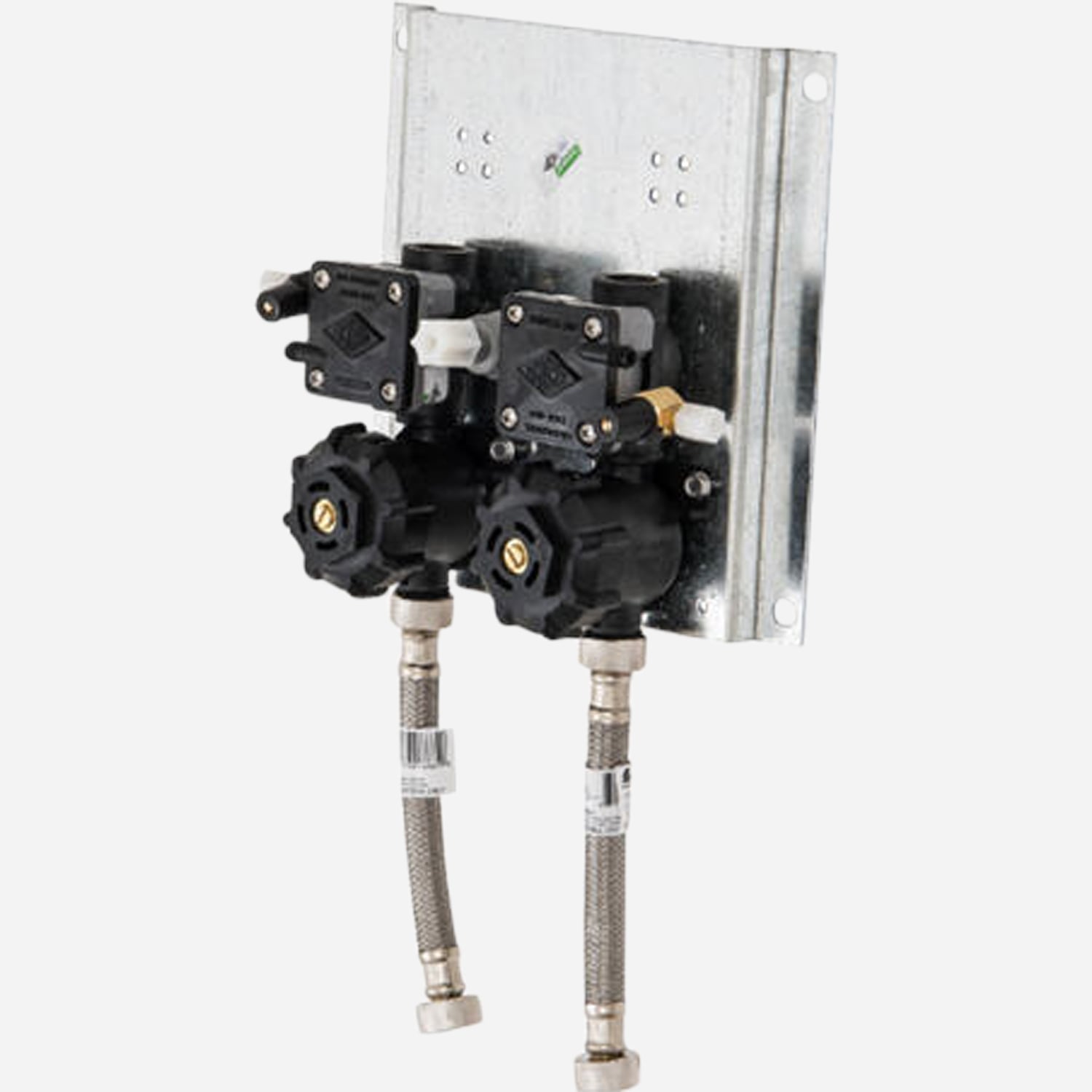

- Hot (Tempered) & Cold Air-Control pnuematic valve assembly
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Installation Manual Whitehall BestCare Faucets using Air-Control Pneumatic Valves [WH3378-HC, WH3377, WH3377-WSF, WH3377-8IN, WH3376, WH3376-WSF, WH3376-8IN] Doc # 6900-265-001 BESTCARE AIR-CONTROL.pdf | 0 | 1 MB | ||
| | Whitehall Ligature Resistant Pneumatic Valve Pushbutton Faucet Oval Escutcheon WH3376 (Single Temp 4" Centerset); WH3377 (Hot & Cold 4" Centerset); WH3376-8IN (Single Temp 8" Centerset); WH3377-8IN (Hot & Cold 8" Centerset) | 0 | 661 KB | ||
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 0 | 233 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 0 | 197 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 0 | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Brand | BestCare®, Acorn ConTrols® Inside |
| Material | Lead-Free Brass, Stainless Steel |
| Features | Vandal Resistant Flow Nozzle, Conical faucet, Ligature-Resistant Design |
| Valve Type | Pneumatic (Air-Control), Hot (Tempered) & Cold |
| Activation Button Type | Hemispherical (pneumatic) |
| Escutcheon Size | 6.83 x 2.81" (173.4 x 82.6 mm) obround |
| Faucet Centerset Spacing | 4" |
| CSI Divisions | Division 22 |
Models
WH3377L-0002[IN STOCK] The faucet assembly is for Whitehall Basins
WH3377[IN STOCK] This faucet assembly is for all others.
