Model WH3377-WSF

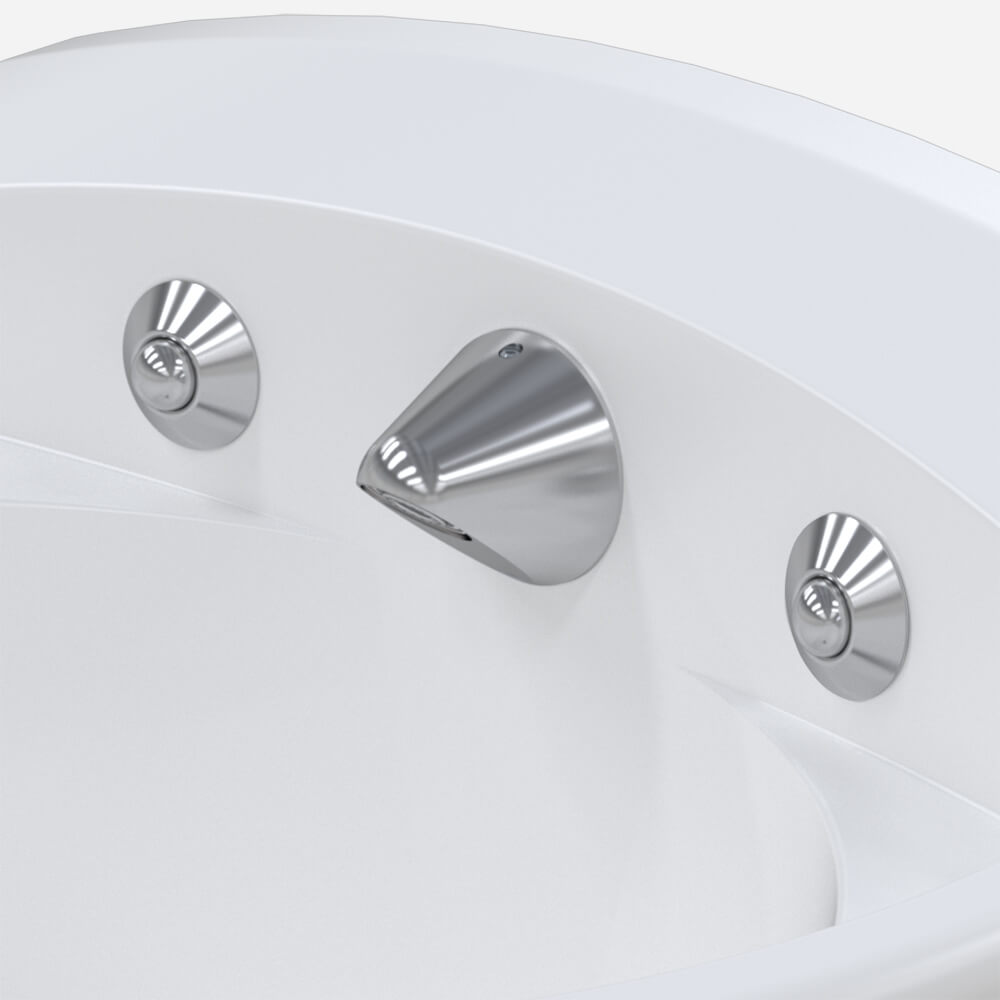

BestCare® Ligature-Resistant Hot & Cold Pneumatic Valve, Conical Faucet, Widespread Hemispherical Button
Product features:
- Conical chrome-plated brass faucet head
- Vandal Resistant, 0.35 Gallon (1.32 liter) per Minute Flow Nozzle (spanner key provided)
- Hot (Tempered) and Cold Hemispherical activating pushbutton assembly

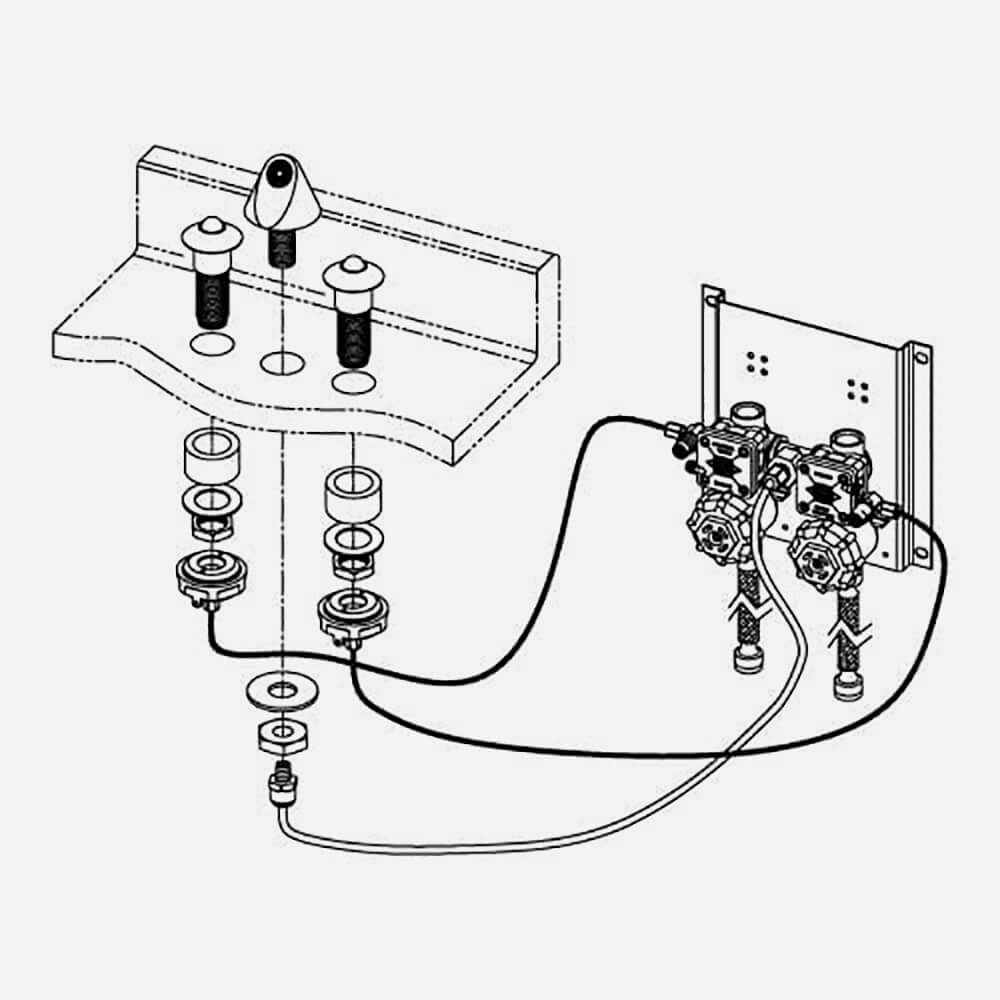

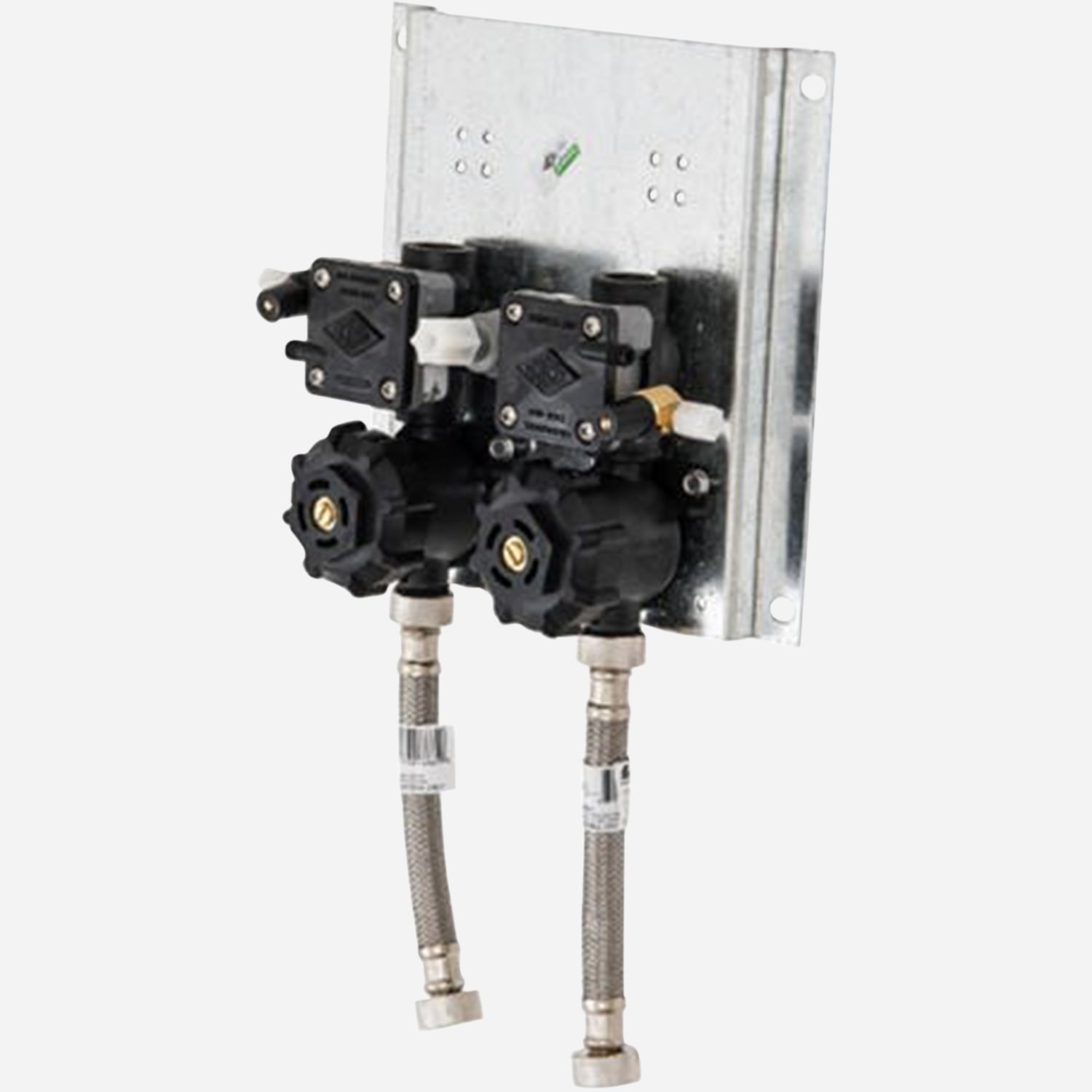

- Hot & Cold Air-Control pnuematic valve assembly
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
WH3377C-WSF Faucet may be backsplash-mounted when used in conjunction with the Whitehall Model WH3745 Compact Basin.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Installation Manual Whitehall BestCare Faucets using Air-Control Pneumatic Valves [WH3378-HC, WH3377, WH3377-WSF, WH3377-8IN, WH3376, WH3376-WSF, WH3376-8IN] Doc # 6900-265-001 BESTCARE AIR-CONTROL.pdf | 1 MB | ||
| | Widespread Pushbutton(s), Pneumatic Valve, Conical Faucet [WH3376-WSF Single Temp, WH3377-WSF Hot & Cold] | 668 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB |
Specifications
| Brand | Acorn ConTrols® Inside, BestCare® |
| Features | Vandal Resistant Flow Nozzle, Conical faucet, Ligature-Resistant Design |
| Faucet Centerset Spacing | Widespread (variable) |
| Valve Type | Hot (Tempered) & Cold, Pneumatic (Air-Control) |
| Activation Button Type | Hemispherical (pneumatic) |
| Material | Lead-Free Brass |
| CSI Divisions | Division 22 |
