Model WH3376-8IN-PPZ
BestCare® Ligature-Resistant Conical Spout, Piezo Button 8" Centerset Escutcheon, Single Temp Solenoid Valve
Product features:
- Conical chrome-plated brass faucet head
- Vandal Resistant, 0.35 Gallon (1.32 liter) per Minute Flow Nozzle (spanner key provided)
- Piezo activating pushbutton at 8 inch (203.2 mm) centerset, requiring 1.3125 to 1.5 inch (33.3 to 38.1 mm) mounting holes
- 10.83 x 2.81 inch (275 x 71.4 mm) obround escutcheon limiting lifting corners to use as a ligature device

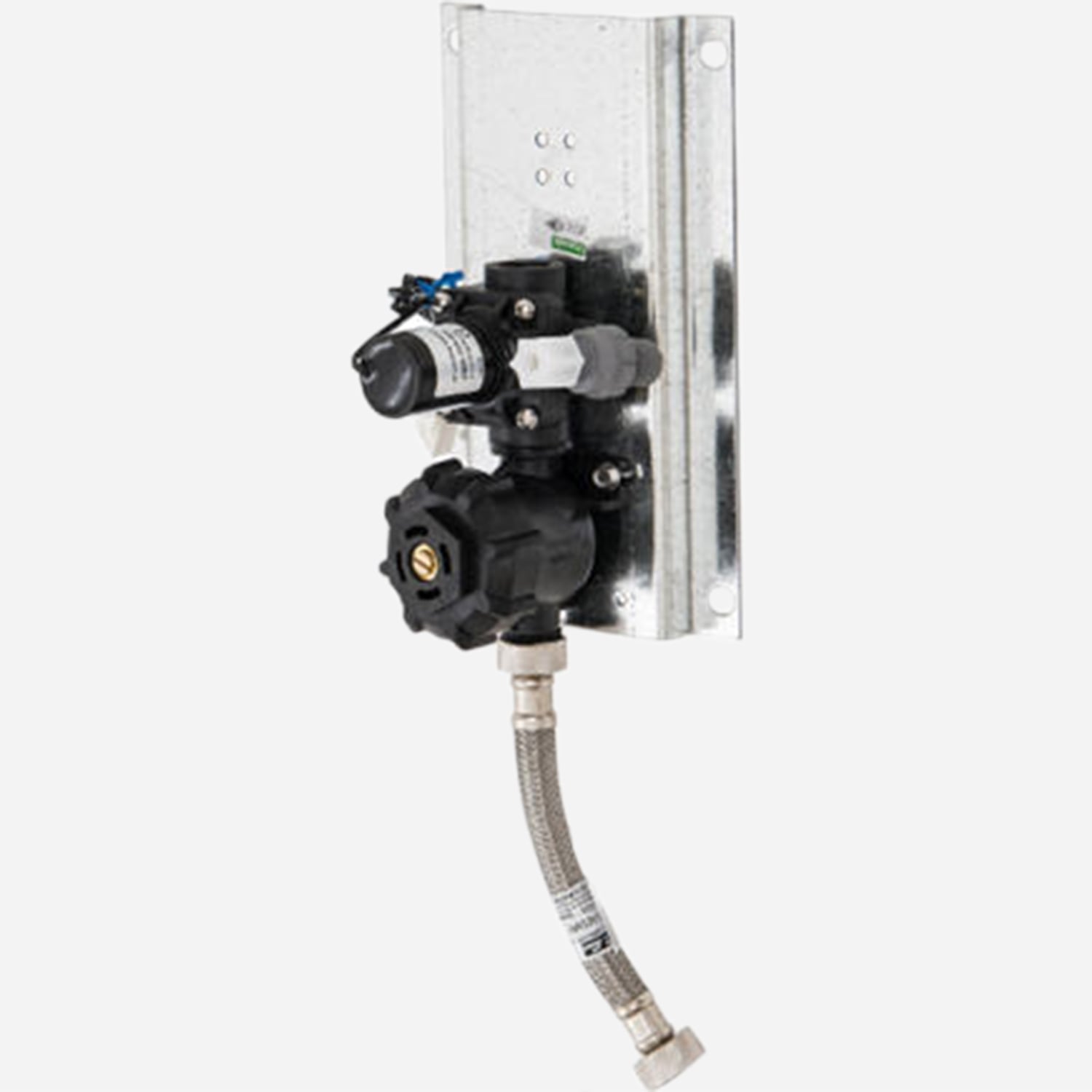

- Single Temperature electronic valve assembly
- The power for the electronic valve is either plug-in or with batteries (batteries are not supplied).
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Installation Manual Whitehall BestCare Faucets Activated with Piezo Pushbutton [WH3378-HC-PPZ/-BAT, WH3377-PPZ/-BAT, WH3377-WFS-PPZ/-BAT, WH3377-8IN-PPZ/-BAT, WH3376-PPZ/-BAT, WH3376-WSF-PPZ/-BAT, WH3376-8IN-PPZ/-BAT] Doc # 6900-264-001 BestCare PPZ.pdf | 1 MB | ||
| | Whitehall Ligature Resistant Piezo Button Electronic Valve Faucet Oval Escutcheon WH3376-PZZ (Single Temp 4" Centerset); WH3377-PZZ (Hot & Cold 4" Centerset); WH3376-8IN-PZZ (Single Temp 8" Centerset); WH3377-8IN-PZZ (Hot & Cold 8" Centerset) | 430 KB | ||
| | Programming Instructions for Piezo Pushbutton (Flow Time Adjustment) | 629 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB |
Specifications
| Brand | Acorn ConTrols® Inside, BestCare® |
| Features | Vandal Resistant Flow Nozzle, Ligature-Resistant Design, Conical faucet |
| Faucet Centerset Spacing | 8" |
| Valve Type | Electronic, Single Temperature (may be tempered) |
| Activation Button Type | Flat Piezo (electronic) |
| Escutcheon Size | 10.83 x 2.81" (275 x 71.4 mm) obround |
| Material | Lead-Free Brass, Stainless Steel |
| Compliances | NY State Office of Mental Health |
| CSI Divisions | Division 22 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | HWD | Accessory: Hardwired Power Converter for Electronic Faucets |
Miscellaneous
Image | Model | Description | Downloads |
|---|
Models
Typical models are shown below with their power supply
Plug-in Power Supply Call Whitehall to specify for BestCare® Basins WH3376-PPZ-8IN for Basins by Others
Battery Power Supply (Note: Batteries are not supplied) Call Whitehall to specify for BestCare® Basins WH3376-PPZ-BAT-8IN for Basins by Others
