BestCare® Ligature-Resistant Conical Spout, Hemispherical Button 4" Centerset Escutcheon, Single Temp Pneumatic Valve
In StockThis product is available for quick shipment nationwide.
Model WH3376
Installation Instructions
Manual BestCare Faucets using Air-Control Valve (pdf)
Submittal
Submittal WH3376 and WH3377 Series Faucet (pdf)
Model WH3376
BestCare® Ligature-Resistant Conical Spout, Hemispherical Button 4" Centerset Escutcheon, Single Temp Pneumatic Valve
Product features:
- Conical chrome-plated brass faucet head
- Vandal Resistant, 0.35 Gallon (1.32 liter) per Minute Flow Nozzle (spanner key provided)
- Hemispherical activating pushbutton at 4 inch (102 mm) centerset, requiring 1.3125 to 1.5 inch (33.3 to 38.1 mm) mounting holes
- 6.83 x 2.81 inch (173.4 x 71.4 mm) obround escutcheon limiting lifting corners to use as a ligature device

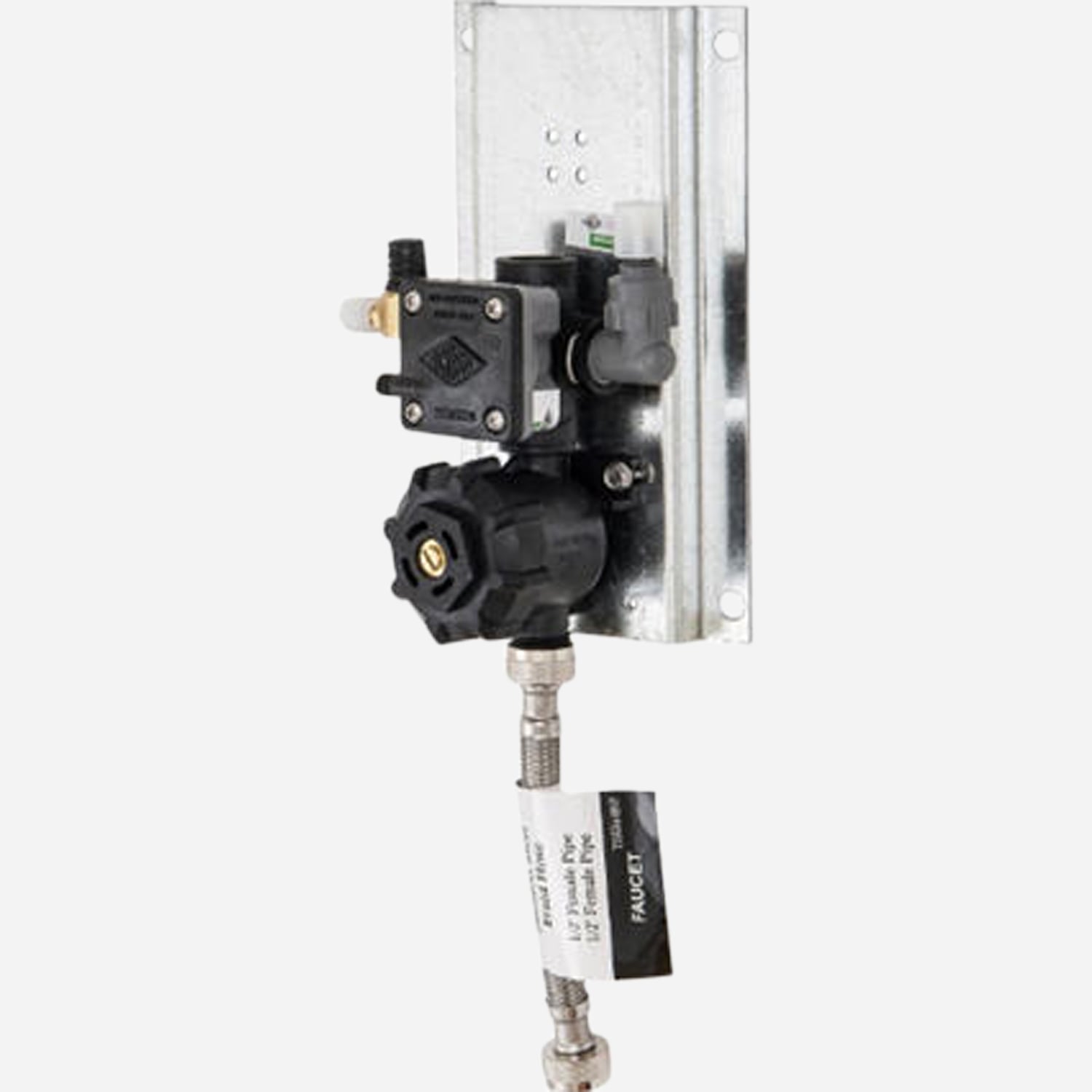

- Single Temperature Air-Control pnuematic valve assembly
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Installation Manual Whitehall BestCare Faucets using Air-Control Pneumatic Valves [WH3378-HC, WH3377, WH3377-WSF, WH3377-8IN, WH3376, WH3376-WSF, WH3376-8IN] Doc # 6900-265-001 BESTCARE AIR-CONTROL.pdf | 1 MB | ||
| | Whitehall Ligature Resistant Pneumatic Valve Pushbutton Faucet Oval Escutcheon WH3376 (Single Temp 4" Centerset); WH3377 (Hot & Cold 4" Centerset); WH3376-8IN (Single Temp 8" Centerset); WH3377-8IN (Hot & Cold 8" Centerset) | 661 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB |
Specifications
| Brand | BestCare®, Acorn ConTrols® Inside |
| Faucet Centerset Spacing | 4" |
| Valve Type | Single Temperature (may be tempered), Pneumatic (Air-Control) |
| Activation Button Type | Hemispherical (pneumatic) |
| Escutcheon Size | 6.83 x 2.81" (173.4 x 82.6 mm) obround |
| Features | Ligature-Resistant Design, Conical faucet, Vandal Resistant Flow Nozzle |
| Patent | D704,806 |
| Lead Free | Yes |
| Accessibility | ADA Compliant |
| Compliances | NY State Office of Mental Health |
| CSI Divisions | Division 22 |
