Model WH3376-WSF-SO
Single Temp, Widespread Sensor Activated Electronic Valve, Conical Faucet
Product features:
- Conical chrome-plated brass faucet head
- Vandal Resistant, 0.35 Gallon (1.32 liter) per Minute Flow Nozzle (spanner key provided)
- Infrared sensor assembly

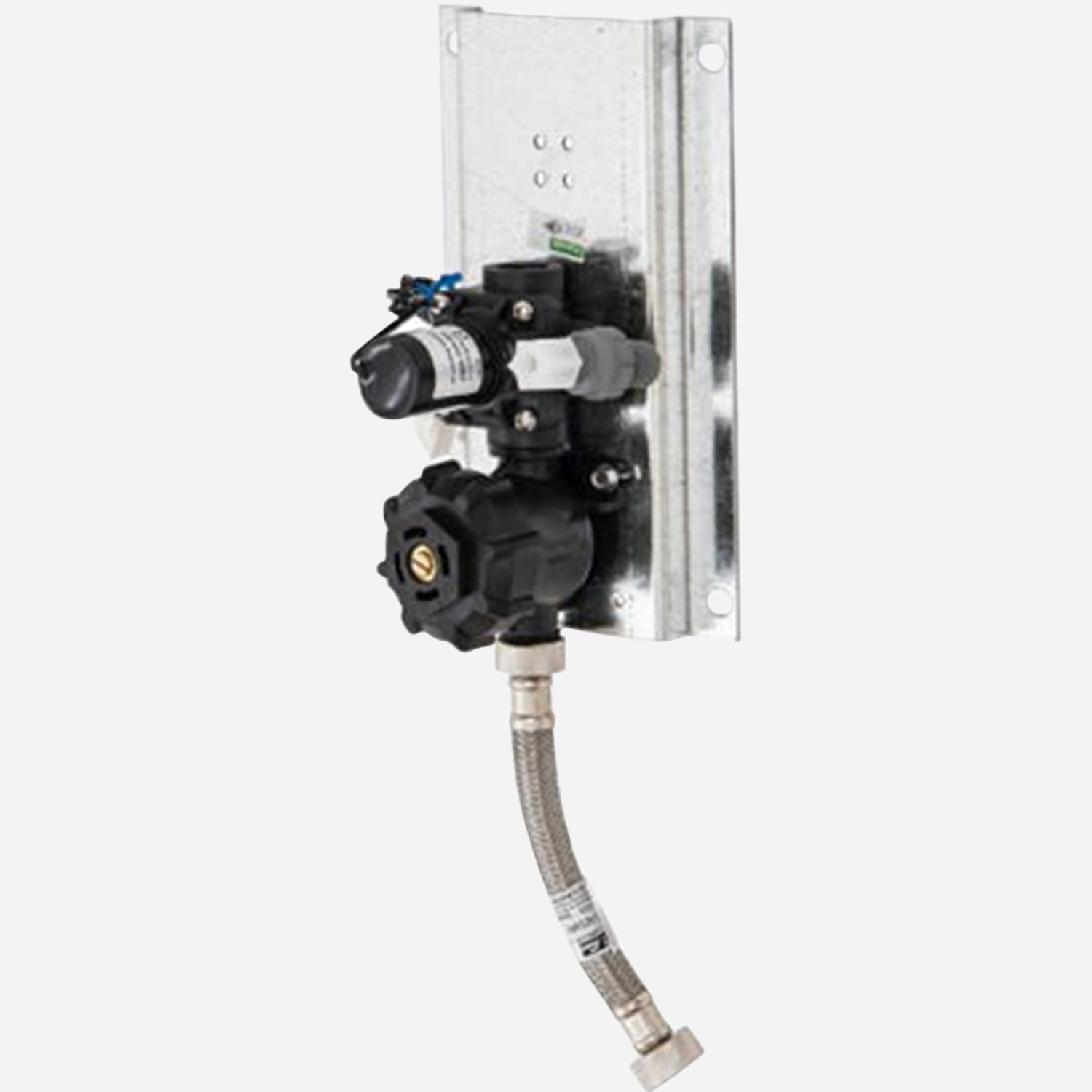

- Single Temperature electronic valve assembly
- Auto-Purge Sensor function is provided to ensure a fresh water supply for hand washing by activating the faucet for a 10-second duration 24 hours after the last activation (standard Factory setting). Optional -AP Remote Controller also allows for additional Purge Cycle and Sensor range adjustments
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Installation Manual Whitehall BestCare Sensor Faucets [WH3375-SO/-BAT, WH3376-WSF-SO/-BAT, WH3375-HC-SO/-BAT] Doc # 6900-261-001 BestCare SO Faucets.pdf | 1 MB | ||
| | Single Temp, Widespread Sensor Activated Electronic Valve, Conical Faucet | 268 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB |
Specifications
| Brand | Acorn ConTrols® Inside, BestCare® |
| Features | Conical faucet, Vandal Resistant Flow Nozzle, Ligature-Resistant Design |
| Valve Type | Electronic, Single Temperature (may be tempered) |
| Activation Button Type | Sensor Activated (electronic) |
| Faucet Centerset Spacing | Widespread (variable), 4" |
| Material | Lead-Free Brass |
| CSI Divisions | Division 22 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | AP | Accessory: Auto-Purge Sensor Function Remote Controller | ||
 | HWD | Accessory: Hardwired Power Converter for Electronic Faucets |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WHST70-12 | 1/2" NPT Connections Thermostatic Lavatory Tempering Valve |
Models
Typical models are shown below with their power supply

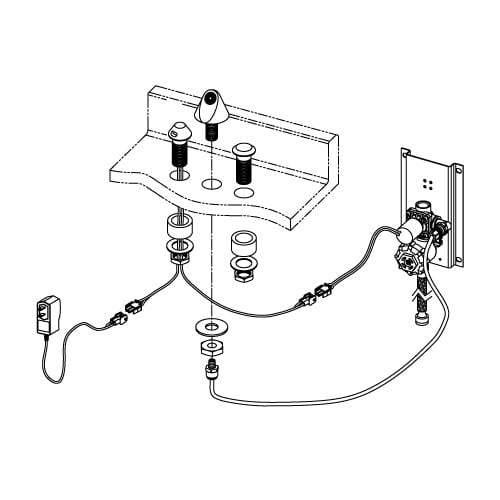

Plug-in Power Supply WH3376-WSF-SO

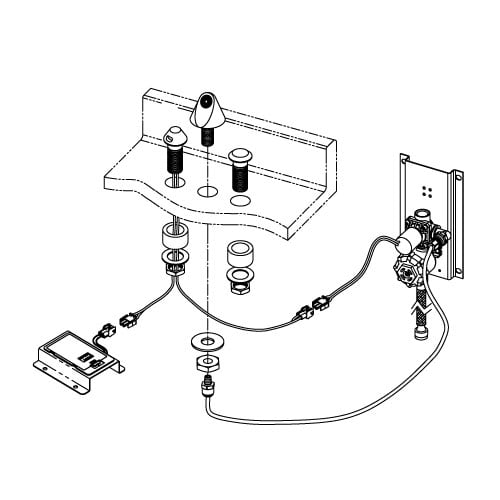

Battery Power Supply WH3376-WSF-SO-BAT
