Model WH3375-HC-SO

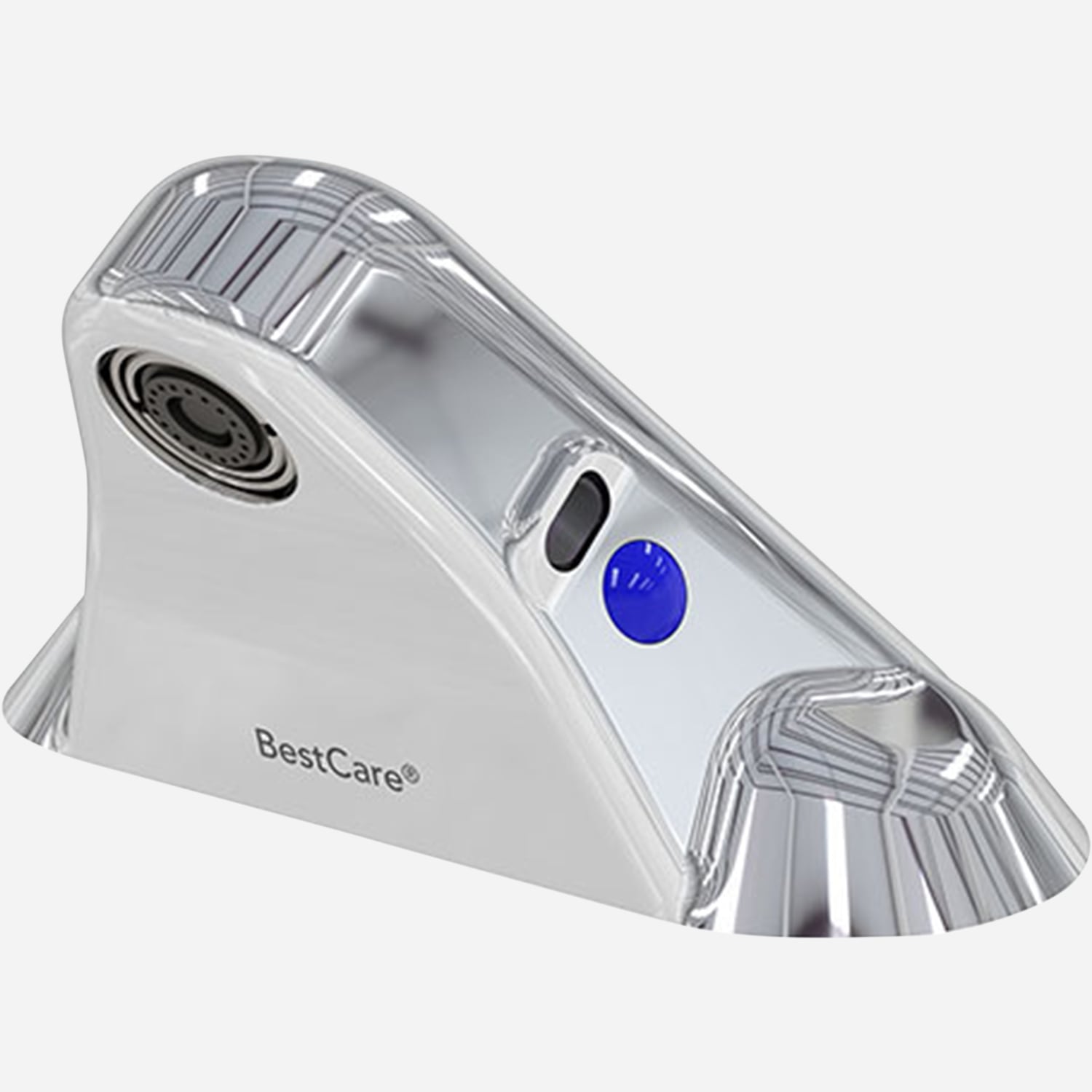

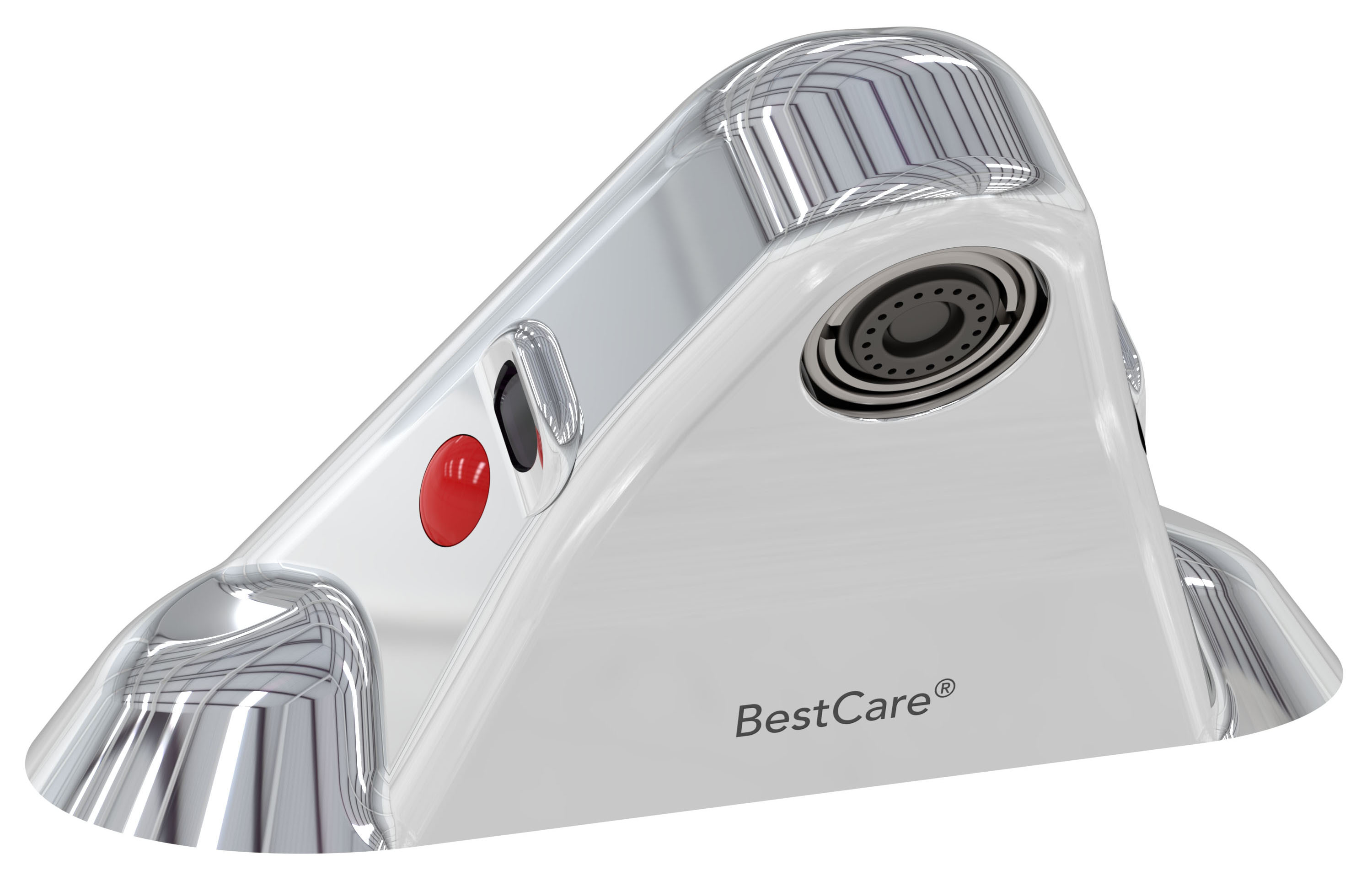

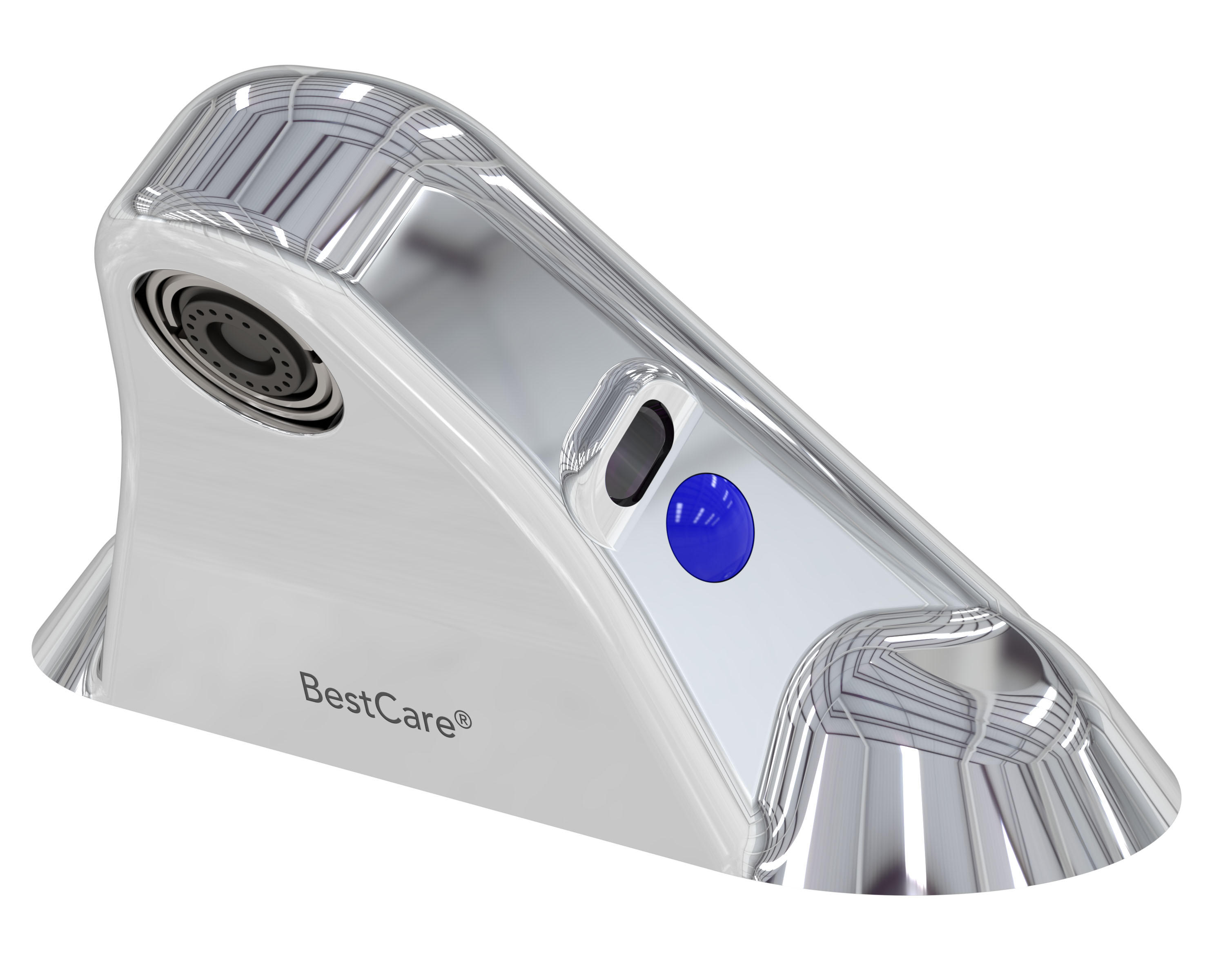

BestCare® Ligature-Resistant Hot and Cold Sensor Activated Faucet - 4 Inch Centerset

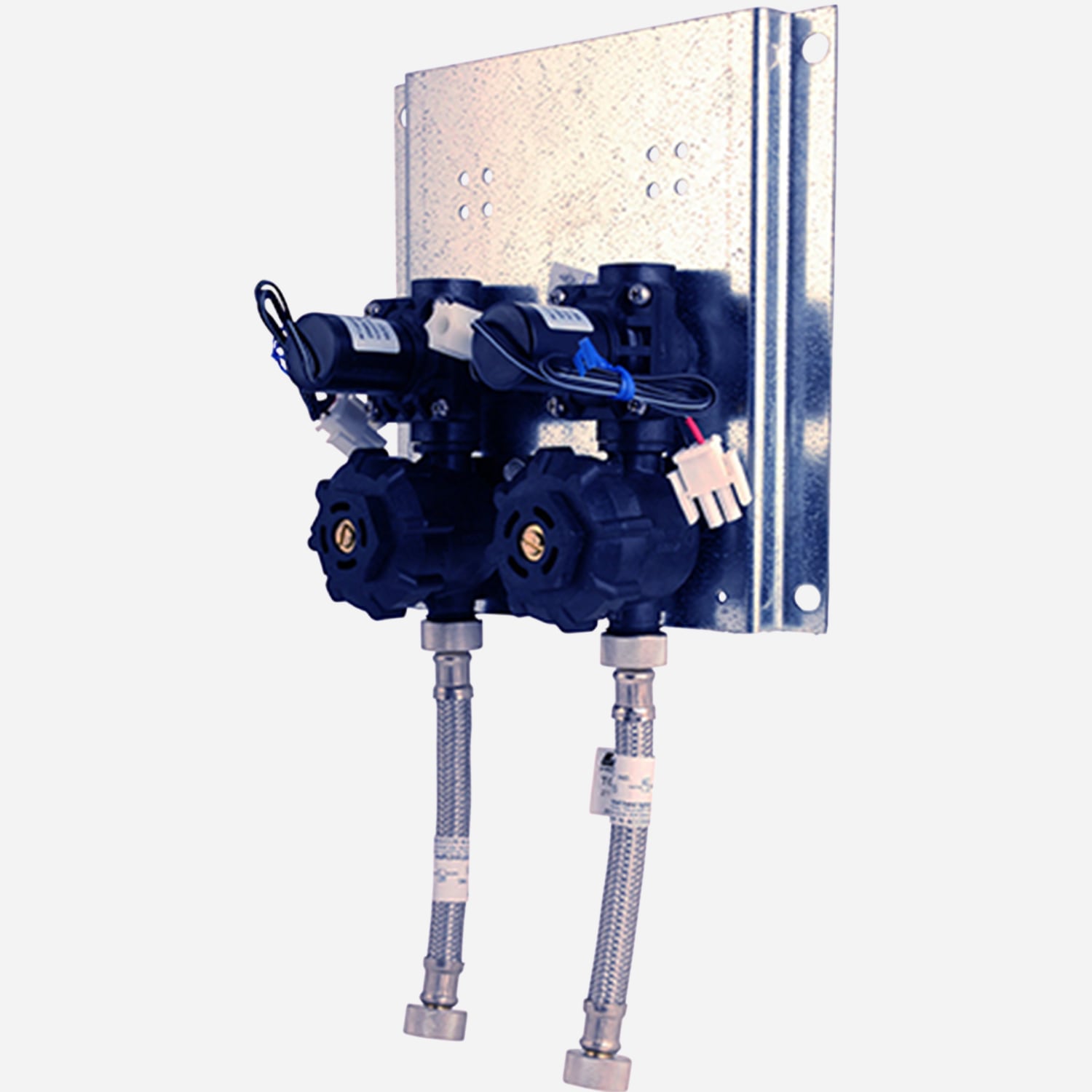

This triangular faucet limits users from using the product as a ligature device. The faucet features sensors on left side for tempered and right side for cold. A dual temperature solenoid valve is also supplied.
- Ligature-resistant
- Helps with infection prevention
- Heavy duty chrome plated cast bronze
- Low flow 0.5 Gallon (1.89 Liters) per Minute
- Neoperl® spray nozzle for easy replacement
- Faucet is factory set to 10-second maximum run time, can be adjusted
- 4 inch (101.6 mm) centerset
- The sensor power is plug-in or battery (note batteries are not supplied)
- ADA compliant
- Auto-Purge Sensor function is provided to ensure fresh water supply for hand washing by activating Faucet for 10 second duration 24 hours after last activation (standard Factory setting). Optional -AP Remote Controller also allows for additional Purge Cycle and Sensor range adjustments
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Ligature Resistant Dual Temperature Sensor Activated Faucet, 4 Inch Centerset - showing hot side | 361 KB | ||
| | Ligature Resistant Dual Temperature Sensor Activated Faucet, 4 Inch Centerset - showing hot side | 450 KB | ||
 | | Installation Manual Whitehall BestCare Sensor Faucets [WH3375-SO/-BAT, WH3376-WSF-SO/-BAT, WH3375-HC-SO/-BAT] Doc # 6900-261-001 BestCare SO Faucets.pdf | 1 MB | ||
| | Ligature Resistant Dual Temperature Sensor Activated Faucet, 4 Inch Centerset | 321 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | BestCare Solutions Flyer (pdf) | 181 KB | ||
| | BestCare Ligature-Resistant Faucets Flyer (pdf) | 957 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 571 KB | ||
 | | Ligature-Resistant Dual Temperature Sensor Activated Faucet - 4 Inch Centerset | 428 KB | ||
 | | How to Use a Dual Temperature Touchless Sensor Activated Faucet - BestCare® (video) | 134 KB |
Specifications
| Brand | BestCare®, Acorn ConTrols® Inside |
| Material | Lead-Free Brass |
| Faucet Centerset Spacing | 4" |
| Features | Ligature-Resistant Design, Triangular Faucet, Vandal Resistant Flow Nozzle |
| Accessibility | ADA Compliant |
| Valve Type | Hot (Tempered) & Cold, Electronic |
| Activation Button Type | Sensor Activated (electronic) |
| Lead Free | Yes |
| CSI Divisions | Division 22 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|

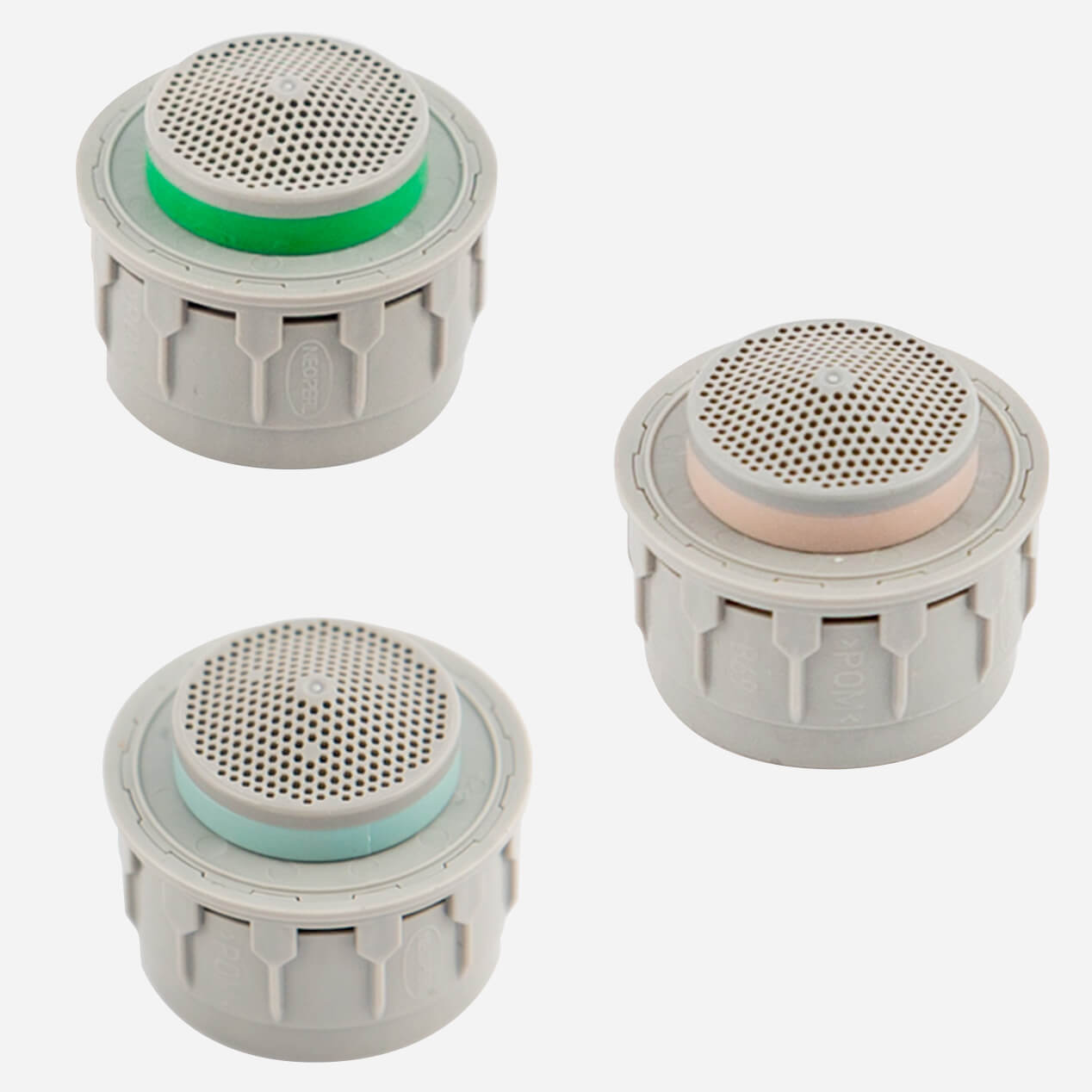

 | LFK | Accessory: Laminar Flow Nozzle Kit | ||
 | HWD | Accessory: Hardwired Power Converter for Electronic Faucets |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BAT | Option: Battery Powered | ||
 | WHST70-12 | 1/2" NPT Connections Thermostatic Lavatory Tempering Valve | ||

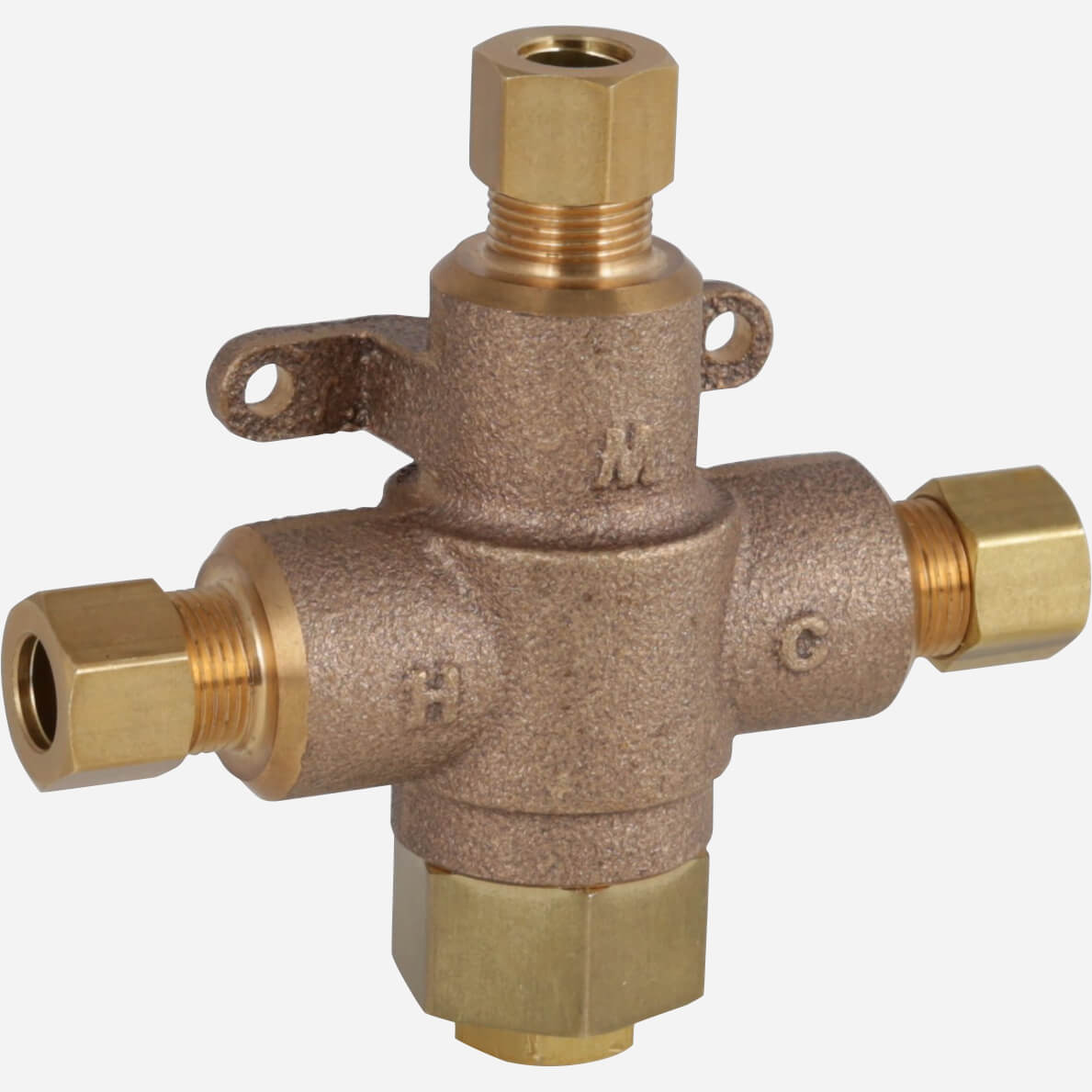

 | WHST70-38 | 3/8" O.D. Tube Compression Connections Thermostatic Lavatory Tempering Valve |
Models
Typical models are shown below
Plug-in Power Supply WH3375L-HC-SO for BestCare® Basins WH3375-HC-SO for Basins by Others
Battery Power Supply (Note: batteries are not supplied) WH3375L-HC-SO-BAT for BestCare® Basins WH3375-HC-SO-BAT for Basins by Others
