BestCare® Ligature-Resistant Single Temperature Sensor Activated Faucet - 4 Inch Centerset

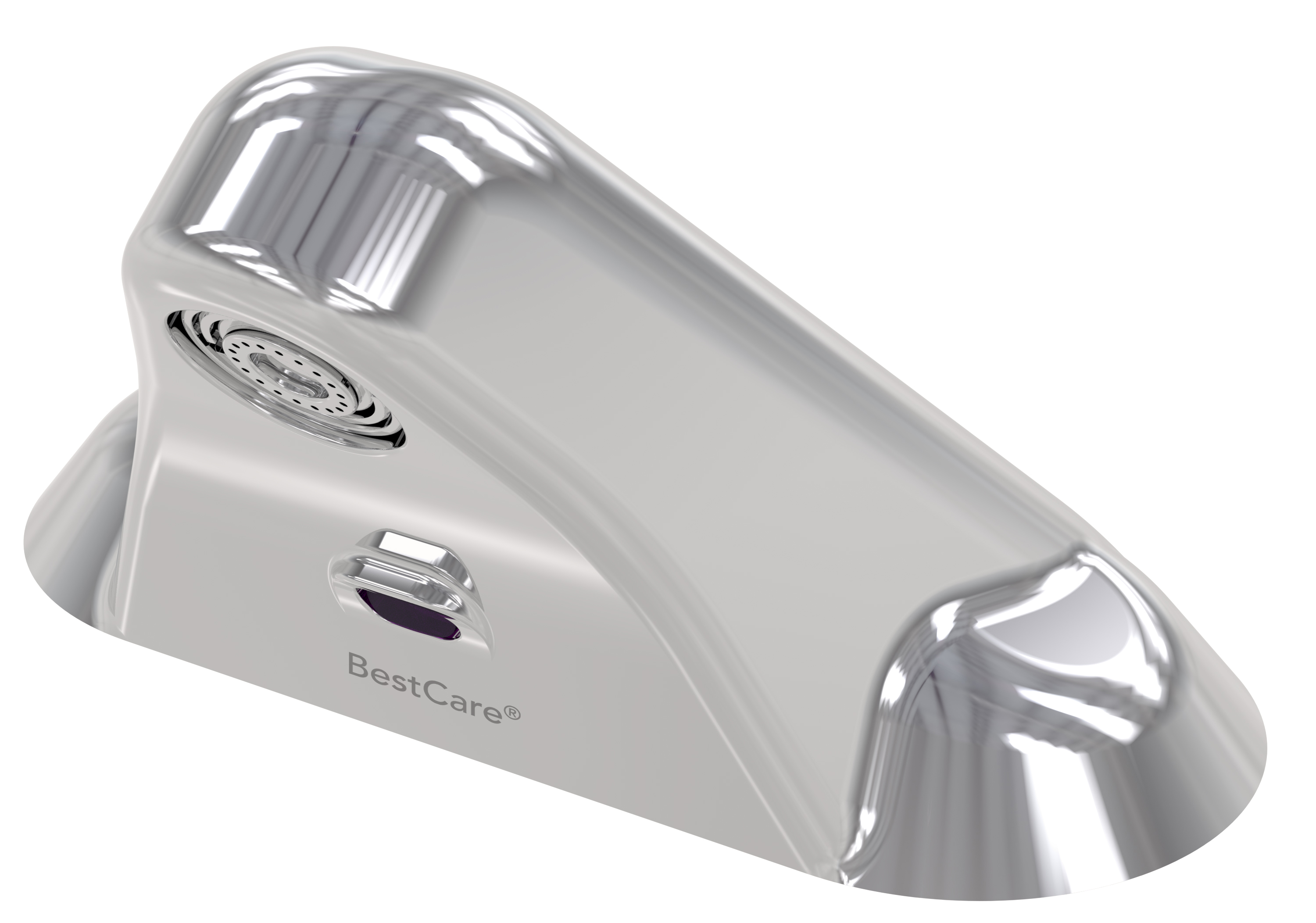

This triangular faucet limits users from using the product as a ligature device. The faucet features a sensor for a single temperature solenoid valve.
The faucet valve shall be electronic, sensor activation. The assembly shall include a 0.5 Gallon (1.89 liter) per minute flow control. A multi-stream laminar spray nozzle, 9-Volt DC Sensor and faucet connections. (Note: for Battery Powered - batteries are not supplied).
Auto-Purge Sensor function is provided to ensure fresh water supply for hand washing by activating the faucet for 10-second duration 24 hours after last activation (standard Factory setting). Optional -AP Remote Controller also allows for additional Purge Cycle and Sensor range adjustments
To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Ligature Resistant Sensor Activated Faucet 4 Inch Centerset | 942 KB | ||
 | | Installation Manual Whitehall BestCare Sensor Faucets [WH3375-SO/-BAT, WH3376-WSF-SO/-BAT, WH3375-HC-SO/-BAT] Doc # 6900-261-001 BestCare SO Faucets.pdf | 1 MB | ||
| | Ligature Resistant Sensor Activated Faucet 4 Inch Centerset | 283 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 571 KB | ||
| | BestCare Solutions Flyer (pdf) | 181 KB | ||
 | | Ligature Resistant Sensor Activated Faucet - 4 Inch Centerset | 1 MB | ||
 | | Vice President Kristin Kahle and National Sales Manager (Healthcare) Steve McIntosh discuss the importance of universal ligature resistant design within behavioral healthcare facilities. | 134 KB | ||
 | | Ligature Resistant Sensor Activated Faucet - 4 Inch Centerset | 203 KB |
Specifications
| Brand | BestCare®, Acorn ConTrols® Inside |
| Features | Triangular Faucet, Vandal Resistant Flow Nozzle, Ligature-Resistant Design |
| Faucet Centerset Spacing | 4" |
| Activation Button Type | Sensor Activated (electronic) |
| Valve Type | Electronic, Single Temperature (may be tempered) |
| Accessibility | ADA Compliant |
| Material | Lead-Free Brass |
| Compliances | NY State Office of Mental Health |
| CSI Divisions | Division 22 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|

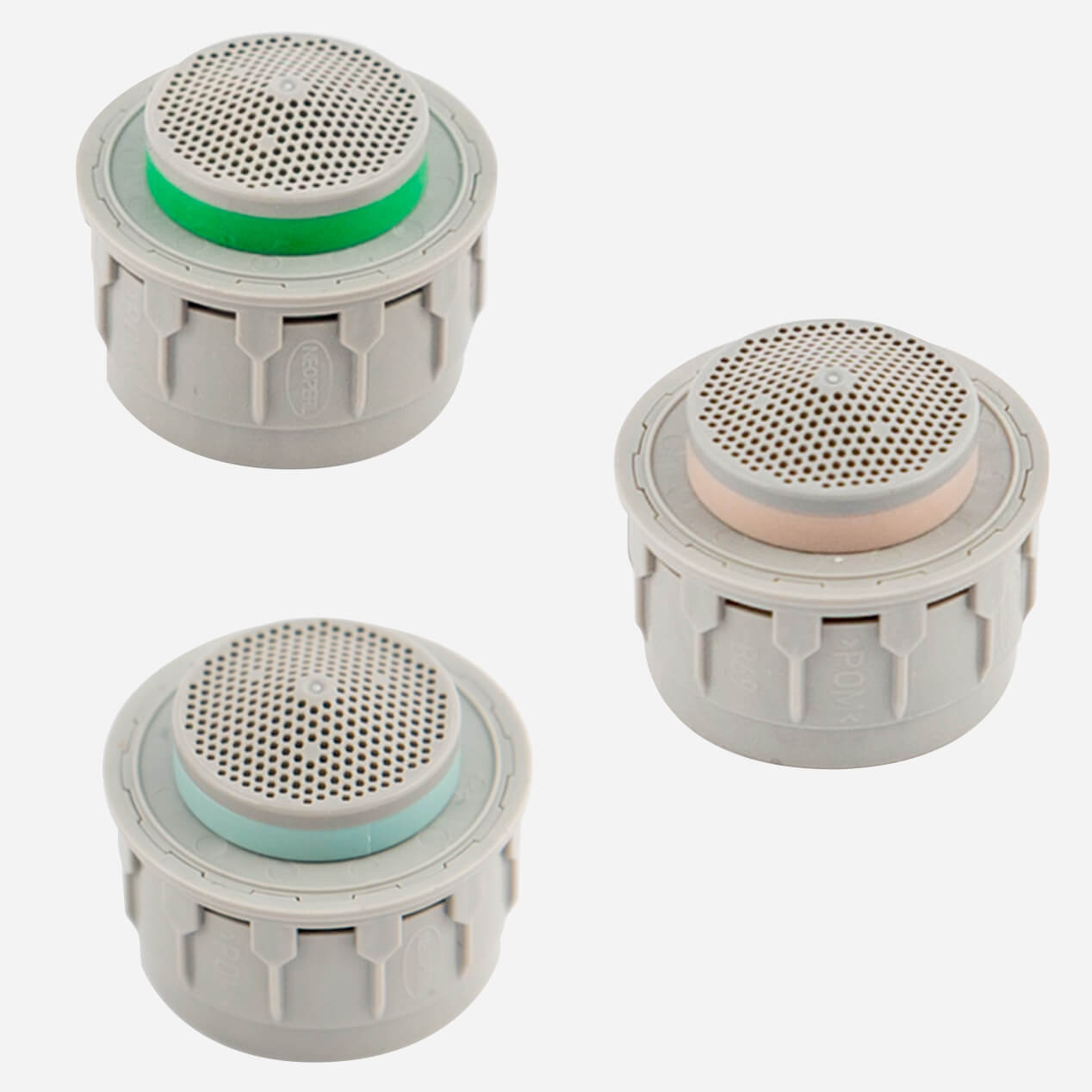

 | LFK | Accessory: Laminar Flow Nozzle Kit | ||

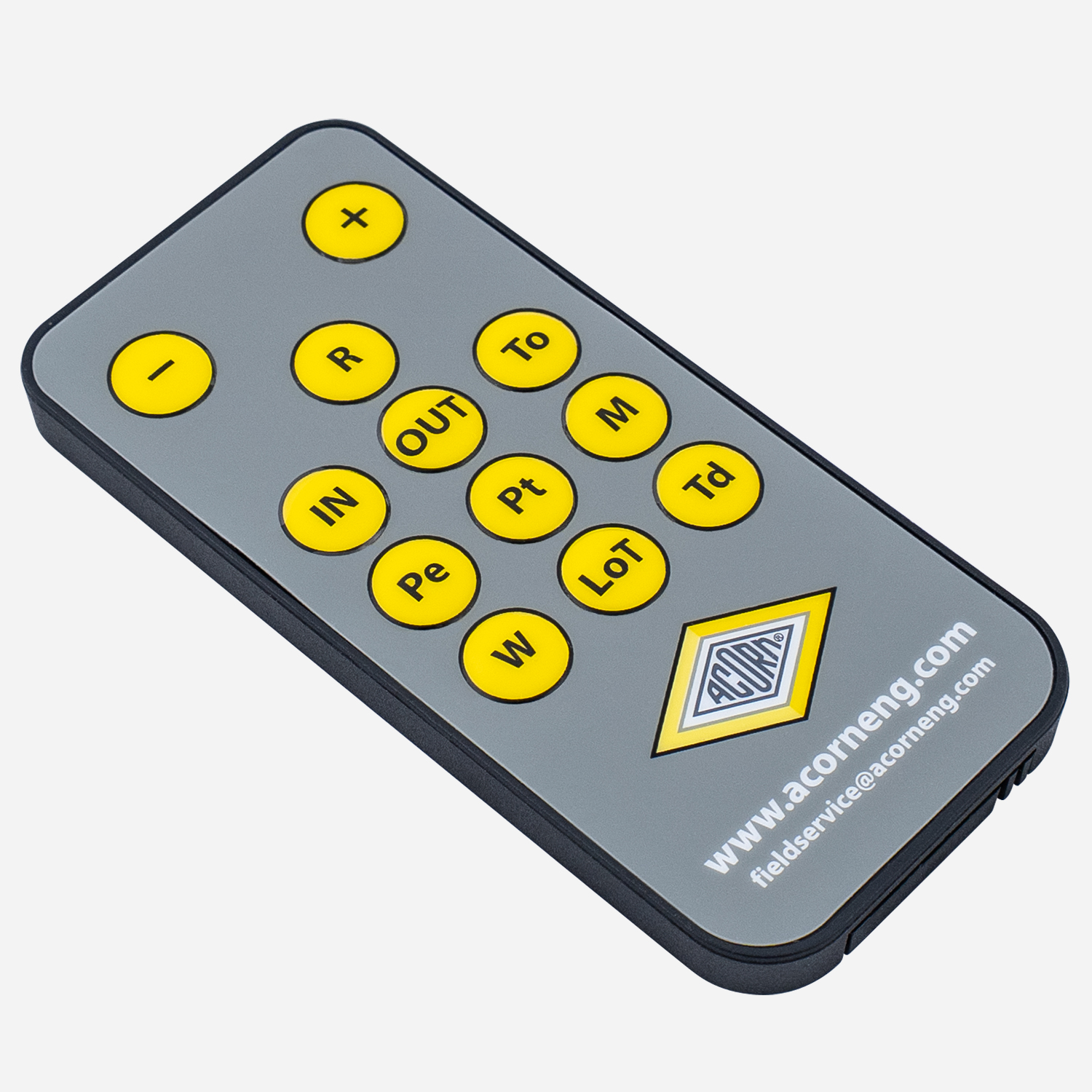

 | AP | Accessory: Auto-Purge Sensor Function Remote Controller | ||
 | HWD | Accessory: Hardwired Power Converter for Electronic Faucets |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BAT | Option: Battery Powered | ||
 | WHST70-12 | 1/2" NPT Connections Thermostatic Lavatory Tempering Valve | ||

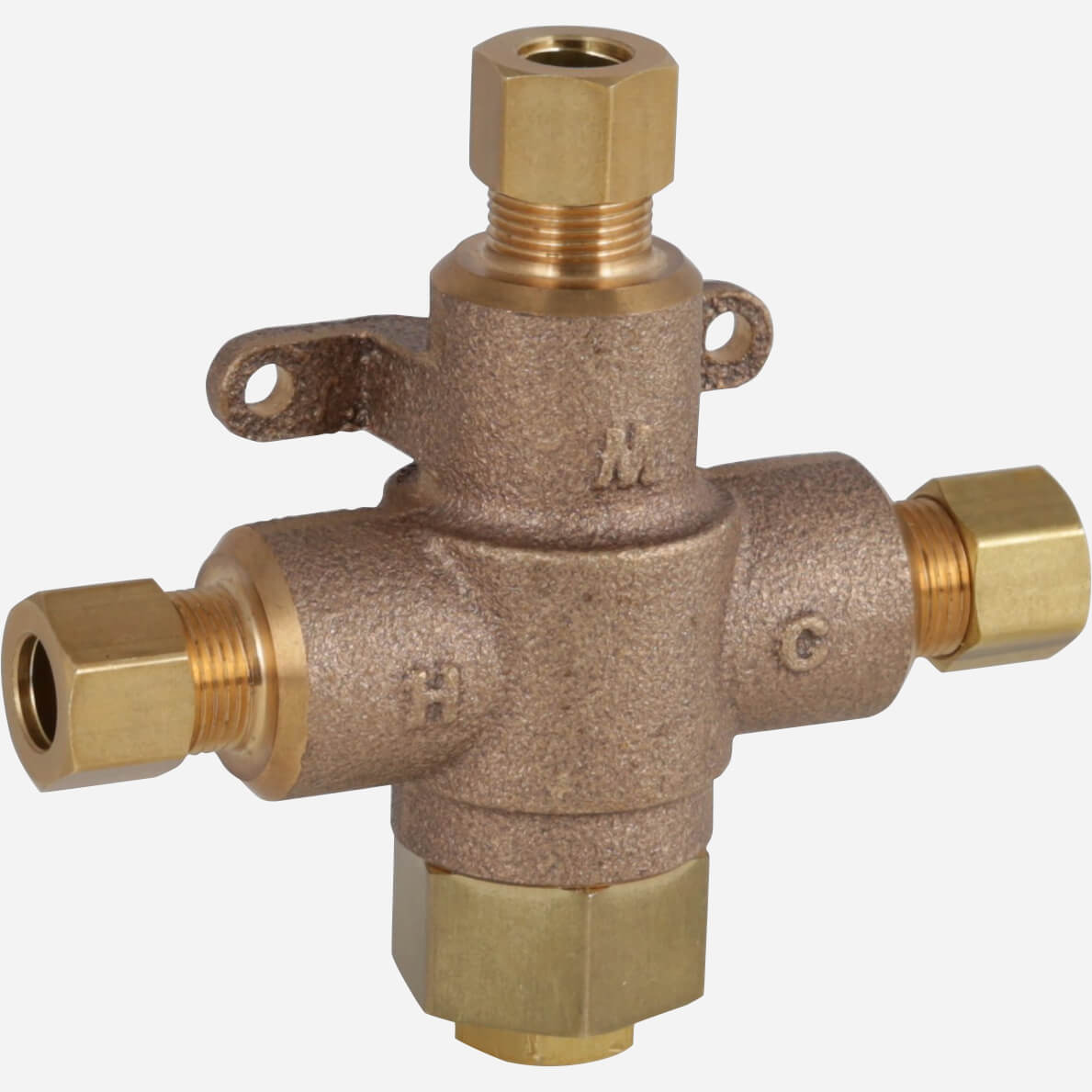

 | WHST70-38 | 3/8" O.D. Tube Compression Connections Thermostatic Lavatory Tempering Valve |
Models
Typical models are shown below

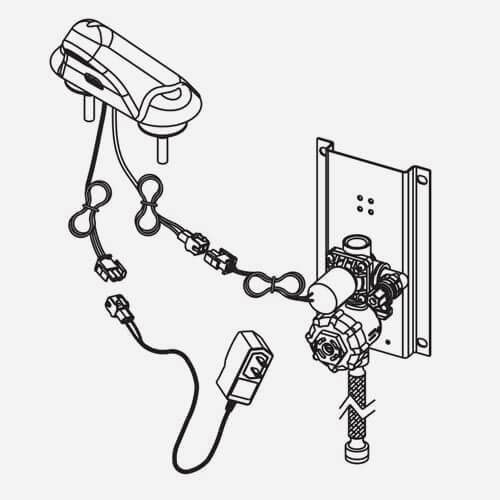

Plug-in Power Supply WH3375L-SO[IN STOCK] for BestCare® Basins WH3375-SO[IN STOCK] for Basins by Others

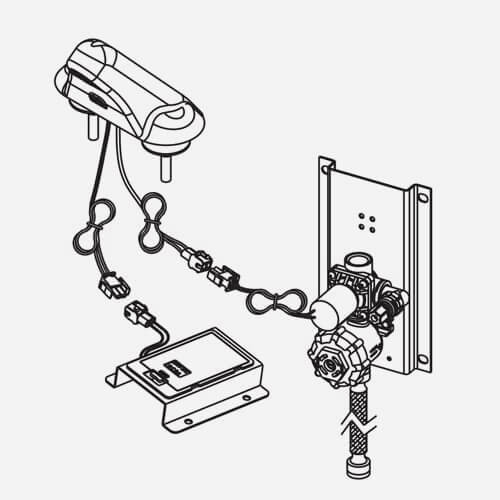

Battery Power Supply (NOTE: Batteries not supplied) WH3375L-SO-BAT[IN STOCK] for BestCare® Basins WH3375-SO-BAT[IN STOCK] for Basins by Others
