Model WH3378-HC

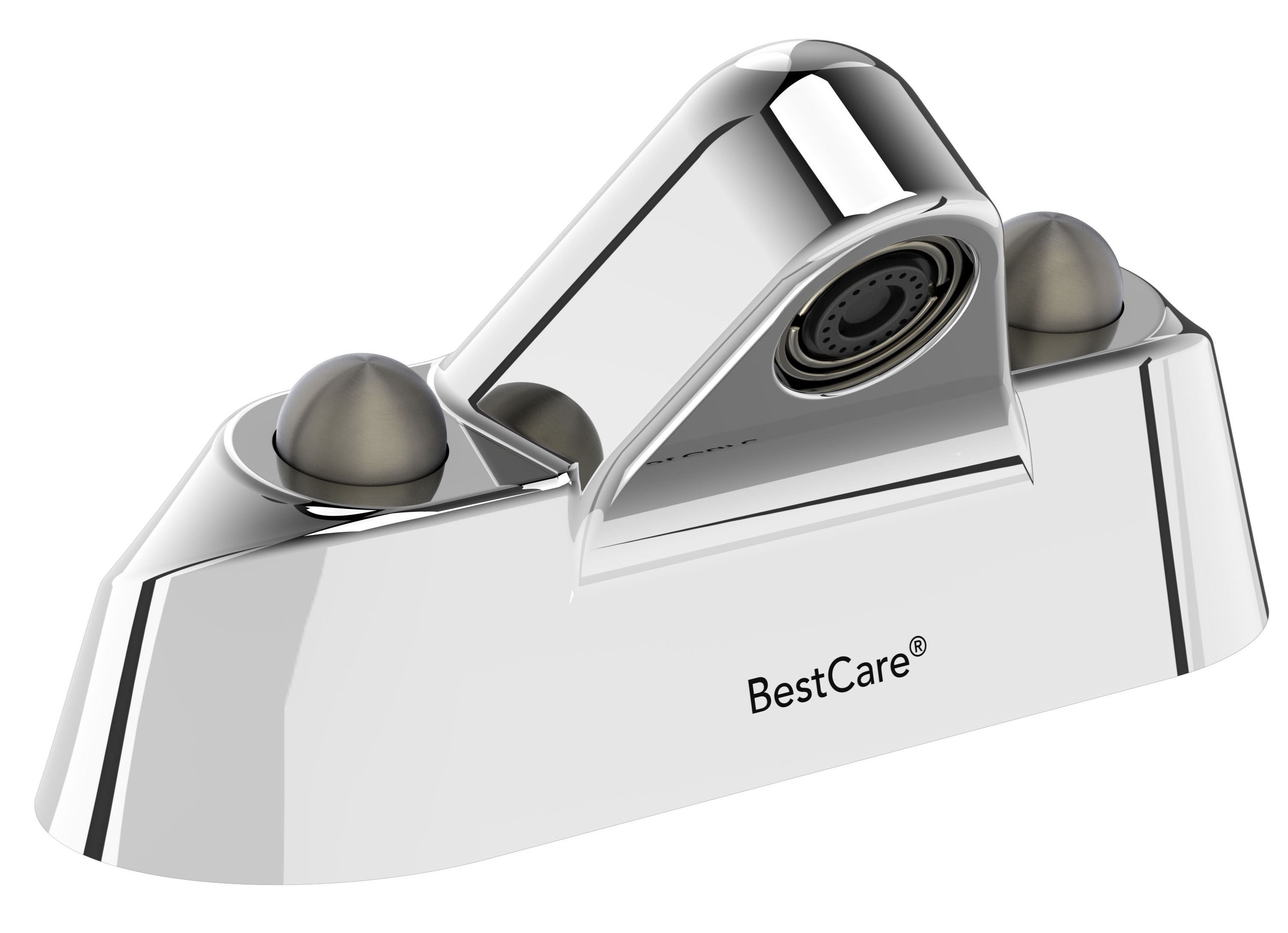

BestCare® Ligature-Resistant Hot and Cold Hemispherical Button Faucet - 4 inch Centerset

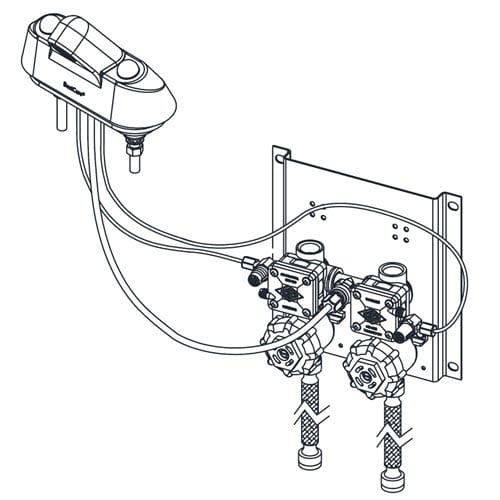

This triangular faucet limits users from using the product as a ligature device. The faucet features hemispherical buttons (also ligature resistant) and dual temperature Air-Control® pneumatic valve.
- Ligature-resistant
- Helps with infection prevention
- Heavy duty chrome plated cast bronze
- Low flow 0.5 gallon (3.79 liters) per minute
- Hemispherical push button/temperature pneumatic operation
- Neoperl® spray nozzle for easy replacement
- Factory pre-set run time can be adjusted
- 4 inch (101.6 mm) centerset
- ADA compliant
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Ligature Resistant Dual Temperature Push Button Faucet - 4 inch Centerset - image from left side | 342 KB | ||
 | | Installation Manual Whitehall BestCare Faucets using Air-Control Pneumatic Valves [WH3378-HC, WH3377, WH3377-WSF, WH3377-8IN, WH3376, WH3376-WSF, WH3376-8IN] Doc # 6900-265-001 BESTCARE AIR-CONTROL.pdf | 1 MB | ||
| | Ligature Resistant Dual Temperature Push Button Faucet - 4 inch Centerset | 271 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | BestCare Solutions Flyer (pdf) | 181 KB | ||
| | BestCare Ligature-Resistant Faucets Flyer (pdf) | 957 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 571 KB |
Specifications
| Brand | Acorn ConTrols® Inside, BestCare® |
| Features | Ligature-Resistant Design, Triangular Faucet, Vandal Resistant Flow Nozzle |
| Material | Lead-Free Brass |
| Accessibility | ADA Compliant |
| Lead Free | Yes |
| Faucet Centerset Spacing | 4" |

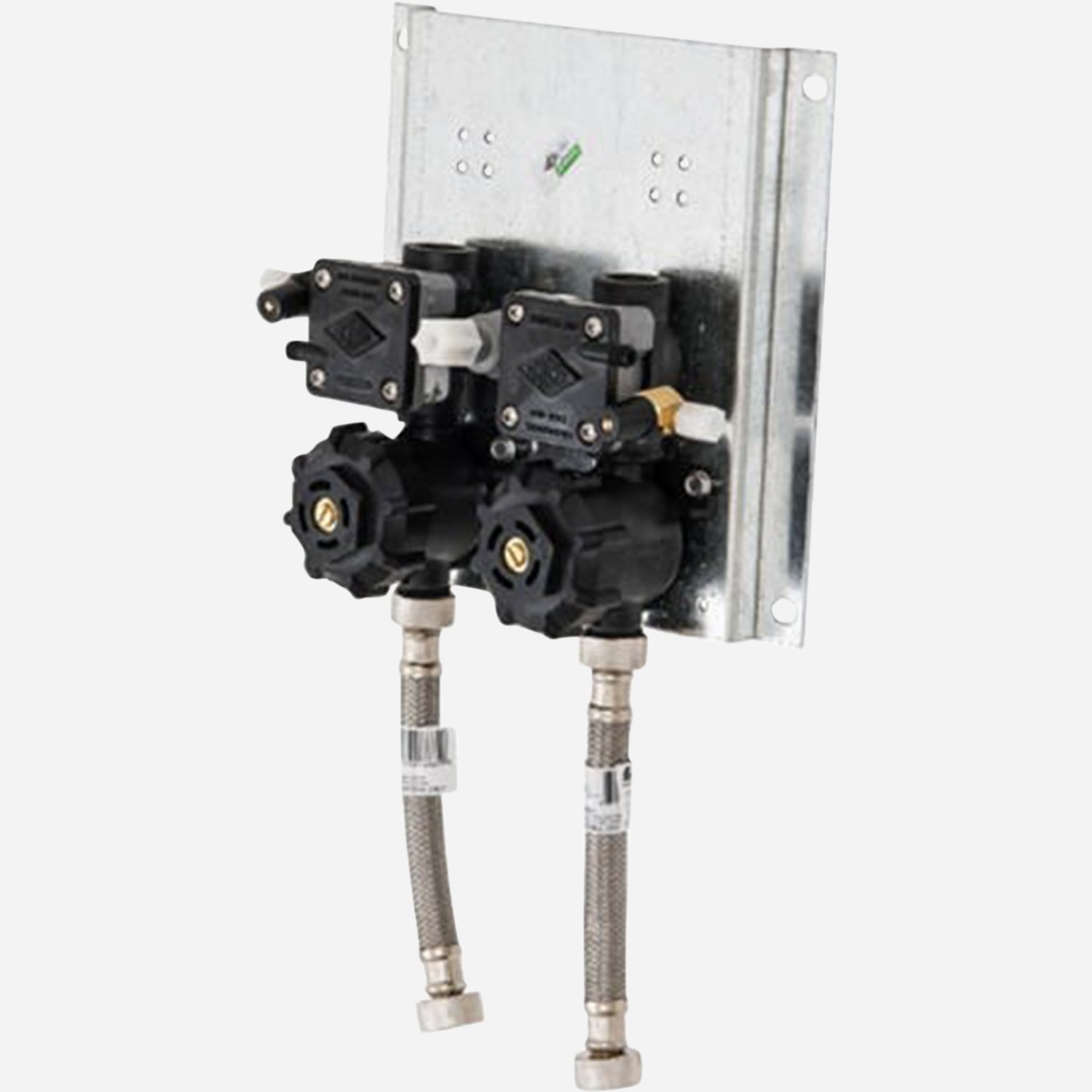

| Valve Type | Pneumatic (Air-Control), Hot (Tempered) & Cold |
| Activation Button Type | Hemispherical (pneumatic) |
| CSI Divisions | Division 22 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | LFK | Accessory: Laminar Flow Nozzle Kit |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WHST70-12 | 1/2" NPT Connections Thermostatic Lavatory Tempering Valve |
