Model WH3378-HC-PPZ

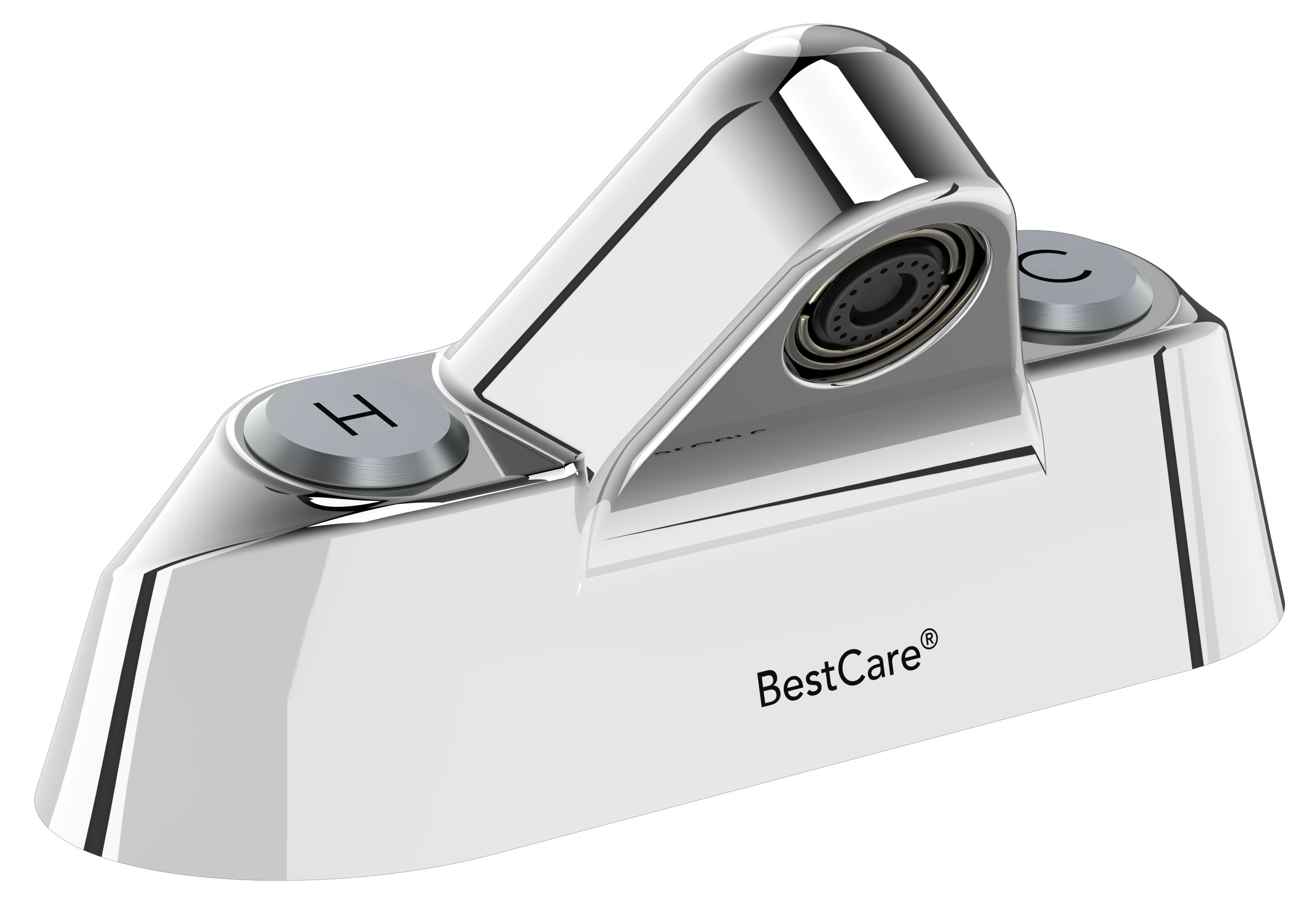

BestCare® Ligature-Resistant Hot and Cold Piezo Button Faucet - 4 inch Centerset
This triangular faucet limits users from using the product as a ligature device. The faucet features Piezo buttons and dual temperature solenoid valve.
- Ligature-resistant
- Helps with infection prevention
- Heavy duty chrome plated cast bronze
- Low flow 0.5 gallon (3.79 liter) per minute
- Piezo button/dual temperature
- Easy touch “on & off”
- Neoperl® spray nozzle for easy replacement
- 4” centerset
- Available in AC plug or Battery operated (batteries are not supplied)
- ADA compliant
- Faucet is factory set to 10 second max run time, can be adjusted
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 233 KB | ||
 | | Ligature Resistant Dual Temperature Piezo Button Faucet - 4 inch Centerset (h | 348 KB | ||
 | | Installation Manual Whitehall BestCare Faucets Activated with Piezo Pushbutton [WH3378-HC-PPZ/-BAT, WH3377-PPZ/-BAT, WH3377-WFS-PPZ/-BAT, WH3377-8IN-PPZ/-BAT, WH3376-PPZ/-BAT, WH3376-WSF-PPZ/-BAT, WH3376-8IN-PPZ/-BAT] Doc # 6900-264-001 BestCare PPZ.pdf | 1 MB | ||
| | Ligature Resistant Dual Temperature Piezo Button Faucet - 4 inch Centerset | 324 KB | ||
| | Programming Instructions for Piezo Pushbutton (Flow Time Adjustment) | 629 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 197 KB | ||
| | BestCare Solutions Flyer (pdf) | 181 KB | ||
| | BestCare Ligature-Resistant Faucets Flyer (pdf) | 957 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 48 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 571 KB | ||
 | | Ligature Resistant Dual Temperature Piezo Button Faucet - 4 inch Centerset | 1 MB | ||
| | Ligature Resistant Dual Temperature Piezo Button Faucet - 4 inch Centerset | 158 KB |
Specifications
| Brand | BestCare®, Acorn ConTrols® Inside |
| Material | Lead-Free Brass |
| Lead Free | Yes |
| Accessibility | ADA Compliant |
| Activation Button Type | Flat Piezo (electronic) |
| Valve Type | Electronic, Hot (Tempered) & Cold |
| Faucet Centerset Spacing | 4" |
| Features | Triangular Faucet, Vandal Resistant Flow Nozzle, Ligature-Resistant Design |
| CSI Divisions | Division 22 |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | LFK | Accessory: Laminar Flow Nozzle Kit | ||
 | HWD | Accessory: Hardwired Power Converter for Electronic Faucets |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BAT | Option: Battery Powered | ||
 | WHST70-12 | 1/2" NPT Connections Thermostatic Lavatory Tempering Valve |
Models
Typical models are shown below with their power supply
Plug-in Power Supply WH3378L-HC-PPZ for BestCare® Basins WH3378-HC-PPZ for Basins by Others
Battery Power Supply (Note: batteries are not supplied) WH3378L-HC-PPZ-BAT for BestCare® Basins WH3378-HC-PPZ-BAT for Basins by Others
