Free-Standing Cabinet with Bed Pan Washer, Pivoting Toilet, Rectangular Lavatory, Back Waste Outlet

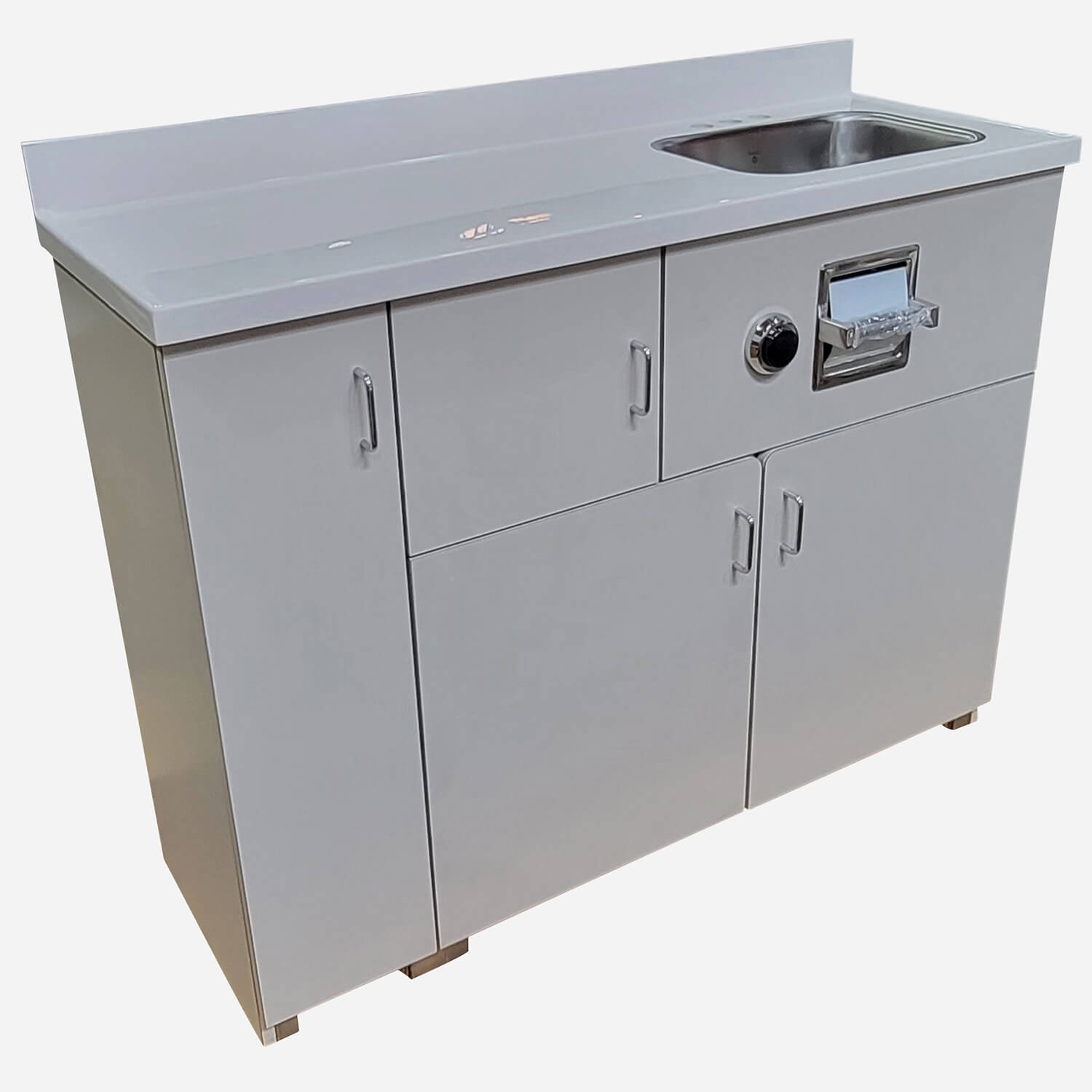

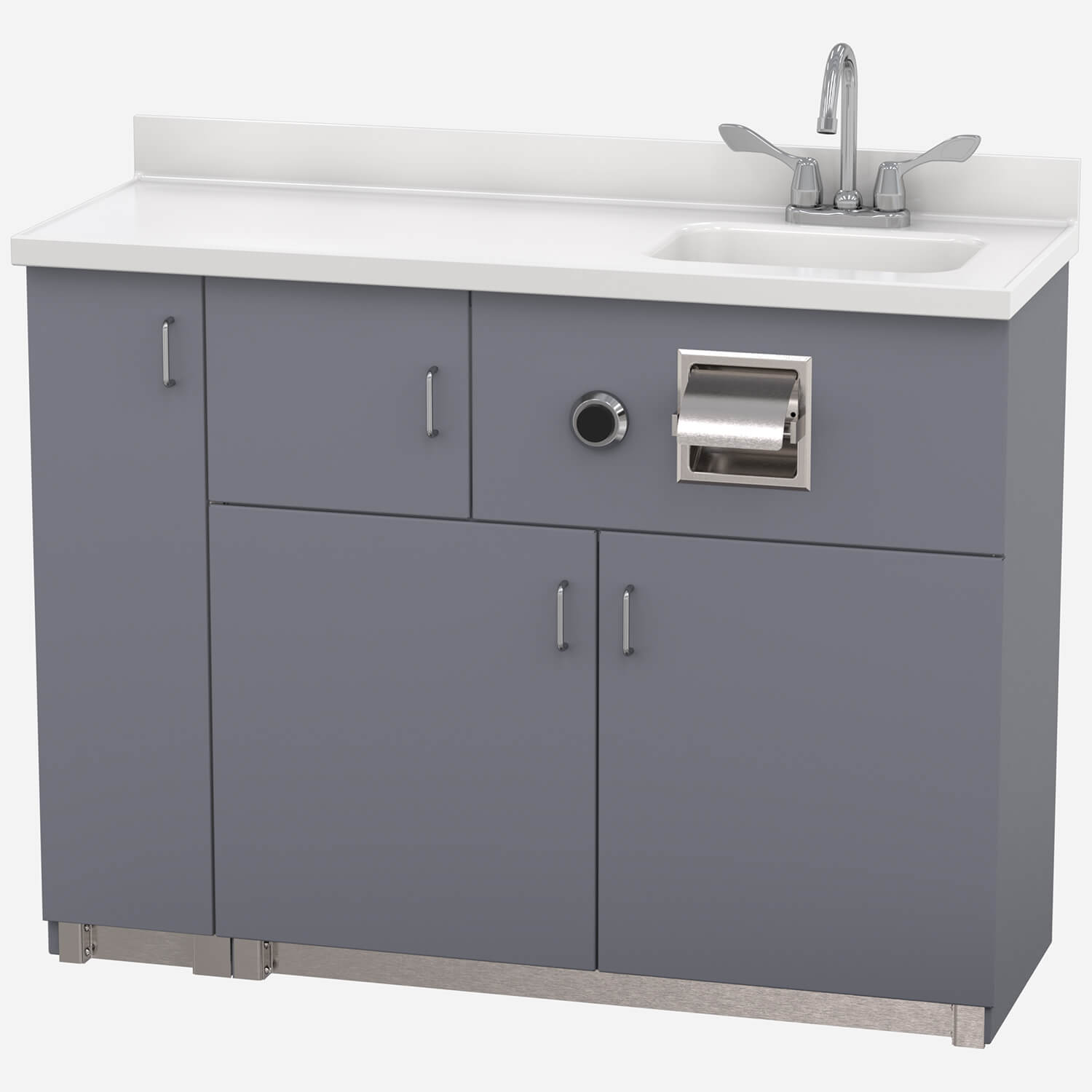

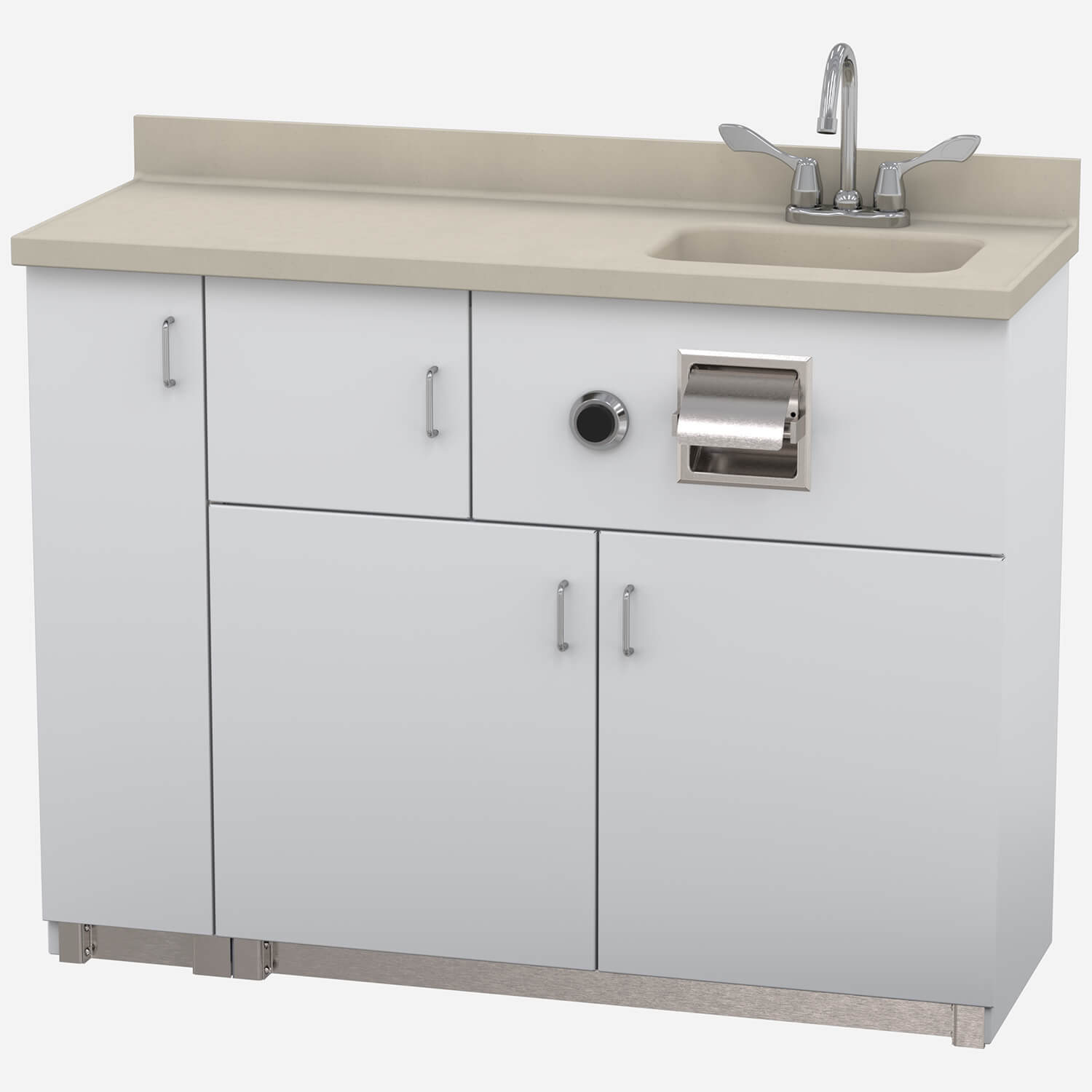

Model 4030 is a Free-Standing Patient Care Unit typical mounted against a wall. The waste is configured in the rear exiting into the wall. Model 4030 includes a pivoting stainless steel toilet, concealed within the cabinet. On the opposite side, a washbasin is provided within the countertop. Various styles are available. A slim cabinet side cabinet provides a bed pan washer.

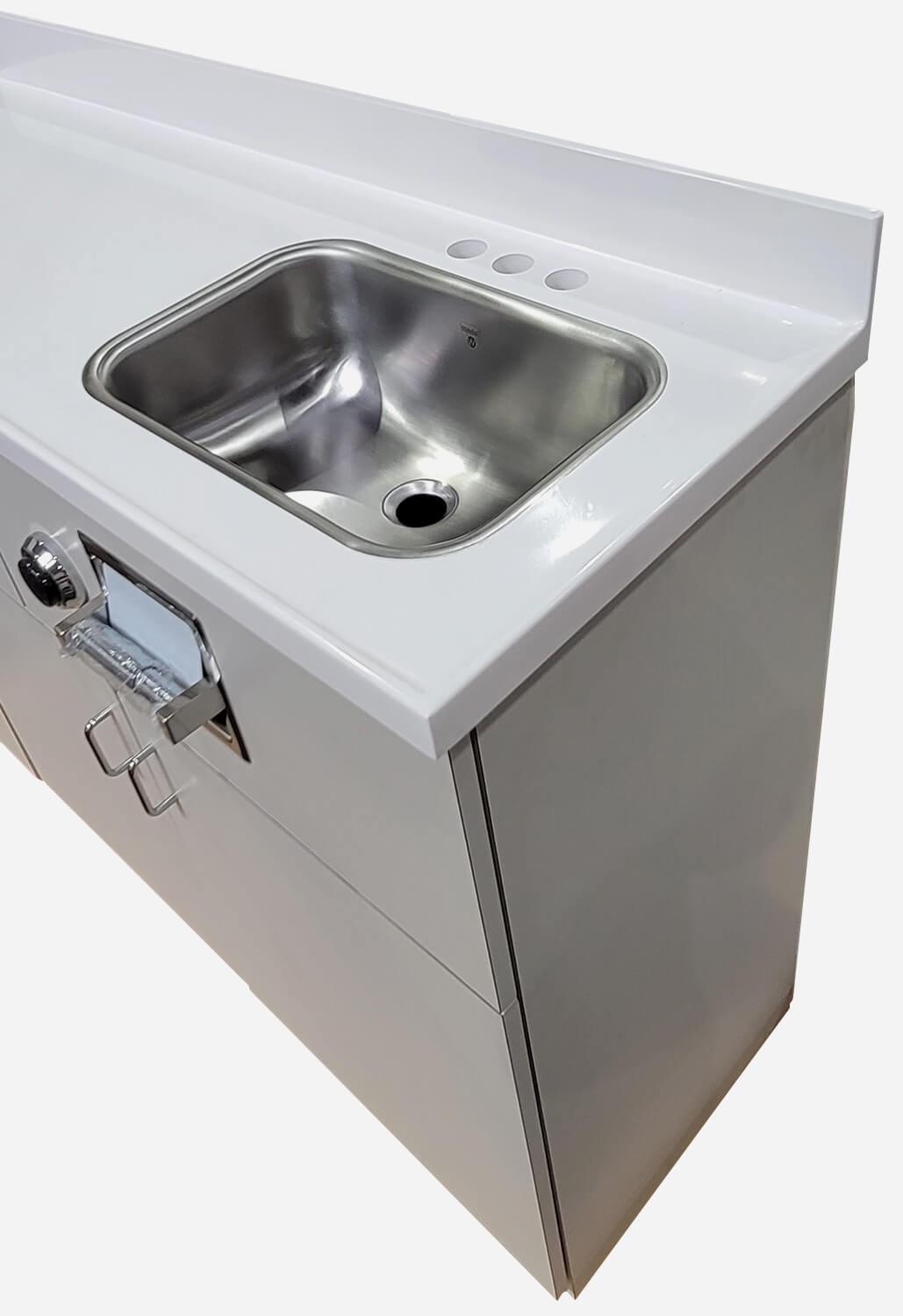

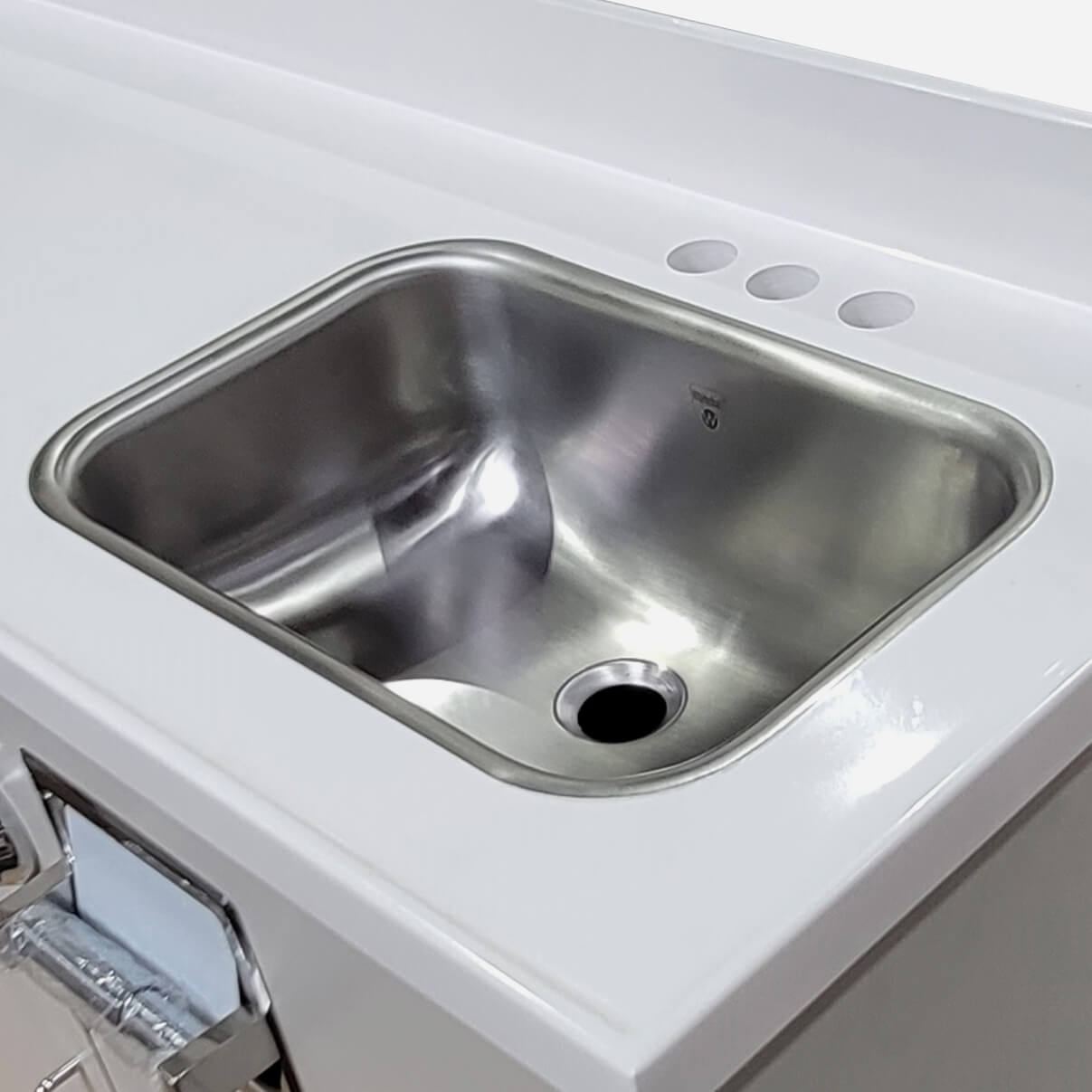

• 47" (1194 mm) wide cabinet interior surfaces are stainless steel. Interior has a removable stainless steel Floor to conceal Frame Anchors. Specify Cabinet material and color selection. Counter has a 3" (76 mm) Backsplash and a bullnose front edge. Specify Countertop material and color selection.

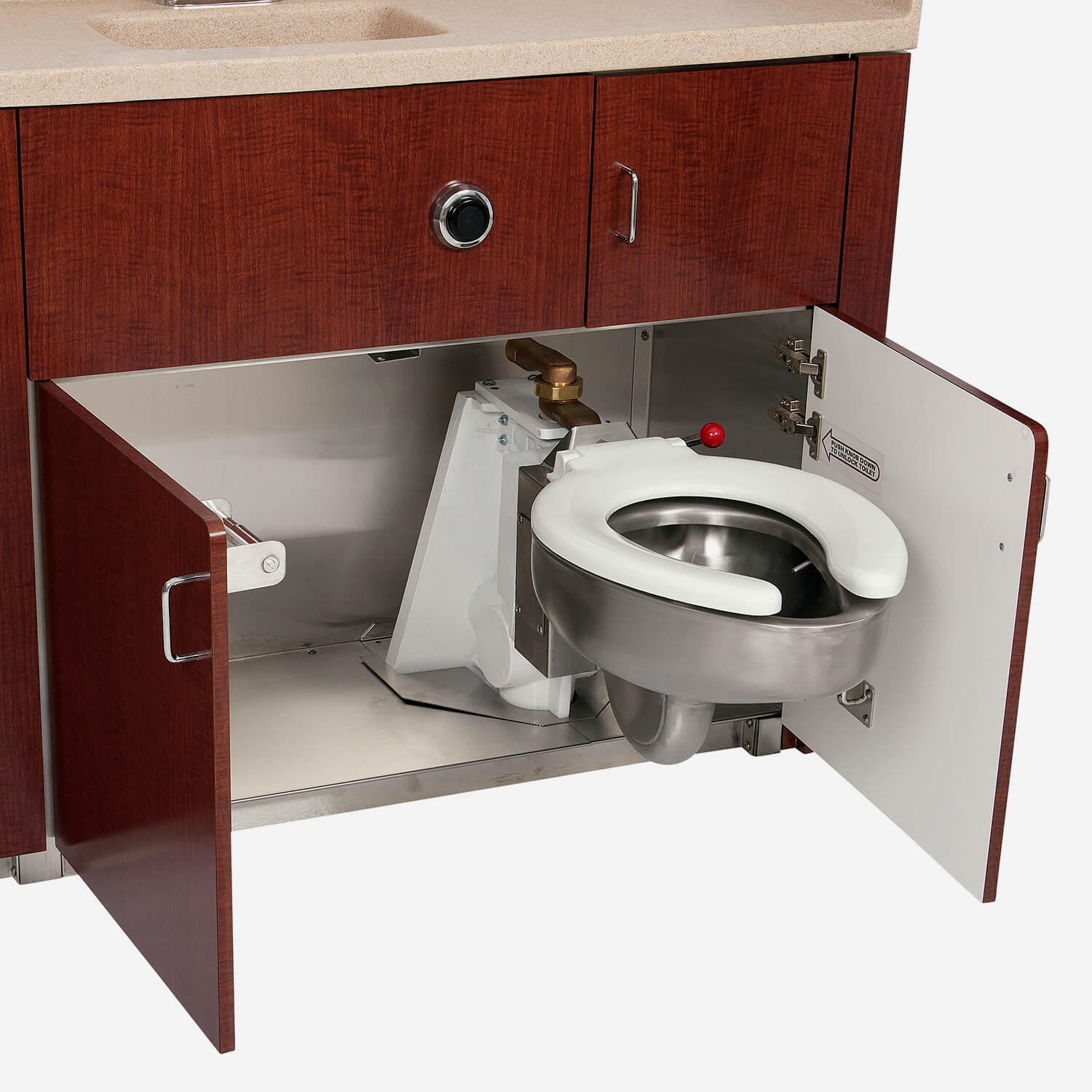

• Toilet is stainless steel, siphon jet type with white plastic Seat and self-sustaining Check Hinge. Door Linkage swivels the Toilet into the room when Cabinet door is opened. The Toilet is locked in place when open and must be unlatched to close.
• Hydraulic Flush Valve is furnished standard with a 1-3/4" diameter, hydraulically actuated, remote Pushbutton. Minimum required flow pressure is 25 PSI with a minimum water consumption of 1.28 gallon (4.85 liter) per flush.
• Swivel Assembly is cast iron with a sanitary white powder coat finish, and has a positive watertight, chemical-resistant Seal. Swivel assembly requires floor anchoring (hardware provided). Toilets will withstand a 2,500 pound (1.13 metric ton) static vertical load. Floor Anchors are seismic rated for CBC category IV structures.

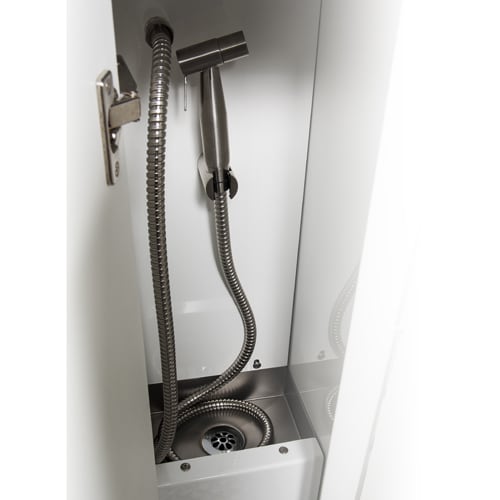

• Bedpan Washer Cabinet mounts on Toilet side of Cabinet and includes a handheld Bedpan Washer with volume control, positive shut-off and stainless steel Hose. Optional -BWD Bed Pan Washer Drain is recommended.
