BestCare® Ligature-Resistant ADA Roll-In Shower Base with Front or Rear Trench Drain
Ligature-Resistant Corterra® Solid Surface Shower Base combine attractive looks with a spacious, easy to maintain shower receptacle that features a non-slip, matte finish. Roll-In Stall Shower Floors are designed for versatility,durability and ease of installation.
Construction is Corterra® cast solid surface, color furnished is Blanco Matte (White) and is Greenguard Gold listed, cUPC certified by IAPMO R & T and complies to ASTM F 462-79 (R-2007), "Standard Consumer Safety Specification for Slip-Resistant Bathing Facilities."
Three (non-threshold) sides are provided with Integral Tiling Flanges. ADA Compliant Shower Bases are intended for Roll-in shower stalls. Base includes covered interior corners and are pitched to the Drain Outlet to ensure positive drainage.
Installation: Bases are provided with a lowered threshold height and must be recessed into the finished floor to facilitate ADA compliance: Additionally, ADA Models require the Shower Walls to be built out to cover the Shower Base Shoulders to maintain the inside stall dimensions.
Standard Drain includes a Trench Drain with a Ligature-Resistant Removable, Stainless Steel Trough Style Grate with vandal-resistant fasteners. All units are provided with a 2" No-Caulk Drain Connection.
Overall base dimension: 62.50" (1588 mm) wide and 31.13" (791 mm) front-to-back Inside base dimension: 60" (1524 mm) wide and 30" (762 mm) front-to-back
This shower base is ADA compliant with a small 0.5" (12.7mm) high threshold to allow for easier wheelchair access. Other ADA compliance issues will need to be addressed including but not limited to shower and grab bars. Reminder: ADA compliance is subject to local code authority.
Ligature-Resistance is provided with the drain choices. Trench drain (front or back). Various Corterra® solid surface color choices are available.
- Ligature-resistant design on drain covers.
- Ideal for hospitality and other commercial applications
- As safe as they are attractive; as durable as they are spacious.
- Non-slip flooring offers safety without compromising looks
- Durable and beautiful Corterra® solid surface construction
- Resin formula resulting in lower weight single man install
- Solid surface construction allows for post-installation repairs
- Easy to clean and maintain - no more bathtub rings
- Efficient use of space
- Available in a variety of colors and configurations
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Whitehall BestCare® Ligature-Resistant Solid Surface Shower Bases WHCSB3636 and WHCSB6030, and ADA Shower Bases WHCSB3636ADA, WHCSB6030ADA, WHCSB6030ADA-LRTD-F, WHCSB6030ADA-LRTD-B | 626 KB | ||
| | Ligature-Resistant ADA Roll-In Shower Base with Trench Drain in Front or Back [WHCSB6030ADA-LRTD-F, WHCSB6030ADA-LRTD-B] | 526 KB | ||
| | Acorn Engineering Corterra® Solid Surface a solid-surface polymer resin (with aluminum trihydrate and other fillers) (also used for Neo-Metro and Whitehall) - Document features Product Description, Product Qualities, Cleaning Tips, ANSI Standard Compliance, CSA Standard Compliance and Burning Character Test Data | 460 KB |
Specifications
| Brand | BestCare®, Corterra® |
| Material | Solid Surface |
| Appropriate for | Ligature Resistant |
| Accessibility | ADA Compliant |
| Features | Ligature-Resistant Design, Spacious 60" x 30" |
| Compliances | UL Greenguard, UPC®, ASTM F 462-79 for Slip Resistance |
| CSI Divisions | Division 22 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | AMA | Option: Anti-Microbial Additive | ||
 | OCC | Option: Corterra® Solid Surface |
Models
Typical models are shown below
WHCSB6030ADA-LRTD-F shown with trench drain in the front

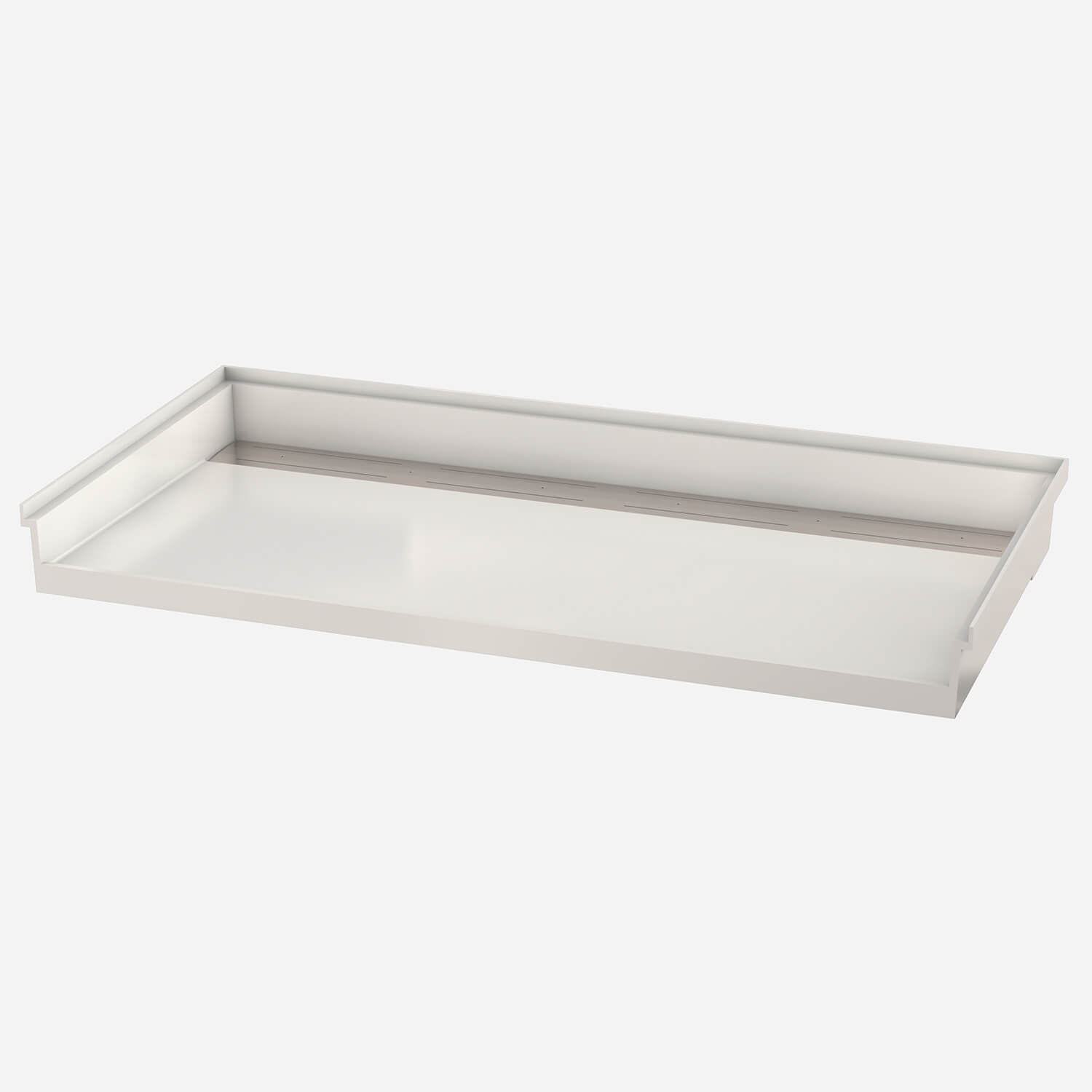

WHCSB6030ADA-LRTD-B shown with trench drain in the back
Additional WHCSB6030ADA configuration available
Round Drain: Left (WHCSB6030ADA-LRDD-L), Center (WHCSB6030ADA-LRDD-C), Right (WHCSB6030ADA-LRDD-R)
Trench Drain: Left (WHCSB6030ADA-LRTD-L), Right (WHCSB6030ADA-LRTD-R)
