BestCare® Ligature-Resistant ADA and CBC (Calif Title 24) Compliant Wall Shower with Handheld Shower

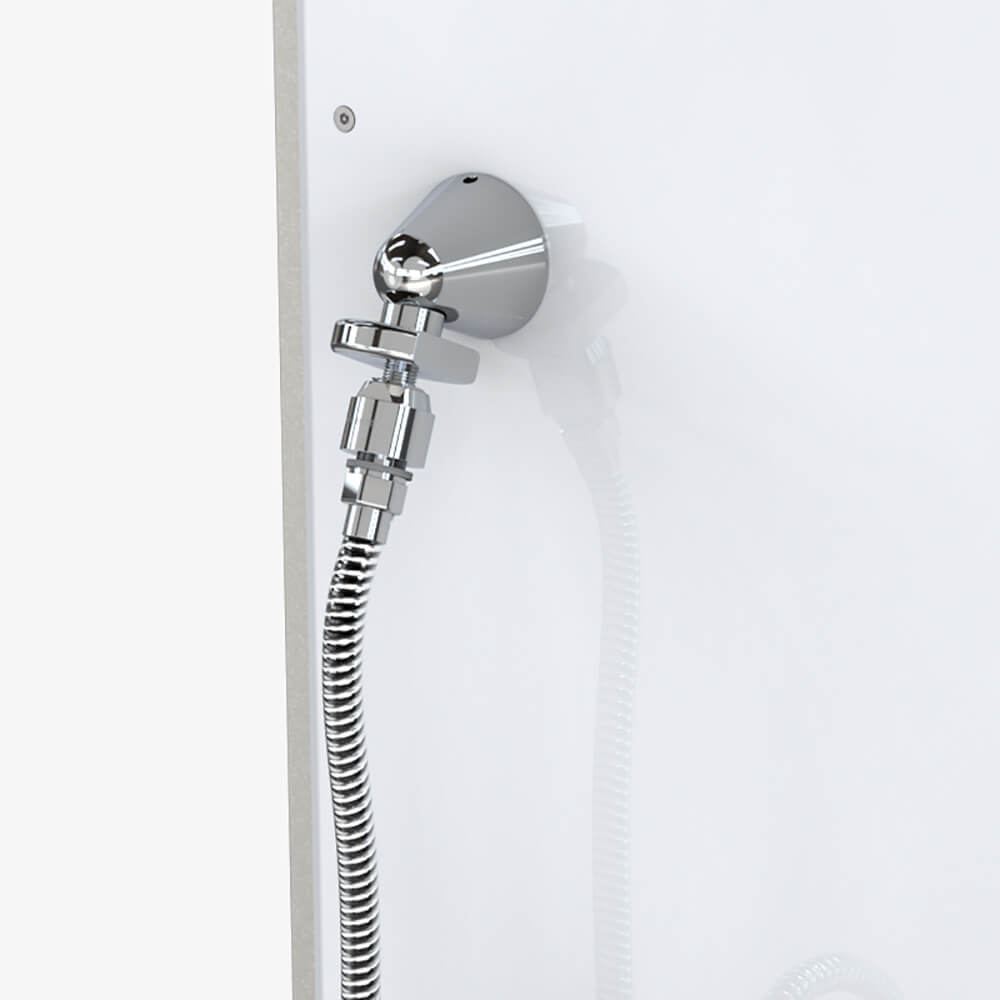

Shower assembly includes Control Valve, Conical Showerhead, Handheld Shower and Hose with Collapsible Mounting Bracket, Diverter Valve, and Recessed Soap Dish option. The shower is to be installed on a finished wall and serviced through a removable front panel. When installed properly and in accordance with all other Shower Stall Type requirements, the unit will conform with 2010 ADA Standards and 2019 California Access Compliance Reference Manual with DSA Access Compliance Code Cycle Supplement, Effective July 1, 2021. Refer to applicable Accessibility Guidelines for complete details.
This product with the handheld shower is designed for use with supervision. Place hose shower head in a safe and secure location when not in use.
Disclaimers: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide.
Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars and proper mounting, 48 inches (1,219.2 mm) above the finished floor and the interpretations of the local code authority.
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Downloads
Resource Type
Title
Description
File Size
Action
Installation Instructions
Install Guide WH418ADA-WHCHS Shower (pdf)
BestCare® Ligature-Resistant ADA and CBC (Calif Title 24) Compliant Wall Shower with Handheld Shower
1 MB
Submittals
Submittal WH418ADA-WHCHS Series Shower (pdf)
Whitehall BestCare® Ligature-Resistant ADA and CBC (Calif Title 24) Compliant Wall Shower with Handheld Shower
442 KB
Brochures/Flyers
BestCare ADA Ligature-Resistant Handheld Shower (pdf)
BestCare ADA Ligature-Resistant Handheld Shower and Collapsible Shower Mounting Bracket (pdf)
866 KB
Brochures/Flyers
BestCare Ligature-Resistant Brochure (pdf)
BestCare Ligature-Resistant Brochure (pdf)
48 MB
Drawings
WH418ADA-WHCHS Shower Revit Drawings
BestCare® Ligature-Resistant ADA and CBC (Calif Title 24) Compliant Wall Shower with Handheld Shower [WH418ADA-WHCHS-R | With Soap Dish and Controls on right side; WH418ADA-WHCHS-L | Controls on left side]
3 MB
Drawings
WH418ADA-WHCHS Shower (dwg/zip)
BestCare® Ligature-Resistant ADA and CBC (Calif Title 24) Compliant Wall Shower with Handheld Shower [WH418ADA-WHCHS-R | With Soap Dish and Controls on right side; WH418ADA-WHCHS-L | Controls on left side]
1 MB
Videos
Video: Adjusting Stop Limits on WHSV16 Valve
Learn how to adjust the stop limits and temperature on a Whitehall WHSV16 (MGI ConTrols® SV16) shower mixing valve. The WHSV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub.
Shows specifications for standard configuration. Configuration options may change specifications.
Brand
BestCare®, Acorn ConTrols® Inside
Material
Stainless Steel
Material Details
White powder coating
Type of Mount
Flush Mount
Appropriate for
Ligature Resistant
Accessibility
ADA Compliant
Compliances
California Building Code -Title 24
Fixture Width
16"
CSI Divisions
Division 22
Models

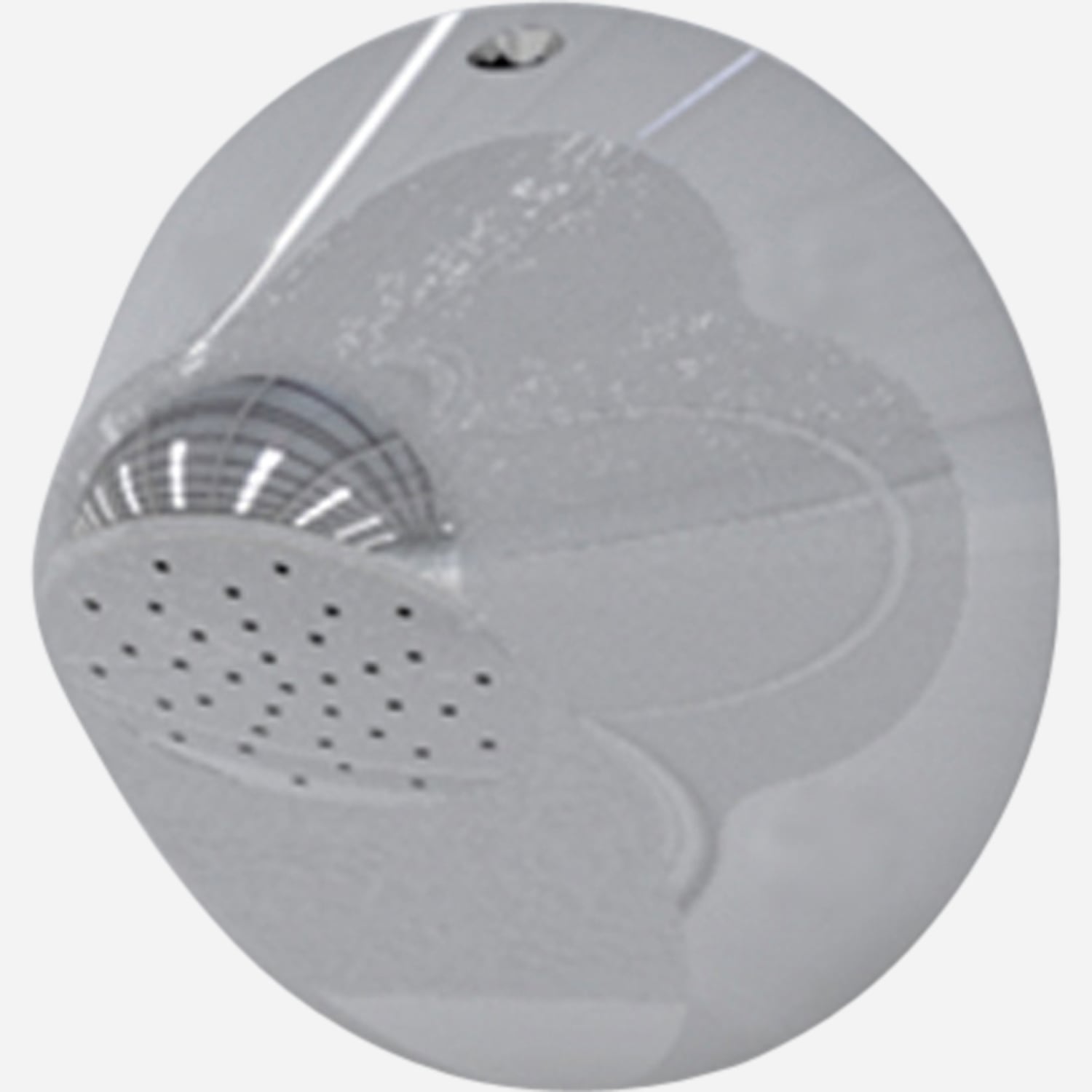

Fixed Ligature-Reistant Conical Showerhead and Lower Handheld Shower and Hose with Collapsible Mounting Bracket; Upper Control is a Diverter; Lower Control is an ASSE 1016 Compliant Temperature-Pressure Balancing Mixing Valve with ADA Ligature-Resistant Tri-Lever Handle (Patent No D697.591 and 10,474,170 B2)

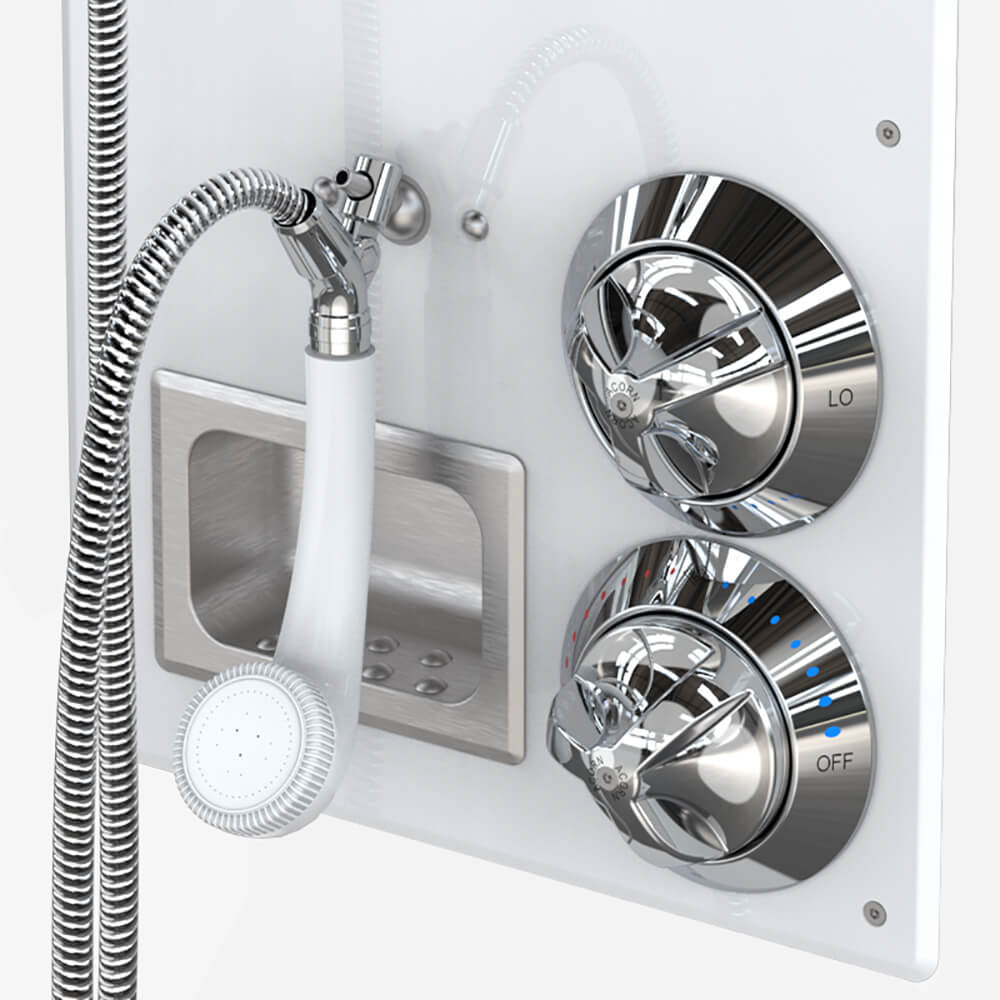

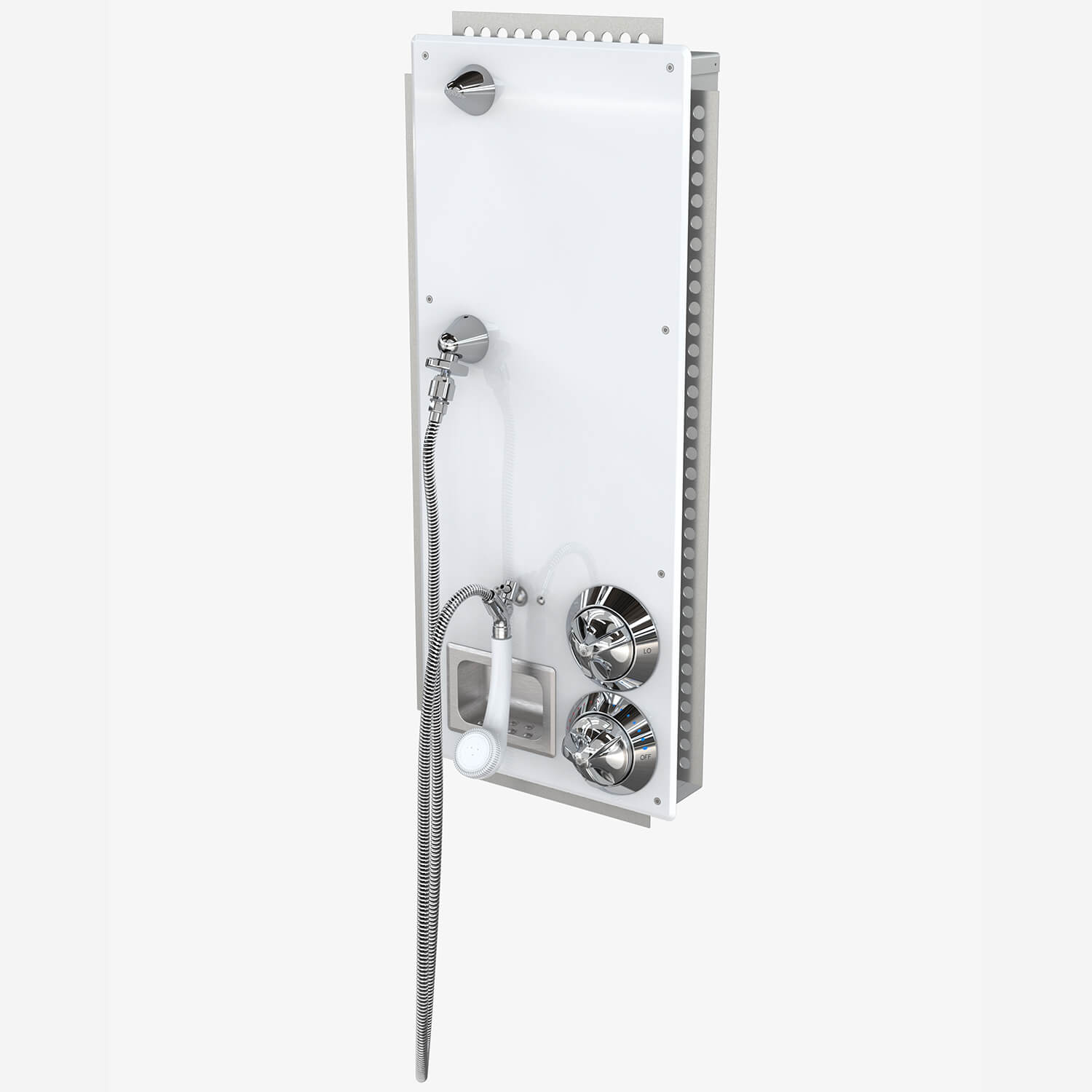

Shower with Recessed Soap Dish and Controls on right side; as shown Model Number WH418ADA-WHCHS-R Controls on left side Model Number WH418ADA-WHCHS-L

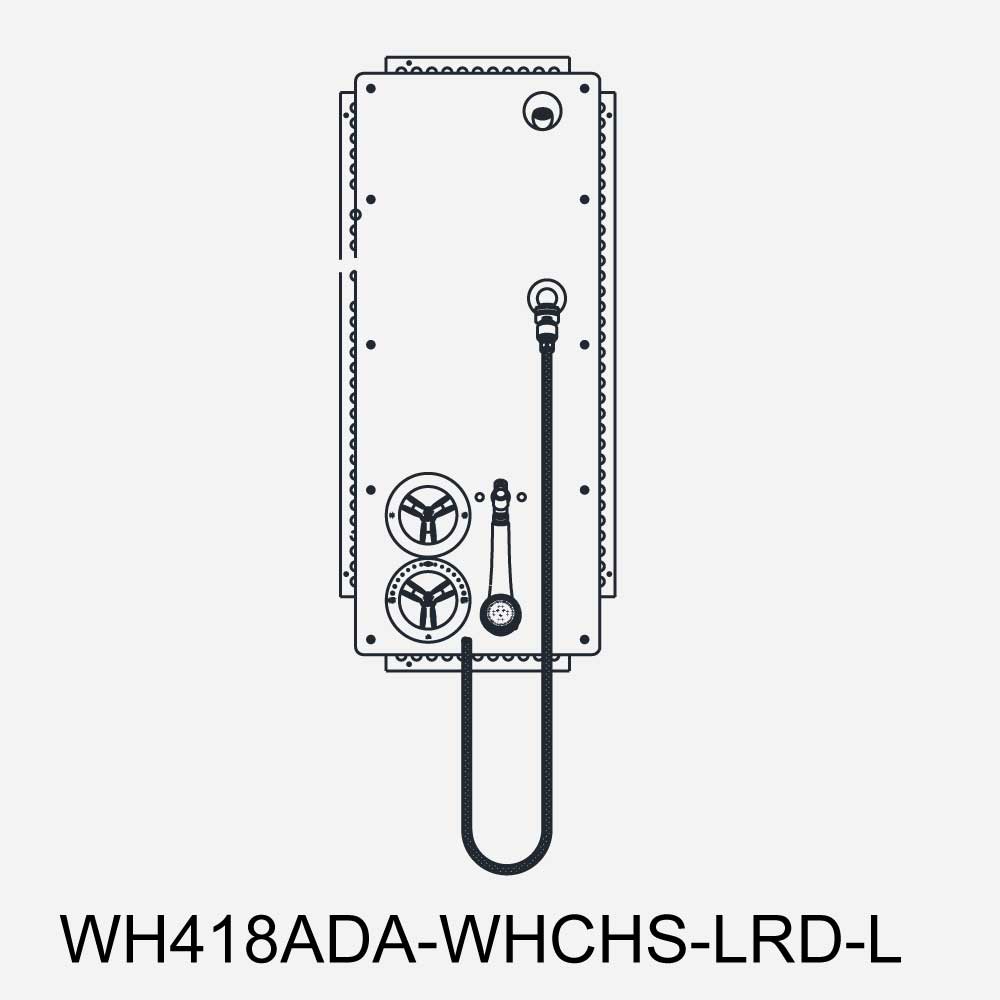

Shower with Controls on left side, (no soap dish) as shown Model Number WH418ADA-WHCHS-LRD-L Controls on right side Model Number WH418ADA-WHCHS-LRD-R
