On-Floor, ADA Compliant Bariatric Stainless Steel Toilet
For applications requiring ADA compliance and much heavier weight resistance, the Whitehall Bariatric ADA On-Floor Stainless Steel Toilet is constructed from 14 gage 304 stainless steel and supported by both the floor and the wall.
Optional -EG Enviro-Glaze color finishes are available. Housing includes side access panels to facilitate installation of fixture and hinged seat by others.
END BREAKAGE WITH STAINLESS STEEL Bariatric patients require plumbing fixtures with higher maximum weight capacities than average fixtures found in healthcare facilities. Traditional china toilets support only about 500 lbs., and are more likely to break and cause injury to patients. Traditional porcelain toilets can buckle under immense pressure, shattering and creating sharp and dangerous debris.
The exterior and bowl interior has a satin finish. The fixture, without the optional -HSBJ hinged seat) shall withstand loads up to 2,000 pounds (907.1 kg) with no measurable deflections. It can handle loads up to 5,000 pounds (2267.9 kg) with no permanent damage. The optional -HSBJ seat is rated at 1,200 pounds (544.3 kg). Optional -EG Enviro-Glaze color finishes are available.
The toilet is designed to meet the needs of bariatric users, water conservation, and ADA compliance.
DISCLAIMERS:This product provides an on-floor bariatric solution capable of withstanding 1,000 lbs (453.59 kg) when combined with an appropriately rated Bariatric Support System.WaterSense recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bar) and the interpretations of the local code authority.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | WH2125-A-2-FM (Front Mount, On-Floor, Wall Waste) includes Top & Wall Supply Instructions | 0 | 257 KB | ||
| | On-Floor, ADA Compliant Bariatric Stainless Steel Toilet [WH2125-A-T-2-FM, WH2125-A-T-3-FM, WH2125-A-W-2-FM, WH2125-A-W-3-FM, WH2125-A-T-2-RM, WH2125-A-T-3-RM, WH2125-A-W-2-RM, WH2125-A-W-3-RM] | 0 | 180 KB | ||
| | WH2125-A-2-RM (Rear Mount, On-Floor, Wall Waste) | 0 | 326 KB | ||
| | WH2125-A-3-FM (Front Mounted, On-Floor, Floor Waste) includes instructions for Top & Wall Supply | 0 | 208 KB | ||
| | WH2125-A-3-RM (Rear Mounted, Floor Mounted, Floor Waste) includes Top & Wall Supply Instructions | 0 | 373 KB | ||
| | Bariatric Plumbing Fixtures Brochure including WH2105BAR, WH2125A, WH2125BAR and WH3740BAR-09 | 0 | 890 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 0 | 928 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Appropriate for | Bariatric |
| Accessibility | ADA Compliant |
| In Stock | Yes |
| Type of Mount | Wall Mount, Rear Mount Available |
| Fixture Width | 24" |
| Material | Stainless Steel |
| Toilet Seat | Optional Bariatric Seats available |
| Waste Location | Wall, Floor |
| Valve Type | Top Supply - typically exposed valve, Wall Supply - typically concealed in wall |
| CSI Divisions | Division 22 |
Options
Accessories
Miscellaneous
Models

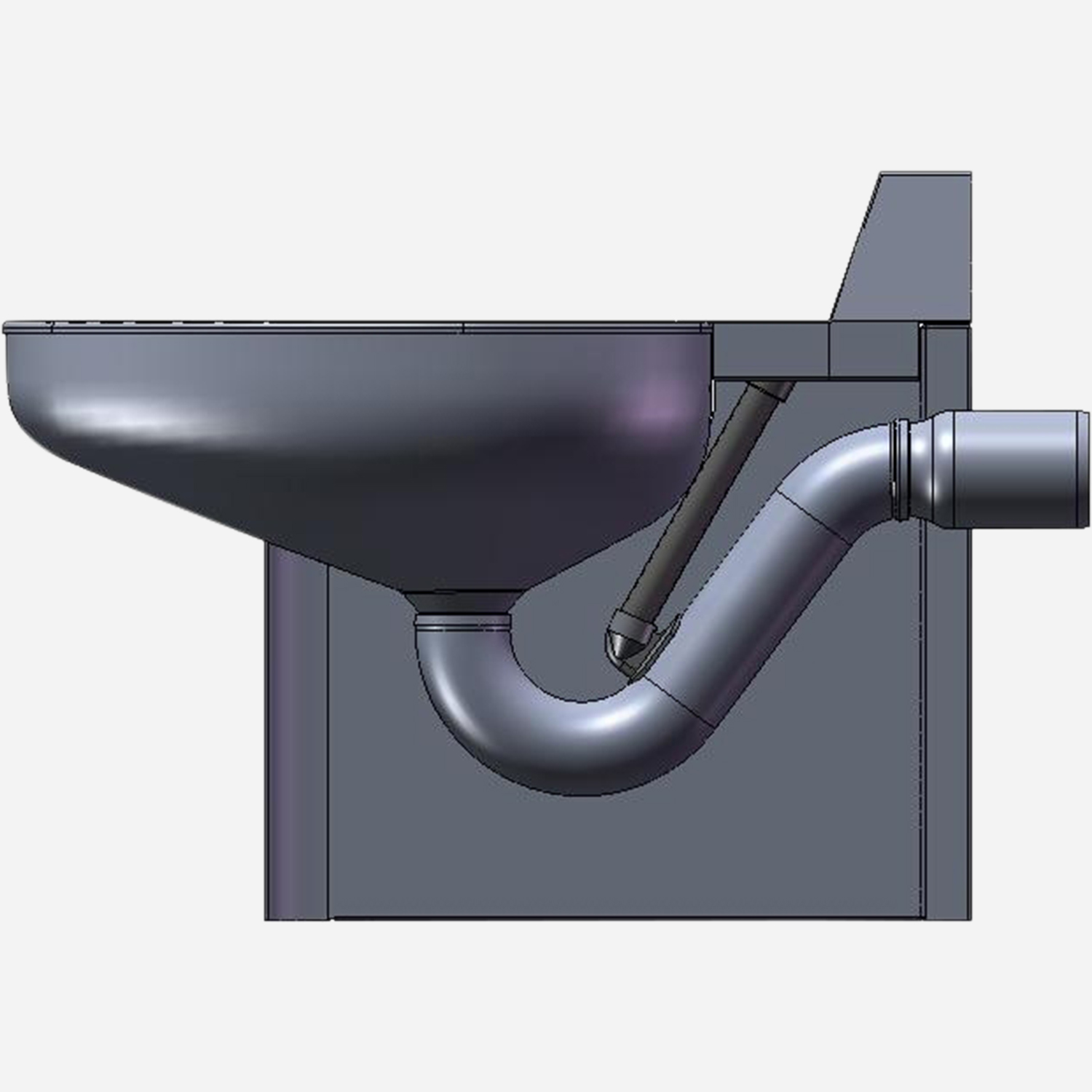

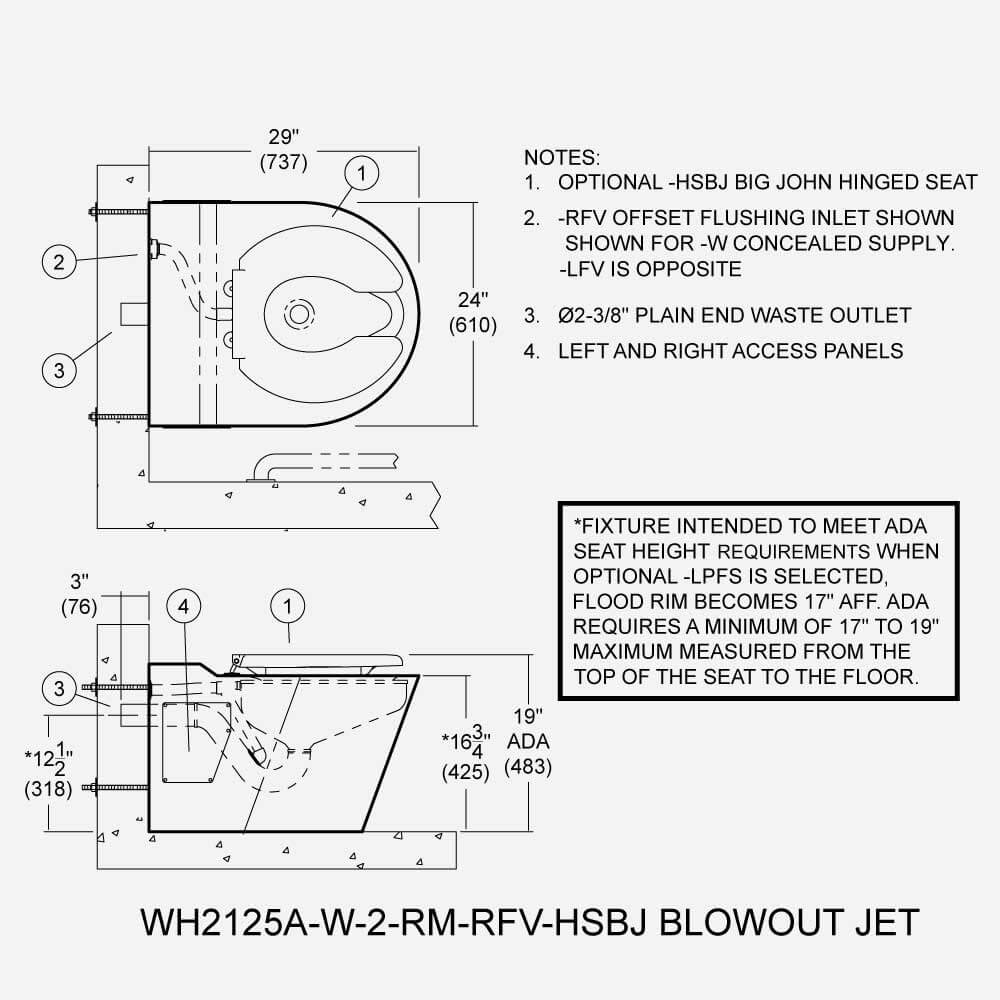

The toilets shown below are all front-mount toilets though rear-mount toilets are also available for rear-chase applications. The toilet measure 24" (610 mm) wide x 29" (737 mm) front-to-back.
WH2125-A-T-2-FM Front mount fixture; With top spud to accommodate exposed Top Supply flush valve Wall; Wall Waste Outlet

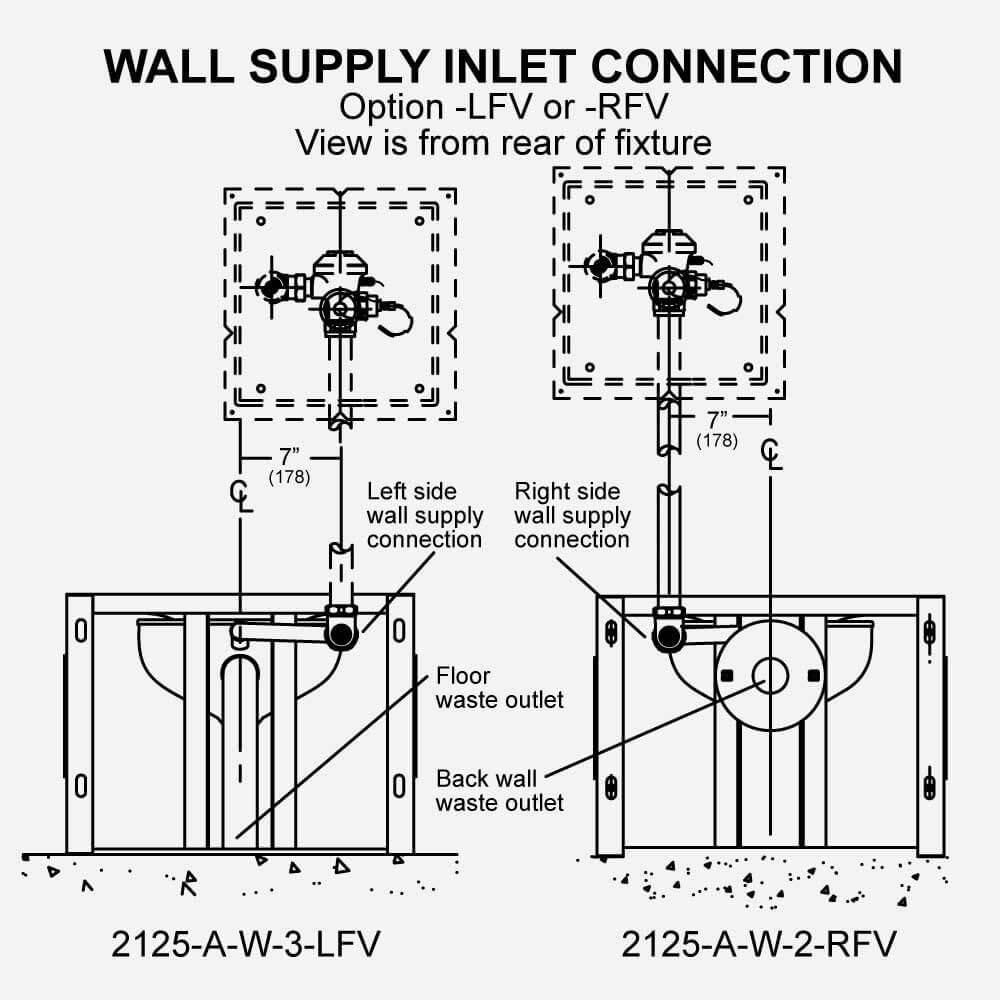

WH2125-A-W-2-FM Front mount fixture; With rear spud to accommodate concealed Wall Supply flush valve; Must specify -LFV (left) or -RFV (right) for wall supply inlet; Wall waste outlet
WH2125-A-T-3-FM Front mount fixture; With top spud to accommodate exposed Top Supply flush valve; Floor Waste Outlet
WH2125-A-W-3-FM Front mount fixture; With rear spud to accommodate concealed Wall Supply flush valve; Must specify -LFV (left) or -RFV (right) for wall supply inlet; Floor waste outlet
Popular Options include:

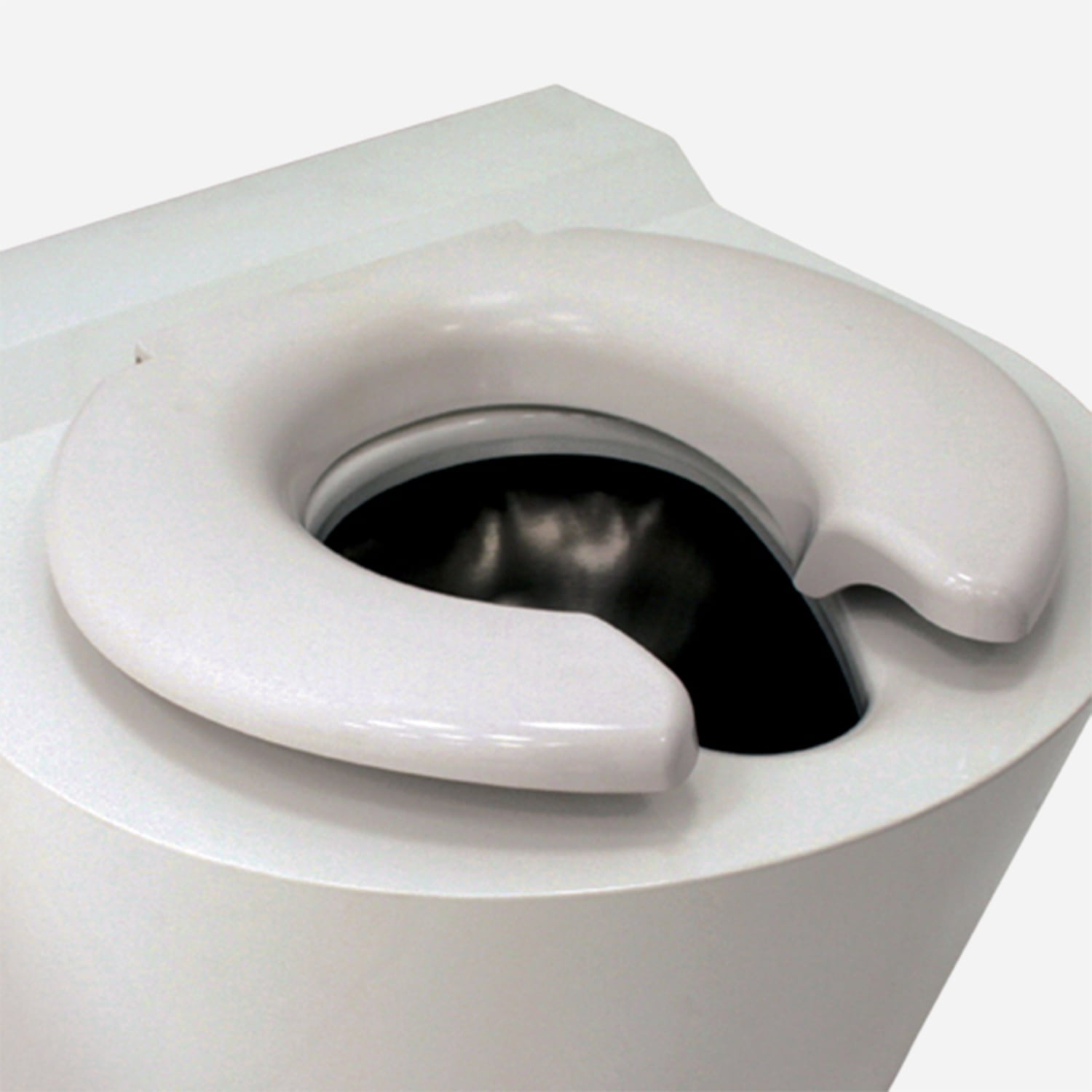

-HSBJ- Big John® Toilet Seat - 1,200 lbs (544.31 kg) rated -1.28 gpf (HET) - WaterSense® complaint flush valve -RM - Rear mount configuration - installation requires Accessible Rear Plumbing Chase
Other options available including powder coating; see Options List and/or Submittal
