Name: BestCare® Ligature-Resistant Cistern Tank Toilet
Brand: Whitehall Manufacturing
SKU: WH2145 Series

Model WH2145 Series

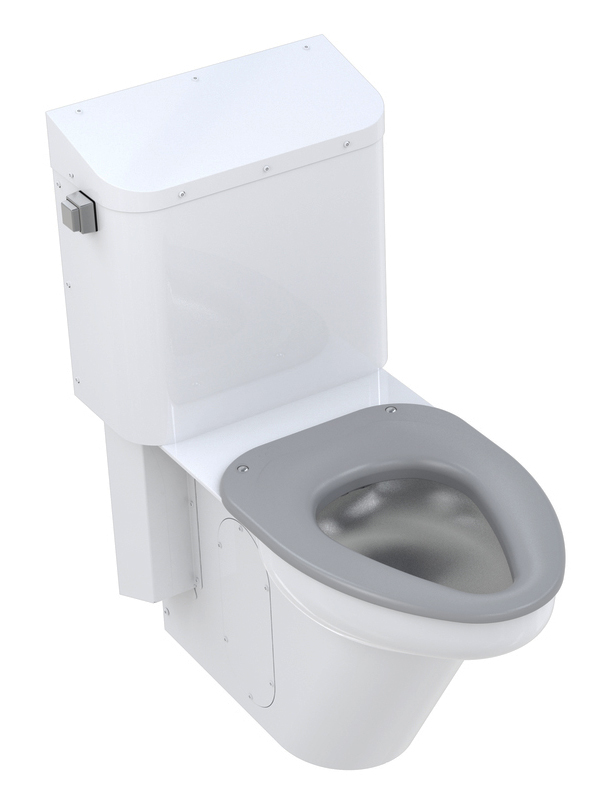

BestCare® Ligature-Resistant Cistern Tank Toilet

Whitehall's BestCare® Ligature-Resistant Toilet shall be fabricated from 16-gauge, type 304 stainless steel. Construction shall be seamless welded, and exterior surfaces shall be powder-coated white (the interior of the toilet will have a satin finish and will not be powder-coated). The toilet shall be a concealed siphon-jet type with an elongated bowl and self-draining flushing rim. The toilet uses standard residential water inlet and waste outlet. The toilet trap shall have a minimum 3.5-inch (89 mm) seal and shall pass a 2.125-inch (54 mm) diameter ball, and shall be fully enclosed. The toilet tank has a polyethylene inner liner and flushes with a conventional Fluidmaster® float/flapper mechanism. A ligature-resistant ABS grey toilet seat is included.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Images	WH2145 Toilet with Seat (hi res jpg)	Ligature Resistant Cistern Tank Toilet	142 KB
Installation Instructions	Manual WH2145 and WH2145ADA Toilets (pdf)	Whitehall BestCare® Ligature-Resistant Cistern Tank Toilet [WH2145_10, WH2145_12, WH2145_10-PBR, WH2145_12-PBR] With ADA Seat Height [WH2145ADA_10, WH2145ADA_12, WH2145ADA_10-PBR, WH2145ADA_12-PBR]	881 KB
Submittals	Submittal WH2145 Series Toilet (pdf)	Whitehall BestCare® Ligature-Resistant Cistern Tank Toilet [WH2145_10 \| L.H. Flush Button, 10" Rough-in; WH2145_12 \| L.H. Flush Button, 12" Rough-in; WH2145_10-PBR \| R.H. Flush Button, 10" Rough-in; WH2145_12-PBR \| R.H. Flush Button, 12" Rough-in]	174 KB
Brochures/Flyers	BestCare Solutions Flyer (pdf)	BestCare Solutions Flyer (pdf)	181 KB
Technical Data Sheets	Whitehall Cleaning and Care Guide (pdf)	Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces.	928 KB
Brochures/Flyers	BestCare Ligature-Resistant Brochure (pdf)	BestCare Ligature-Resistant Brochure (pdf)	48 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Videos	Behavioral Healthcare Webinar (video)	Vice President Kristin Kahle and National Sales Manager (Healthcare) Steve McIntosh discuss the importance of universal ligature resistant design within behavioral healthcare facilities.	134 KB
Videos	How to remove and clean a ligature resistant toilet seat (video)	How to remove and clean a ligature resistant toilet seat (video)	138 KB
Videos	How to install a BestCare® toilet seat (video)	How to install a BestCare® toilet seat (video)	132 KB
Videos	Overview of Whitehall's BestCare® Ligature-Resistant Toilets (video)	Overview of Whitehall's BestCare® Ligature-Resistant Toilets (video)	135 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	BestCare®
Material	Stainless Steel
Material Details	White powder coating

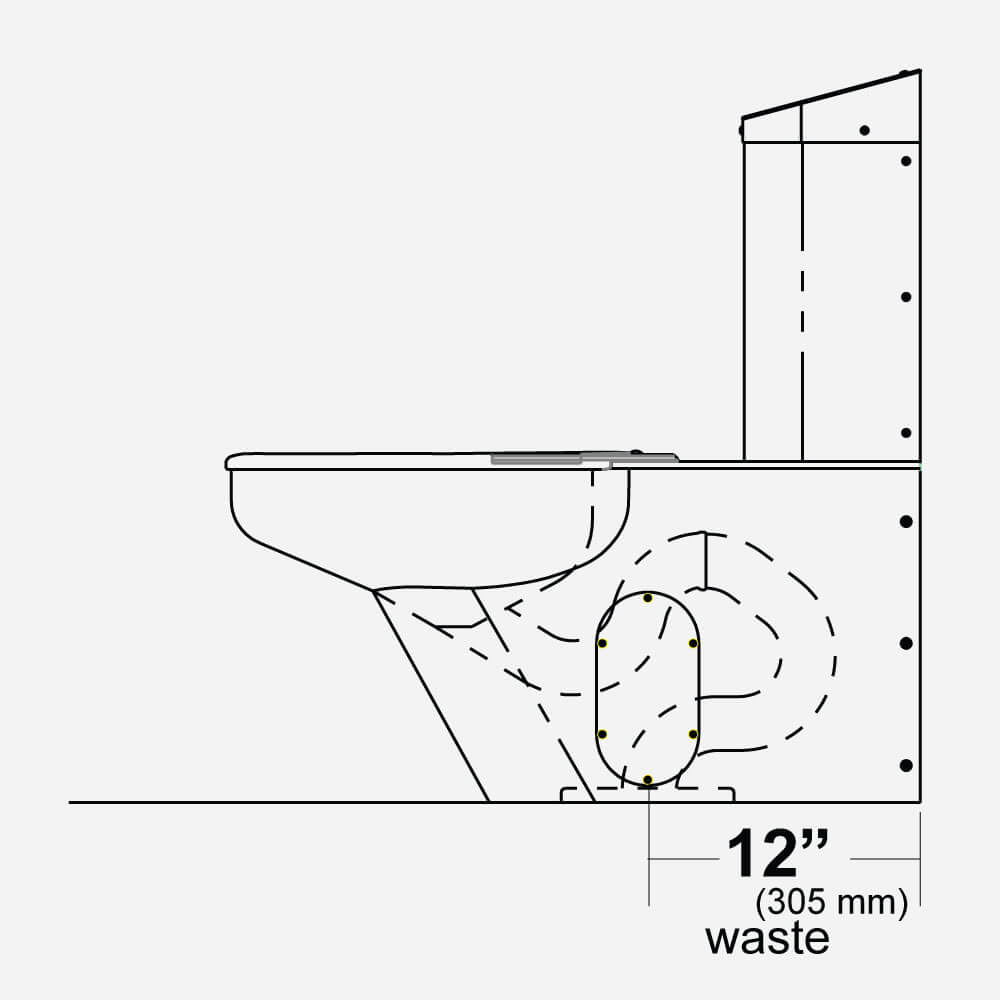

Waste Location	Floor, 10 Inch (25.4 cm) Rough-in, 12 Inch (30.5 cm) Rough-in
Toilet Seat	Non-Lifting Ligature Resistant Grey ABS Plastic Toilet Seat Cover (included with toilet)
Patent	10,052,000 B2
Features	Ligature-Resistant Design, Cistern (tank) with liner and float/flapper mechanism
Fixture Width	17.125"
CSI Divisions	Division 22

Options

Miscellaneous

	Image	Model	Description	Downloads

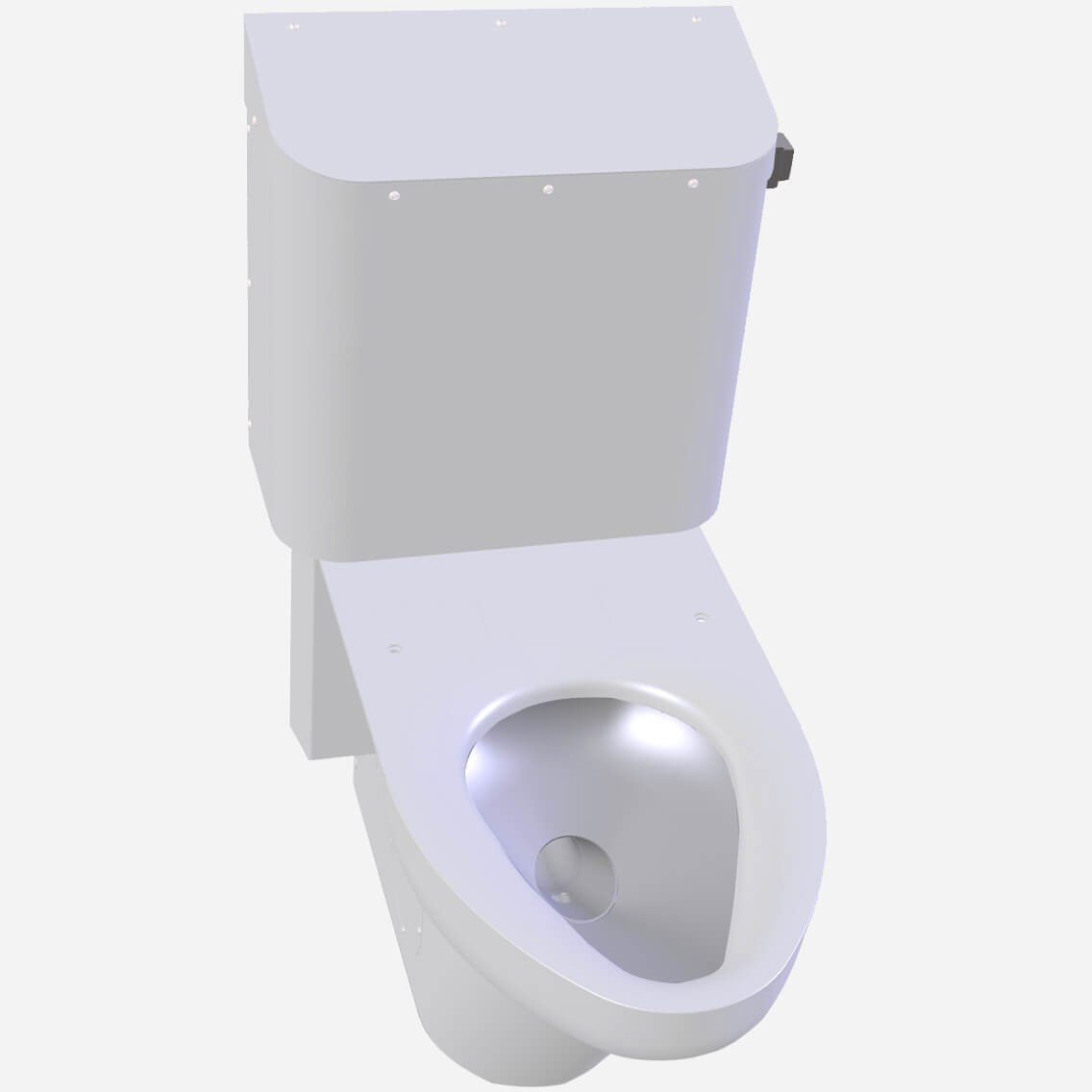

		PBR	Option: Flush Pushbutton on Right Side
		WH-LRSC Series	BestCare® Ligature-Resistant Toilet Seat Cover

Models

Standard variations for this product include a Snow White Enviro-Glaze® powder coating or an all-stainless-steel finish.

WH2145_10 ^{[IN STOCK]} | 10" (254 mm) floor waste outlet; left-side flush pushbutton

WH2145_10-PBR | Right-side flush pushbutton

WH2145_12 ^{[IN STOCK]} | 12" (305 mm) floor waste outlet; left side flush pushbutton

WH2145_12-PBR | Right-side flush pushbutton also available.
