BestCare® Ligature-Resistant Toilet, Wall Supply
NOTE: The toilets are supported on the floor and bolted to a reinforced wall. The fixtures are not intended for use with toilet carriers. Contact factory when in-wall carrier support exists.
Features: Siphon Jet type toilet with elongated bowl, configured for front mounted, on-floor installation. The toilet is fabricated with 16 gauge 304 stainless steel with exterior surfaces powder coated white (interior of toilet will have a satin finish and will not be powder coated). The toilet is configured with a rear spud to accommodate a concealed Wall Supply flush valve. This toilet is configured for a wall waste or floor waste application measuring 10" (254 mm) or 12" (305 mm) from the wall. A ligature-resistant ABS grey toilet seat is included.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare® Ligature-Resistant Toilet, Wall Waste [WH2142-T-2 | Top Supply; WH2142ADA-T-2 | ADA Toilet Height, Top Supply; WH2142-W-2 | Wall Supply; WH2142ADA-W-2 | ADA Toilet Height, Wall Supply] | 0 | 569 KB | ||
| | Wall Supply Ligature-Resistant Stainless Steel Toilet - Wall Waste (WH2142-W-2) or Floor Waste (WH2142-W-3) | 0 | 228 KB | ||
 | | Ligature-Resistant Toilet, Wall Supply, On-Floor [WH2142-W-2-EGE10 Wall Waste, WH2142-W-3-EGE10_10 10" Rough-in Floor Waste] | 0 | 1 MB | ||
| | Ligature-Resistant Toilet, Wall Supply, On-Floor, Wall Waste | 0 | 917 KB | ||
| | BestCare® Ligature-Resistant Toilet, Floor Waste [WH2142-T-3 | Top Supply; WH2142ADA-T-3 | ADA Toilet Height, Top Supply; WH2142-W-3 | Wall Supply; WH2142ADA-W-3 | ADA Toilet Height, Wall Supply] includes 10 or 12" Rough-ins | 0 | 517 KB | ||
| | BestCare Solutions Flyer (pdf) | 0 | 181 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 0 | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 0 | 571 KB | ||
 | | Wall Supply WH2142 Ligature Resistant Toilet shown with included Ligature Resistant Toilet Seat | 0 | 317 KB | ||
 | | Vice President Kristin Kahle and National Sales Manager (Healthcare) Steve McIntosh discuss the importance of universal ligature resistant design within behavioral healthcare facilities. | 0 | 134 KB | ||
| | How to install a BestCare® toilet seat (video) | 0 | 132 KB | ||
| | Overview of Whitehall's BestCare® Ligature-Resistant Toilets (video) | 0 | 135 KB | ||
| | How to remove and clean a ligature resistant toilet seat (video) | 0 | 138 KB |
Specifications
| Brand | BestCare® |
| Waste Location | Floor 10" Rough-in, Floor 12" Rough-in, Wall |
| Material | Stainless Steel |
| Material Details | White powder coating |

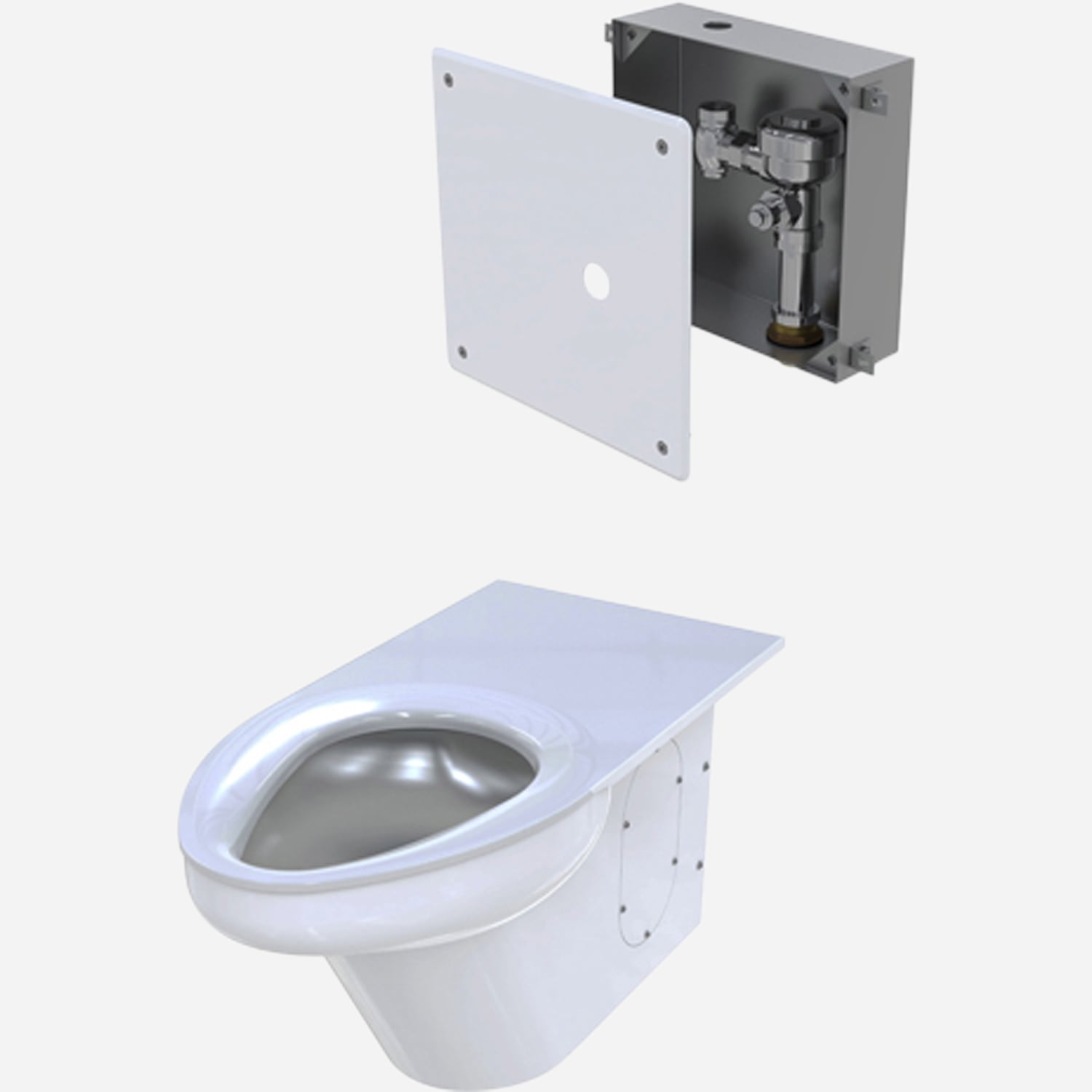

| Valve Type | Wall Supply - typically concealed in wall |

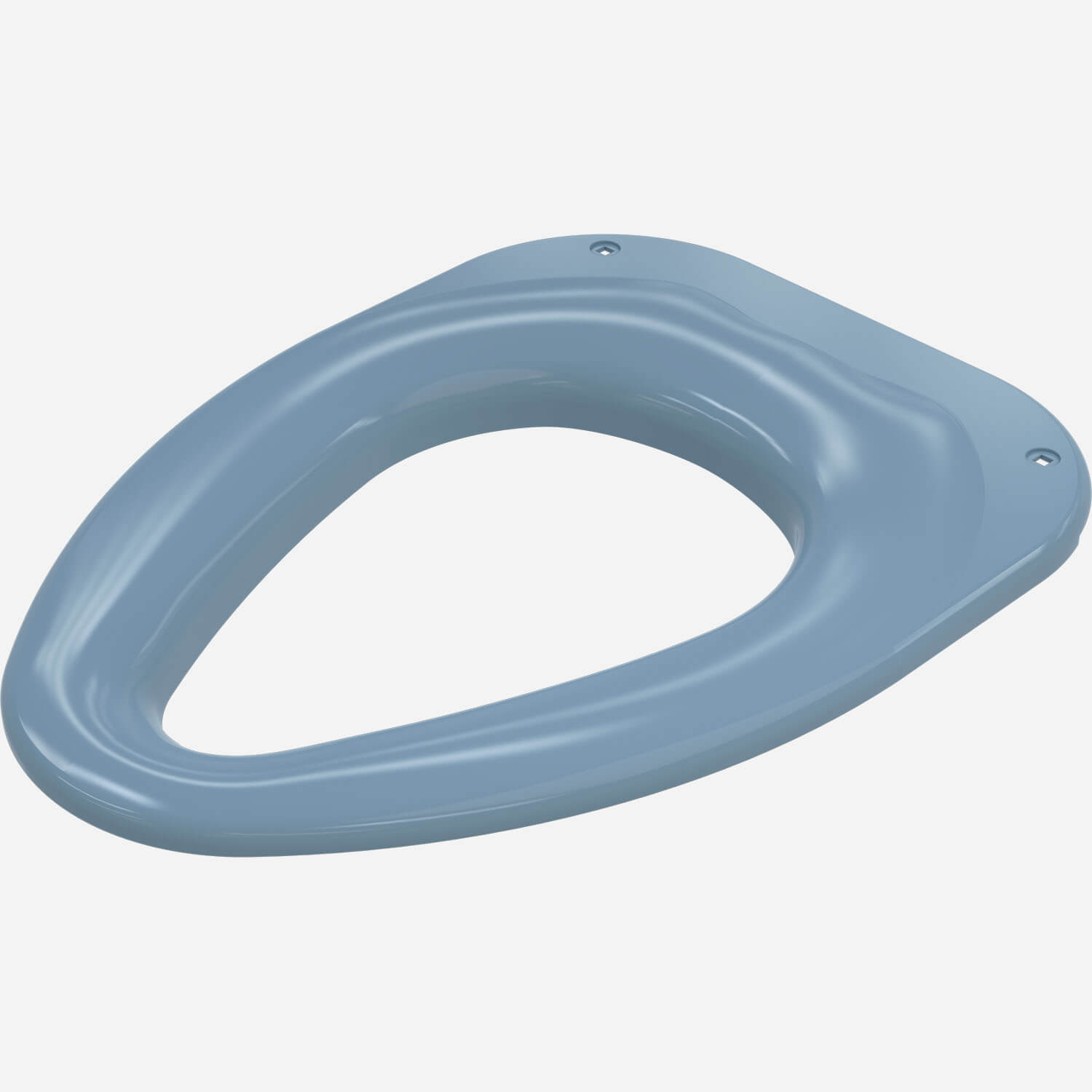

| Toilet Seat | Non-Lifting Ligature Resistant Grey ABS Plastic Toilet Seat Cover (included with toilet) |
| Features | Requires 25 psi commercial water supply, Ligature-Resistant Design |
| Type of Mount | Wall Mount |
| Fixture Width | 14.75" |
| Patent | 10,052,000 B2 |
| Compliances | NY State Office of Mental Health, UPC®, WaterSense Certified by IAPMO R&T |
| CSI Divisions | Division 22 |
Options
Models

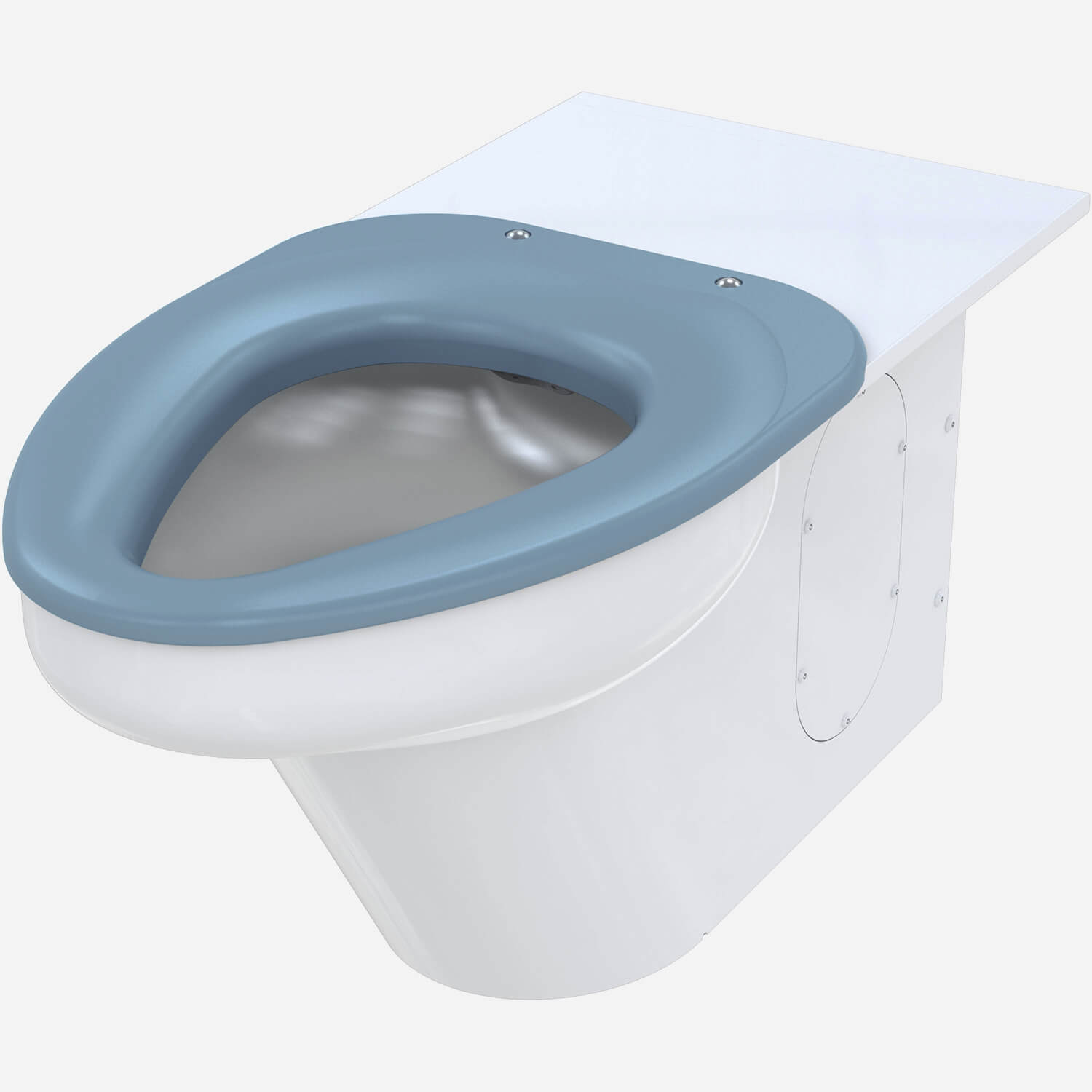

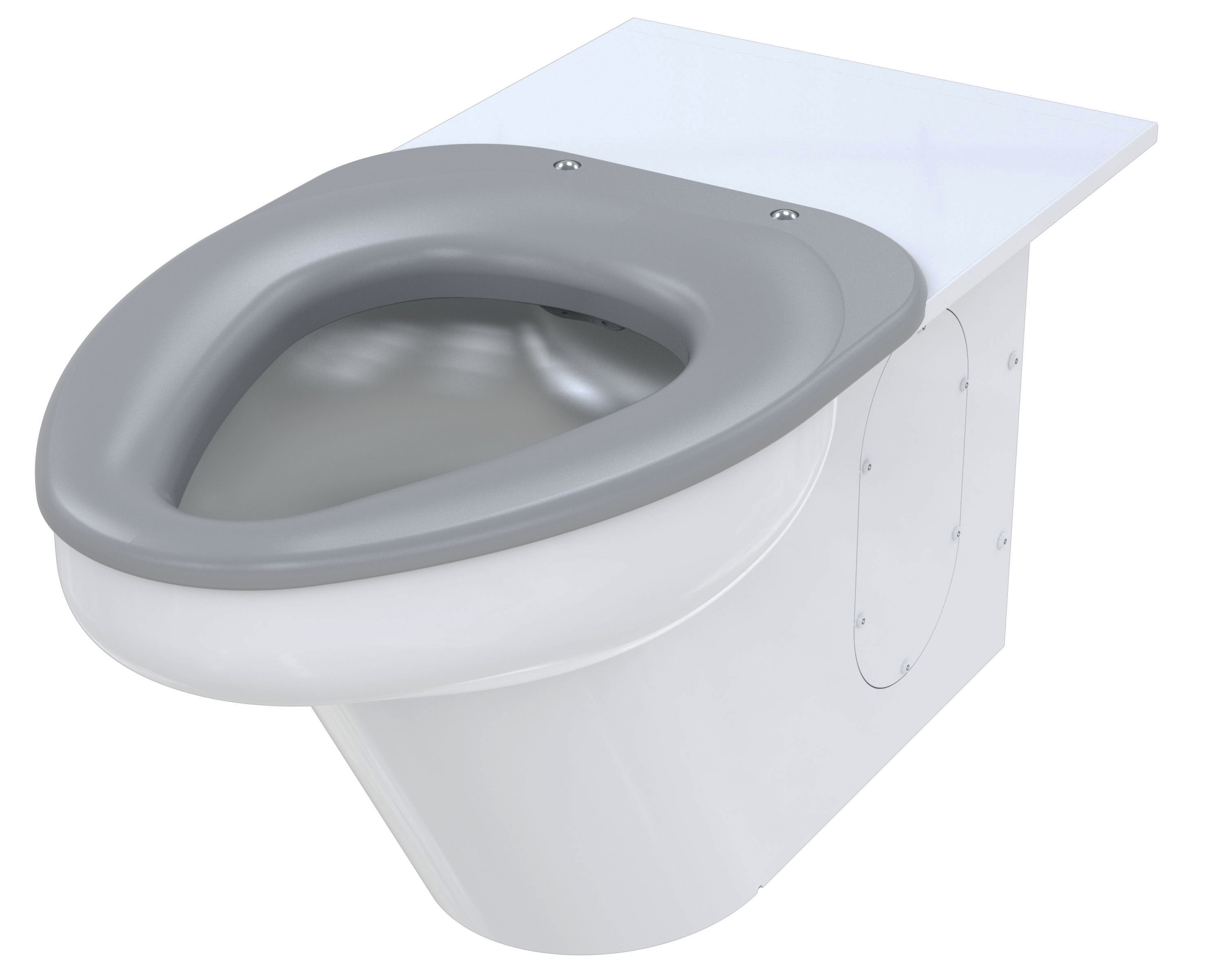

All standard toilets in this series are Ligature-Resistant, Stainless Steel, Siphon Jet Type, Wall Supply (Rear Inlet Spud), the exterior of the toilet is powder coated Enviro-Glaze® Snow White (toilet bowl is left satin finish stainless steel)

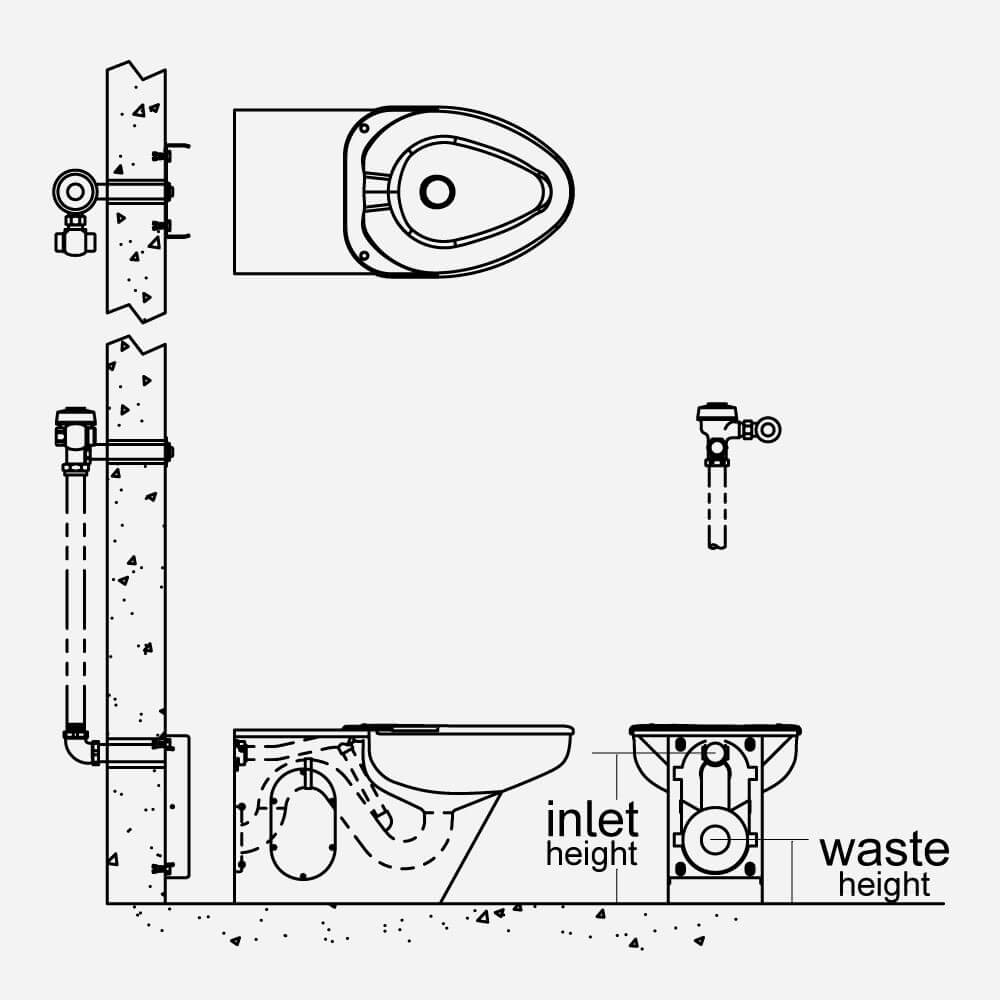

WH2142-W-2-EGE10[IN STOCK] SKU WH2142-W-0021 Wall Waste Outlet [ install guide]

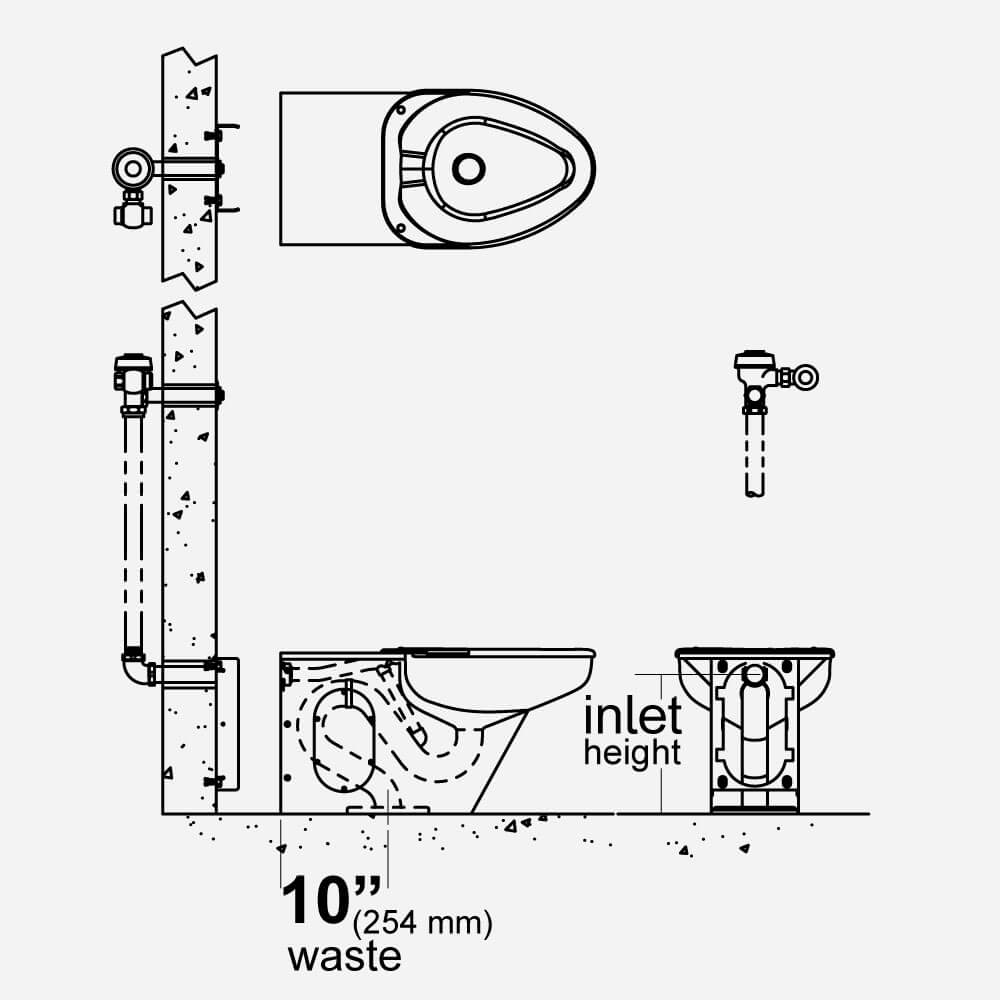

WH2142-W-3-EGE10_10[IN STOCK] SKU WH2142-W-0023 Floor Waste Outlet, 10" (254 mm) rough-in from back wall to the center of the waste outlet [ install guide]

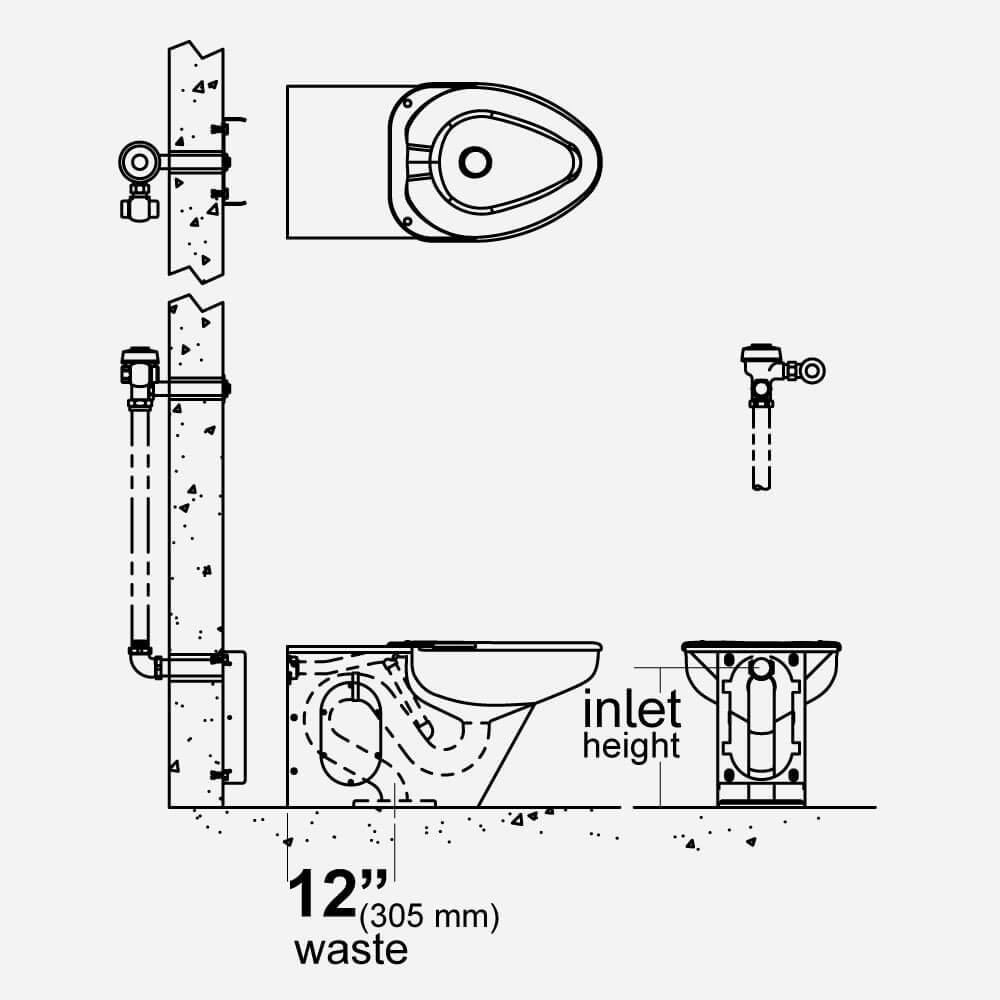

WH2142-W-3-EGE10_12[IN STOCK] SKU WH2142-W-0024 Floor Waste Outlet, 12” (305 mm) rough-in from back wall to the center of the waste outlet [ install guide]
OTHER
Units with other finishes can be manufactured including all-stainless steel.
