BestCare® Ligature-Resistant Siphon Jet Replacement Toilet for Existing In-Wall Four-Bolt Mounting Carrier
NOTE: For a replacement toilet simply supported on the floor and bolted to a reinforced wall, see Model WHR2142 Series Toilet.
Ligature-Resistant Siphon Jet Replacement Toilet is arranged to be installed against a finished wall from the front side to an existing In-Wall Mounting Carrier Support with a four-bolt pattern. The fixture is designed to replace a wall-hung toilet that was previously installed with a Four-Bolt Mounting Carrier Support. The replacement toilet uses the existing 5/8" UNC Carrier Studs to mount the unit to the wall while supported by the on-floor housing. The unit includes access panels on both sides to facilitate the installation. The unit is fabricated from 16 gauge, type 304 stainless steel and is seamless welded construction with exterior surfaces powder-coated white (the interior of the toilet will have a satin finish and will not be powder coated). The toilet will be provided with WH-LRSC-GRAY Ligature Resistant ABS Toilet Seat Cover.
The waste is evacuated behind the toilet into waste plumbing behind the wall. The customer must specify existing rough-in dimensions.
A WHRC2142-T-2-EGE10 Top Supply Toilet is available featuring a top spud and on-floor design with wall waste. To maintain ligature resistance, Whitehall recommends a WH2802SLPT flush valve with cover, sold separately.
A WHRC2142-W-2-EGE10 Wall Supply Toilet is available featuring a rear spud and on-floor design with wall waste.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare® Ligature-Resistant Replacement On-Floor, Wall Waste Toilet for Existing In-Wall Four-Bolt Mounting Carrier [WHRC2142-W-2 | Wall Supply; WHRC2142ADA-W-2 | ADA Wall Supply; WHRC2142-T-2 | Top Supply; WHRC2142ADA-T-2 | ADA Top Supply] | 0 | 389 KB | ||
| | BestCare® Ligature-Resistant Siphon Jet Replacement Toilet for In-Wall Bolt Mounting Carrier [WHRC2142-T-2-EGE10 | Top Supply; WHRC2142-W-2-EGE10 | Wall Supply] | 0 | 329 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
| | BestCare Solutions Flyer (pdf) | 0 | 181 KB | ||
 | | How to install a BestCare® toilet seat (video) | 0 | 132 KB | ||
| | Overview of Whitehall's BestCare® Ligature-Resistant Toilets (video) | 0 | 135 KB | ||
| | How to remove and clean a ligature resistant toilet seat (video) | 0 | 138 KB |
Specifications
| Appropriate for | Retrofit, Ligature Resistant |
| Material | Stainless Steel |
| Material Details | White powder coating |
| Brand | BestCare® |
| Configuration | On-Floor, Wall Waste |
| Flush Valve | Top Supply - requires ligature-resistant cover for flush valve, Wall Supply - typically concealed in wall |
| Toilet Seat | Non-Lifting Ligature Resistant Grey ABS Plastic Toilet Seat Cover (included with toilet) |
| Features | Requires 25 psi commercial water supply, Ligature-Resistant Design, Replaces a wall-hung toilet previously installed with a four-bolt mounting carrier |
| Patent | 10,052,000 B2 |
| Compliances | UPC®, NY State Office of Mental Health |
| Waste Location | Wall |
| CSI Divisions | Division 22 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WH-LRSC Series | BestCare® Ligature-Resistant Toilet Seat Cover | ||
 | WH2802-SLPT Toilet Series | BestCare® Ligature-Resistant Box with Flush Valve for Top Supply Toilet | ||
 | WH2802SLPT-SO | BestCare® Ligature-Resistant Flush Valve Cover with Sensor-Operated Flush Valve | ||
 | WH2898 Series | BestCare® Ligature-Resistant Access Panel with Hydraulic Flush Valve |
Models
All toilets in this series are Ligature-Resistant, Stainless Steel, Siphon Jet Type, and on-floor design with wall waste. The exterior of the toilet is powder-coated Enviro-Glaze® Snow White (the toilet bowl is left satin finish stainless steel). Gray WH-LRSC-GRAY Ligature-Resistant ABS Toilet Seat Cover is supplied - other seat color choices are available.

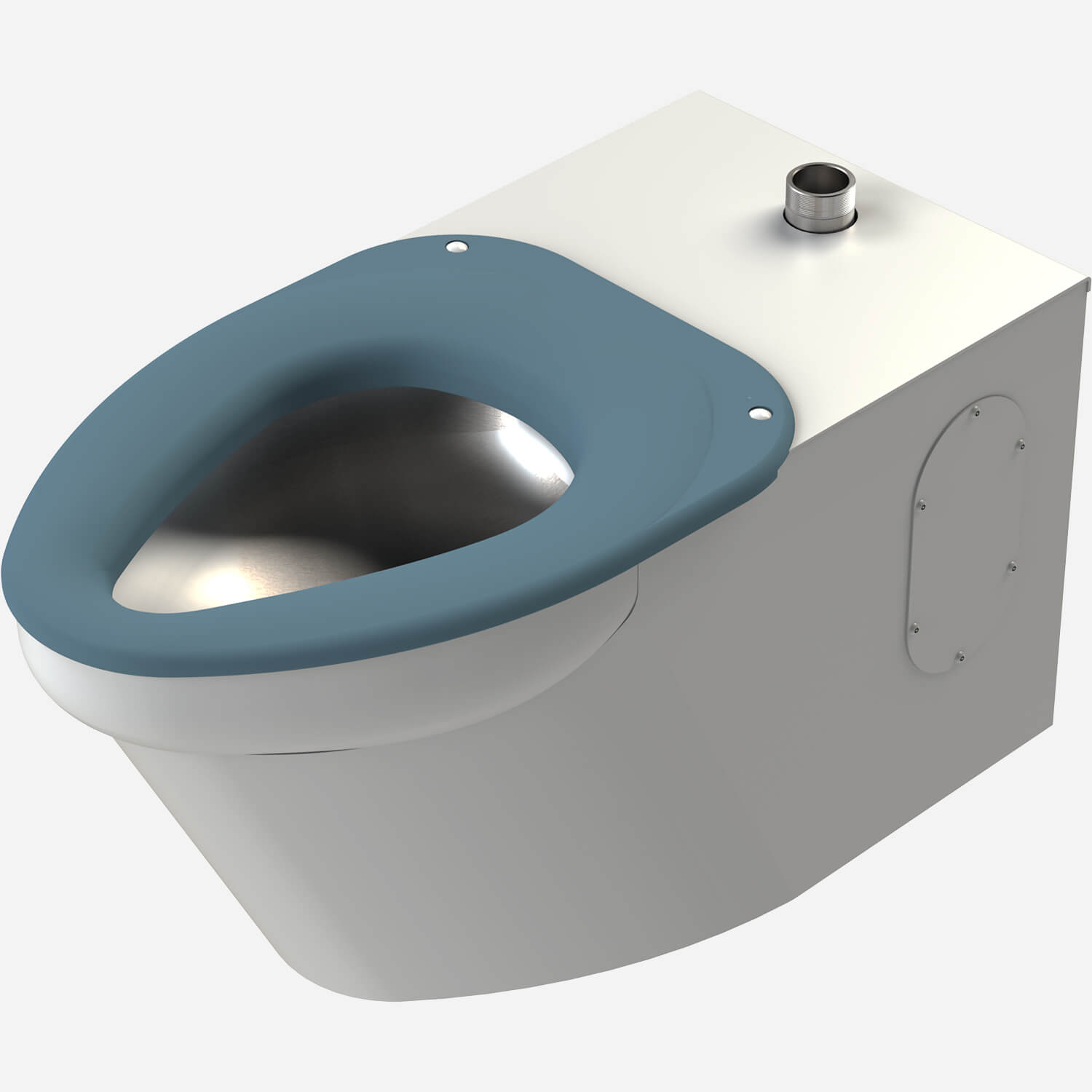

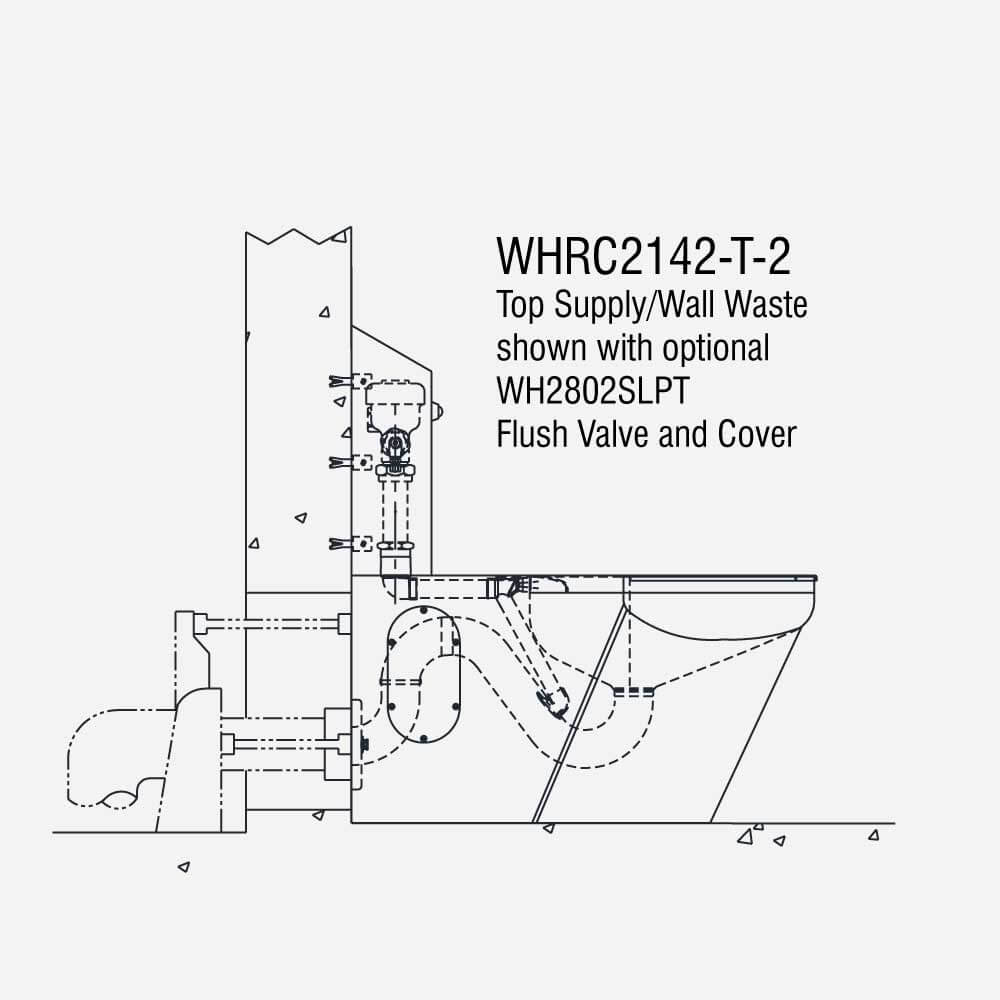

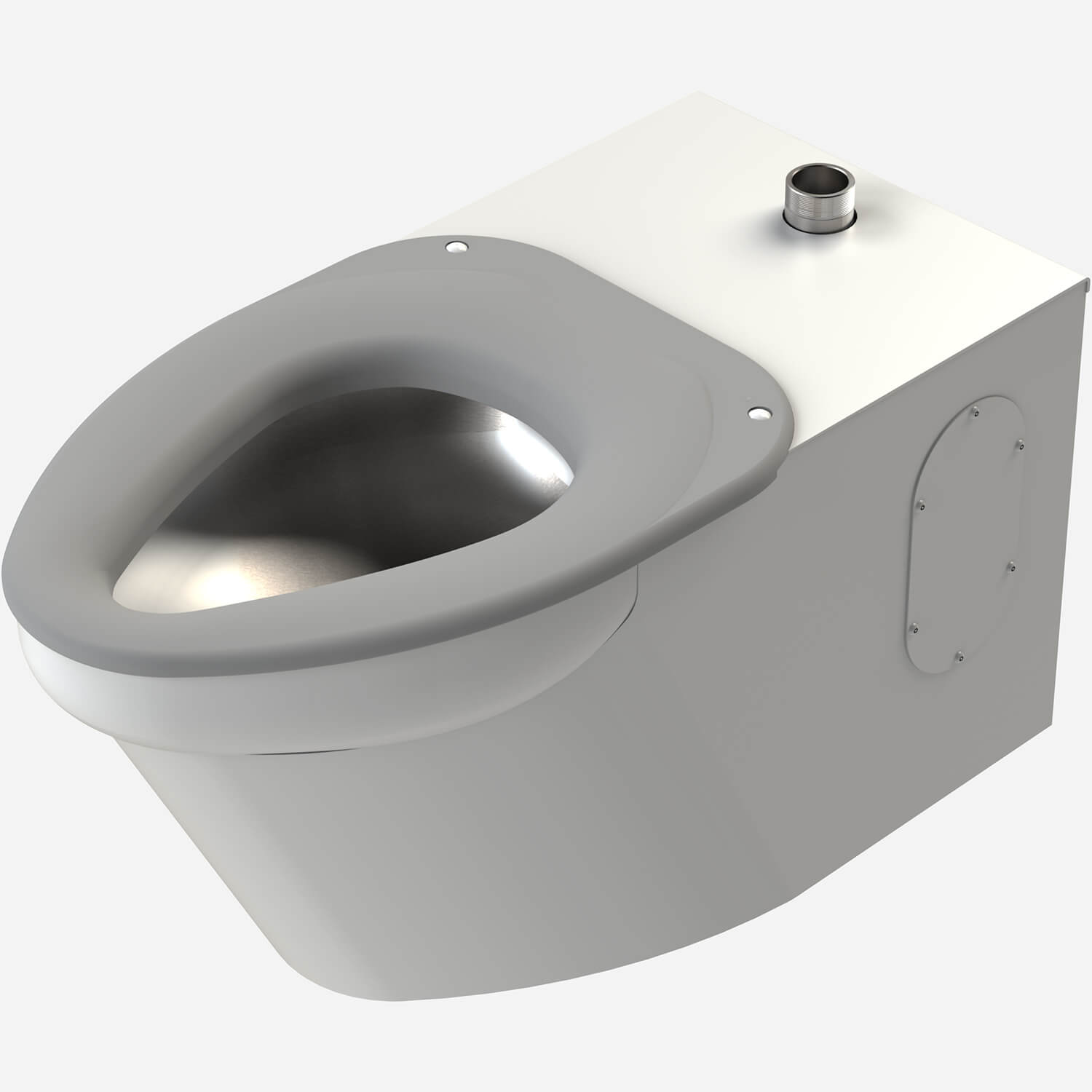

WHRC2142-T-2-EGE10 Top Supply (top spud) shown with recommended WH2802SLPT Flush Valve and Cover

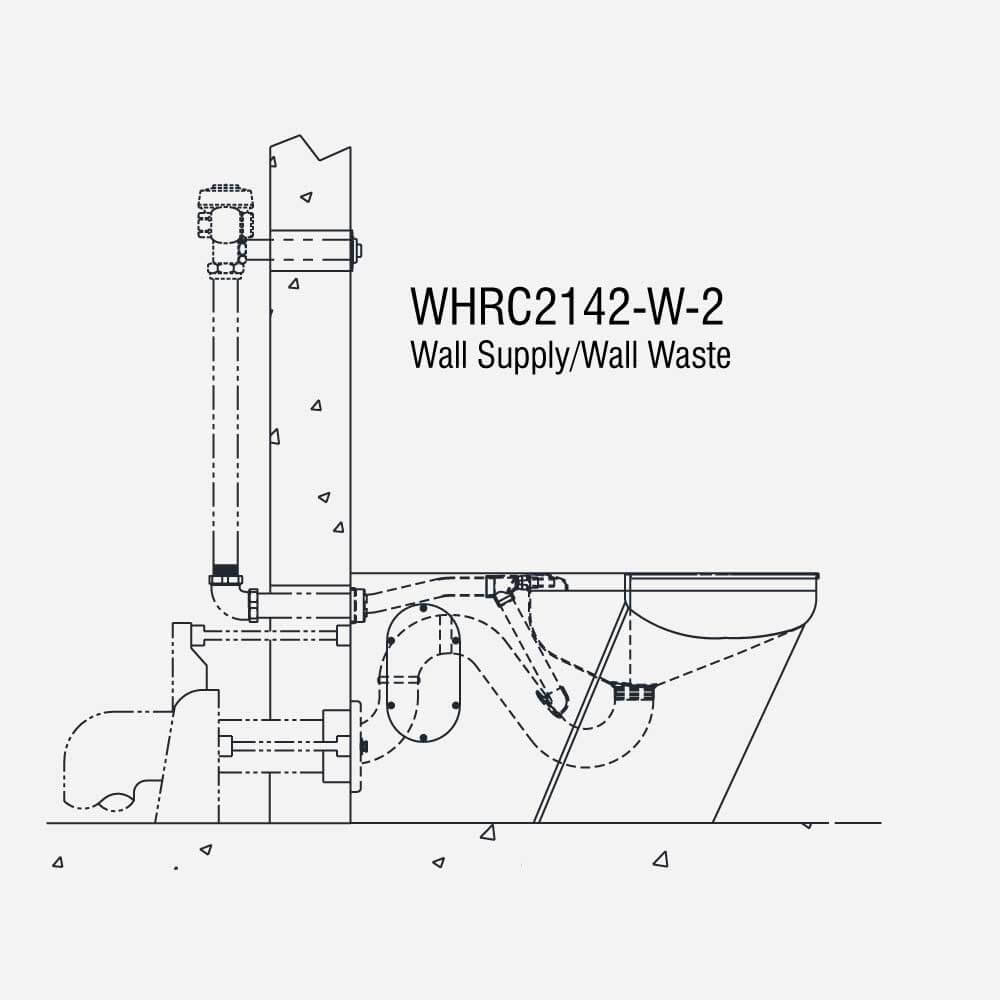

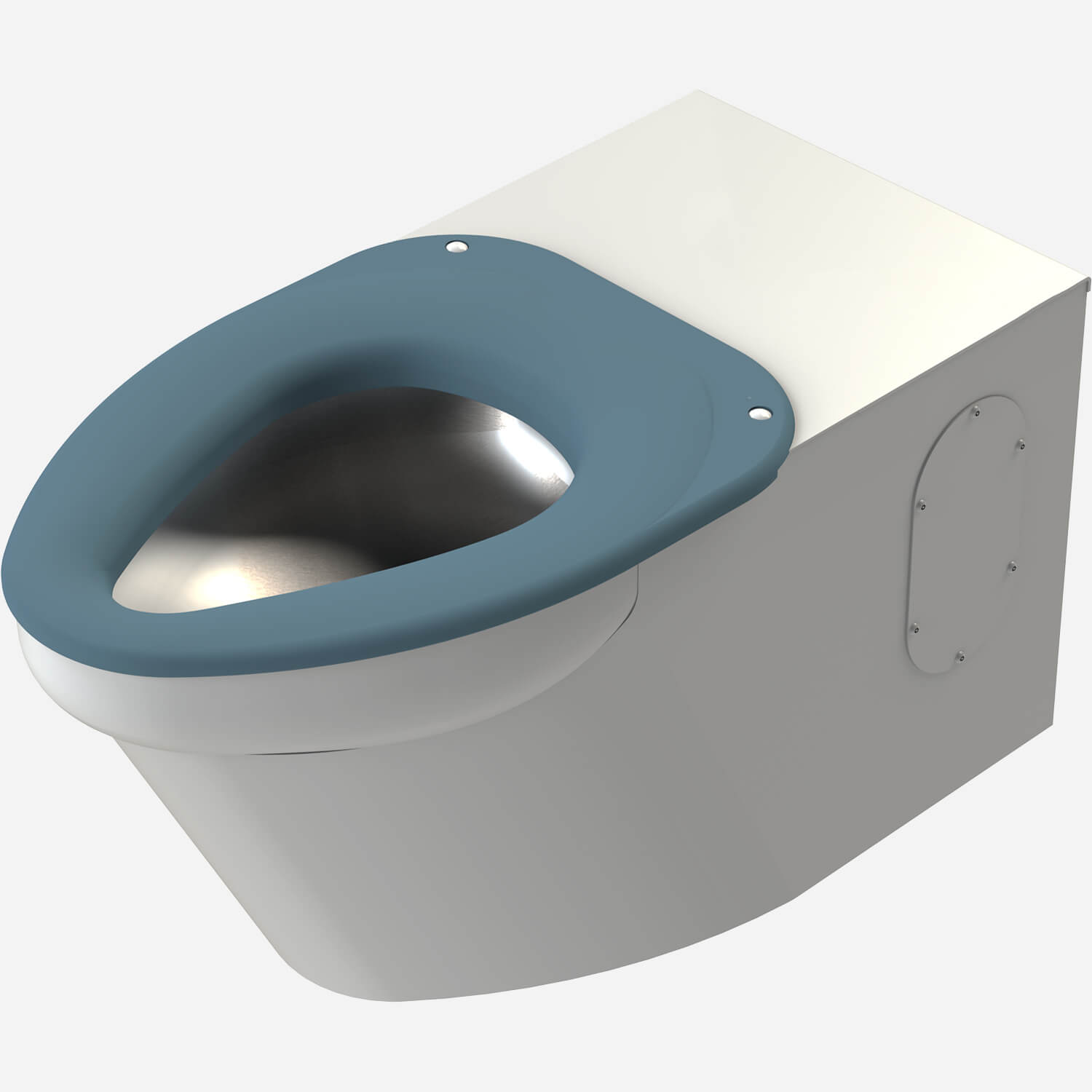

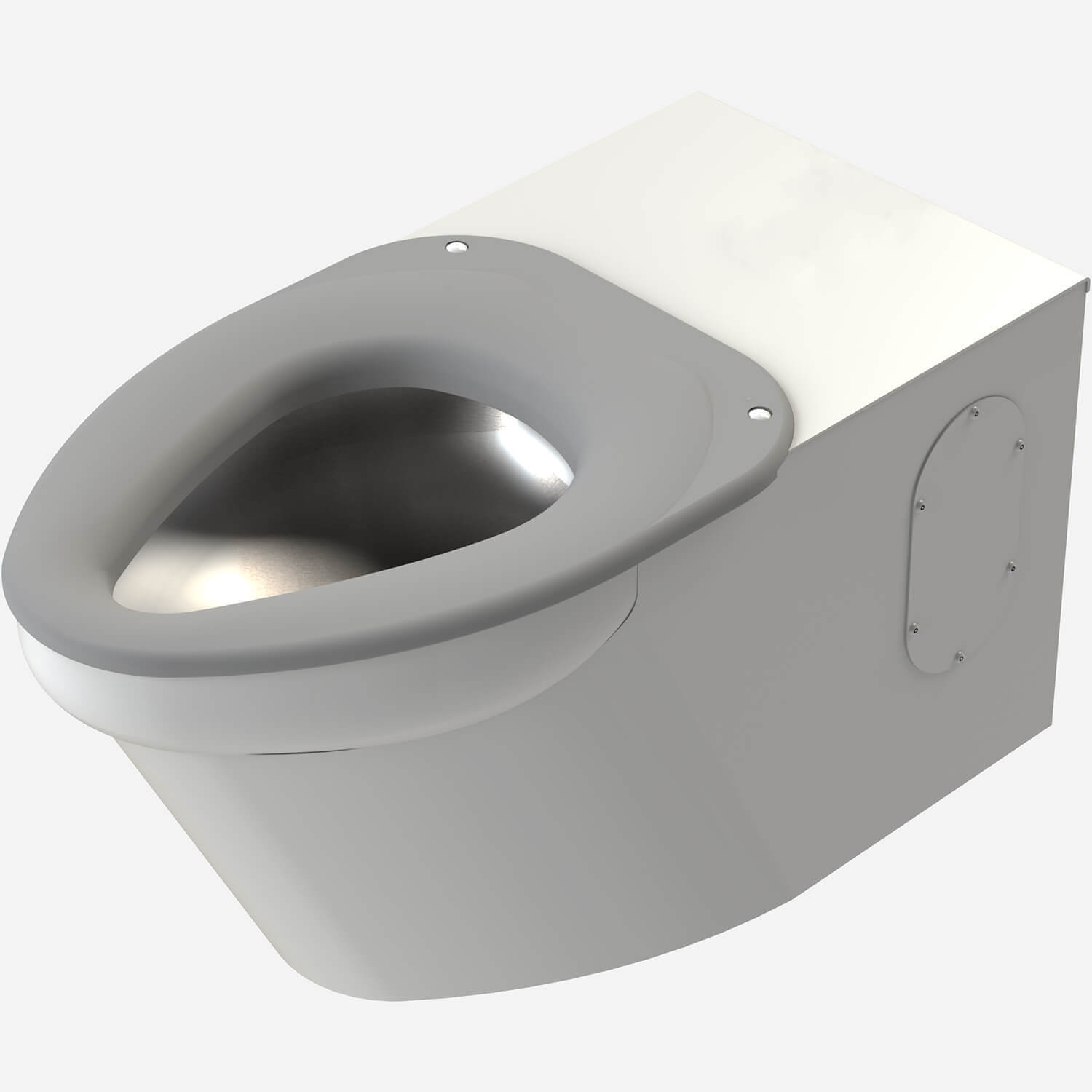

WHRC2142-W-2-EGE10 Wall Supply (rear spud)
