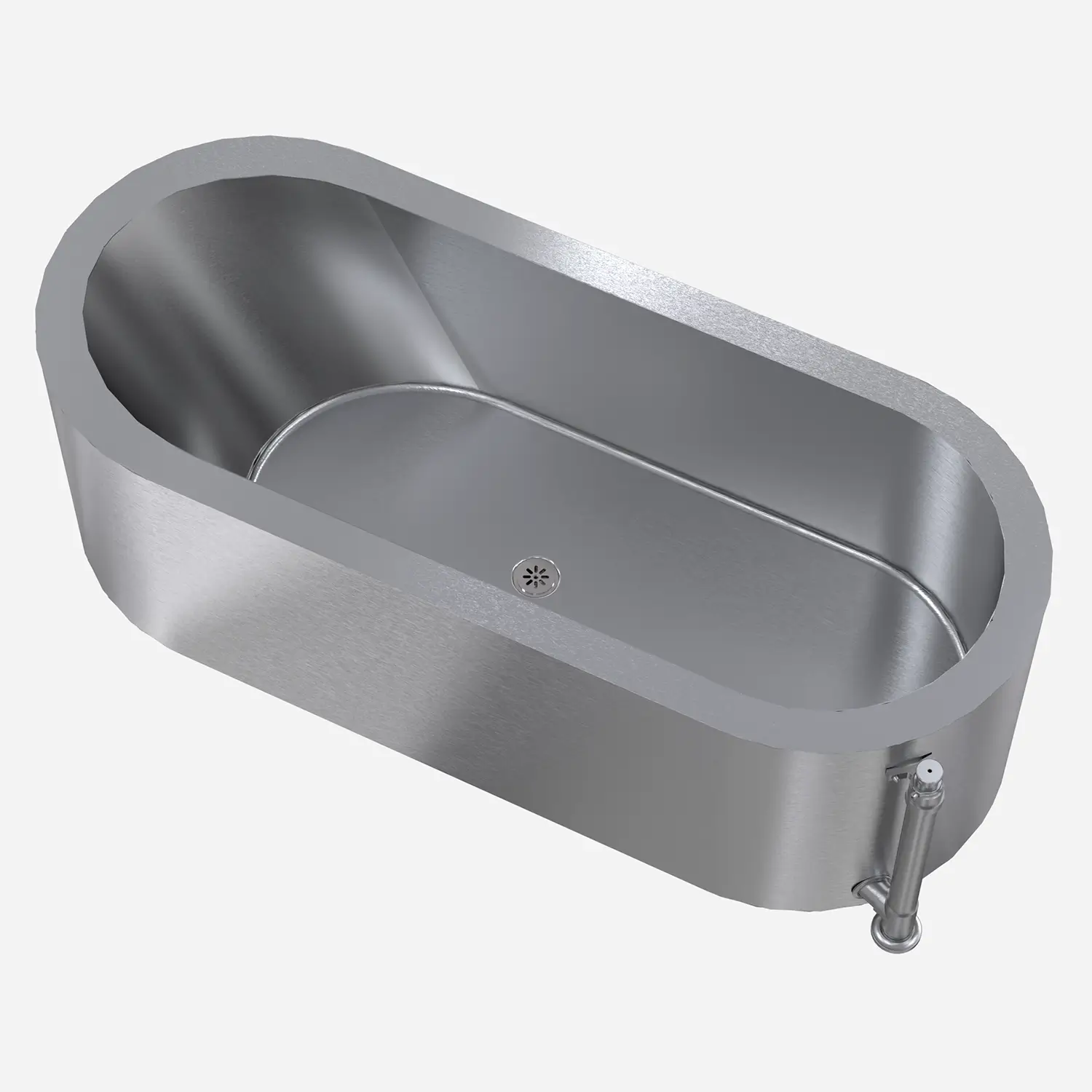

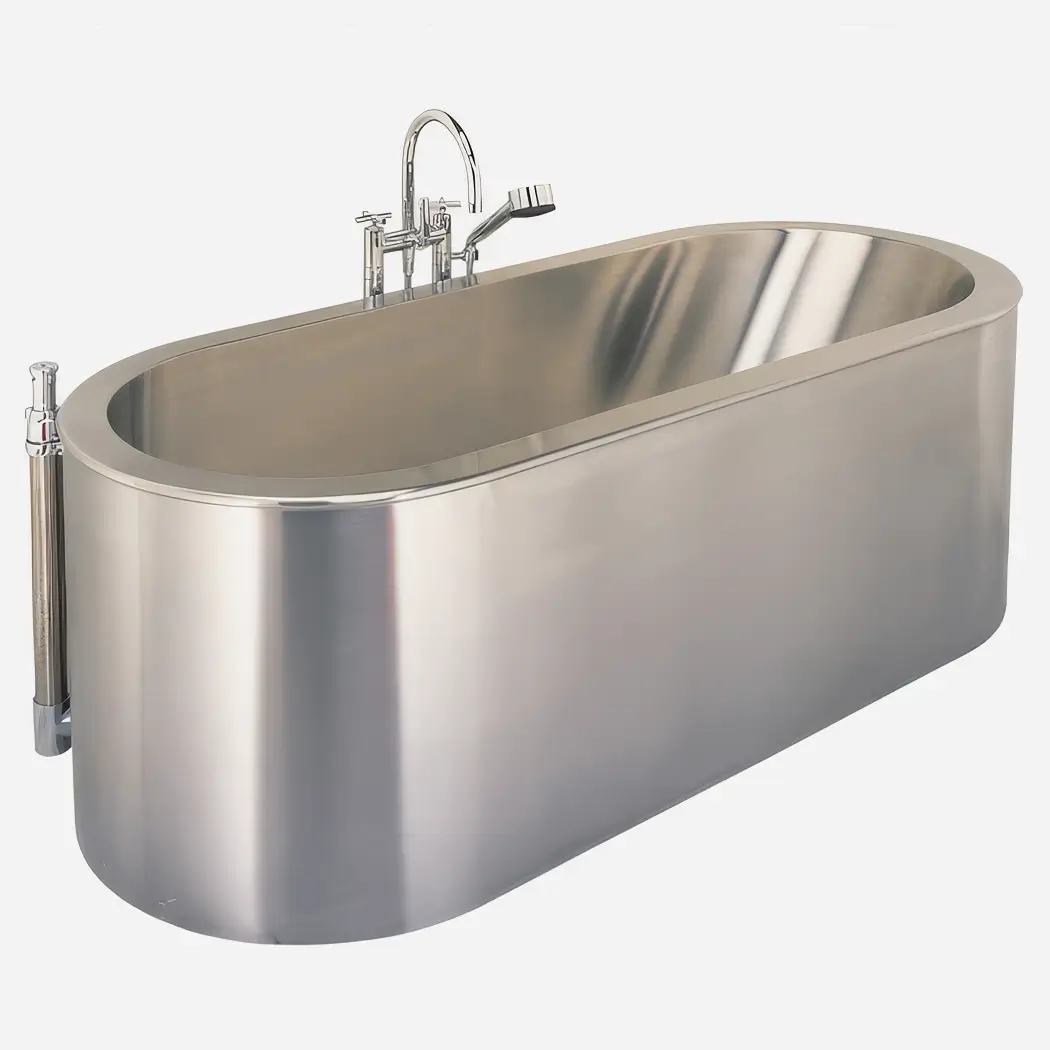

Double Wall Slant Back Stationary Soaking Tub

Soaking Tub is a seamless-welded construction, fabricated from heavy-gauge type 304 stainless steel, with exposed surfaces polished to a #4 satin finish.

Tub Design features double-wall construction and a 60-degree back slant, allowing the user to recline comfortably during use, with a wide rim for resting arms. The outer Tub housing includes a skirt which is flush to the floor line to conceal the internal Drain piping.

Drain is positioned in the center of the tub to ensure water drains out to the 2" (51 mm) combination Drain and Overflow assembly, which is positioned toward the opposite end of the slant back. Units shall be specified with Drain pipe orientation to suit site conditions.

Dimensions:
Length: 72-1/2" (1842 mm)
Width: 30-1/2" (775 mm)
Height: 23-5/8" (600 mm)
Tub Floor Depth: 18" (455 mm)
Tub Floor Length: 56" (1422 mm)
Tub Wall Thickness: 3" (64 mm)
Tub Capacity: 90 gallons (341 Liters)

Features

• Large One-Piece Soaking Tub
• Obround shape
• 90-gallon (341 liters) capacity
• Integral Reclining Back
• Insulated Double-Wall
• Heavy Gage Stainless Steel Construction
• Extended Skirt Conceals Internal Piping
• Combination Drain & Overflow

Available Models

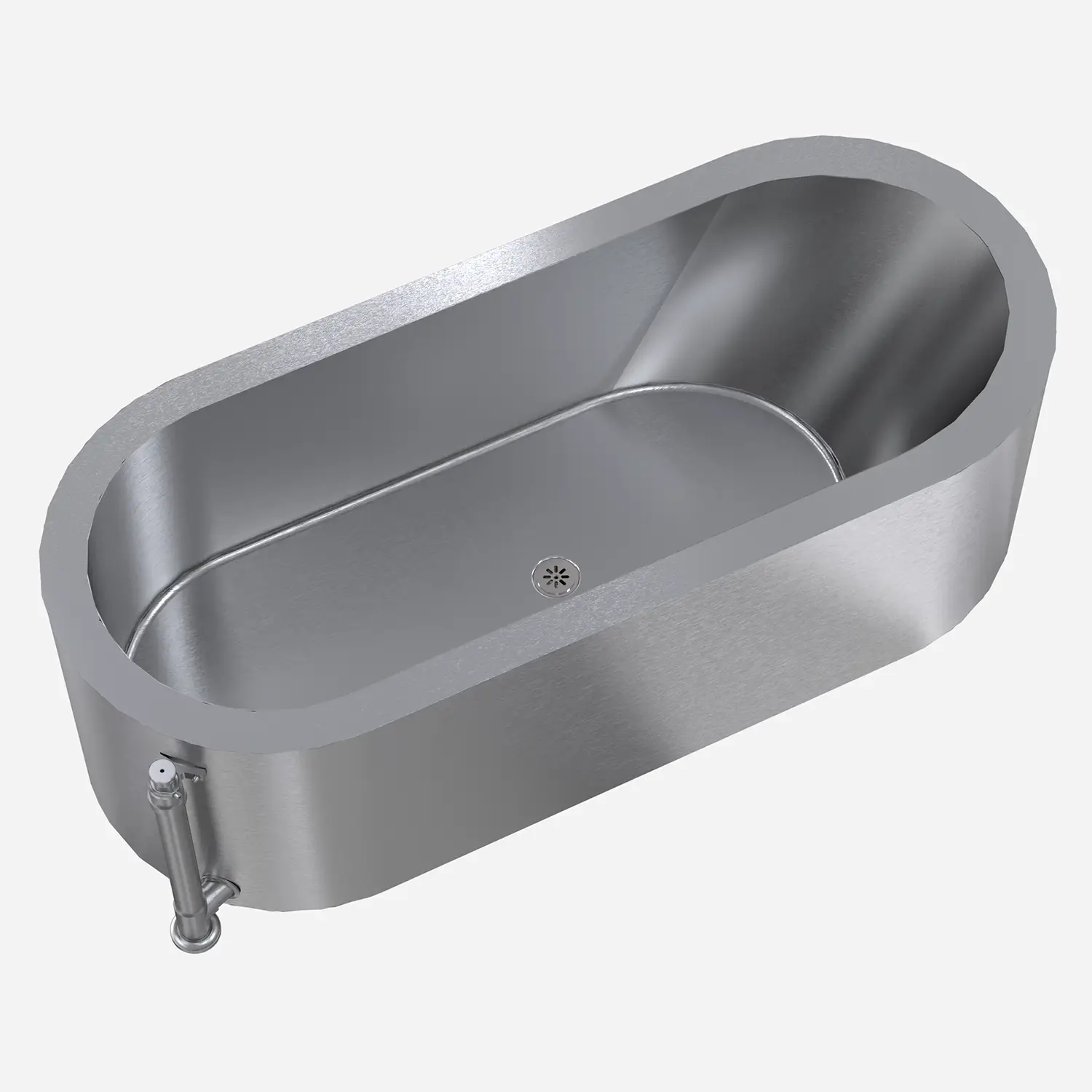

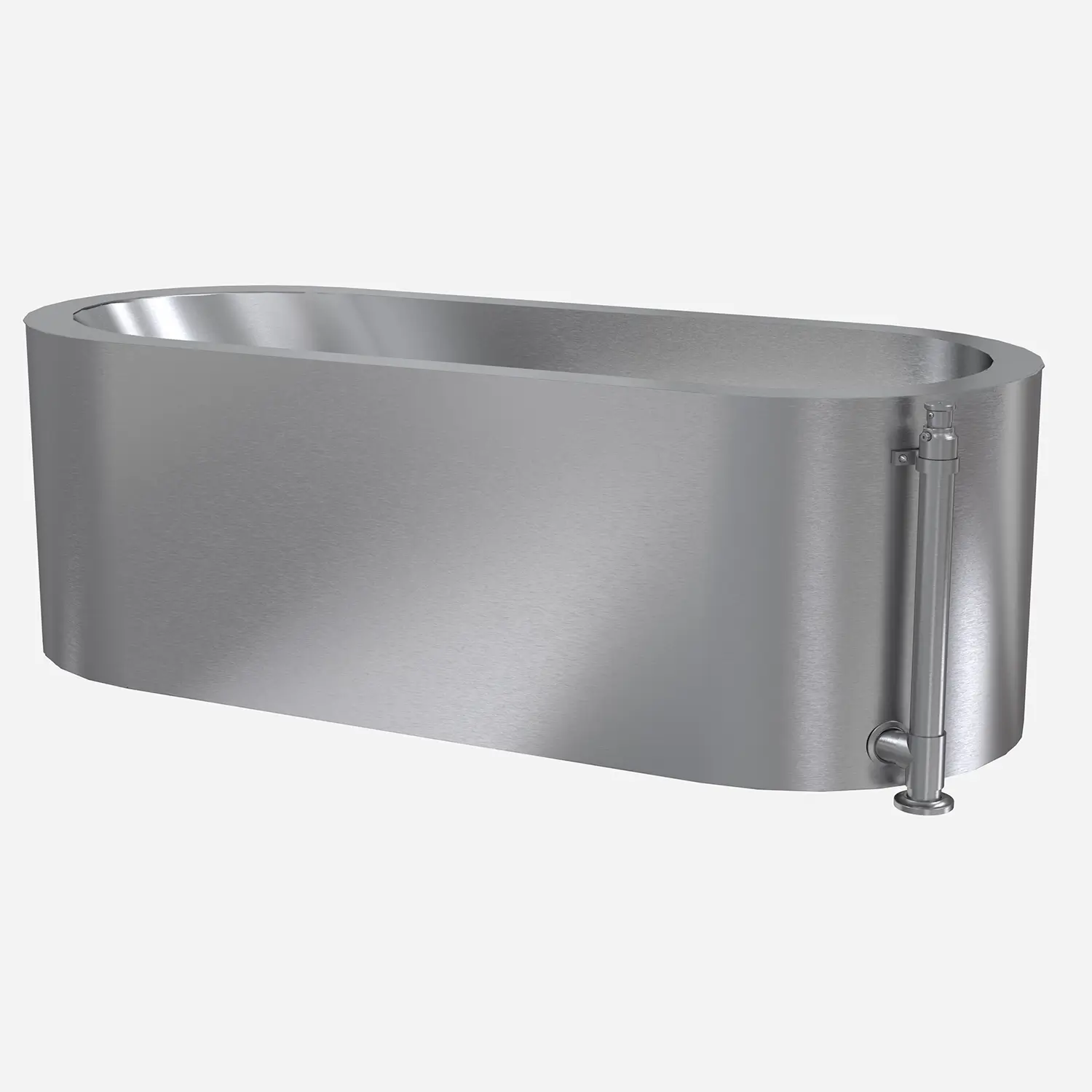

WH-8972-AL, WH-8972-AR
Refer to the catalog page and/or "Product Models" Section below for more information.
