270 Gallon Hubbard Tank

Whitehall offers a wide variety of different sizes and shapes to allow clinicians and therapists to select the products that best meet their users’ needs.

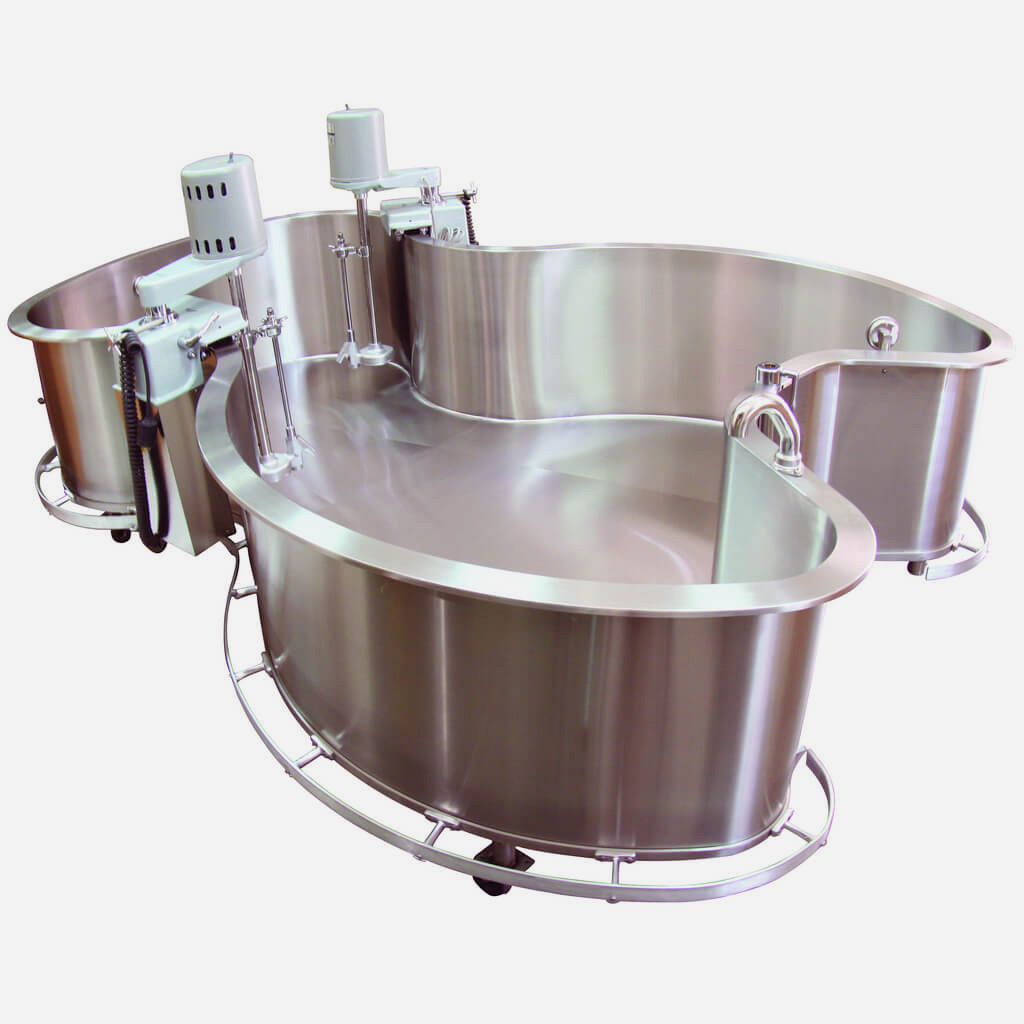

The WHF-270-S is a 270 Gallon (1022 liters) Hubbard Tank. The Hubbard Tank is most commonly used on the entire body simultaneously - arms, legs, and trunk of the body. However, unlike regular whirlpools, Hubbard Tank's figure-eight shape gives easier access to users. This tank comes standard with twin turbine assemblies. This is the smaller of the two Hubbard Tanks Whitehall offers.

Dimensions: Tank Length | 93 inches (2,360 mm) Tank Width | 64 inches (1,626 mm) Tank Depth | 22 inches (560 mm) Tank Height | 34 inches (865 mm) Tank Capacity | 270 gallons (1022 liters) Shipping Weight | 700 lbs (317.5 kg)

Ideal for use while laying down

Tanks are fabricated of heavy-duty Type 304 stainless steel providing strength and durability. Stainless steel is one of the easiest materials to clean and sanitize. The tank can be a canvas to promote team spirit with Enviro-Glaze® powder coating and provision of team or organizational logo.

HUBBARD TANKS

Full immersion tanks are large tubs designed to provide use with the whole body simultaneously. Whitehall manufactures rectangular full immersion whirlpools as well as Hubbard tanks. Hubbard Tanks feature a signature contoured figure-eight shape that allow easier access to users while providing full immersion to the user.

Ideal application include simultaneous whole-body use.

STATIONARY WHIRLPOOLS

• Uses permanent plumbing connection
• Offers direct connection to drain and water supply
• Comes standard with high-capacity gravity drain

Turbine Assembly is equipped with two Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome-plated brass or bronze. Stationary Whirpools are provided with aerator cap. Mobile and Legs Whirlpools are provided with a pump-out hose assembly. Through certification from Intertek, the turbine meets US & Canadian Medical Standards UL 60601-1 & CSA C22.2 No. 601.1 and European Standards IEC 60601-1. Turbines operating with 115 Volts require 6.9 Amps 50 Hertz or 6.2 Amps 60 Hertz. Turbines operating with 230 Volts require 3.5 Amps 50 Hertz or 3.1 Amps 60 Hertz. Cord Type of European, United Kingdom, Australia, India or Israel must be specified for 230 Volts.
