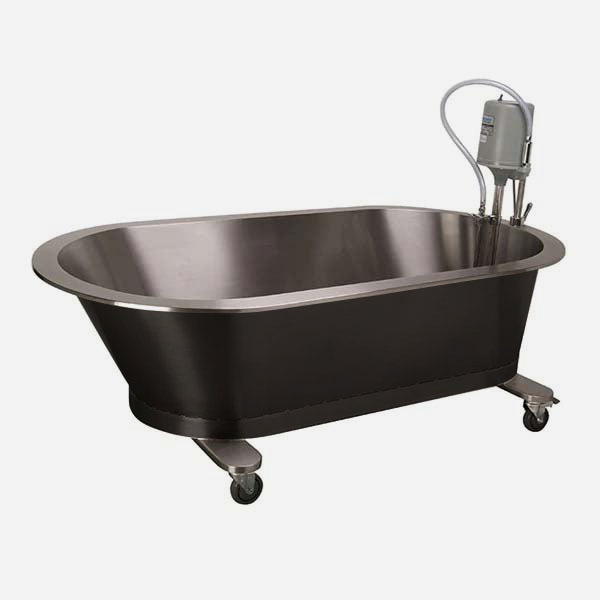

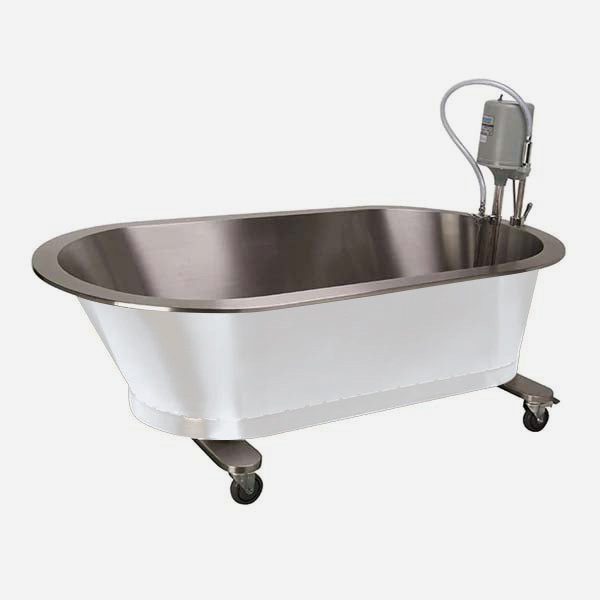

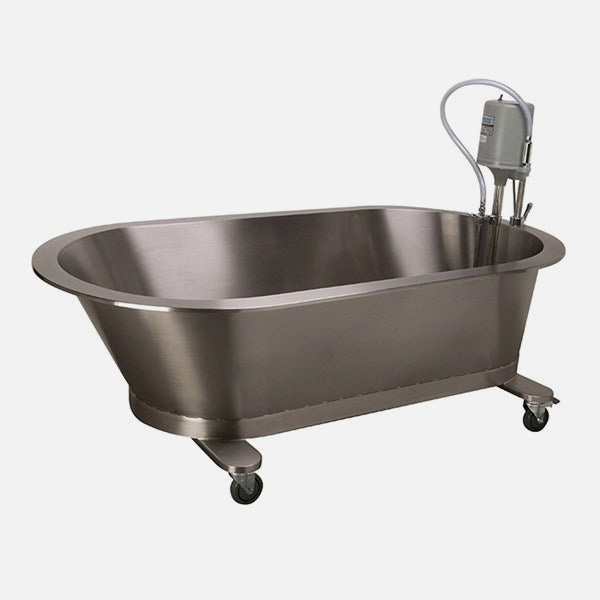

100 Gallon Mobile Slant Back Whirlpool
Whitehall offers a wide variety of different sizes and shapes to allow clinicians and therapists to select the products that best meet their users’ needs.
Whitehall® whirlpools can function as both whirlpool tubs and a cold tank by removing the turbine assembly and thermometer when cold temperature is required. The turbine assembly and thermometer can be replaced to covert the tank back to warm-water whirlpool use.
The WHSB-100-M Slant Back Whirlpool is recommended for use on the extremities, hip, and back area. Its design allows the user to comfortably recline while soaking in the tank. This model's size gives it the ability to accommodate the largest users. This option provides a standard mobile unit.
Dimensions: Tank Length | 75.75 inches (1,925 mm) Tank Width | 39.5 inches (1,005 mm) Tank Depth | 18.25 inches (455 mm) Tank Height | 26.5 inches (675 mm) Tank Capacity | 100 Gallons (378.54 liters)
Ideal for use while reclining

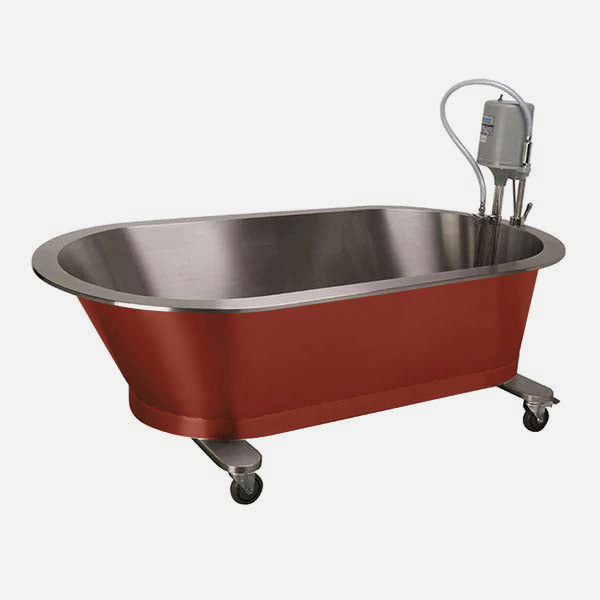

Tanks are fabricated of heavy-duty Type 304 stainless steel providing strength and durability. Stainless steel is one of the easiest materials to clean and sanitize. The tank can be a canvas to promote team spirit with Enviro-Glaze® powder coating and provision of team or organizational logo.
SLANT BACK
Whitehall® Slant Back Whirlpools are designed to provide a comfortable experience. The slanted back design allows the user to comfortably recline while in the tub. The size of the unit allows it to comfortably accommodate larger users.
The Whirlpool is ideal for use on the legs, torso, hips, back, and Bariatric users.
MOBILE WHIRLPOOLS
- Saves time – No special plumbing connection required
- Use anywhere – Reversing turbines (standard) used to pump used water out of tank and into available sink/drain
- Convenient – Can be easily moved
- Smooth transport – Features heavy-duty locking casters
Turbine Assembly is equipped with Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome-plated brass or bronze. Stationary Whirpools are provided with aerator cap. Mobile and Legs Whirlpools are provided with a pump-out hose assembly. Through certification from Intertek, the turbine meets US & Canadian Medical Standards UL 60601-1 & CSA C22.2 No. 601.1 and European Standards IEC 60601-1. Turbines operating with 115 Volts require 6.9 Amps 50 Hertz or 6.2 Amps 60 Hertz. Turbines operating with 230 Volts require 3.5 Amps 50 Hertz or 3.1 Amps 60 Hertz. Cord Type of European, United Kingdom, Australia,India or Israel must be specified for 230 Volts.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Mobile Whirlpools [WHE-10-M, WHE-10-MH, WHE-10-MU, WHE-15-M, WHE-15-MH, WHE-15-MU, WHE-22-M, WHE-22-MU, WHE-27-M, WHE-45-M, WHH-60-M, WHH-75-M, WHH-90-M, WHH-105-M, WHL-75-M, WHL-90-M, WHL-105-M, WHS-85-M, WHS-90-M, WHS-110-M, WHSB-100-M] | 0 | 585 KB | ||
| | 100 Gallon Mobile Slant Back Whirlpool [WHSB-100-M | With Standard Drain; WHSB-100-M-SDP | With Separate Drain and Pump] | 0 | 249 KB | ||
 | | 100 Gallon Mobile Slant Back Whirlpool | 0 | 324 KB | ||
| | 100 Gallon Mobile Slant Back Whirlpool | 0 | 795 KB |
Specifications
| Capacity in Liquid Volume | 100 gallons |
| Mobility | Mobile |
| Whirlpool Tank Style | Slant Back |
| Material | Stainless Steel |
| Body Treatment Location(s) | Reclined: Covers up to Shoulder |
| Appropriate for | Athletic Trainer, Hand Therapist, Podiatrist, Physical Therapist |
| Compliances | ETL Classified Intertek 5016885 |
Options
Models
Select Drain Type for Mobile Whirpools
Standard Drain
Option -SDP Separate Drain Pump
Select Plug Type for Supplied Turbine
Standard Plug
Option -GFI Ground Fault Interrupter
Specify: 115 Volts or 230 Volts For 230 Volts specify: for use in European, United Kingdom, Australia, India or Israel
Select Finish and/or Custom Graphics:
