Solid Surface Toilet

BestCare®  |  New Solid Surface Toilet

Built for Care.
Built to Last.

The Whitehall® BestCare® WH2135 ligature resistant solid surface toilet brings a normative, universal design to behavioral health and healthcare spaces, built from solid surface for the strength demanding behavioral health spaces require.

  • Universal Design: Ligature-Resistant, Bariatric, ADA
  • Stronger than vitreous china
  • IAPMO tested to 25,000 lbs
  • Custom rough-in available

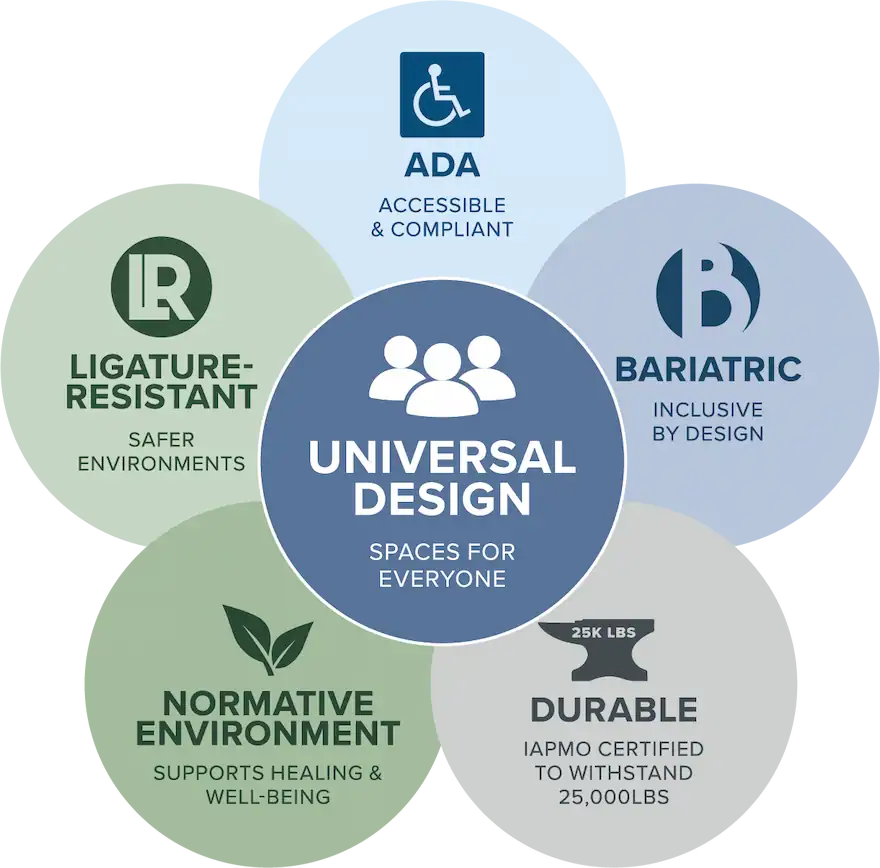

BestCare WH2135 solid surface toilet installed with grab bars and a ligature-resistant toilet paper holder Universal design: ligature-resistant, ADA, bariatric, normative environment and durable, overlapping around spaces for everyone

BestCare® | Why Solid Surface

Stronger Than Vitreous China. Safer by Design.

It looks like a conventional toilet. It isn’t built like one. The solid surface toilet’s construction was IAPMO load tested to 25,000 lbs.

IAPMO load tested to 25,000 lbs

BestCare® | Features & Benefits

Everything a Behavioral Health Space Asks For, in One Fixture

Most behavioral health fixtures trade a welcoming look for durability. The solid surface toilet delivers both, along with ligature resistance, accessibility and bariatric support.

Familiar, Not Institutional

Designed to support normative environments, the solid surface toilet offers the familiar appearance of a residential fixture with integrated safety features for behavioral health spaces.

Strength Beneath the Surface

Engineered for demanding behavioral health environments, the solid surface toilet resists breakage and has been load tested by IAPMO to 25,000 lbs.

Built for North American Plumbing Standards

Designed for North American plumbing requirements and UPC® certified to applicable standards, supporting confidence in new construction and retrofit installations.

Universal Design

Combines ligature-resistant construction, ADA compliance, and bariatric strength in a single fixture designed to support safety, accessibility, and diverse patient needs.

Fast Fulfillment. Standard or Custom.

Select configurations are stocked for quick fulfillment. Additional rough-in sizes are built to order. Both offer fast turnaround to keep your project moving.

Patented Engineering

Innovative hybrid construction combines durable solid surface material with engineered flushing and drainage components.

U.S. Patent No. 12,662,804 B2
Design Patent Pending

BestCare® | Your Project

Two Starting Points. One Standard of Care.

Whether you’re designing a new behavioral health unit or replacing vitreous china in an occupied facility, the solid surface toilet fits the way your project works.

A finished BestCare single occupancy room with the WH2135 solid surface toilet, grab bars, sink and mirror
Designing new: the WH2135 planned into a single occupancy suite from day one.

New Construction

Design It In From Day One

Plan the solid surface toilet into a cohesive, less institutional BestCare® room and coordinate the toilet, supply and wall finish once, on paper.

  • Plan the whole room Specify the toilet alongside BestCare® sinks, grab bars, drains and accessories for a consistent space.
  • Choose the supply for your wall design Top supply pairs with a standard flush valve access panel. Wall supply pairs with a standard wall-mounted flush valve cover.
  • Lay out to a standard rough-in Standard rough-ins are stocked in select configurations for faster fulfillment.

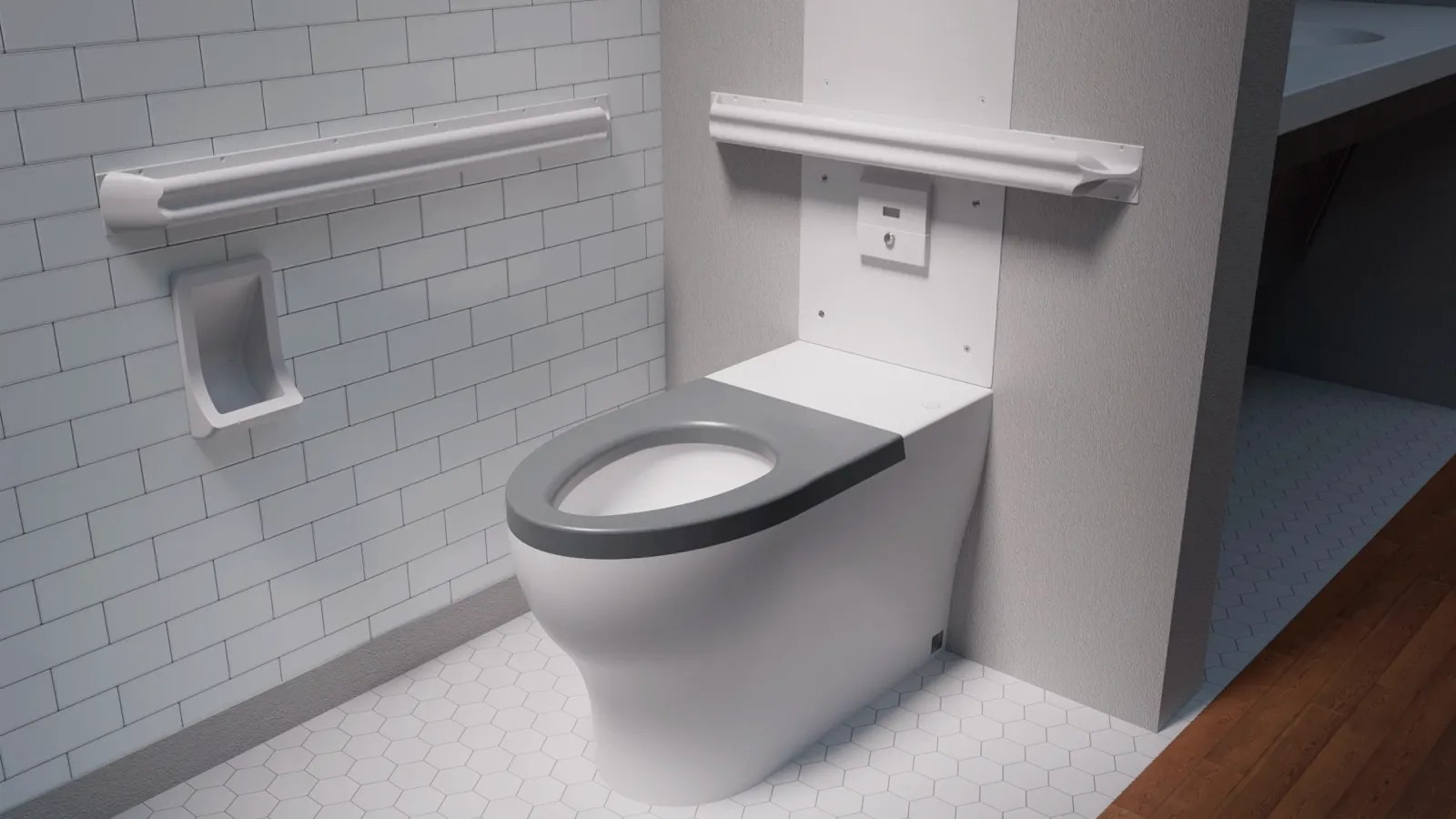

The BestCare WH2135 solid surface toilet with grab bars, installed in place of a vitreous china toilet
The WH2135 offers a safer, ligature-resistant alternative to vitreous china, and is suitable for replacement applications.

Retrofit Ready

Built to the Rough-In You Already Have

Tell us your existing rough-in and we build the solid surface toilet to match it at the factory, so you can upgrade from vitreous china to solid surface.

  • Measure the existing rough-in Note your waste connection and rough-in dimension. Size ranges are on each product page.
  • Specify it when you order The toilet is factory-configured to match. Rough-in dimensions cannot be adjusted in the field.
  • Plan for build-to-order Factory-configured rough-ins are built to order. Contact Whitehall for availability.

Always confirm field dimensions before ordering. Existing conditions vary by site.

BestCare® | Choose Your Options

Choose Your Options

Standard Mounting Configuration
All BestCare Solid Surface Toilets feature a front-mounted, floor-mounted design.

Three choices, whether you’re building new or replacing a fixture: water supply, waste connection and rough-in, and seat options.

Water Supply Options

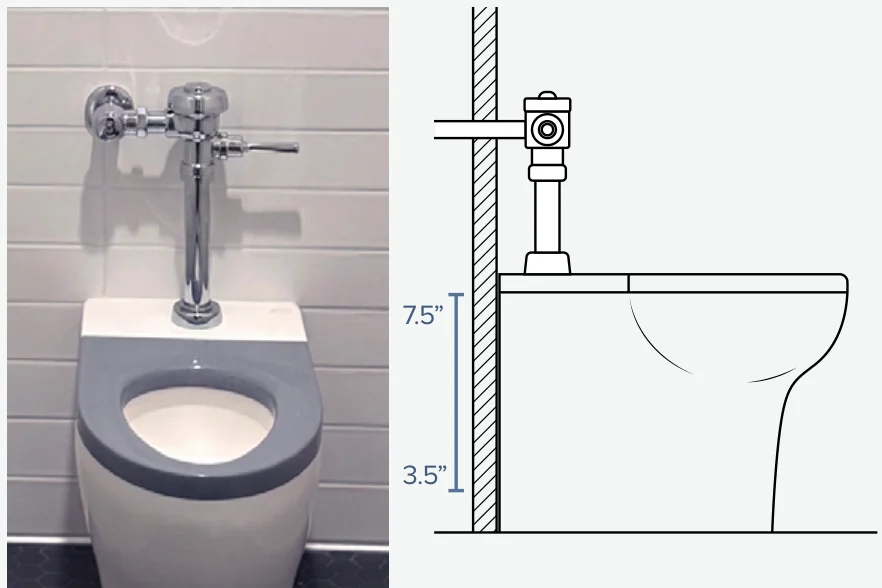

WH2135-T top supply toilet

WH2135-T

Top Supply

Choose if: supply is routed from above and you’re using a standard flush valve access panel.

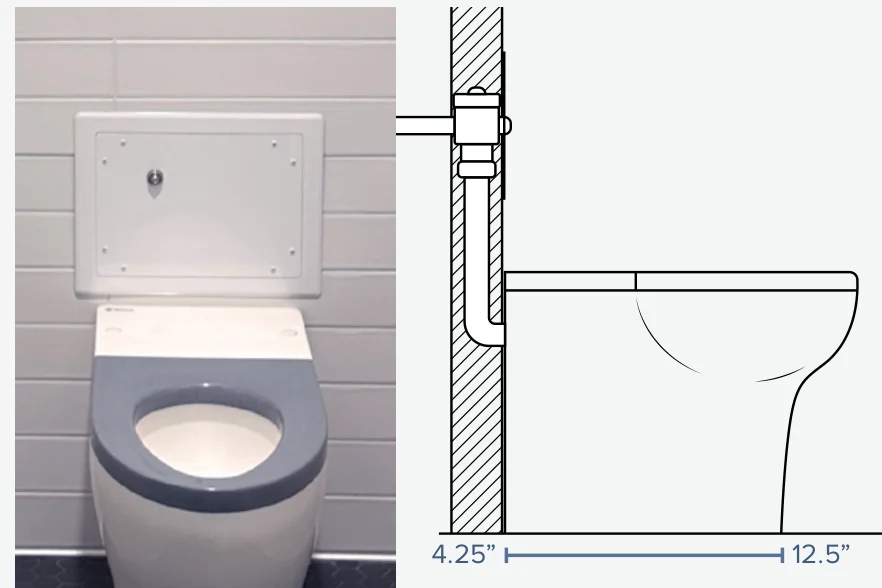

WH2135-W wall supply toilet

WH2135-W

Wall Supply

Choose if: supply approaches through the wall and you’re using a standard wall-mounted flush valve cover.

Waste Connection Rough-In Options

Floor or wall waste, with either supply. Then choose the rough-in that fits your project.

Building New Standard Rough-In Common sizes, stocked in select configurations for faster fulfillment.
Replacing a Fixture Factory-Configured Rough-In Built to order to match the rough-in you already have.
Rough-in dimensions cannot be adjusted in the field. Sizes and diagrams are on the WH2135-T and WH2135-W product pages.

Seat Options

Corterra® | Integral Seat Colors

  • Moonstone Metallic OCC21 Standard Stocked

    Blanco Corterra® bowl with contrasting Moonstone Metallic integral seat

  • Blanco OCC11

    Blanco Corterra® bowl with matching Blanco integral seat

Both models feature a Blanco Corterra® bowl with a contrasting Moonstone Metallic integral seat as the standard stocked configuration. An all-Blanco configuration is also available.

Hinged Seats | Optional

Ligature-Resistance

The toilet is no longer considered ligature-resistant when an optional seat is installed.

Optional hinged seats are available in white only and must be specified separately from the integral seat color configuration.

HS-OFLC

Open Front, Less Cover

White plastic open-front hinged seat without a cover.

HS-OFWC

Open Front, With Cover

White plastic open-front hinged seat with a cover that encloses the bowl.

Must Be Specified at Time of Order

The toilet seat option must be specified when ordering and cannot be retrofitted after manufacturing.

BestCare® | Complete the Suite

Continue Building Your Suite

The solid surface toilet is one part of a BestCare® single occupancy suite. Pair it with sinks, faucets, grab bars, drains and accessories designed to work together for a cohesive, less institutional space.

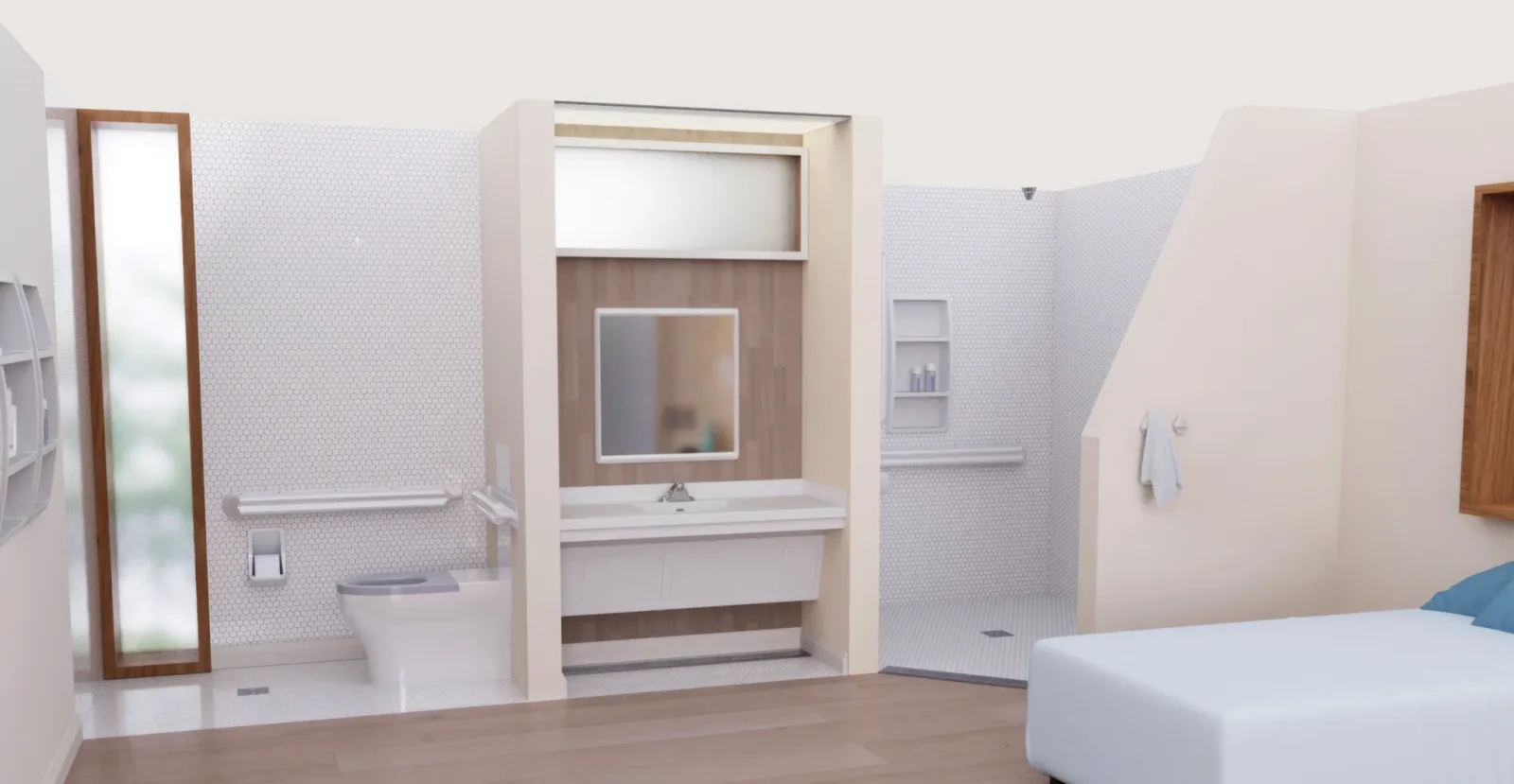

Behavioral healthcare patient room with a BestCare solid surface toilet, grab bars, toilet paper holder, alcove sink, mirror, linear floor drain and shelving ShelfWHD-SHV10Dignity Suite® Ligature-Resistant Recessed 10" Wide ShelvingView Product → Toilet Paper HolderWHD-TPDignity Suite® Ligature-Resistant Toilet Paper Roll HolderView Product → Floor DrainWHFD-SSLigature-Resistant Floor Drain - Stainless Steel GrateView Product → Grab BarsWHD-GBDignity Suite® Ligature-Resistant Aluminum Grab BarView Product → Solid Surface ToiletWH2135-WLigature-Resistant Solid Surface ADA Toilet - Wall SupplyView Product → Flush Valve Access PanelWHD2898-SOBestCare® Dignity Suite® Ligature-Resistant Sensor Operated Flush Valve Access Panel for Use with Grab BarView Product → MirrorWH1860Ligature-Resistant Solid Surface Frame Mirror with Concealed Front MountingView Product → FaucetWH3375-HC-SOLigature-Resistant Hot and Cold Sensor Activated Faucet - 4 Inch CentersetView Product → Alcove SinkWH3821Ligature-Resistant Corterra® Solid Surface Alcove BasinView Product → Linear Floor DrainWHLDLigature-Resistant Linear Drain with Flashing FlangeView Product → ShelvingWHD-SHV10Dignity Suite® Ligature-Resistant Recessed 10" Wide ShelvingView Product → ShowerheadWHD-SHD-CLigature-Resistant Ceiling Mount ShowerheadView Product → Grab BarWHD-GBDignity Suite® Ligature-Resistant Aluminum Grab BarView Product → Floor DrainWHFD-SSLigature-Resistant Floor Drain - Stainless Steel GrateView Product → Towel HooksWHD-THDignity Suite® Ligature-Resistant ABS Plastic Towel HookView Product →

BestCare® | Proven in Real-World Applications

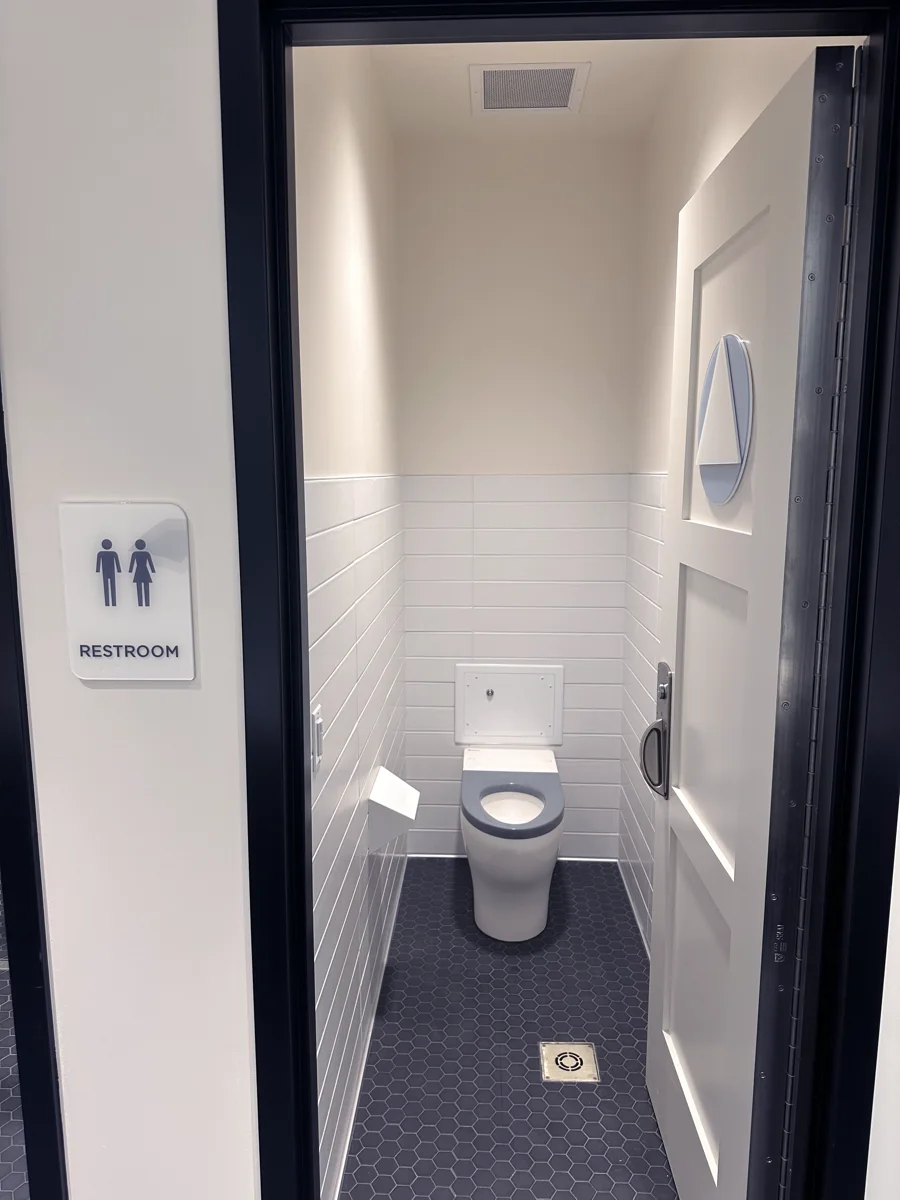

Installed at the Be Well OC Mental Health & Wellness Campus

Irvine, California

BestCare® | Get Started

Get the Details on the Solid Surface Toilet

Contact our team with questions about rough-ins, availability or finding your local representative.
