Model WH1109-3 Series
BestCare® Ligature-Resistant 32" x 18" Two-Wall Grab Bar, Flat Closure Plate
Features: 304 stainless steel cylindrical tube construction; a flat closure plate is welded on to meet Ligature-Resistant requirements.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Ligature-Resistant Bar with Flat Closure Plate [WH1109-3-L/WH1109-3-L-EG10 | 32" (813 mm) left and 18" (457 mm) right; WH1109-3-R/WH1109-3-R-EG10 | 18" (457 mm) left and 32" (813 mm) right; WH1109-7/WH1109-7-EG10 | 18" (457 mm); WH1109-1/WH1109-1-EG10 | 24" (610 mm) WH1109-2/WH1109-2-EG10 | 30" (762 mm); WH1109-4/WH1109-4-EG10 | 36" (914 mm) WH1109-5/WH1109-5-EG10 | 42" (1,067 mm); WH1109-6/WH1109-6-EG10 | 48" (1,219 mm)] | 0 | 67 KB | ||
| | Ligature-Resistant Bar with Flat Closure Plate [WH1109-3-L/WH1109-3-L-EG10 | 32" (813 mm) left and 18" (457 mm) right; WH1109-3-R/WH1109-3-R-EG10 | 18" (457 mm) left and 32" (813 mm) right; WH1109-7/WH1109-7-EG10 | 18" (457 mm); WH1109-1/WH1109-1-EG10 | 24" (610 mm) WH1109-2/WH1109-2-EG10 | 30" (762 mm); WH1109-4/WH1109-4-EG10 | 36" (914 mm) WH1109-5/WH1109-5-EG10 | 42" (1,067 mm); WH1109-6/WH1109-6-EG10 | 48" (1,219 mm)] | 0 | 116 KB | ||
 | | BestCare® Ligature-Resistant 32" x 18" Two-Wall Grab Bar, Flat Closure Plate [WH1109-3-L | 32" Length on Left Side; WH1109-3-R | 32" Length on Right Side] | 0 | 578 KB | ||
| | BestCare® Ligature-Resistant 32" x 18" Two-Wall Grab Bar, Flat Closure Plate [WH1109-3-L | 32" Length on Left Side; WH1109-3-R | 32" Length on Right Side] | 0 | 289 KB | ||
 | | Whitehall Mfg - Healthcare Accessories including safety hooks, shelves, toilet tissue holders, paper towel holders, soap dishes, and mirrors. | 0 | 120 KB | ||
| | Whitehall Mfg - Healthcare Accessories including safety hooks, shelves, toilet tissue holders, paper towel holders, soap dishes, and mirrors. | 0 | 141 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | BestCare Solutions Flyer (pdf) | 0 | 181 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 0 | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
 | | Vice President Kristin Kahle and National Sales Manager (Healthcare) Steve McIntosh discuss the importance of universal ligature resistant design within behavioral healthcare facilities. | 0 | 134 KB |
Specifications
| Brand | BestCare® |
| Material | Stainless Steel |
| Type of Mount | Corner Wall Mount, Wall Mount |
| Features | Flat Closure Plate, Ligature-Resistant Design |
| CSI Divisions | Division 10 |
Models

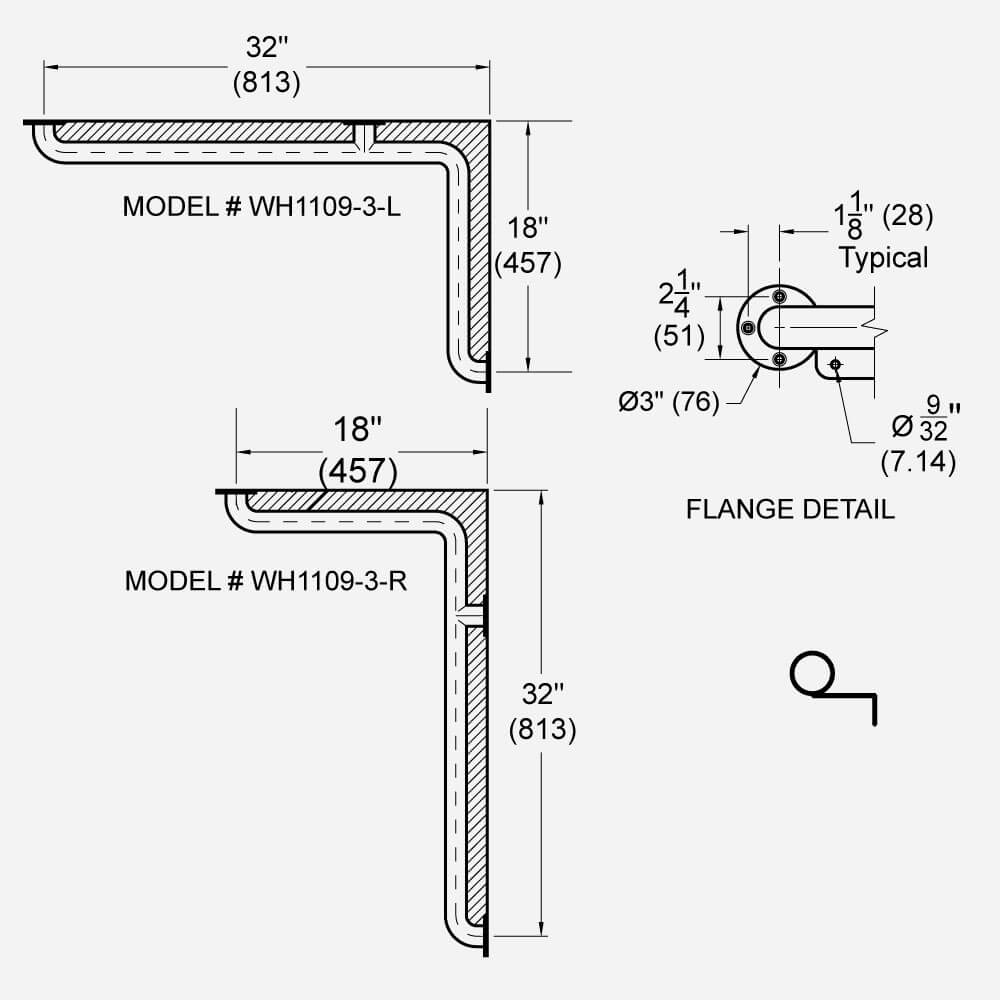

The grab bar is fabricated with a 1-1/2" (38 mm) stainless steel tube; Three 3" (76 mm) diameter flanges assist in the mounting onto the two walls; a flat closure strip with a mounting flange is welded onto the tube.
These configurations/finishes are available:

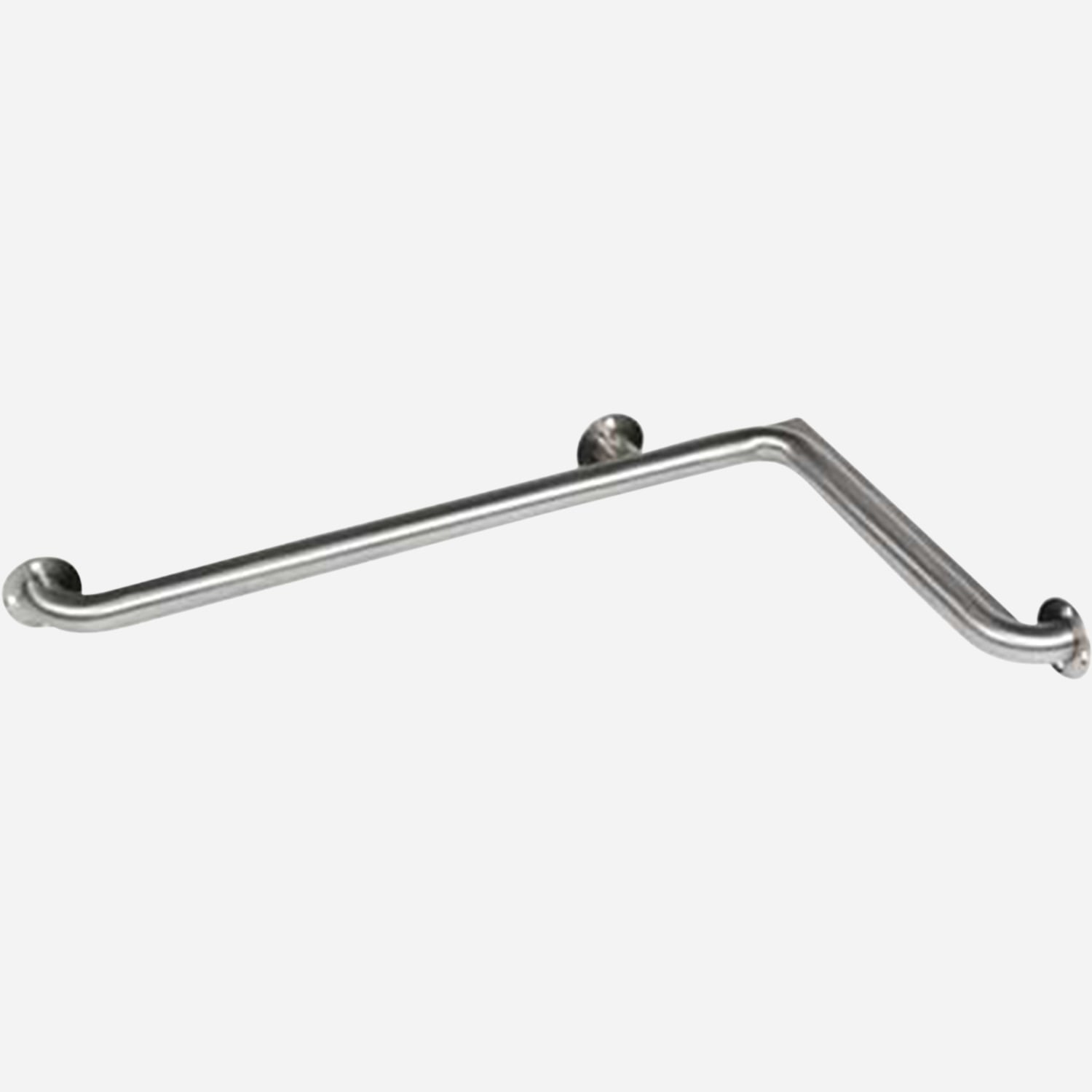

Model Number WH1109-3-L[IN STOCK] All-Stainless Steel 32" (813 mm) dimension on the left and 18" (457 mm) on right side White power coat by request only, specify WH1109-3-L-EG10

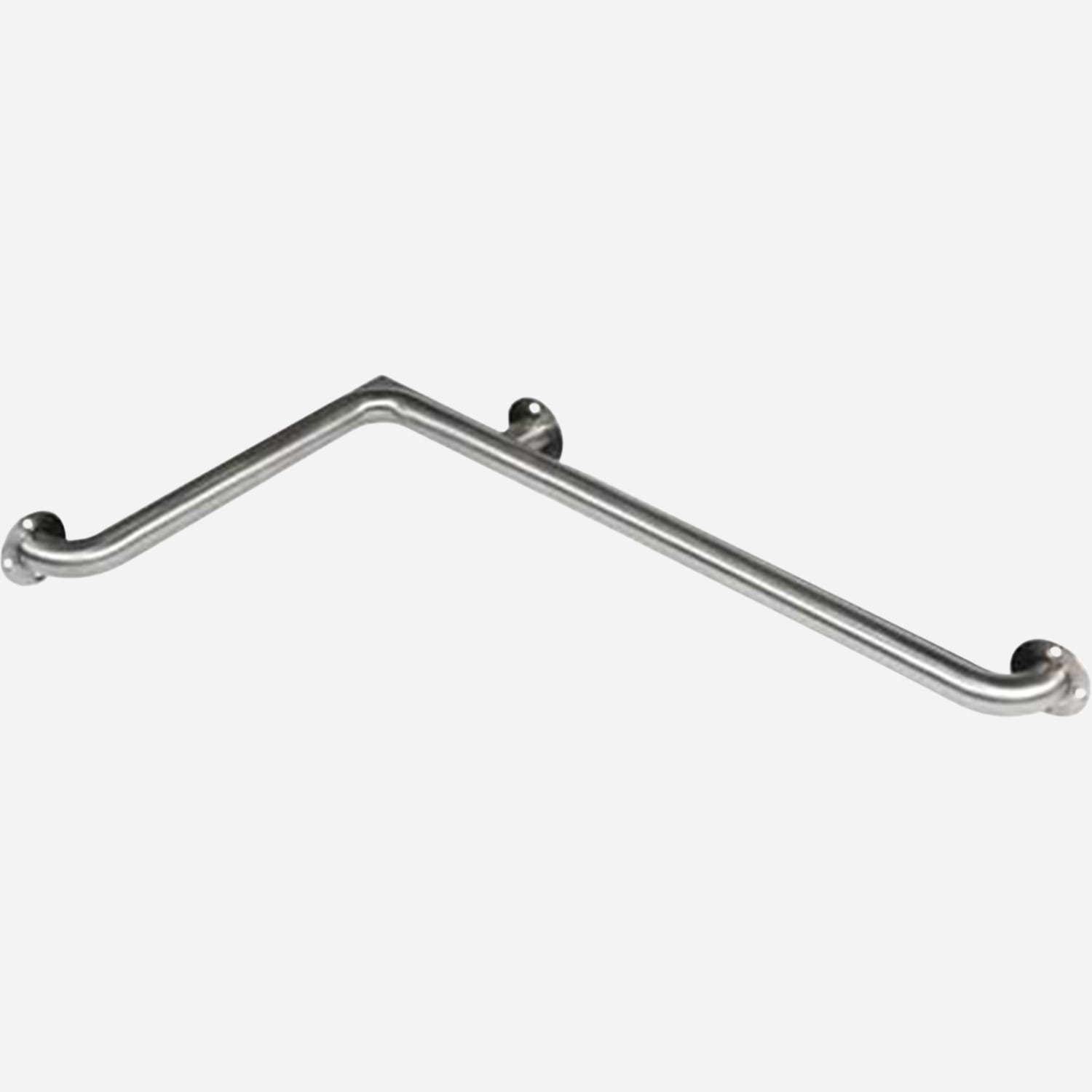

Model Number WH1109-3-R[IN STOCK] All-Stainless Steel 18" (457 mm) dimension on the left and 32" (813 mm) on right side
White power coat by request only, specify WH1109-3-R-EG10
Product Variations
Image | Model ID | Description |
|---|---|---|

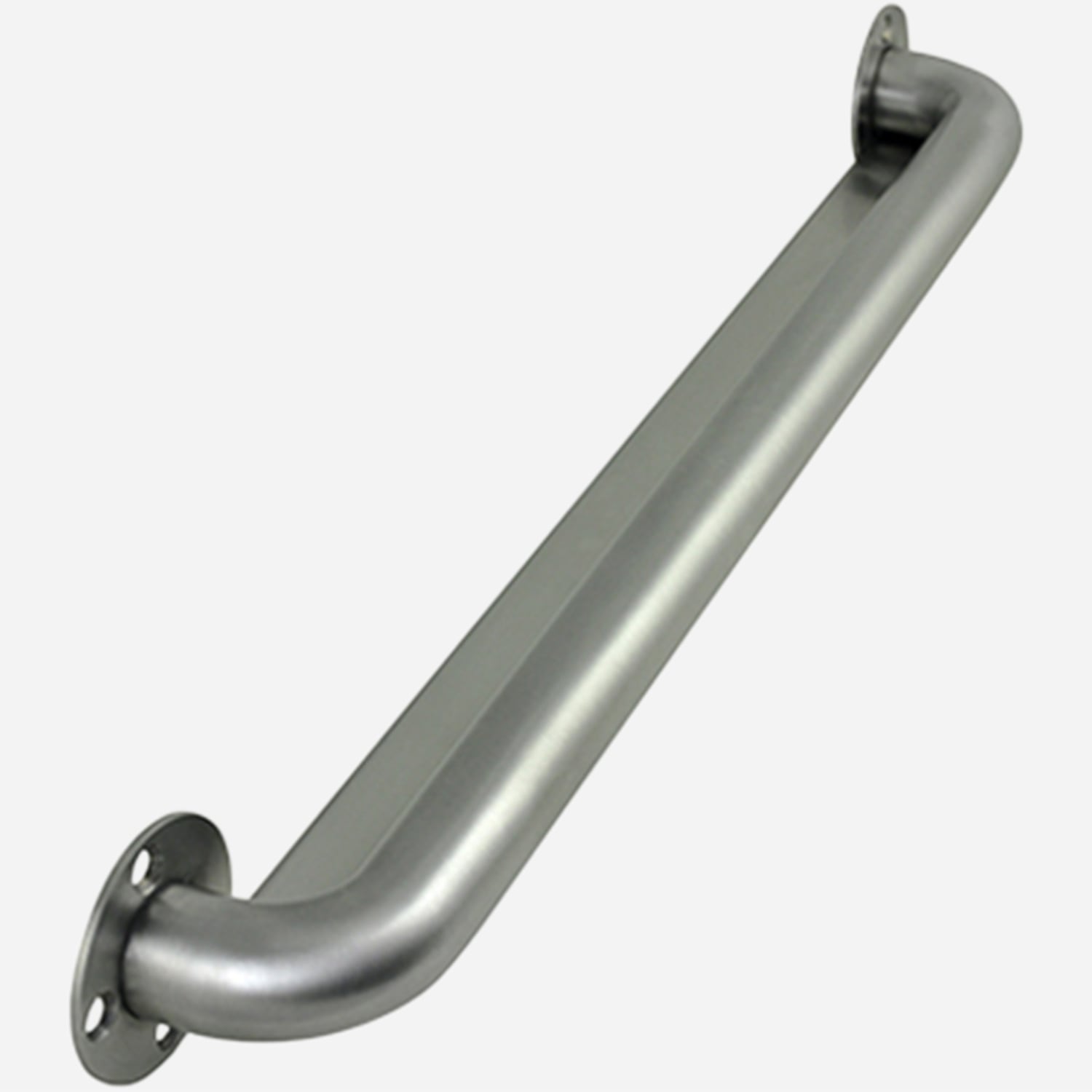

 | WH1109 Series | BestCare® Ligature-Resistant Bar, Flat Closure Plate |
