Name: BestCare® Ligature-Resistant Bar, Flat Closure Plate
Brand: Whitehall Manufacturing
SKU: WH1109 Series

Model WH1109 Series

BestCare® Ligature-Resistant Bar, Flat Closure Plate

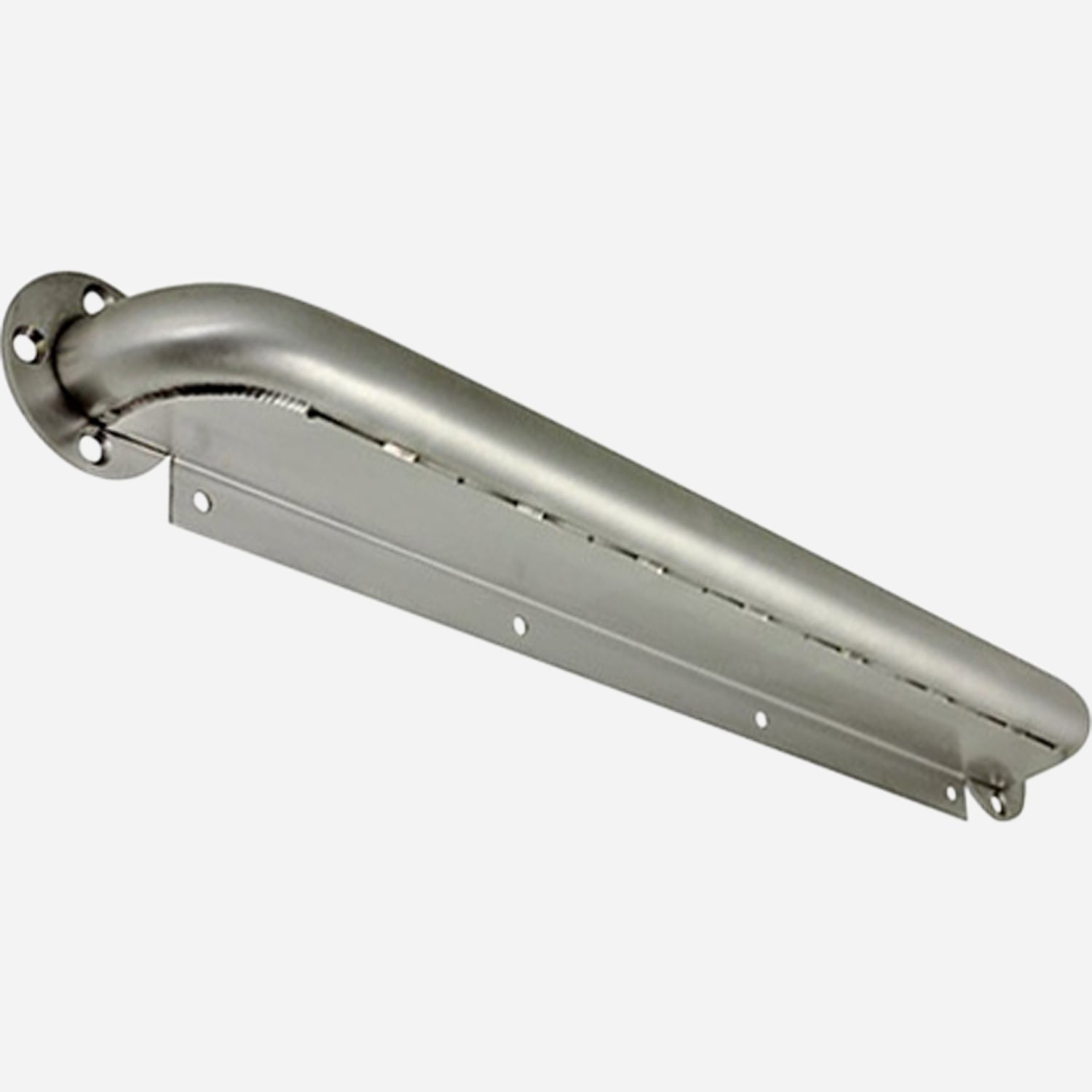

Features: 304 stainless steel cylindrical tube construction; a flat closure plate is welded on to meet Ligature-Resistant requirements.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Product MasterSpec	MasterSpec: 102813.19, Healthcare Toilet Accessories (doc)	Whitehall Mfg - Healthcare Accessories including safety hooks, shelves, toilet tissue holders, paper towel holders, soap dishes, and mirrors.	120 KB
Installation Instructions	Install Guide WH1109 Series Grab Bars (pdf)	Ligature-Resistant Bar with Flat Closure Plate [WH1109-3-L/WH1109-3-L-EG10 \| 32" (813 mm) left and 18" (457 mm) right; WH1109-3-R/WH1109-3-R-EG10 \| 18" (457 mm) left and 32" (813 mm) right; WH1109-7/WH1109-7-EG10 \| 18" (457 mm); WH1109-1/WH1109-1-EG10 \| 24" (610 mm) WH1109-2/WH1109-2-EG10 \| 30" (762 mm); WH1109-4/WH1109-4-EG10 \| 36" (914 mm) WH1109-5/WH1109-5-EG10 \| 42" (1,067 mm); WH1109-6/WH1109-6-EG10 \| 48" (1,219 mm)]	67 KB
Submittals	Submittal WH1109 Series Grab Bars (pdf)	Ligature-Resistant Bar with Flat Closure Plate [WH1109-3-L/WH1109-3-L-EG10 \| 32" (813 mm) left and 18" (457 mm) right; WH1109-3-R/WH1109-3-R-EG10 \| 18" (457 mm) left and 32" (813 mm) right; WH1109-7/WH1109-7-EG10 \| 18" (457 mm); WH1109-1/WH1109-1-EG10 \| 24" (610 mm) WH1109-2/WH1109-2-EG10 \| 30" (762 mm); WH1109-4/WH1109-4-EG10 \| 36" (914 mm) WH1109-5/WH1109-5-EG10 \| 42" (1,067 mm); WH1109-6/WH1109-6-EG10 \| 48" (1,219 mm)]	116 KB
Product MasterSpec	MasterSpec: 102813.19, Healthcare Toilet Accessories (pdf)	Whitehall Mfg - Healthcare Accessories including safety hooks, shelves, toilet tissue holders, paper towel holders, soap dishes, and mirrors.	141 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	BestCare Solutions Flyer (pdf)	BestCare Solutions Flyer (pdf)	181 KB
Technical Data Sheets	Whitehall Cleaning and Care Guide (pdf)	Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces.	928 KB
Brochures/Flyers	BestCare Ligature-Resistant Brochure (pdf)	BestCare Ligature-Resistant Brochure (pdf)	48 MB
Drawings	WH1109 Straight Grab Bars (rfa/zip)	BestCare® Ligature-Resistant Straight Grab Bar, Flat Closure Plate [WH1109-1 \|24"; WH1109-2 \| 30"; WH1109-4 \| 36"; WH1109-5 \| 42"; WH1109-6 \| 48"]	2 MB
Drawings	WH1109 Straight Grab Bars (dwg/zip)	BestCare® Ligature-Resistant Straight Grab Bar, Flat Closure Plate [WH1109-1 \|24"; WH1109-2 \| 30"; WH1109-4 \| 36"; WH1109-5 \| 42"; WH1109-6 \| 48"]	533 KB
Videos	Behavioral Healthcare Webinar (video)	Vice President Kristin Kahle and National Sales Manager (Healthcare) Steve McIntosh discuss the importance of universal ligature resistant design within behavioral healthcare facilities.	134 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	BestCare®
Material	Stainless Steel
Type of Mount	Wall Mount
Features	Ligature-Resistant Design, Flat Closure Plate
CSI Divisions	Division 10

Models

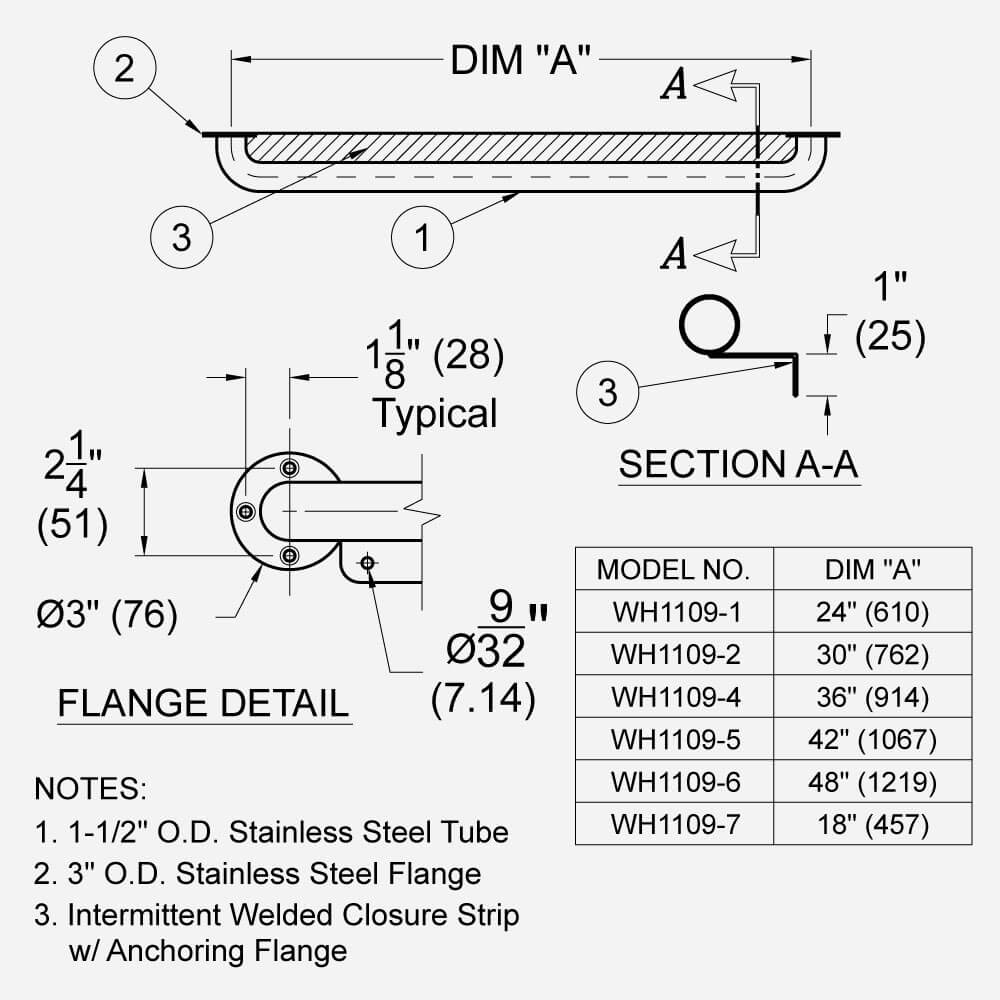

The grab bar is fabricated with a 1-1/2" (38 mm) stainless steel tube; Three 3" (76 mm) diameter flanges assist in the mountain onto two walls; a flat closure strip with a mounting flange is welded onto the tube.

The following configurations/finishes are available:

Model All-Stainless Steel	Model with White Powder Coat	Length
WH1109-7 [IN STOCK]	WH1109-7-EG10	18" (457 mm)
WH1109-1 [IN STOCK]	WH1109-1-EG10	24" (610 mm)
WH1109-2 [IN STOCK]	WH1109-2-EG10	30" (762 mm)
WH1109-4 [IN STOCK]	WH1109-4-EG10	36" (914 mm)
WH1109-5 [IN STOCK]	WH1109-5-EG10	42" (1,067 mm)
WH1109-6 [IN STOCK]	WH1109-6-EG10	48" (1,219 mm)

Product Variations

Image	Model ID	Description
	WH1109-3 Series	BestCare® Ligature-Resistant 32" x 18" Two-Wall Grab Bar, Flat Closure Plate
