BestCare® ADA Compliant Ligature-Resistant Access Panel with Hydraulic Flush Valve

Name: BestCare® ADA Compliant Ligature-Resistant Access Panel with Hydraulic Flush Valve
Brand: Whitehall Manufacturing
SKU: WH2898ADA-SL Series

In StockThis product is available for quick shipment nationwide.

Find A Representative

Model WH2898ADA-SL Series

Installation Instructions

Install Guide WH2898ADA-SL Panel - Valve (pdf)

Submittal

Submittal WH2898ADA-SL Series Panel with Flush Valve (pdf)

Model WH2898ADA-SL Series

BestCare® ADA Compliant Ligature-Resistant Access Panel with Hydraulic Flush Valve

ADA Compliant, Ligature-Resistant Compliant Access Panel with Slim Design Face Plate for Hydraulic Flush Valve.

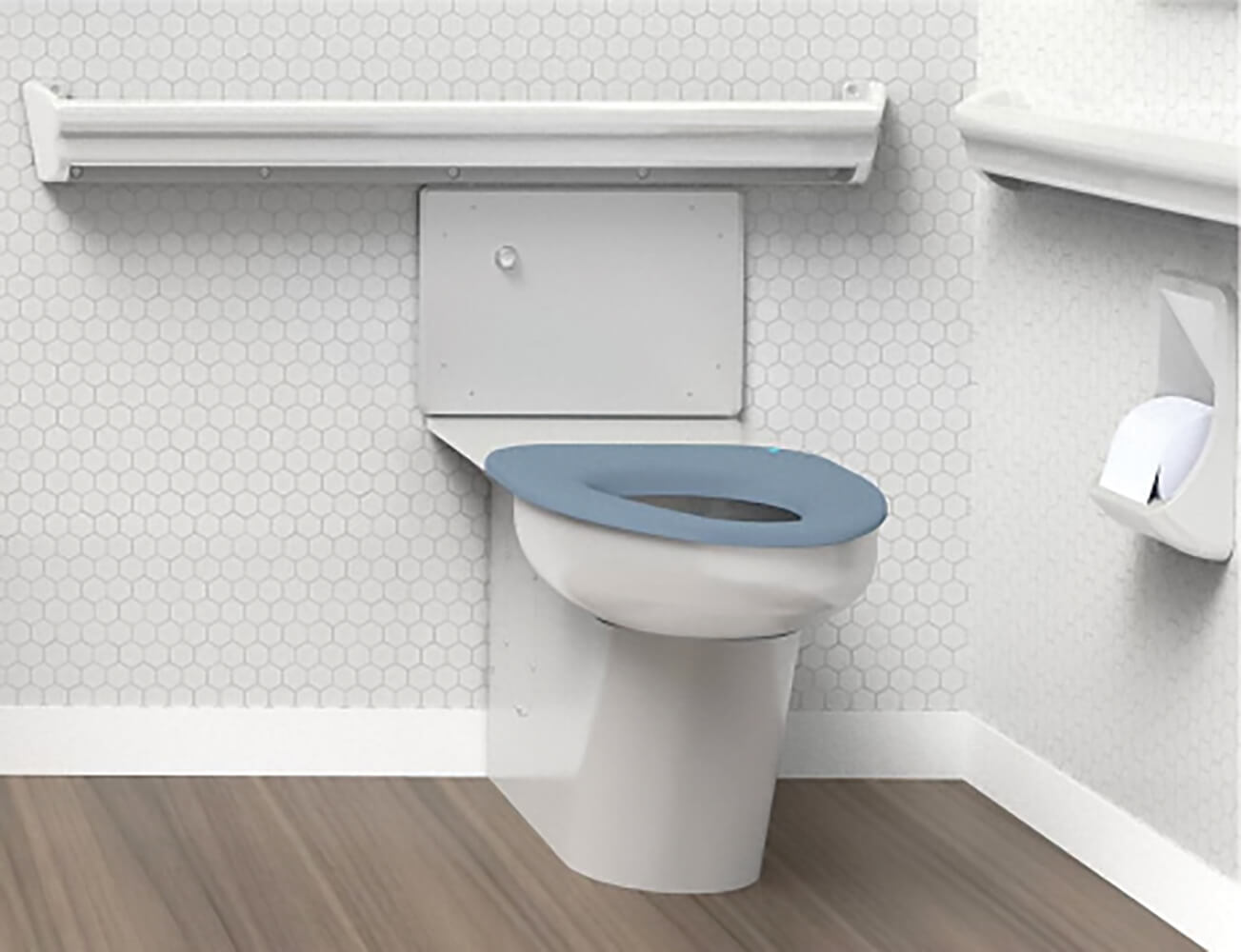

Recommended for use with ADA Toilets and all Urinal types with wall supply (concealed) flush valve connections where vandalism and ligature-resistance is a concern. The WH2898ADA-SL Ligature Resistant Flush Valve Access Panel with slimmer design includes a shorter height Frame and Face Plate (which allows for installation above Whitehall® ADA Toilet with 18" (457.2 mm) seat height, positioned below Closure style Grab Bar. (Verify site conditions, Grab Bar size, local code requirements, fits and tolerances).

Optionally available as a Blank Access Panel only, provided less Flush Valve and without punching for Pushbutton.

For non-ADA application, WH2898 Series is available.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Installation Instructions	Install Guide WH2898ADA-SL Panel - Valve (pdf)	BestCare® ADA Compliant Ligature-Resistant Access Panel with Hydraulic Flush Valve	93 KB
Submittals	Submittal WH2898ADA-SL Series Panel with Flush Valve (pdf)	Whitehall® BestCare® Ligature-Resistant ADA Compliant Flush Valve Access Panel with Hydraulic Flush Valve for Toilets and Urinals [WH2898ADA-SL-__; WH2898ADA-SL-__-SS; WH2898ADA-SL-BLANK]	204 KB
Brochures/Flyers	BestCare Solutions Flyer (pdf)	BestCare Solutions Flyer (pdf)	181 KB
Brochures/Flyers	BestCare Ligature-Resistant Brochure (pdf)	BestCare Ligature-Resistant Brochure (pdf)	48 MB
Drawings	WH2898ADA-SL Flush Vavle - Access Panel (dwg/zip)	BestCare® ADA Compliant Ligature-Resistant Access Panel with Hydraulic Flush Valve	98 KB
Drawings	WH2898ADA-SL Flush Valve - Access Panel (rfa)	BestCare® ADA Compliant Ligature-Resistant Access Panel with Hydraulic Flush Valve	400 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Brand	BestCare®
Accessibility	ADA Compliant
Material	Stainless Steel
Material Details	White powder coating, All-Stainless Steel
CSI Divisions	Division 22
Type of Mount	Valve in Recessed in Wall; Covered by Panel
Appropriate for	Ligature Resistant, Toilets
Valve Type	Wall Supply - typically concealed in wall, Hydraulic pushbutton flush valve

Models

Specify the hydraulic flush valve to be included and the finish of the panel

Stainless Steel Panel with White Powder Coat Finish, 1.28 Gallons (4.85 Liters) per Flush Toilet Valve WH2898ADA-SL-1.28 1.6 Gallons (6 Liters) per Flush Toilet Valve WH2898ADA-SL-1.6

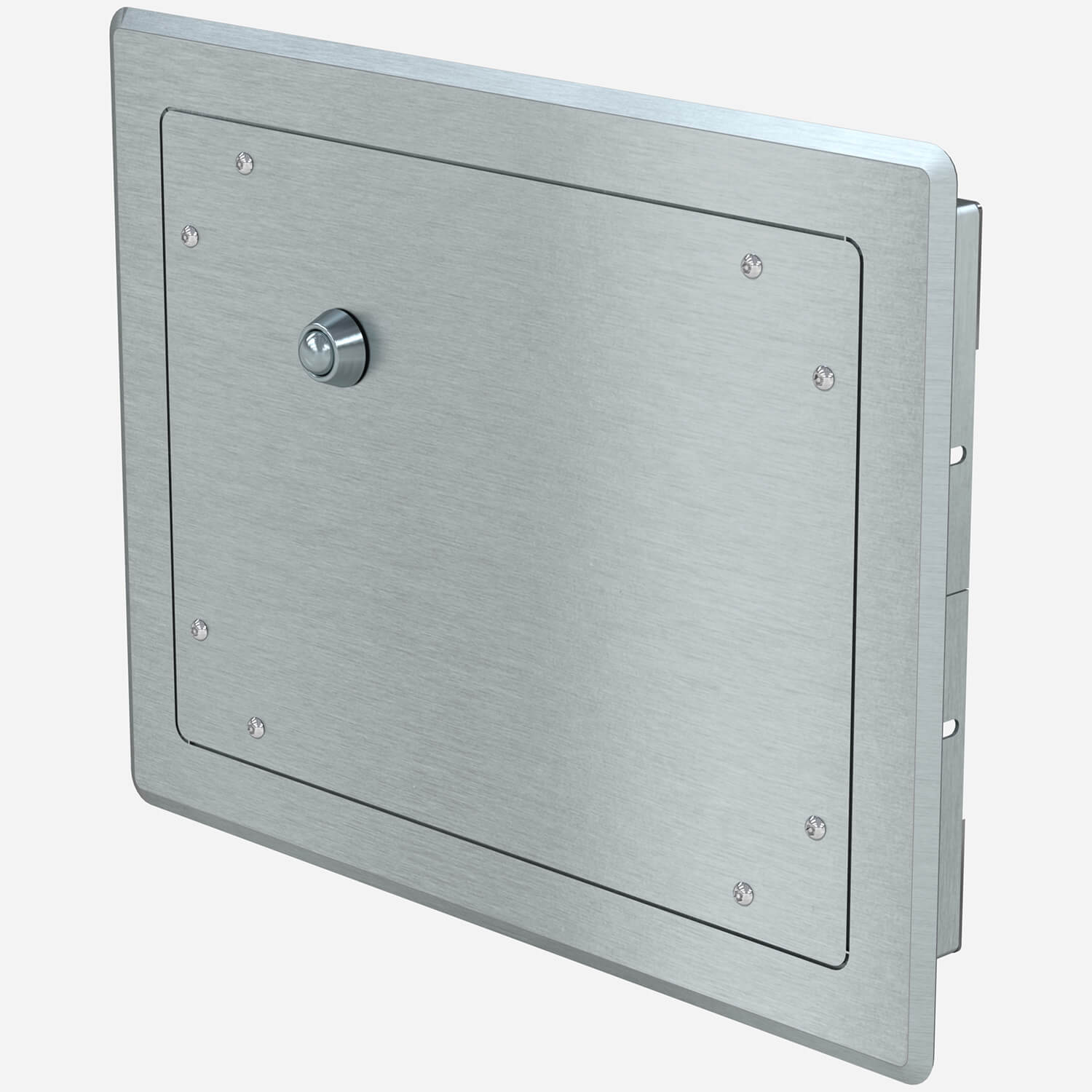

All-Stainless Steel Panel 1.28 Gallons (4.85 Liters) per Flush Toilet Valve WH2898ADA-SL-1.28-SS 1.6 Gallons (6 Liters) per Flush Toilet Valve WH2898ADA-SL-1.6-SS

Stainless Steel Panel with White Powder Coat Finish 0.5 Gallons (1.89 Liters) per Flush Urinal Valve WH2898ADA-SL-0.5 0.125 Gallons (0.47 Liters) per Flush Urinal Valve WH2898ADA-SL-.125

All-Stainless Steel Panel 0.5 Gallons (1.89 Liters) per Flush Urinal Valve WH2898ADA-SL-0.5-SS 0.125 Gallons (0.47 Liters) per Flush Urinal Valve WH2898ADA-SL-.125-SS

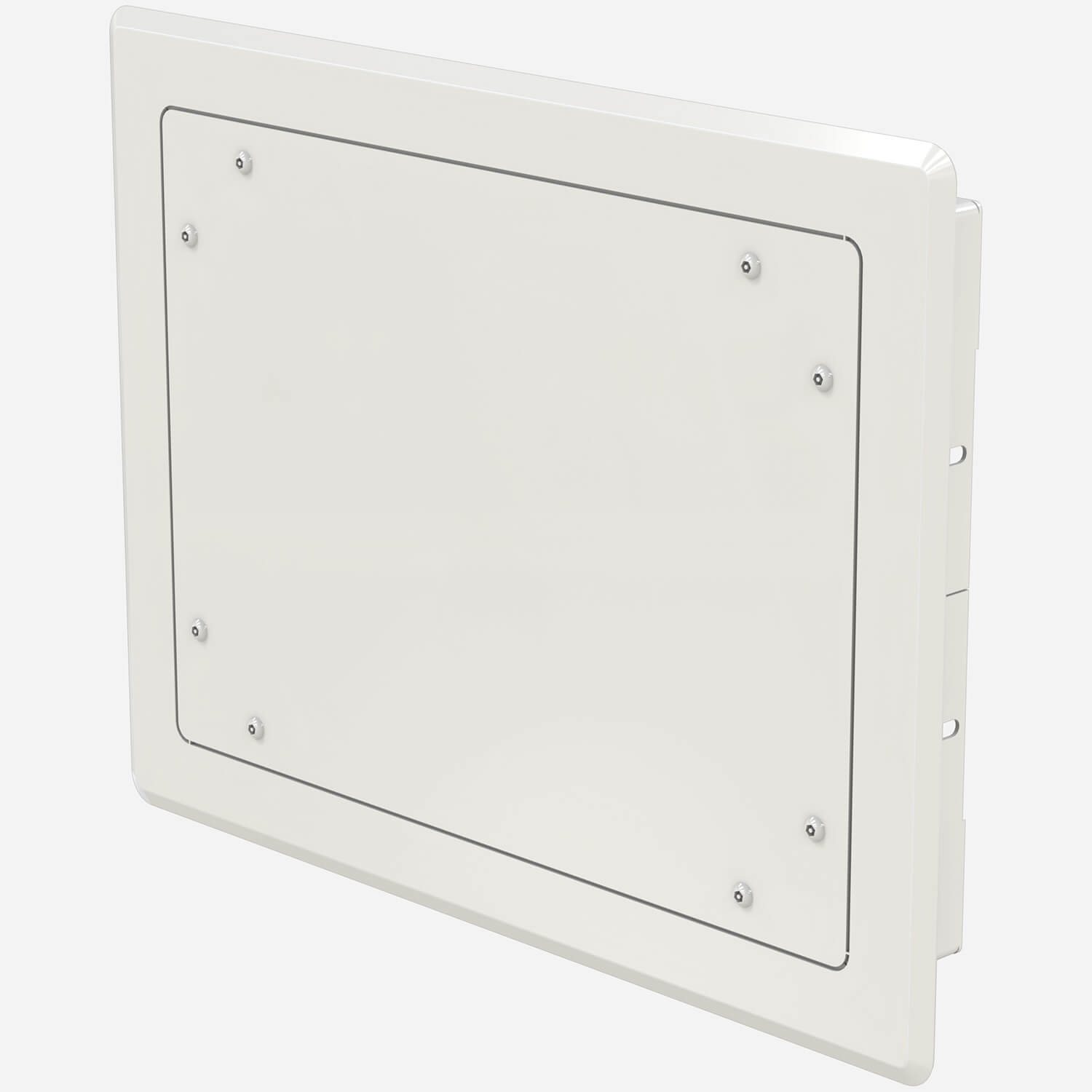

Stainless Steel Panel with White Powder Coat Finish No Flush Valve WH2898ADA-SL-BLANK
