BestCare® Dignity Suite® Ligature-Resistant Sensor Operated Flush Valve Access Panel for Use with Grab Bar
Whitehall's BestCare ® Dignity Suite® is a curated collection of ligature-resistant bathroom fixtures and accessories. Designed to create a peaceful and well-balanced environment, the Dignity Suite® is stylish and sleek while simultaneously protecting patients' safety.

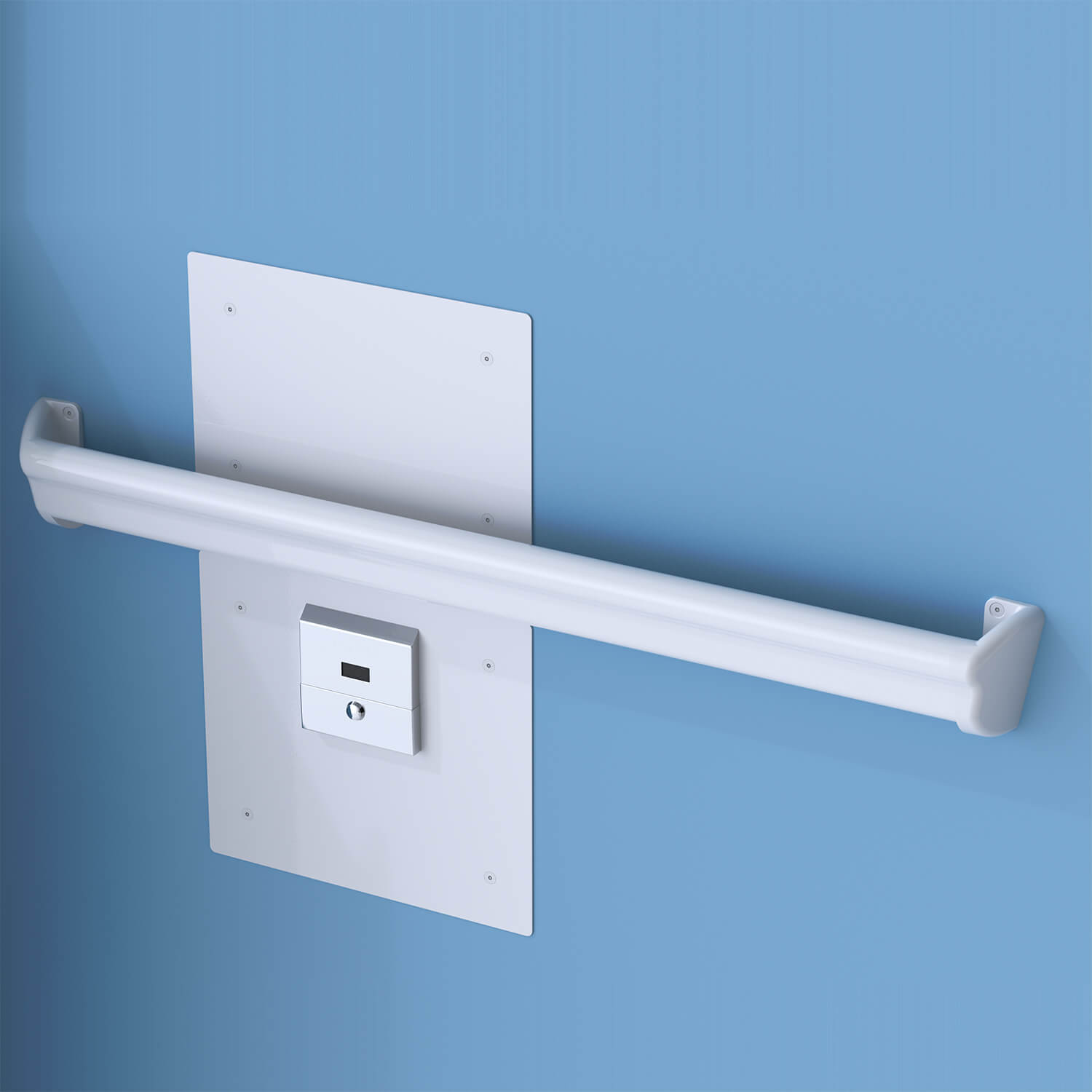

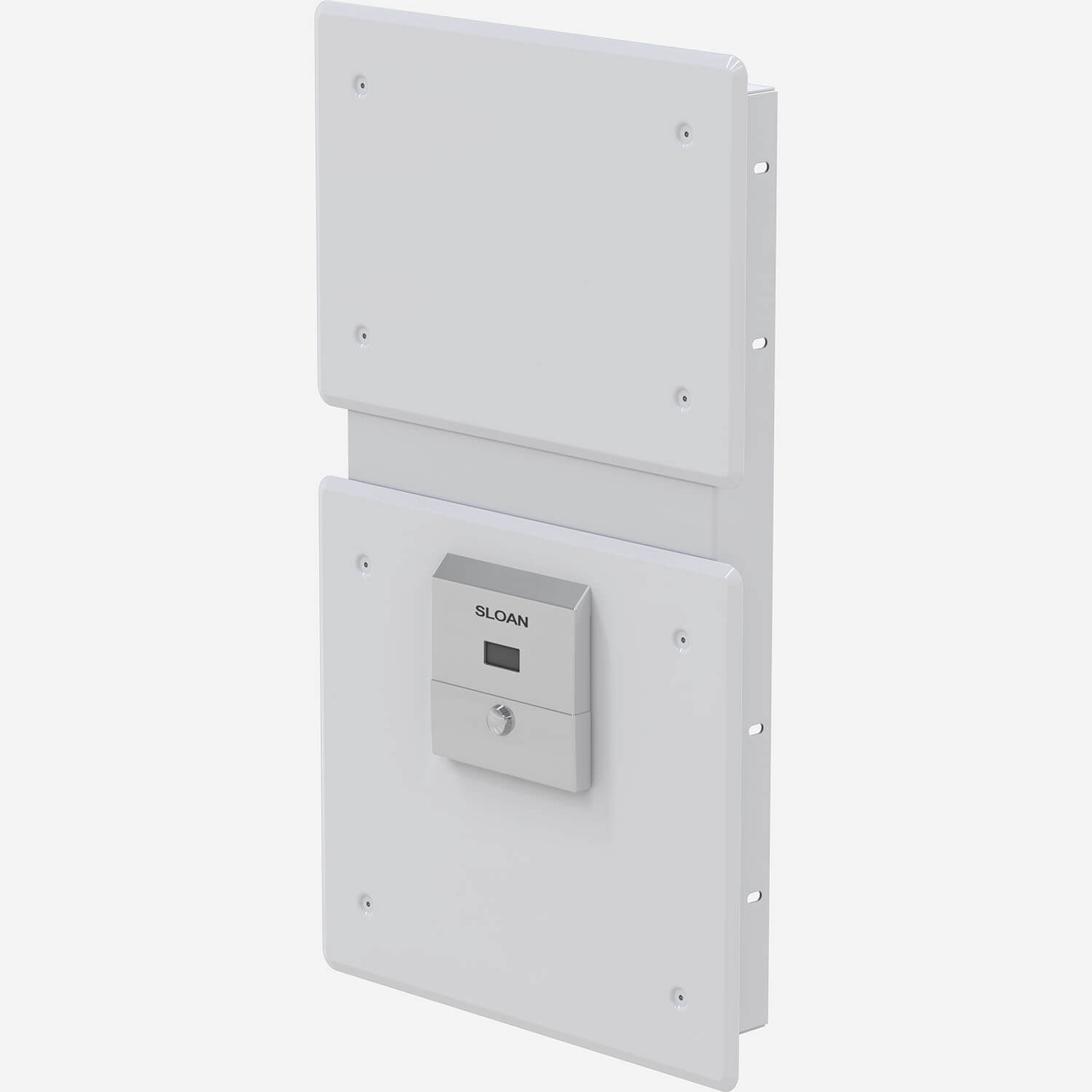

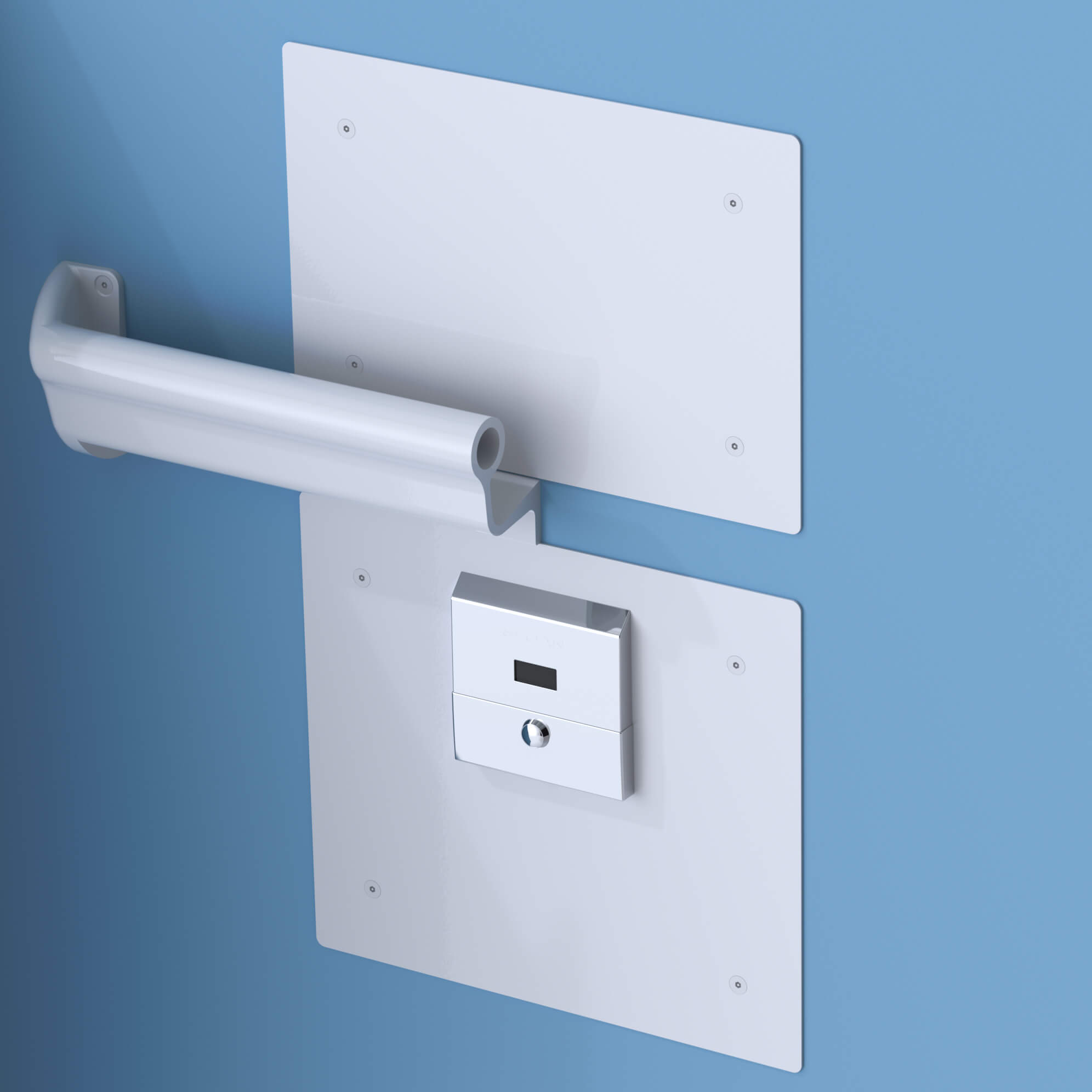

The Dignity Suite® Sensor Operated Flush Valve Panel combines patient safety and function to allow the installer access to the flush valve without interference from the Ligature-Resistant Grab Bar. The upper and lower removable access panels are fabricated of 14 gauge type 304 stainless steel and include 1/4" vandal-resistant stainless steel fasteners. The Access Panels are secured to an in-wall mounting frame fabricated of 16 gauge type 304 stainless steel. All exposed surfaces are provided in Snow White (EG-10) or Dignity Blue Enviro-glaze® color powder coated finish.
The assembly is provided with a concealed Sensor Operated Flush Valve complete with Union Angle Stop and includes a ligature resistant Infra-red Sensor Plate with Electrical Override Button. The Flush Valve is available in 1.28 gallons (5.82 liters) or 1.6 gallons (7.27 liters) per flush which must be specified.

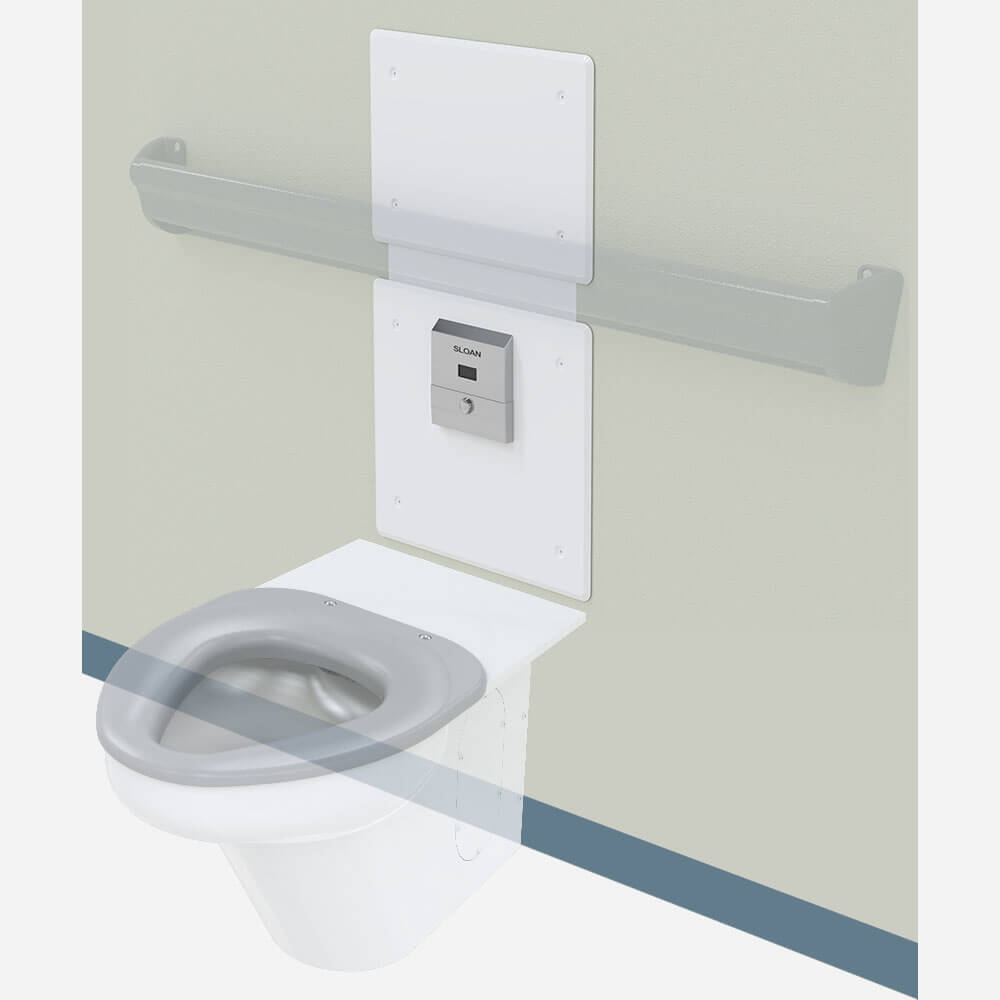

A typical assembly is intended for use with a Whitehall 36" (914.4 mm) wide Ligature Resistant Grab Bar to complete the installation. When installed at the required dimensions, the entire assembly is intended to conform to ADA standards. (Note: ADA compliance is always subject to the Local Code Authority.)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Whitehall® BestCare® Dignity Suite® Ligature-Resistant Sensor Operated Flush Valve Access Panel for Use with Grab Bar - Includes flush valve as specified; Grab Bar sold separately | 0 | 278 KB | ||
| | Whitehall® BestCare® Dignity Suite® Ligature-Resistant Sensor Operated Flush Valve Access Panel for Use with Grab Bar - Includes flush valve as specified; Grab Bar sold separately | 0 | 202 KB | ||
 | | Contains WH2898D-SO.rfa, WHD-BSN.rfa, WHD-BSN.zip (CAD),WHD-CF.rfa, WHD-GB Series.rfa (multiple std sizes), WHD-MR.rfa, WHD-SHD-W.rfa,WHD-SHD-W.zip (CAD), WHD-SHV10.rfa, WHD-SHV15.rfa, WHD-TP.rfa, WHSHD-C.rfa, WHSHD-C.zip (CAD) | 0 | 5 MB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 0 | 571 KB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | BestCare Solutions Flyer (pdf) | 0 | 181 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
| | Enviro-Glaze® Powder Coating | 0 | 1 MB | ||
 | | Whitehall Manufacturing has introduced a new animation showing how to install the Dignity Suite® Flush Valve Cover. | 0 | 133 KB | ||
| | The Dignity Suite® is a curated collection of ligature-resistant bathroom fixtures & accessories. Designed to create a peaceful & well-balanced environment, the Dignity Suite® is stylish & sleek while simultaneously protecting patients safety. | 0 | 132 KB |
Specifications
| Brand | BestCare®, Dignity Suite® |
| Material | Stainless Steel |
| Material Details | White powder coating, All-Stainless Steel |
| Type of Mount | Valve in Recessed in Wall; Covered by Panel |
| Fixture Width | 14" |
| Valve Type | Wall Supply - typically concealed in wall, Electronic |
| Appropriate for | Ligature Resistant, Toilets |
| Features | Accommodates placement of grab bar - clean look, Hand-Free |
| CSI Divisions | Division 22 |
| Accessibility | ADA Compliant |
Models
Ligature Resistant Flush Valve Cover with Sensor Activated Flush Valve
Two-piece panels finished in Snow White Enviro-Glaze Powder Coating Valve rated 1.28 gallons (5.82 liters) per flush WHD2898-SO-1.28-10 Valve rated 1.6 gallons (7.27 liters) per flush WHD2898-SO-1.6-10
Two-piece panels finished in Dignity Blue Enviro-Glaze Powder Coating Valve rated 1.28 gallons (5.82 liters) per flush WHD2898-SO-1.28-30 Valve rated 1.6 gallons (7.27 liters) per flush WHD2898-SO-1.6-30
Pushbutton Activated Flush Valve hereProduct Variations
Image | Model ID | Description |
|---|---|---|

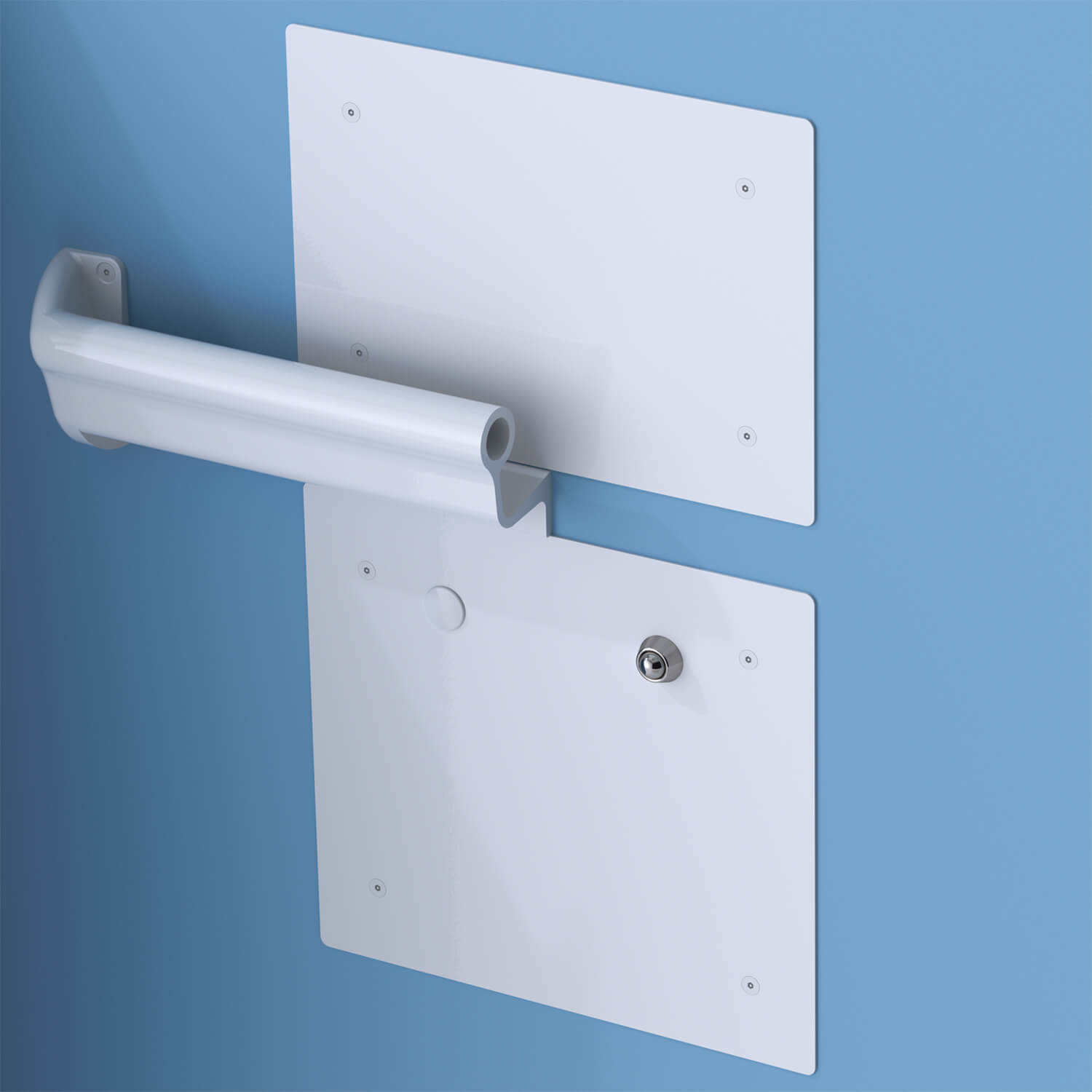

 | WHD2898 | Whitehall® BestCare® Dignity Suite® Ligature-Resistant Pushbutton Flush Valve Access Panel for Use with Grab Bar |
