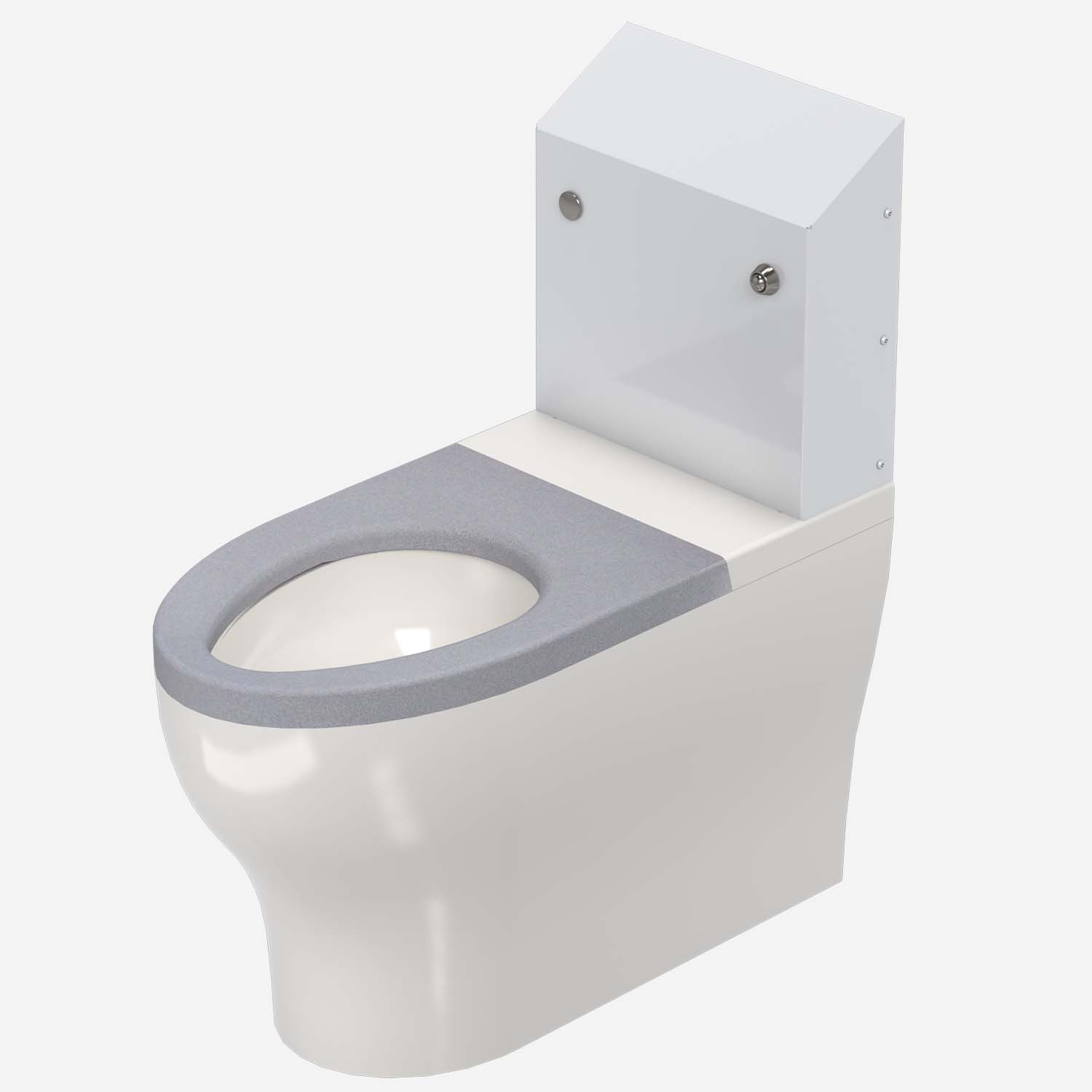

Whitehall BestCare® Ligature-Resistant Solid Surface ADA Toilet - Top Supply
The BestCare® Solid Surface Toilet is designed to create a peaceful, well-balanced environment, with a stylish and sleek look while simultaneously protecting patients' safety. Features include enhanced ligature-resistance and customer-specified Waste Outlet rough-in to suit new or retrofit applications.

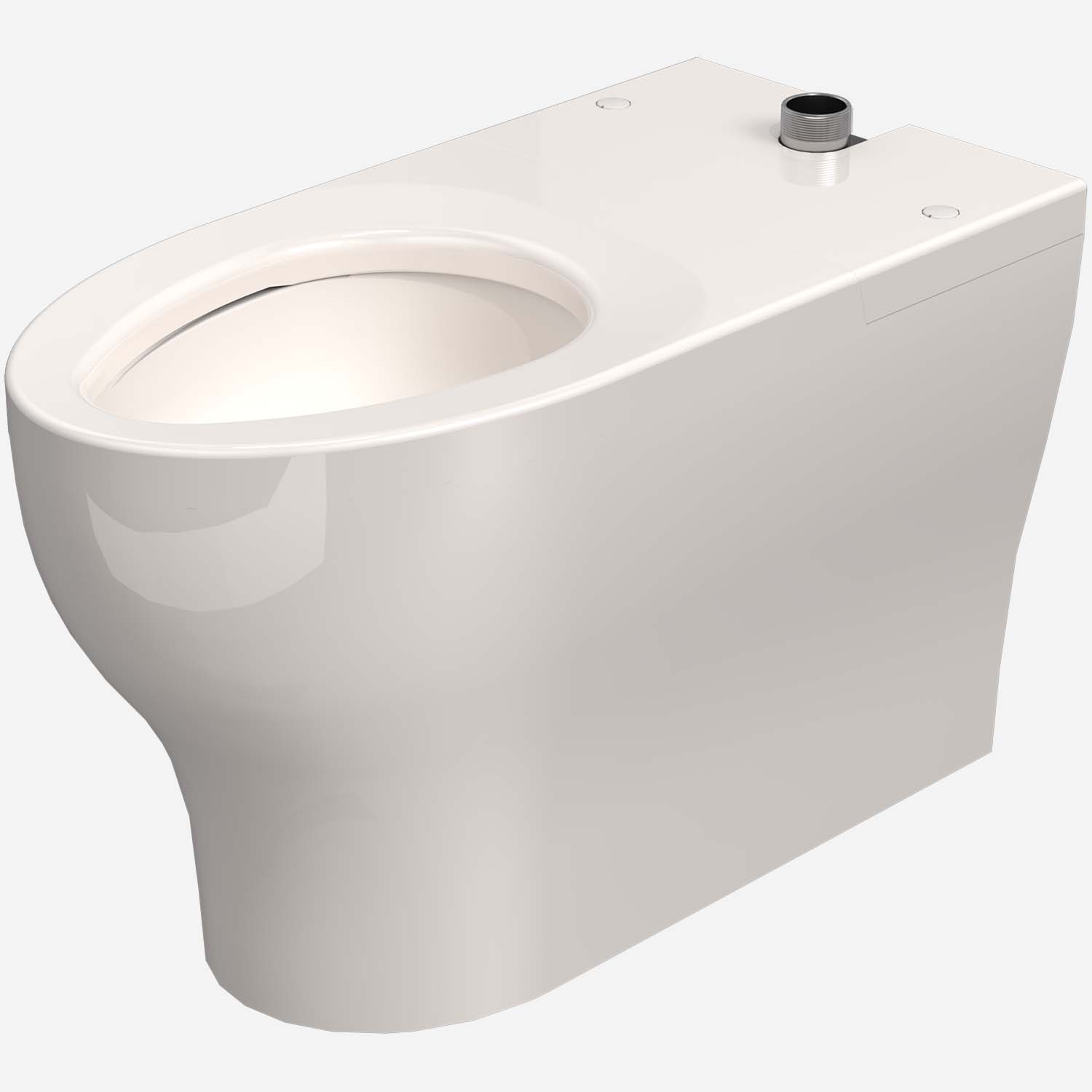

The WH2135-T Toilets include a 1-1/2" NPT flushing inlet connection, which is offered for a Top Supply (typically an exposed) flush valve. To continue providing a ligature-resistant environment, a flush valve with a ligature-resistant cover ( WH2802-SLPT-ADA) is available, sold separately.
- ADA Compliant
- Universal Design
- Normalized Look and Aesthetic
- Suitable for Traditional Restrooms
- Bariatric Toilet Applications
- Load Rating of 5000 LBS
- Vandal Resistant
- Integral Toilet Seat can be colorized to any of the MGI Corterra Solid Surface
- Wall Waste (WH2135-T-2) - between 3-1/2" to 7-1/2" above floor
- Floor Waste (WH2135-T-3) - between 4-1/4" to 12-1/2" from finished wall
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Whitehall BestCare® Ligature-Resistant Solid Surface ADA Toilet - On-Floor, Wall Waste [WH2135-T-2 | Top Supply; WH2135-W-2 | Wall Supply] | 729 KB | ||
| | Whitehall BestCare® Ligature-Resistant Solid Surface ADA Toilet [Top Supply WH2135-T-2 | On-Floor, Wall Waste; WH2135-T-3 | On-Floor, Floor Waste] | 283 KB | ||
| | Whitehall BestCare® Ligature-Resistant Solid Surface ADA Toilet - On-Floor, Floor Waste [WH2135-T-3 | Top Supply; WH2135-W-3 | Wall Supply] | 588 KB | ||
| | IAPMO Report 710-24327-004 verifying solid surface toilets handles 25,000 lbs load test [Acorn LR2135, LR2136; Whitehall WH2135, WH2136] | 928 KB | ||
| | Acorn Engineering Corterra® Solid Surface a solid-surface polymer resin (with aluminum trihydrate and other fillers) (also used for Neo-Metro and Whitehall) - Document features Product Description, Product Qualities, Cleaning Tips, ANSI Standard Compliance, CSA Standard Compliance and Burning Character Test Data | 93 KB | ||
 | | Whitehall BestCare® Ligature-Resistant Solid Surface ADA Toilet - Top Supply [WH2135-T-2 | On-Floor, Wall Waste; WH2135-T-3 | On-Floor, Floor Waste] | 521 KB | ||
| | Whitehall BestCare® Ligature-Resistant Solid Surface ADA Toilet - Top Supply [WH2135-T-2 | On-Floor, Wall Waste; WH2135-T-3 | On-Floor, Floor Waste] | 952 KB |
Specifications
| Brand | BestCare® |
| Material | Solid Surface |
| Type of Mount | Floor Mount |
| Waste Location | Floor, Wall |
| Valve Type | Top Supply - requires ligature-resistant cover for flush valve |
| Compliances | UPC®,WaterSense Certified by IAPMO R&T,UL Greenguard |
| Accessibility | ADA Compliant |
| Features | Requires 25 psi commercial water supply |
| CSI Divisions | Division 10 |
| Appropriate for | Bariatric, Ligature Resistant |
| Patent | US Patent 12 662 804 B2 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | OCC | Option: Corterra® Solid Surface | ||

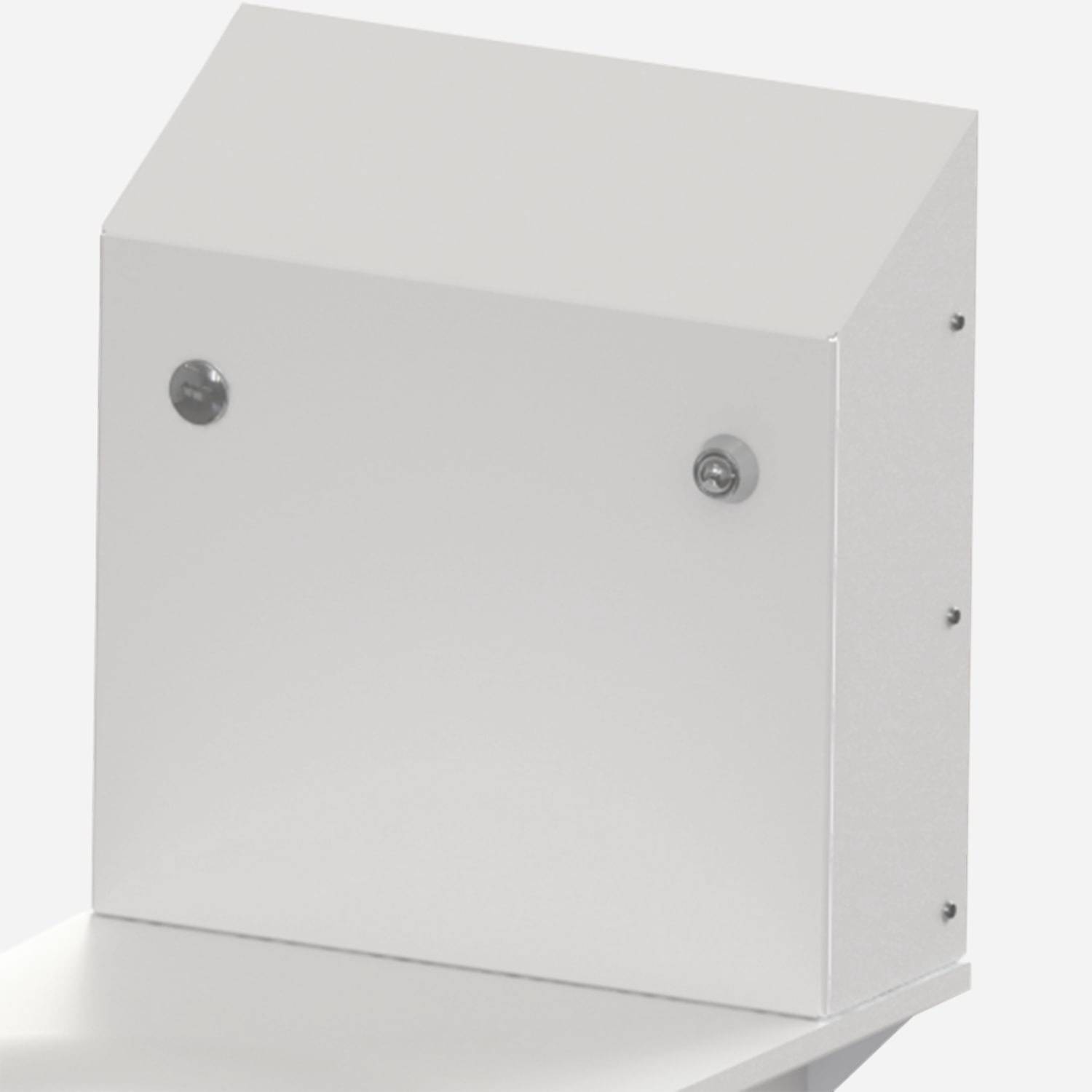

 | WH2802-SLPT-ADA Series | BestCare® Ligature-Resistant Box with Hydraulic Flush Valve for Top Supply ADA Toilet |
Models
Typical models are shown below
WH2135ADA-T-2 Top Supply, Wall Waste specify 3-1/2" to 7-1/2" from finished floor [install manual]
WH2135ADA-T-3 Top Supply, Floor Waste specify 4-1/4" to 12-1/2" from finished wall [install manual]
