Name: BestCare® Ligature-Resistant Toilet, Top Supply
Brand: Whitehall Manufacturing
SKU: WH2142-T Series

Model WH2142-T Series

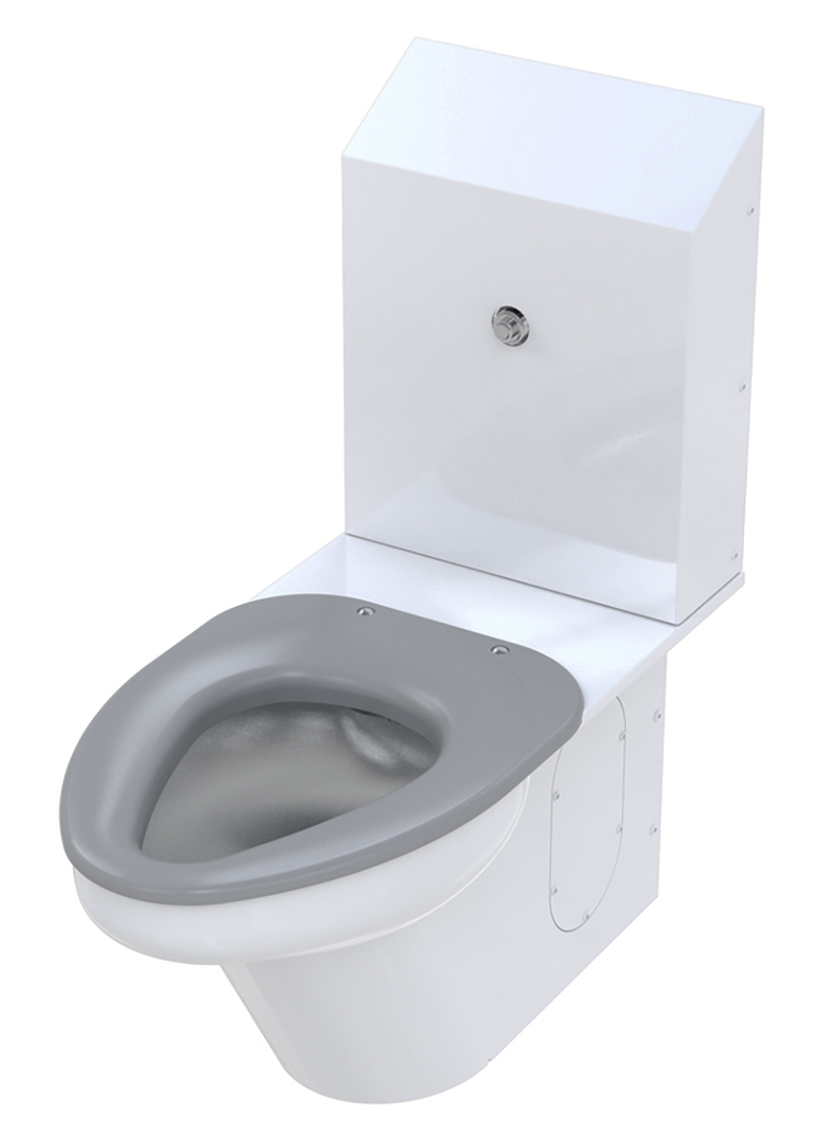

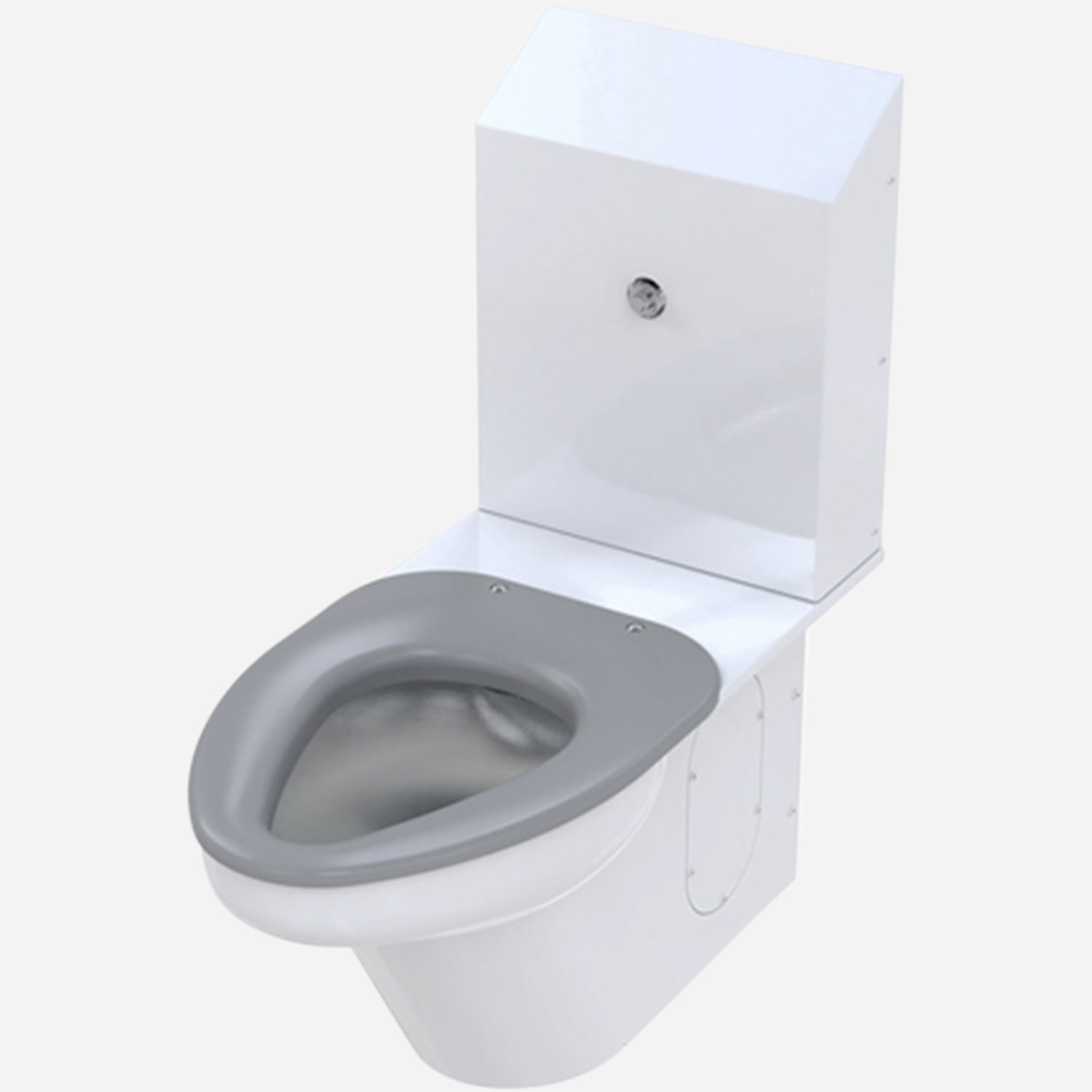

BestCare® Ligature-Resistant Toilet, Top Supply

NOTE: The toilets are supported on the floor and bolted to a reinforced wall. The fixtures are not intended for use with toilet carriers. Contact the factory when in-wall carrier support exists.

This siphon-jet type toilet with an elongated bowl is configured for a front mount and on-floor installation. It is fabricated from 16 gauge 304 stainless steel with exterior surfaces powder-coated white (the interior of the toilet will have a satin finish and will not be powder coated).

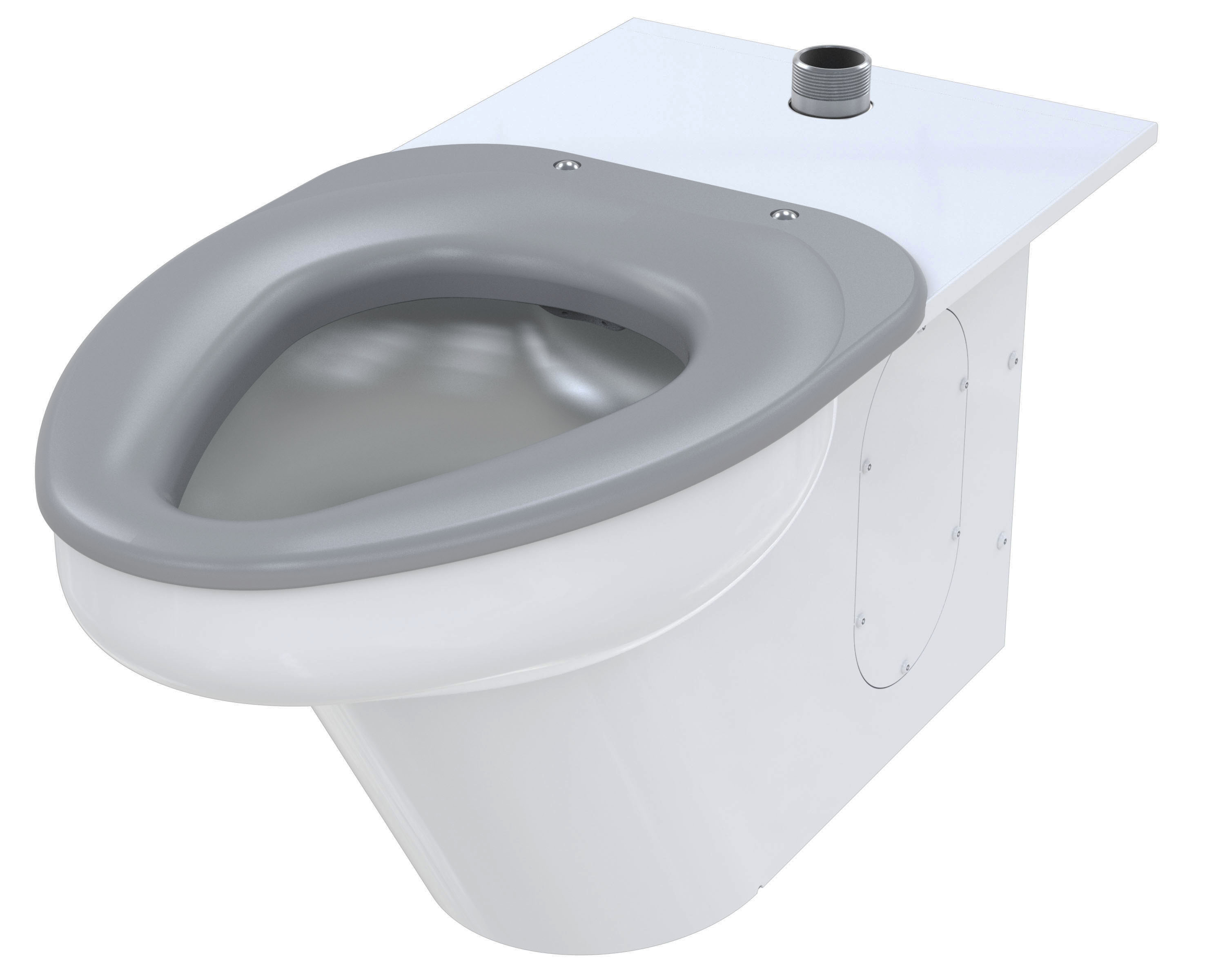

The toilet is configured with a top spud to accommodate a top supply flush valve. To comply with ligature-resistant needs, a sloped-top flush valve box is available separately.

This toilet is configured for wall/floor waste applications and measures 10" (254 mm) or 12" (305 mm) from the wall. A ligature-resistant ABS grey toilet seat is included.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Images	WH2142 Top Supply with 2803 Flush Cover (hi res jpg)	Top Supply WH2142 Ligature Resistant Toilet with Ligature Resistant Toilet Seat (included) Optional 2802-SLPT Ligature Resistant Flush Valve Box	208 KB
Images	WH2142 Top Supply with Seat (hi res jpg)	Top Supply WH2142 Ligature Resistant Toilet shown with included Ligature Resistant Toilet Seat	317 KB
Installation Instructions	Manual WH2142-2 Wall Waste Toilets (pdf)	BestCare® Ligature-Resistant Toilet, Wall Waste [WH2142-T-2 \| Top Supply; WH2142ADA-T-2 \| ADA Toilet Height, Top Supply; WH2142-W-2 \| Wall Supply; WH2142ADA-W-2 \| ADA Toilet Height, Wall Supply]	569 KB
Submittals	Submittal WH2142-T Series Top Supply Toilet (pdf)	Top Supply Ligature-Resistant Stainless Steel Toilet - Wall Waste (WH2142-T-2) or Floor Waste (WH2142-T-3)	207 KB
Installation Instructions	Manual WH2142-3 Floor Waste Toilets (pdf)	BestCare® Ligature-Resistant Toilet, Floor Waste [WH2142-T-3 \| Top Supply; WH2142ADA-T-3 \| ADA Toilet Height, Top Supply; WH2142-W-3 \| Wall Supply; WH2142ADA-W-3 \| ADA Toilet Height, Wall Supply] includes 10 or 12" Rough-ins	517 KB
Brochures/Flyers	BestCare Solutions Flyer (pdf)	BestCare Solutions Flyer (pdf)	181 KB
Technical Data Sheets	Whitehall Cleaning and Care Guide (pdf)	Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces.	928 KB
Brochures/Flyers	BestCare Ligature-Resistant Brochure (pdf)	BestCare Ligature-Resistant Brochure (pdf)	48 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Drawings	WH2142-T-3-EG10 Toilet (rfa)	BestCare® Ligature-Resistant Toilet, Top Supply [Floor Waste]	880 KB
Drawings	WH2142-T-3-EGE10 Toilet (dwg/zip)	BestCare® Ligature-Resistant Toilet, Top Supply [Floor Waste]	443 KB
Videos	Behavioral Healthcare Webinar (video)	Vice President Kristin Kahle and National Sales Manager (Healthcare) Steve McIntosh discuss the importance of universal ligature resistant design within behavioral healthcare facilities.	134 KB
Videos	How to install a BestCare® toilet seat (video)	How to install a BestCare® toilet seat (video)	132 KB
Videos	Overview of Whitehall's BestCare® Ligature-Resistant Toilets (video)	Overview of Whitehall's BestCare® Ligature-Resistant Toilets (video)	135 KB
Videos	How to remove and clean a ligature resistant toilet seat (video)	How to remove and clean a ligature resistant toilet seat (video)	138 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Material	Stainless Steel
Material Details	White powder coating
Type of Mount	Wall Mount
Brand	BestCare®
Waste Location	Floor 10" Rough-in, Floor 12" Rough-in, Wall
Toilet Seat	Non-Lifting Ligature Resistant Grey ABS Plastic Toilet Seat Cover (included with toilet)
Valve Type	Top Supply - requires ligature-resistant cover for flush valve
Features	Ligature-Resistant Design, Requires 25 psi commercial water supply
Fixture Width	14.75"
Patent	10,052,000 B2
Compliances	NY State Office of Mental Health, UPC®, WaterSense Certified by IAPMO R&T
CSI Divisions	Division 22

Options

Miscellaneous

	Image	Model	Description	Downloads
		WH-LRSC Series	BestCare® Ligature-Resistant Toilet Seat Cover
		WH2802-SLPT Toilet Series	BestCare® Ligature-Resistant Box with Flush Valve for Top Supply Toilet

Models

All standard toilets in this series are Ligature-Resistant, Stainless Steel, Siphon Jet Type, Top Supply (Top Inlet Spud), the exterior of the toilet is powder-coated Enviro-Glaze® Snow White (toilet bowl is left satin finish stainless steel); A ligature-resistant cover for the flush valve is required.

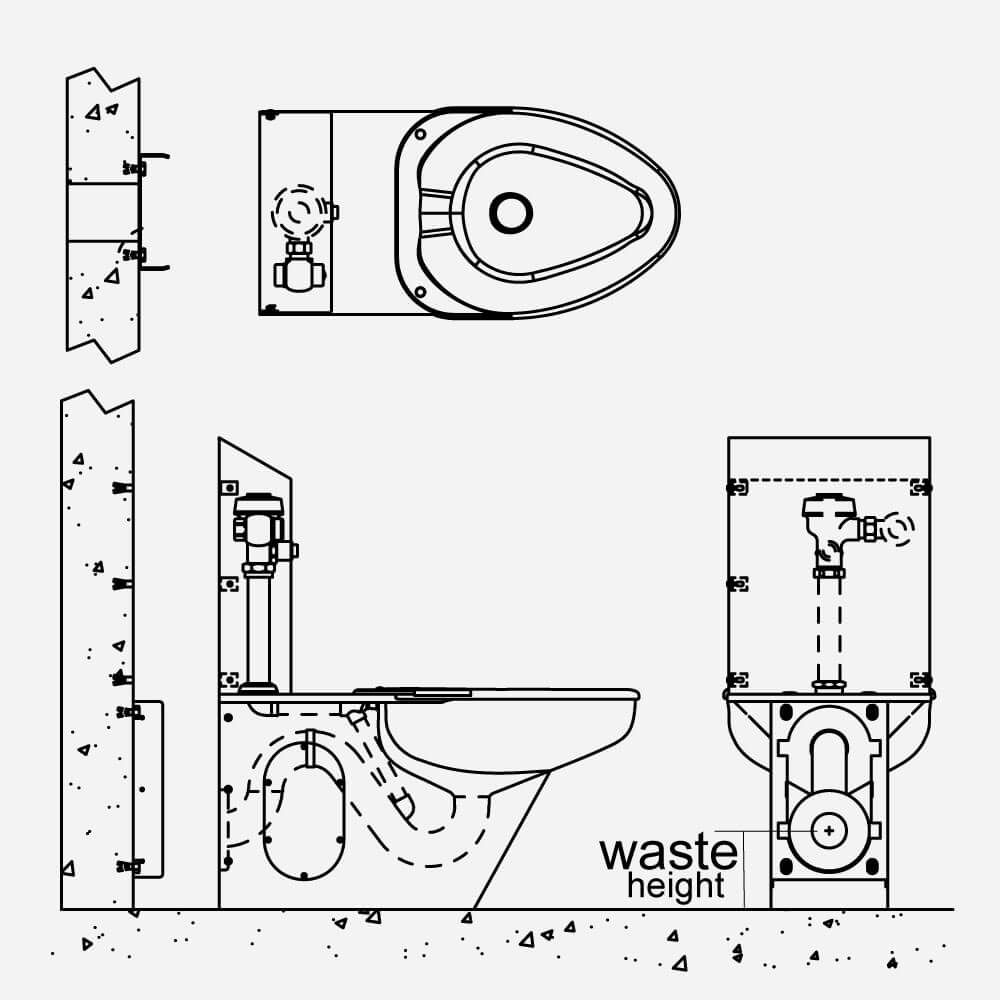

WH2142-T-2-EGE10[IN STOCK] SKU WH2142-T-0021 Wall Waste Outlet [ install guide]

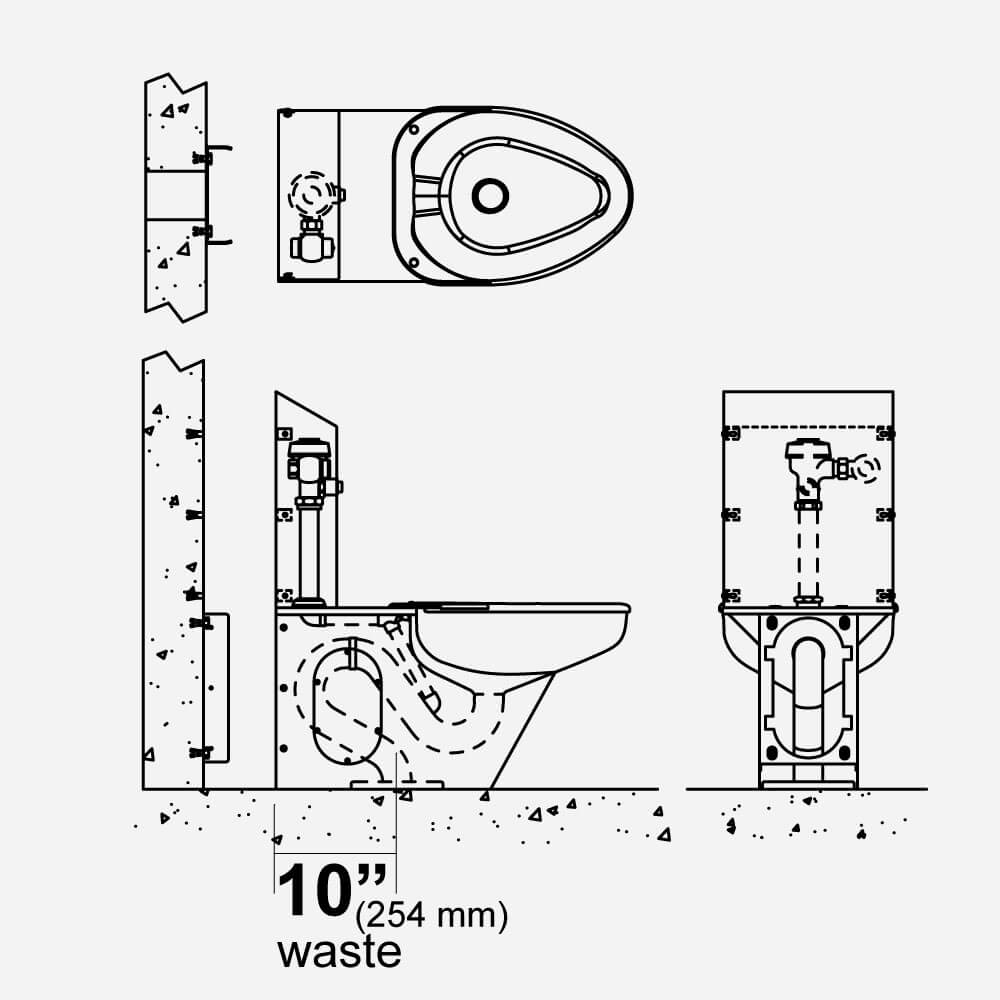

WH2142-T-3-EGE10_10[IN STOCK] SKU WH2142-T-0023 Floor Waste Outlet, 10" (254 mm) rough-in from the back wall to the center of the waste outlet [ install guide]

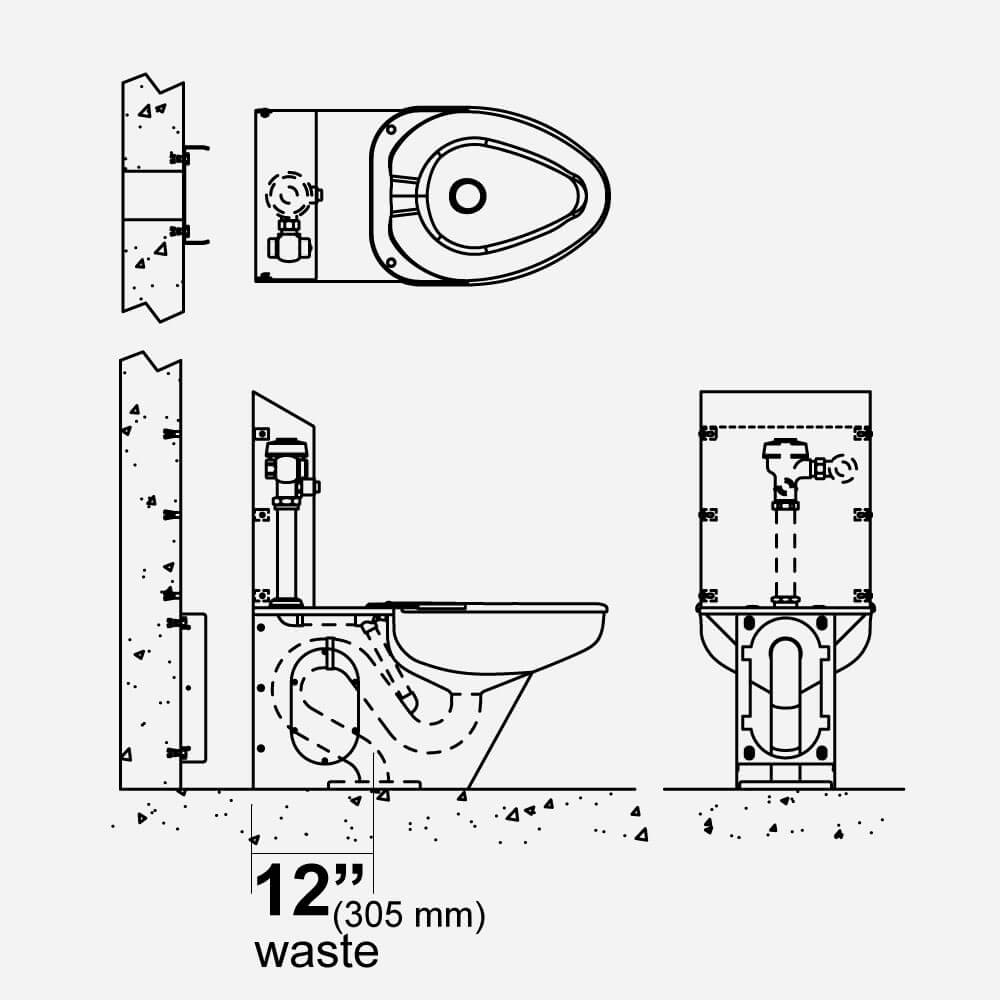

WH2142-T-3-EGE10_12[IN STOCK] SKU WH2142-T-0024 Floor Waste Outlet, 12” (305 mm) rough-in from back wall to the center of the waste outlet [ install guide]

OTHER

WH2142-T-2-EG10_5.5[IN STOCK] SKU WH2142-T-0001 Wall Waste Outlet; All exterior powder coated Enviro-Glaze® Snow White (including bowl) [ install guide] WH2142-T-3-EG10_10[IN STOCK] SKU WH2142-T-0003 Floor Waste Outlet, 10" (254 mm) rough-in from back wall to the center of the waste outlet; All exterior powder coated Enviro-Glaze® Snow White (including bowl) [ install guide] Units with other finishes can be manufactured including all-stainless steel.
