BestCare® Ligature-Resistant ADA Compliant Replacement Toilet
NOTE: The toilet is supported on the floor and bolted to a reinforced wall. For an ADA-compatible replacement of a wall-hung toilet that was previously installed with a Four-Bolt Mounting Carrier Support, see WHRC2142ADA Series Toilet.

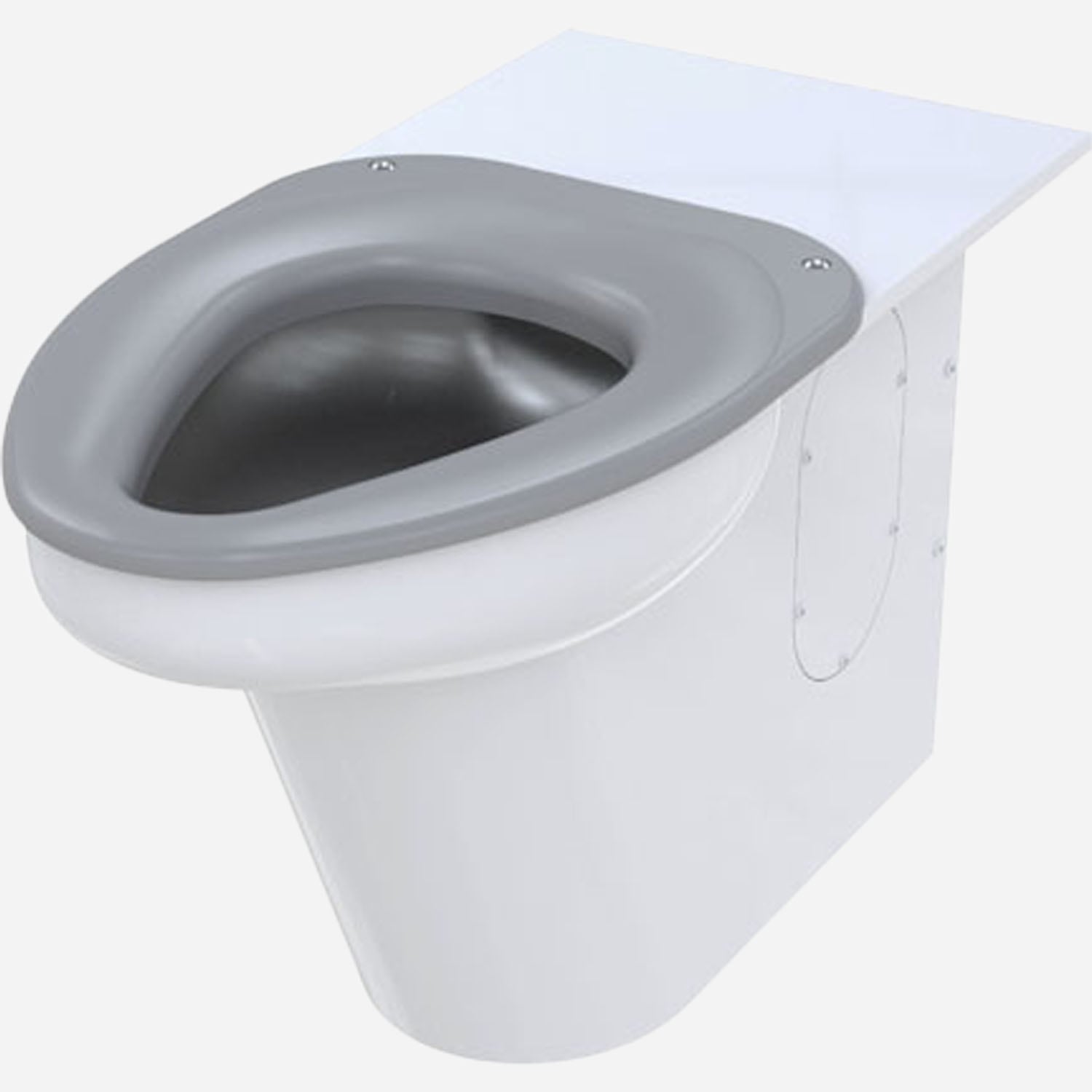

This stainless steel Siphon Jet toilet is designed with winged sides. This deters the toilet from being utilized as a ligature device. The toilet is also designed for accessible design, compliant with ADA 2010, ASME A112.19.3, and CSA B45.4. The toilet is mounted, from the front, against the wall on the floor.

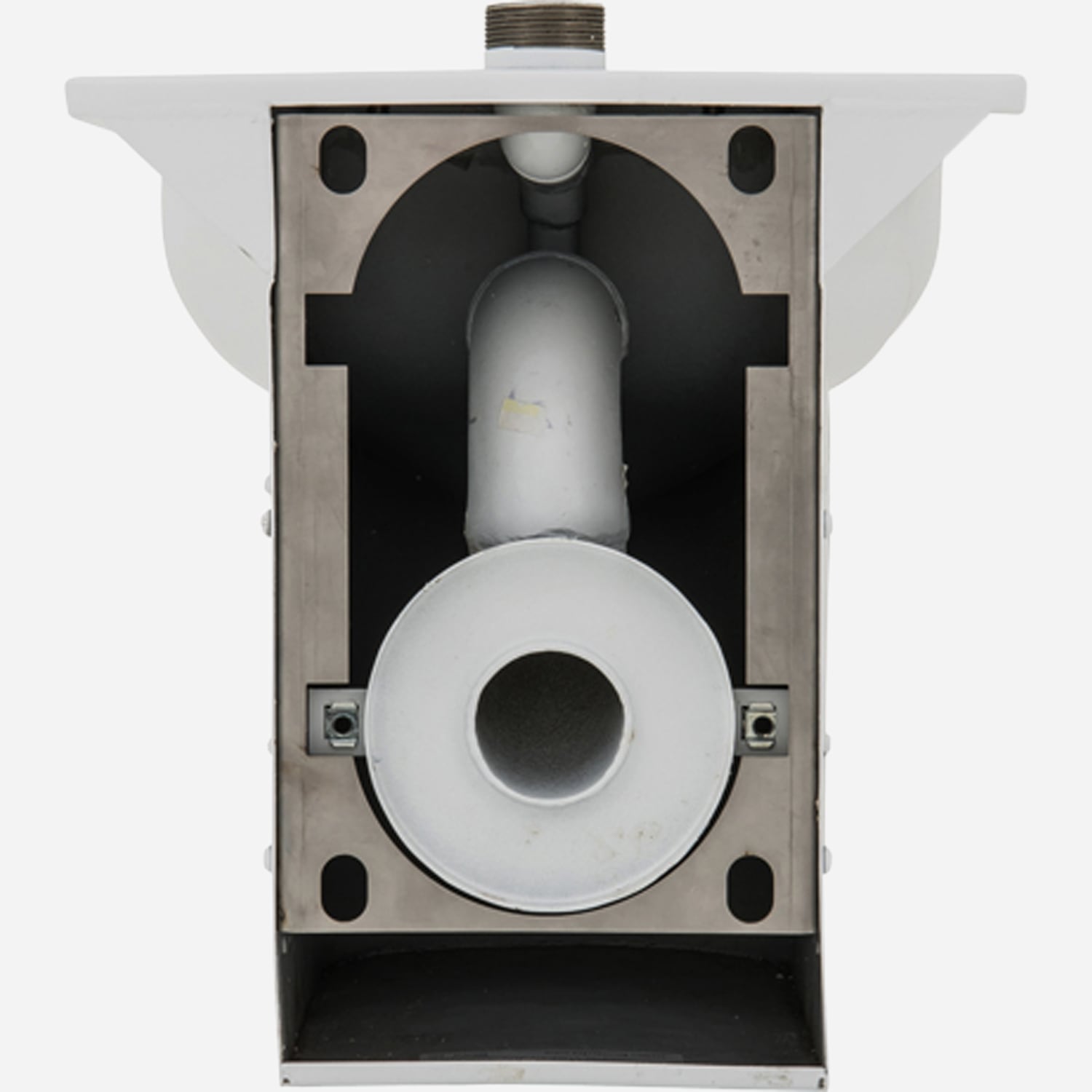

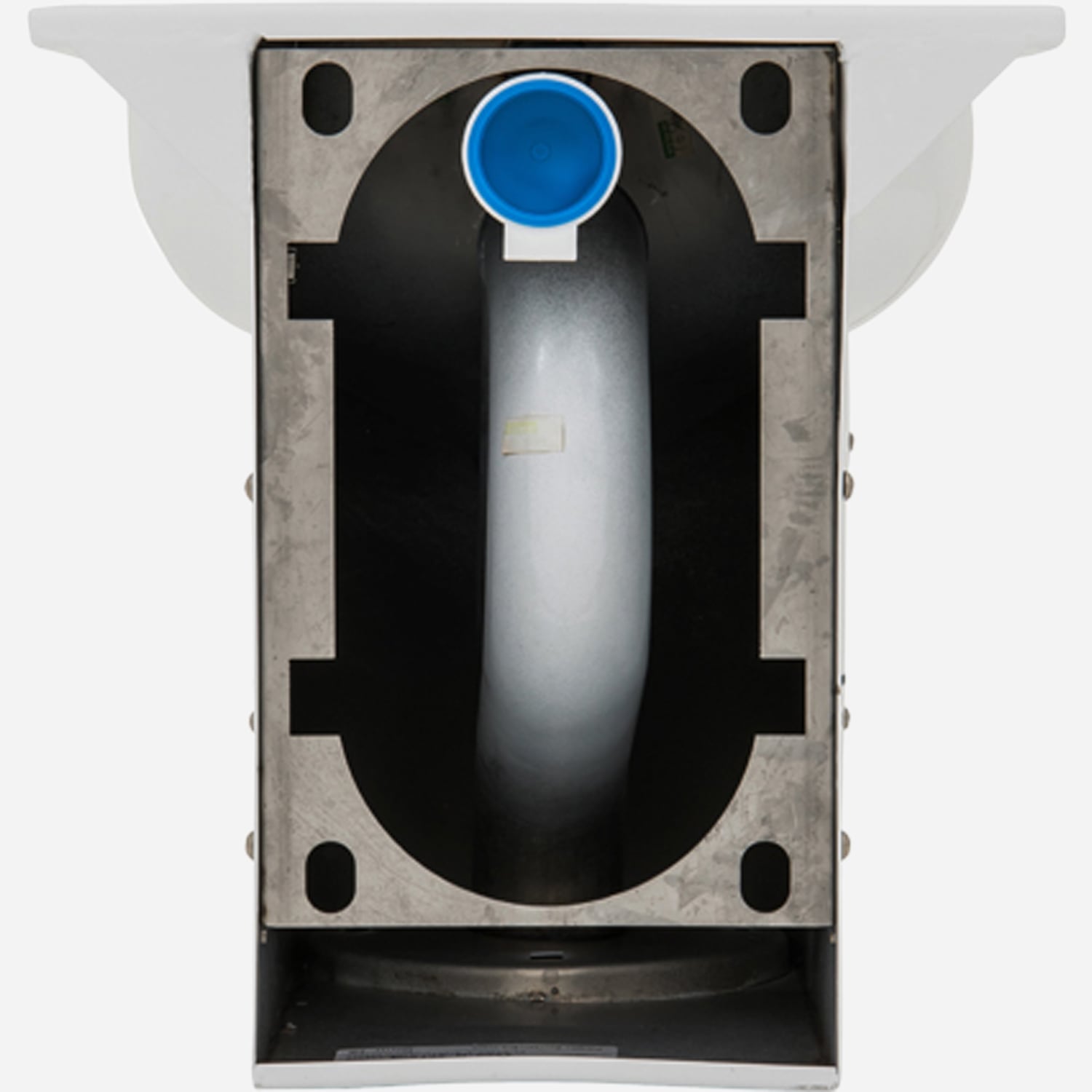

The waste is evacuated behind the toilet into waste plumbing behind the wall or in the floor under the toilet with a floor rough-in. The customer must specify rough-in dimensions.

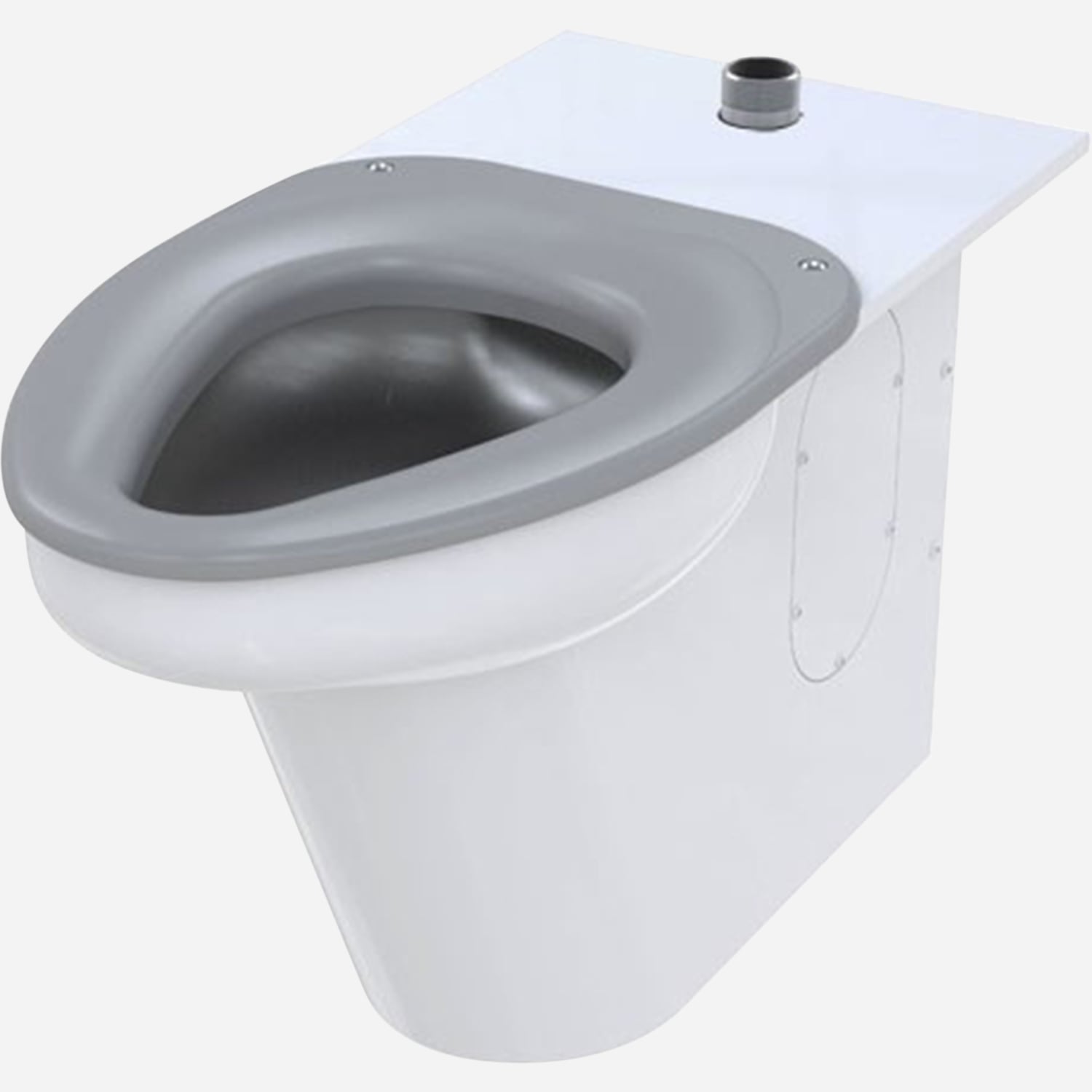

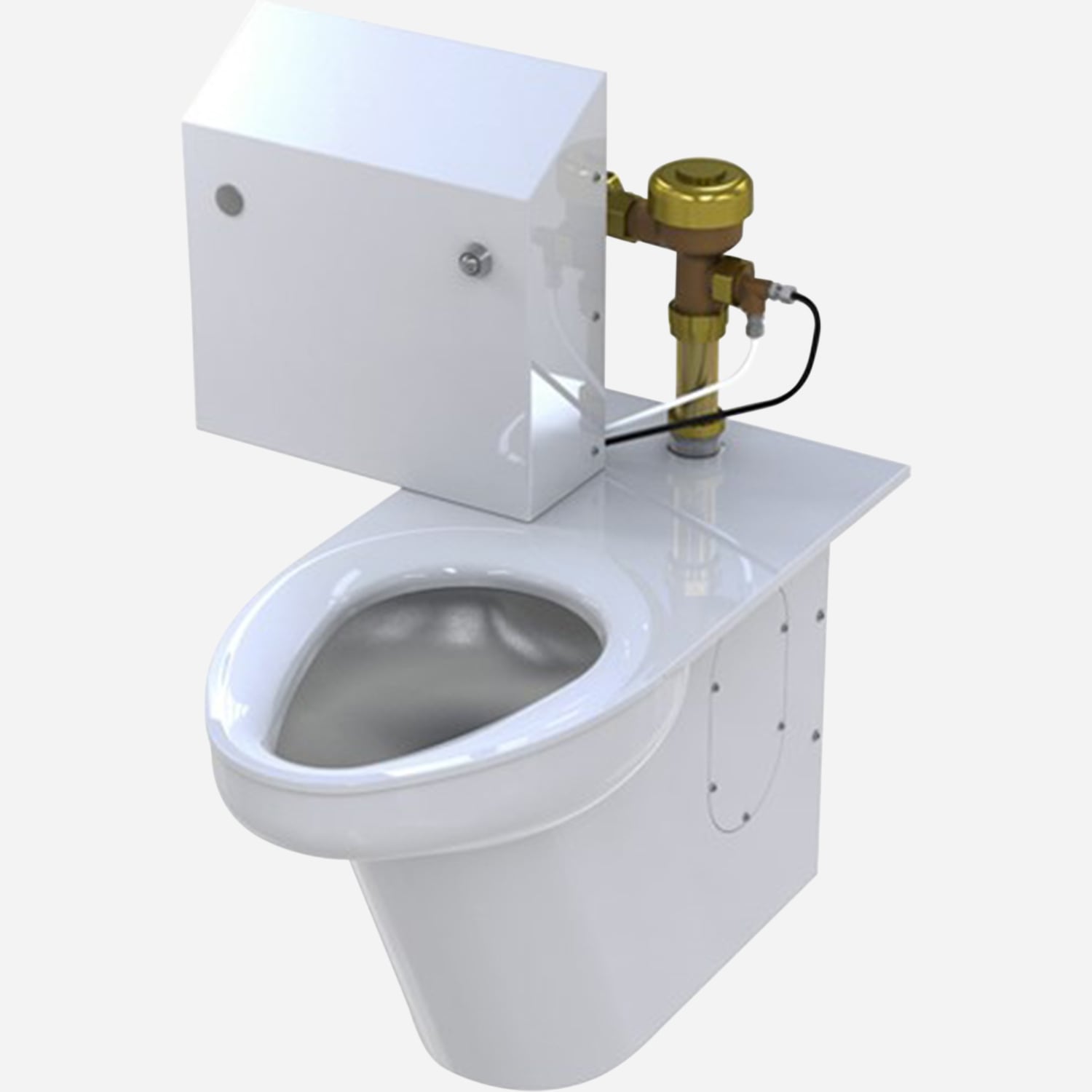

The toilet can be specified with a top spud where an ADA-compliant hydraulic Top Supply Flush Valve can be installed. A ligature-resistant cover is available separately.

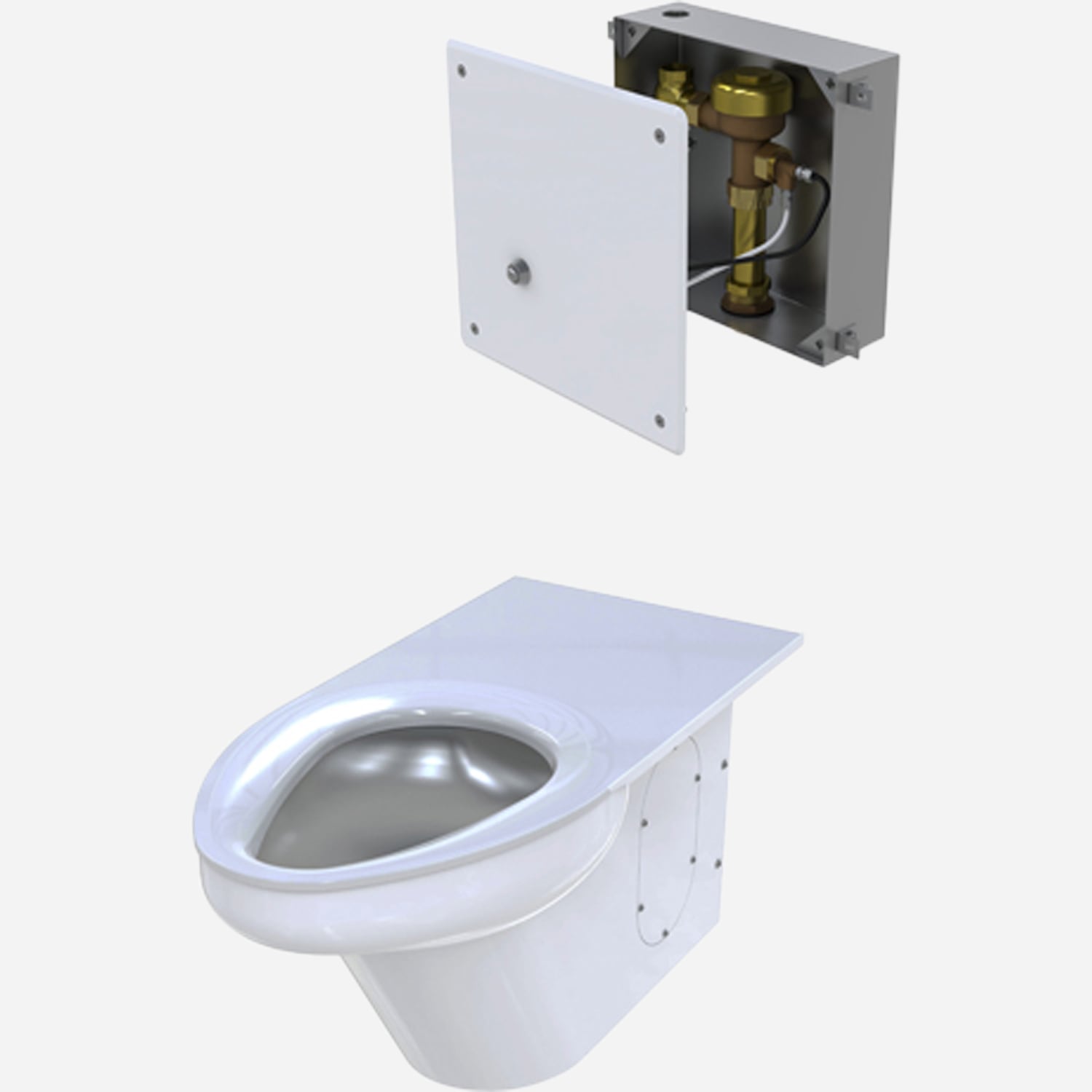

The toilet can also be specified with a rear spud where a wall supply flush valve must be installed. An ADA-compliant hydraulic Wall Supply Flush Valve in a Ligature Resistant cover is available separately.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare® Ligature-Resistant Replacement On-Floor, Wall Waste Toilet- toilet is supported on the floor and bolted to a reinforced wall [WHR2142-W-2 | Wall Supply; WHR2142ADA-W-2 | ADA Wall Supply; WHR2142-T-2 | Top Supply; WHR2142ADA-T-2 | ADA Top Supply] | 0 | 569 KB | ||
| | Replacement ADA Compliant Ligature Resistant Stainless Steel Toilet WHR2142ADA | 0 | 317 KB | ||
| | BestCare® Ligature-Resistant Replacement On-Floor, Floor Waste Toilet- toilet is supported on the floor and bolted to reinforced wall [WHR2142-W-3 | Wall Supply; WHR2142ADA-W-3 | ADA Wall Supply; WHR2142-T-3 | Top Supply; WHR2142ADA-T-3 | ADA Top Supply] | 0 | 522 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | BestCare Solutions Flyer (pdf) | 0 | 181 KB | ||
 | | Top Supply, ADA Compliant WH2142 Ligature Resistant Toilet with included Ligature Resistant Toilet Seat | 0 | 294 KB | ||
 | | How to install a BestCare® toilet seat (video) | 0 | 132 KB | ||
| | How to remove and clean a ligature resistant toilet seat (video) | 0 | 138 KB |
Specifications
| Brand | BestCare® |
| Material | Stainless Steel |
| Material Details | White powder coating |
| Type of Mount | Wall Mount |
| Fixture Width | 14.75" |
| Features | Ligature-Resistant Design, Requires 25 psi commercial water supply, ADA compliant seat height |
| Toilet Seat | Non-Lifting Ligature Resistant Grey ABS Plastic Toilet Seat Cover (included with toilet) |
| Valve Type | Top Supply - requires ligature-resistant cover for flush valve, Wall Supply - typically concealed in wall |
| Appropriate for | Retrofit, Ligature Resistant |
| Waste Location | Floor, Wall |
| Accessibility | ADA Compliant |
| Patent | 10,052,000 B2 |
| CSI Divisions | Division 22 |
Models
All toilets in this series are Ligature-Resistant, Stainless Steel, ADA Seat Height, Siphon Jet Type, the exterior of the toilet is powder coated Enviro-Glaze® Snow White (toilet bowl is left satin finish stainless steel); A ligature-resistant cover for flush valve is required for Top Supply Toilets.

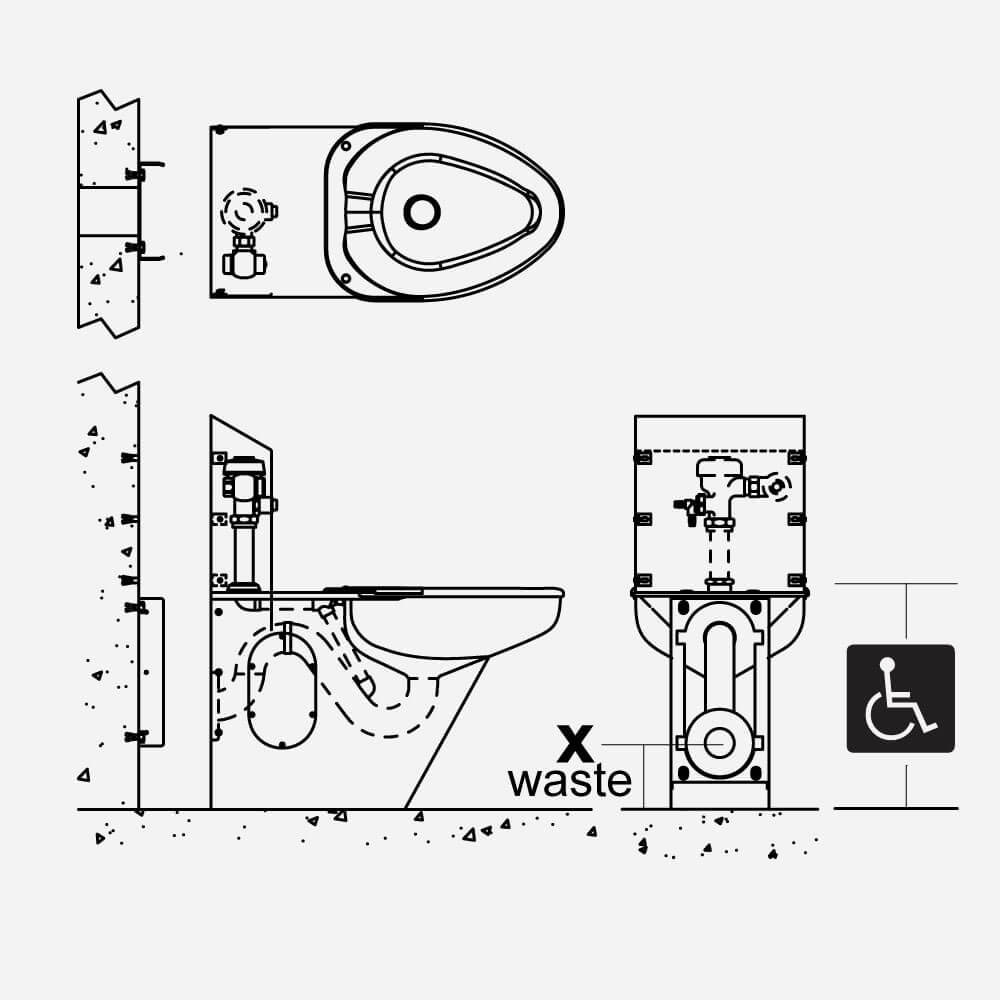

WHR2142-ADA-T-2-EGE10 Replacement ADA Toilet, Top Supply, Wall Waste Specify the vertical distance of the existing wall waste from the floor [ install guide]

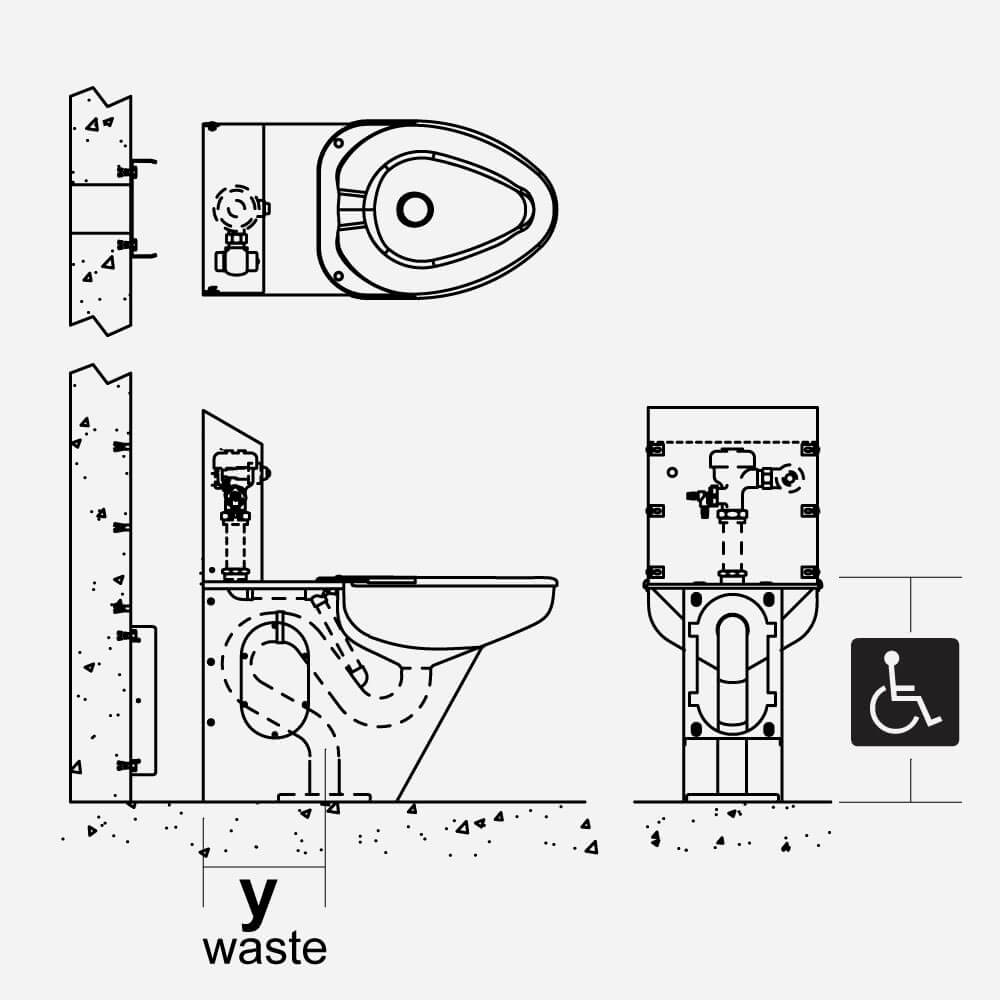

WHR2142-ADA-T-3-EGE10 Replacement ADA Toilet, Top Supply, Floor Waste Specify the horizontal distance of the existing floor waste to the back wall [ install guide]

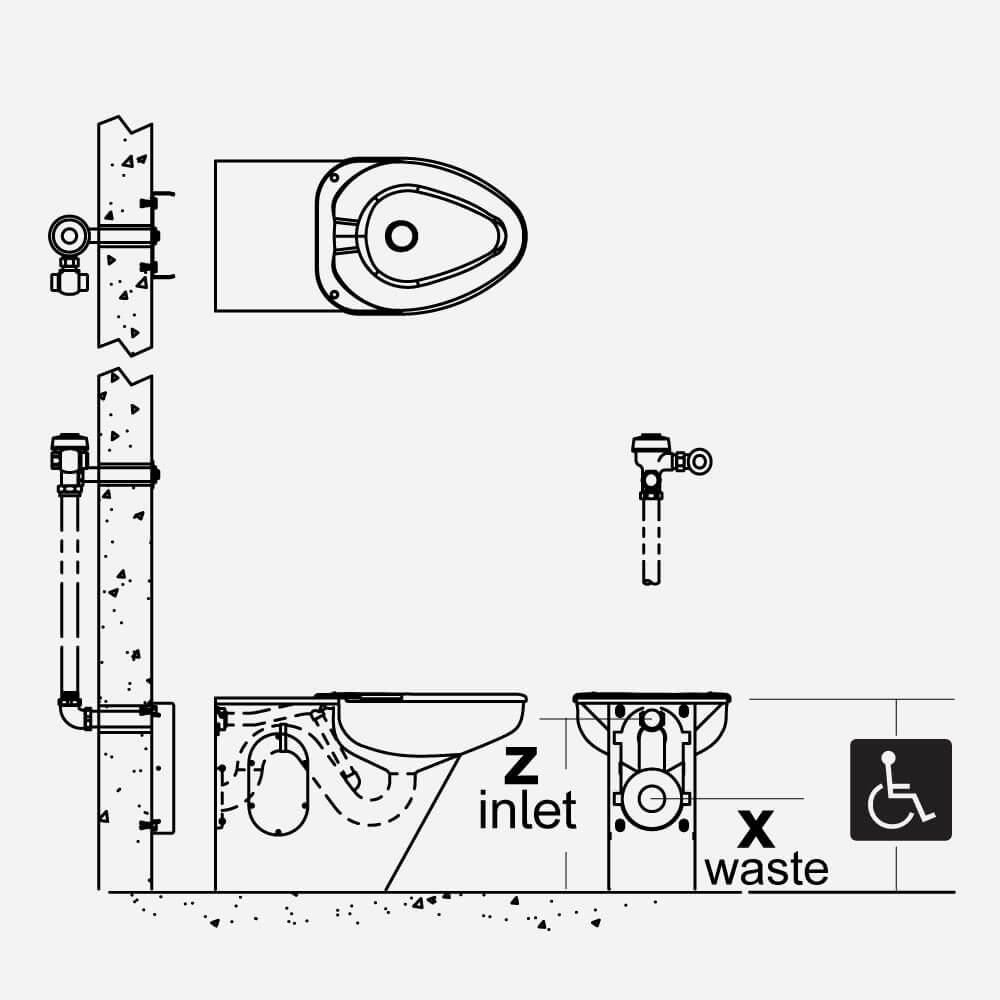

WHR2142-ADA-W-2-EGE10 Replacement ADA Toilet, Wall Supply, Wall Waste Specify the vertical distance of the existing wall supply to the floor and the vertical distance of the existing wall waste to the floor [ install guide]

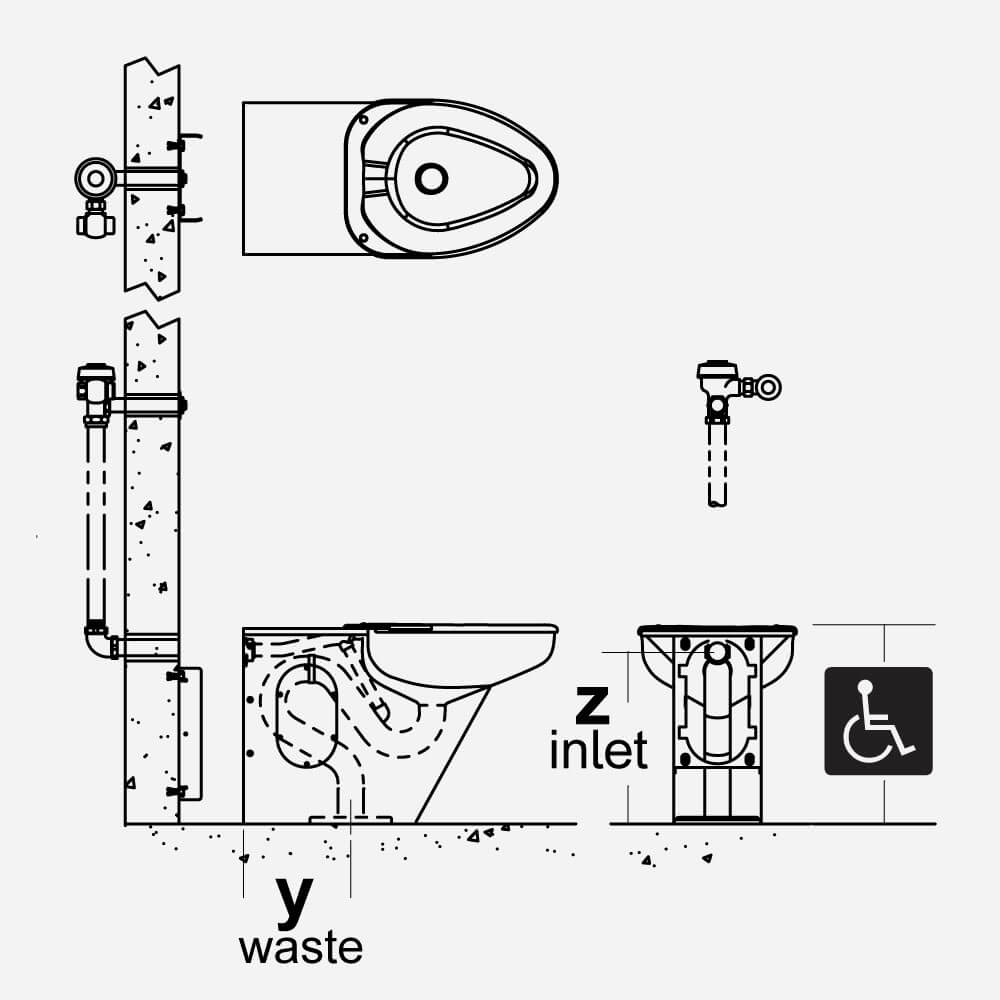

WHR2142-ADA-W-3-EGE10 Replacement ADA Toilet, Wall Supply, Floor Waste Specify the vertical distance of the existing wall supply to the floor and the horizontal distance of the existing floor waste to the back wall [ install guide]
Units with other finishes can be manufactured including all-stainless steel.
